EPCOM TITANIUM
Transceiver Kit (Baluns) with SCREW TYPE TERMINALS, 4K Resolution, Shielded COAXIAL Flexible Cable / COAXITRON / AUDIO BY COAXITRON / OSD Menu / 100% COPPER Connector / PREMIUM Quality
Transceiver Kit (Baluns) with SCREW TYPE TERMINALS, 4K Resolution, Shielded COAXIAL Flexible Cable / COAXITRON / AUDIO BY COAXITRON / OSD Menu / 100% COPPER Connector / PREMIUM Quality
Couldn't load pickup availability
Transceiver Kit (Baluns) with SCREW TYPE TERMINALS, 4K Resolution, Shielded COAXIAL Flexible Cable / COAXITRON / AUDIO BY COAXITRON / OSD Menu / 100% COPPER Connector / PREMIUM Quality
TT101FTURBOS

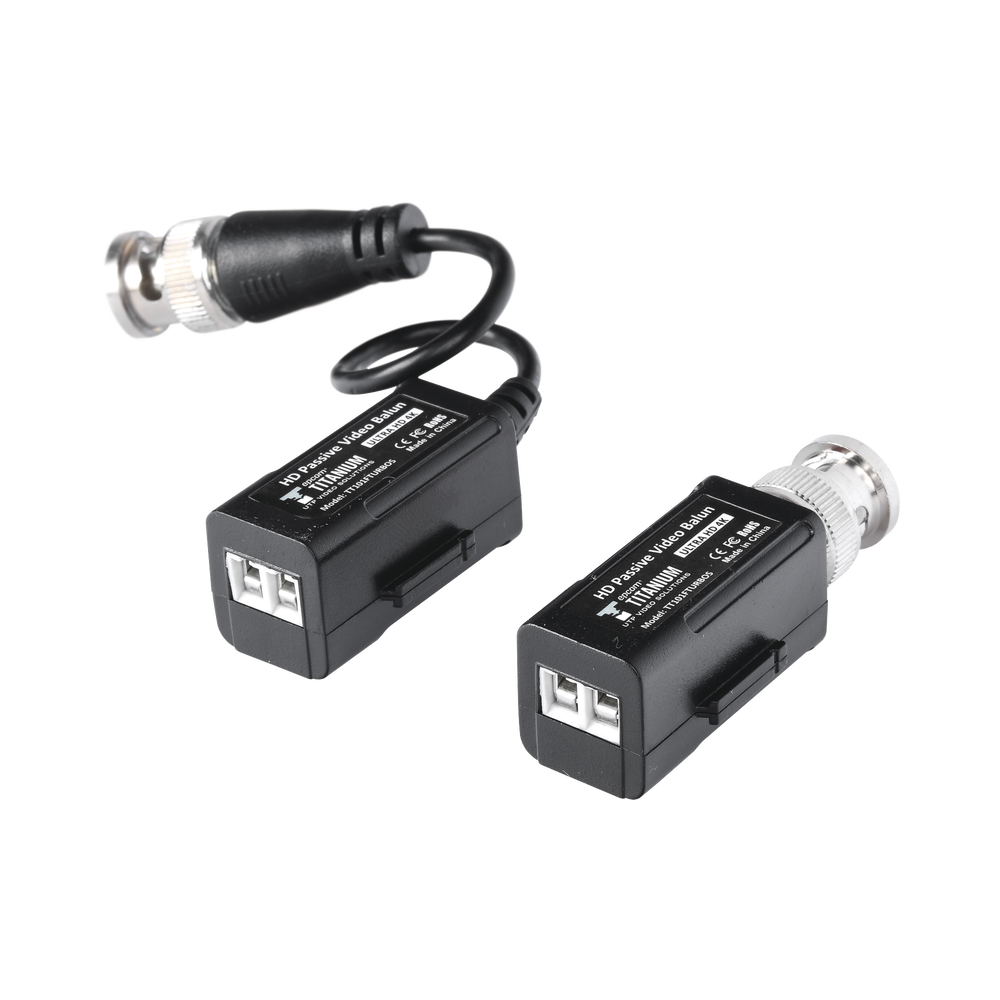

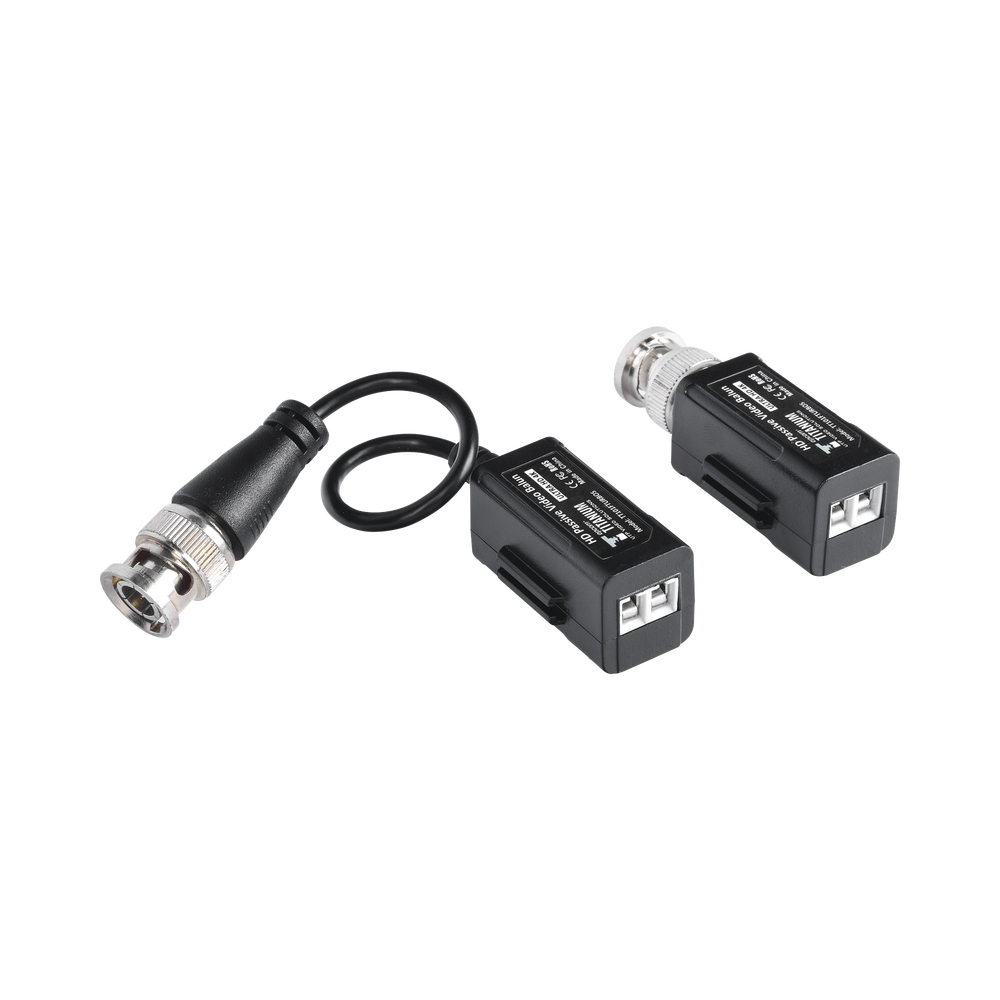

Passive Video Transceiver Kit (Balum)
The TT-101-FTURBOS video balun is a passive device that allows the transmission of HD CCTV video signals in real time through a twisted pair cable, it has copper connectors that offer greater conductivity, better performance at high frequencies (HD video and long distances) and much lower attenuation, some of the main advantages of this equipment is that it has a built-in solid state TVS (transient voltage suppressor) for surge protection, it is antistatic, offers Grade 3 lightning protection, 60 dB noise and crosstalk immunity and exceptional interference rejection. It is compatible with all HD-TVI / CVI / AHD / CVBS analog cameras and widely used in CCTV cameras, monitors, DVRs, switchers, IP encoders and other CCTV equipment. It has screw-type terminals and one of the transceivers with pigtail (PIG TAIL) for easy connection to the DVR. Definitely premium equipment, the competition does not offer as much in their products.
Main Features:
- Passive transceiver kit with screw terminals.
- Compatible with cameras with HD-TVI / HD-CVI / AHD / CVBS technology
- Compatible with analog cameras (CVBS)
- Supports Coaxitron, Coaxitron Audio and OSD menu
- Real-time transmission over UTP cat 5e/6/6A/7 cable
- Anti-static wave filter design
- Supported video formats NTSC, PAL, SECAM
- Impedance 75 ohms
- BNC male connectors
Physical and Electrical Characteristics:
- They do not require feeding
- Dimensions 42.4(L) x 17.8(W) x 17.4(H) mm (excluding BNC connector)
- Weight: 40 grams.
- Operating temperature: -20°C to 70°C
- Storage temperature: -40° ~ 150°C
- Relative Humidity: 0~95% (non-condensing)
- ABS housing
- Black color.
- 1 year warranty against manufacturing defects
Highlighted Features:
- Noise and crosstalk immunity of 60 dB.
- Exceptional interference rejection
- Built-in surge protection
- Built-in solid-state TVS (transient voltage suppressor).
- 150 meter (492 ft) transmission for TurboHD in 4K
- 200 meter (656 ft) transmission for TurboHD up to 5 MP
- 250 meter (820 ft) transmission for TurboHD up to 2 MP
- Price per Kit.
- Essential for your CCTV system
Out of stock
MODELO: TT-101-F-TURBO-S
