• OLT de 16 puertos GPON, hasta 2048 ONUs, 4 puertos combo (RJ45 + SFP) Gigabit + 2 puertos SFP+ 10GbE, 2 fuentes AC (incluidas)
1 1

TP-LINK

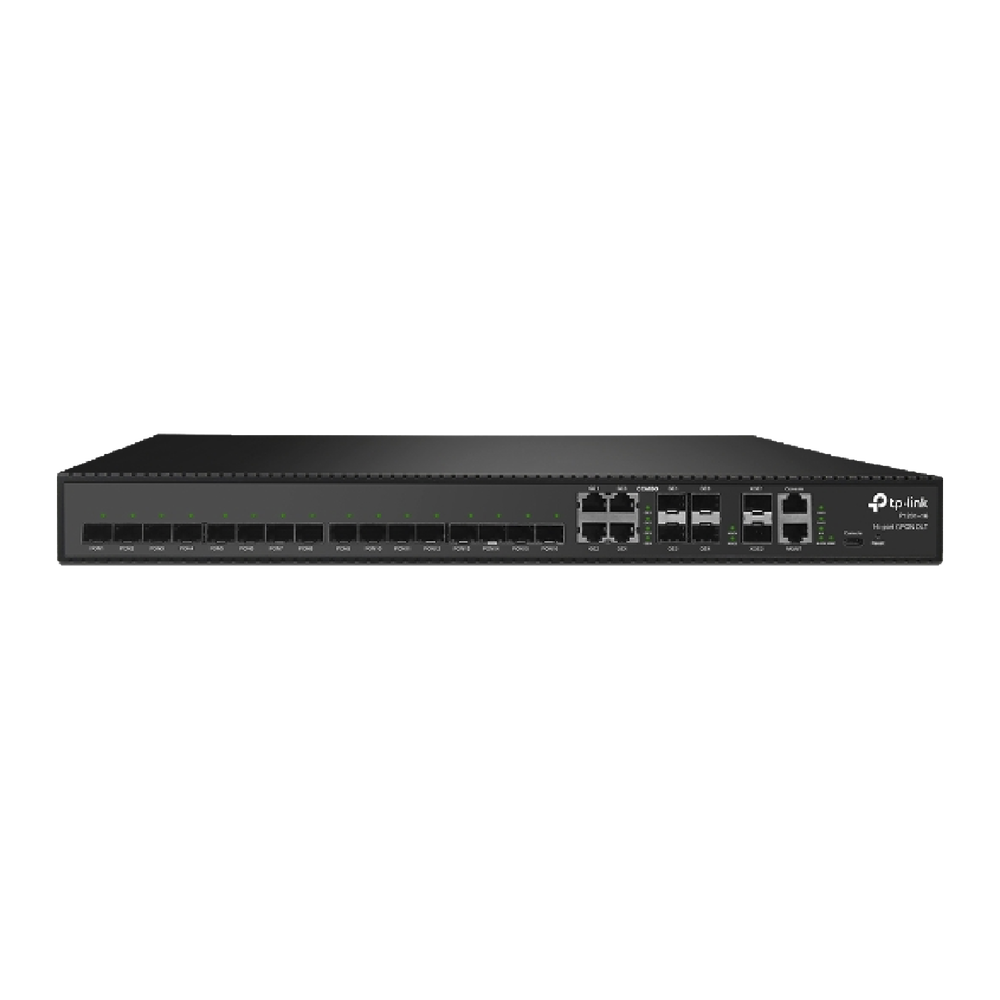

16-port GPON OLT, up to 2048 ONUs, 4 Gigabit combo ports (RJ45 + SFP) + 2 SFP+ 10GbE ports, 2 AC power supplies (included)

16-port GPON OLT, up to 2048 ONUs, 4 Gigabit combo ports (RJ45 + SFP) + 2 SFP+ 10GbE ports, 2 AC power supplies (included)

$16.607.224 COP
$18.164.151 COP $16.607.224 COP
Sale Sold out
Shipping calculated at checkout.

16-port GPON OLT, up to 2048 ONUs, 4 Gigabit combo ports (RJ45 + SFP) + 2 SFP+ 10GbE ports, 2 AC power supplies (included)

Compact 16-port GPON OLT.

  • The compact design provides more flexibility than the large chassis for medium and small operators.
  • Supports 1:128 split ratio, 2048 ONUs can be supported in one device;
  • Dual redundant power supply design provides carrier-class reliability, supports AC, DC or mixed power input.
  • Complete L2 functions can meet the requirements for different applications.
  • Supports ITU-T G.984.4/G.988 OMCI standard, can manage ONUs remotely.
  • Provides dedicated management console and port for out-of-band management.
  • Supports SNMP, can be managed by TP-Link PON Element Management System.

Ports:
  • Service ports: 16 PON ports.
  • Uplink Ports:
    • 4 10/100/1000Mbps RJ45
    • 4 1000Mbps SFP
    • 2 10G SFP+ (optional)
  • 1 RJ45 console port
  • 1 RJ45 maintenance port
PON Features:
  • Compatible with ITU-T G.984.x, G.988 standards
  • OMCI Standard Management Function
  • Support 1:128 split ratio for each PON port
  • AES 128 encryption support for uplink and downlink data transmission DBA algorithm, supports 5 types of DBA Support 128 DBA profiles
  • Downstream: 2.5Gbps
  • Upstream: 1.25Gbps
  • ONU Authentication
  • Transmission distance up to 20 KM
Physical and electrical characteristics:
  • Dual power supply
  • Supports AC, DC, AC+DC power input
  • Power consumption Max. 70W
  • Weight 4kg
  • Dimensions 440mm (L) * 391mm (W) * 44mm (H)
  • Power Supply: AC: 90V~240V, 50/60Hz
  • DC: -36V ~ -72V
  • Storage temperature: -40 ° C ~ 85 ° C
  • Operating humidity: 5% ~ 90% non-condensing
  • Storage humidity: 5% ~ 90% non-condensing

EMS GPON OLT Software

Free centralized administration.
  • Free of licensing.
  • Improves management efficiency.
  • Reduce maintenance costs.
  • Auto-provisioning profile with TP-Link ONUs.
  • Download the software here.

TP-Link GPON solution for WISP.

Remote management of TP-Link ONUs from the ONT (Zero Configuration).

    Supports dual power supplies: AC/DC (includes 2 AC sources), Hot Swap, License-free management software, Supports auto-provisioning of TP-Link ONUs

Out of stock

MODELO: P120116

View full details
