MIKROTIK
(wAP ac) Simultaneous dual-band Wi-Fi Access Point at 2.4 and 5 GHz, Two Gigabit ports
(wAP ac) Simultaneous dual-band Wi-Fi Access Point at 2.4 and 5 GHz, Two Gigabit ports
Couldn't load pickup availability
(wAP ac) Simultaneous dual-band Wi-Fi Access Point at 2.4 and 5 GHz, Two Gigabit ports

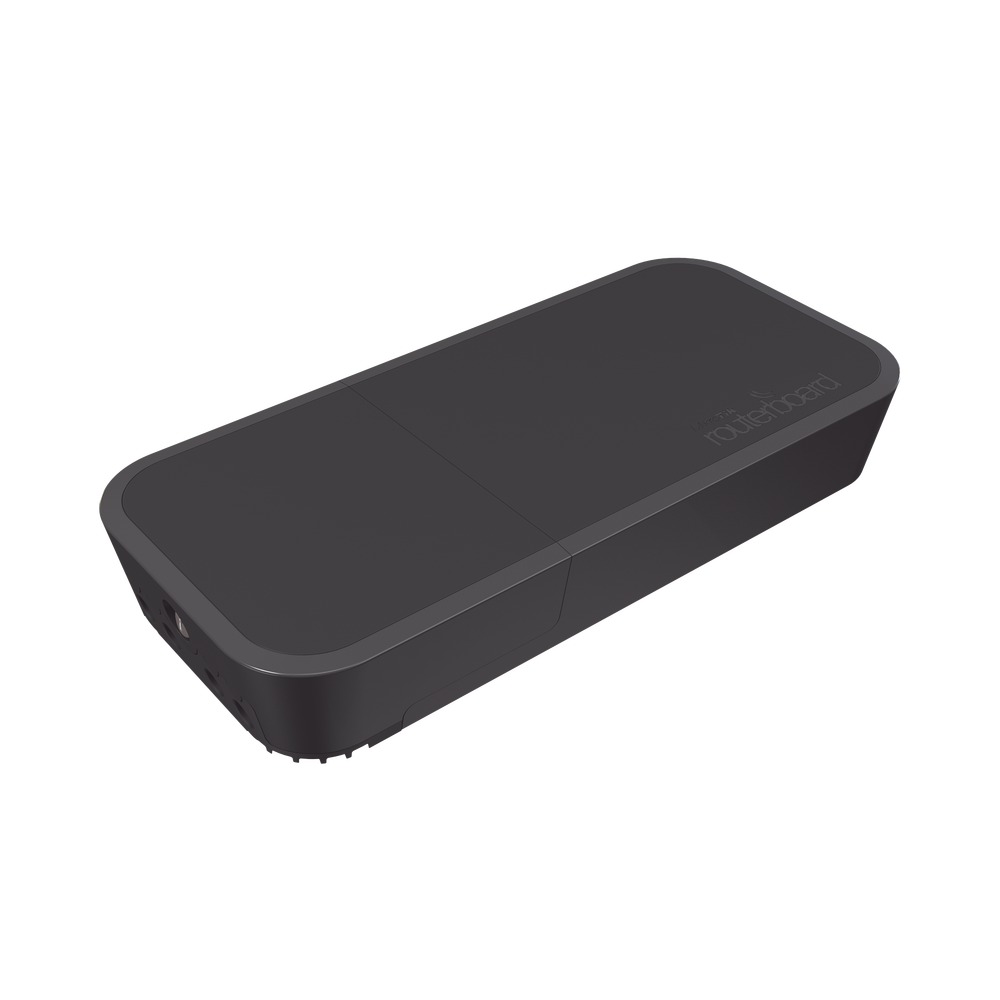

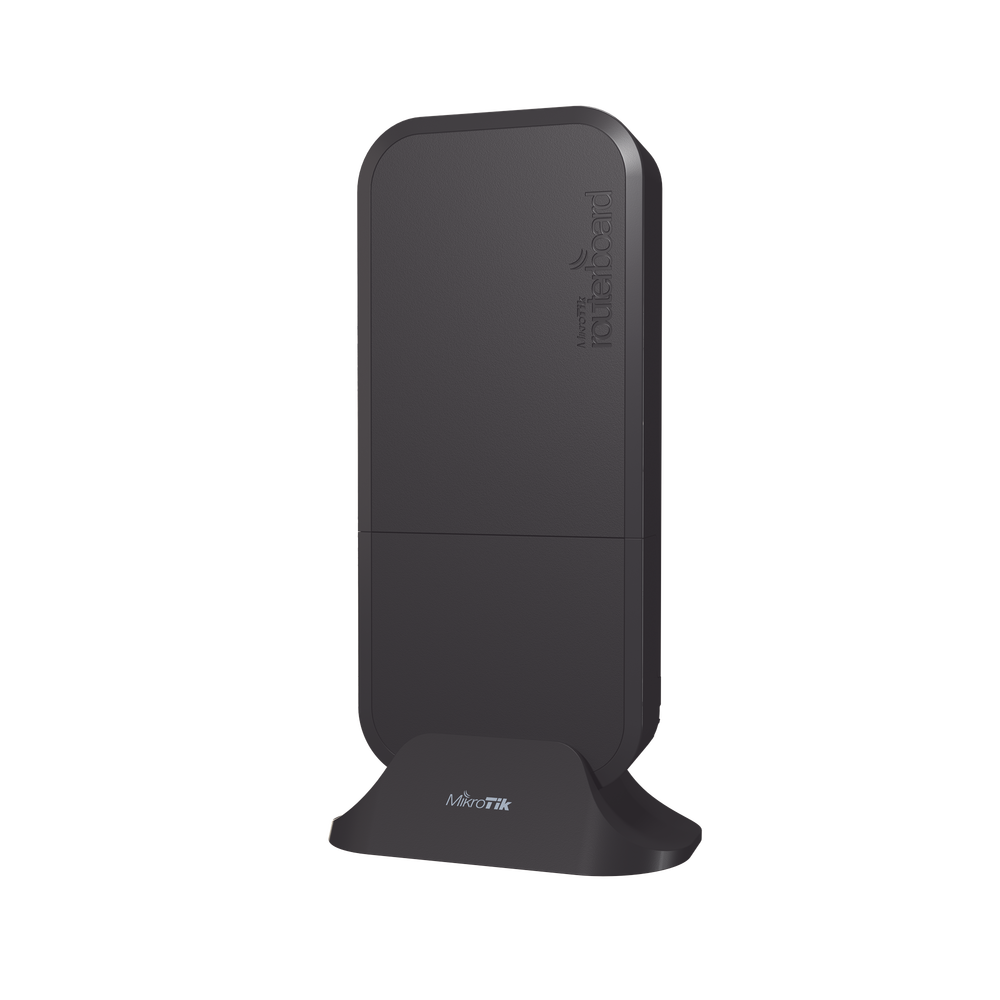

The wAP ac is a small, weatherproof wireless access point for your mobile devices, perfect for installing outside your home, in your garden, on your porch, or anywhere else you need a powerful wireless connection. The new revision includes two Gigabit Ethernet ports, improved wireless antenna performance, more RAM, and a powerful quad-core CPU.
Powerful dual-band 2.4/5 GHz wireless technology for simultaneous coverage will solve most interference problems in a crowded environment. This is a must-have these days! You can use the 2.4 GHz channel for older devices and the 5 GHz channel for everything else, as this frequency is less congested.
The wAP AC is weatherproof and can be attached to any external wall from the inside of the enclosure, for added security and less visible accessories. The bottom can also be secured with a special anti-vandal screw, which can only be opened by the owner.

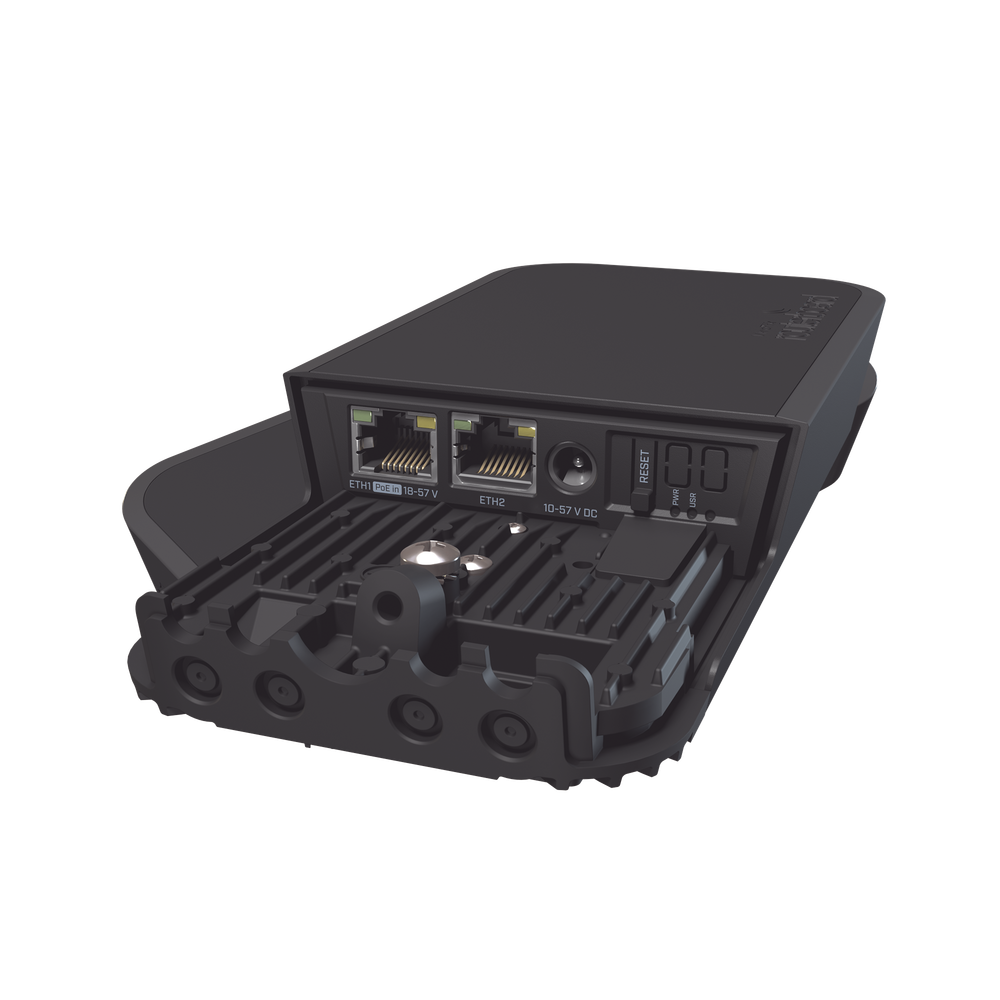

There's an opening on the back of the box, allowing you to route the Ethernet cable directly behind the unit and through the wall. This way, the wAP ac draws less attention and blends into any environment. It looks discreet and elegant, available in two colors: black (RBwAPG-5HacD2HnD-BE) and white (RBwAPG-5HacD2HnD).
Specs
Details | |
---|---|
Product code | RBwAPG-5HacD2HnD-BE |
Architecture | ARM 32-bit |
CPU | IPQ-4018 |
CPU core count | 4 |
Nominal CPU frequency | 716 MHz |
Dimensions | 185 x 85 x 30 mm |
RouterOS License | 4 |
RAM size | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100,000 hours at 25C |
Room temperature tested | -40 °C to 70 °C |
IPsec hardware acceleration | Yeah |
Wireless capabilities
Details | |
---|---|
Maximum wireless data rate of 2.4 GHz | 300 Mbit/s |
Number of 2.4 GHz wireless chains | 2 |
2.4 GHz wireless standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 2.5 |
2.4GHz Wireless Chip Model | IPQ-4018 |
2.4 GHz wireless generation | Wi-Fi 4 |
Maximum 5 GHz wireless data rate | 867 Mbit/s |
Number of 5 GHz wireless chains | 2 |
5 GHz Wireless Standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 2.5 |
5GHz Wireless Chip Model | IPQ-4018 |
5 GHz wireless generation | Wi-Fi 5 |
AC speed | AC1200 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 2 |
Feeding
Details | |
---|---|
Number of DC inputs | 2 (DC connector, PoE-IN) |
DC connector input voltage | 10-57 V |
Maximum energy consumption | 10 W |
Maximum power consumption without accessories | 9 W |
Fan count | Passive |
PoE in | 802.3af/at |
PoE in input voltage | 18-57 V |
Certification and approvals
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
IP | IP54 |
Other
Details | |
---|---|
PCB Temperature Monitor | Yeah |
Voltage monitor | Yeah |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive sensitivity |
---|---|---|
1MBit/s | 25 | -100 |
11MBit/s | 25 | -94 |
6MBit/s | 25 | -96 |
54 MBit/s | 19 | -78 |
MCS0 | 25 | -96 |
MCS7 | 18 | -73 |
