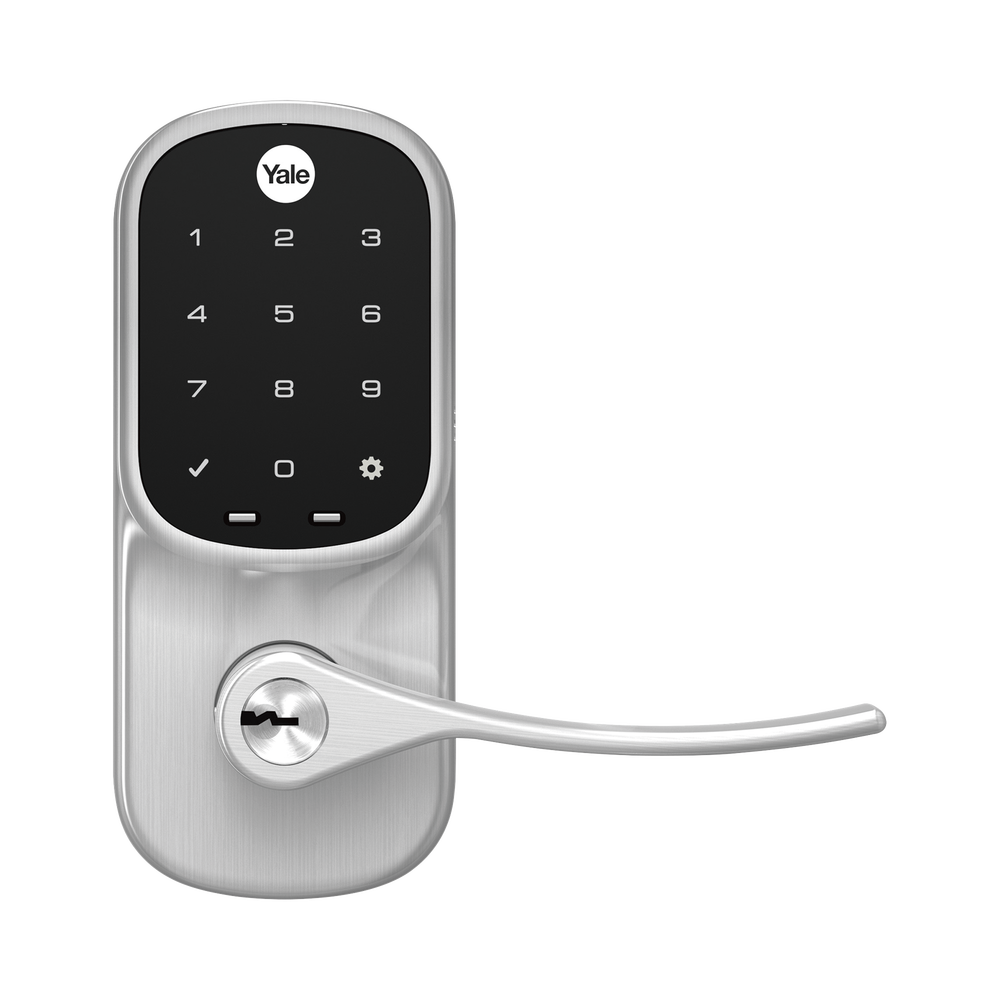

YRL226 Standalone Lock with Touch Keypad and Handle / Optional Smartphone Control / For doors 35 mm to 45 mm thick.

Benefits:

• Automatic closing, 30 seconds after opening.
• Interior indicator light, shows lock status (closed).
• Language setting mode.
• Low battery, the battery icon will start flashing, if it is completely discharged use the key or the emergency port (9V battery).

Characteristics:

• Overall dimensions 65x150* mm.
• Base material (Metal alloy).
• Easy installation.
• Tubular lock.
• The master code must have been previously registered (4 to 8 digits)
• Code management (with Network module up to 250 PIN codes).
• Maximum number of user codes: 25 without network module.
• Maximum number of user codes: 250 with Z-Wave Plus 89407 , Zigbee 89522 network module.
• To open via Smartphone or Alexa interaction it is essential to purchase: 89407 and 51020 .
• For doors 35 mm to 45 mm thick.
• Backset adjustable to 60 or 70 mm.
• ANSI/BHMA Grade 2 Certified.
• Voice-assisted menu.
• Anti-vandalism handle with CLUTCH system.
• Works with 4 AA alkaline batteries.
• Pin wrenches (5 pins).

Finish:

• Satin Nickel.
