• Antena Colineal Omni de Fibra de Vidrio para Base, 380-400 MHz, 6 dB, 500 Watt, DIN 7/16 Hembra, Inclinación Opcional hacia abajo de 0, 3, o 6 Grados.
1 1

SINCLAIR

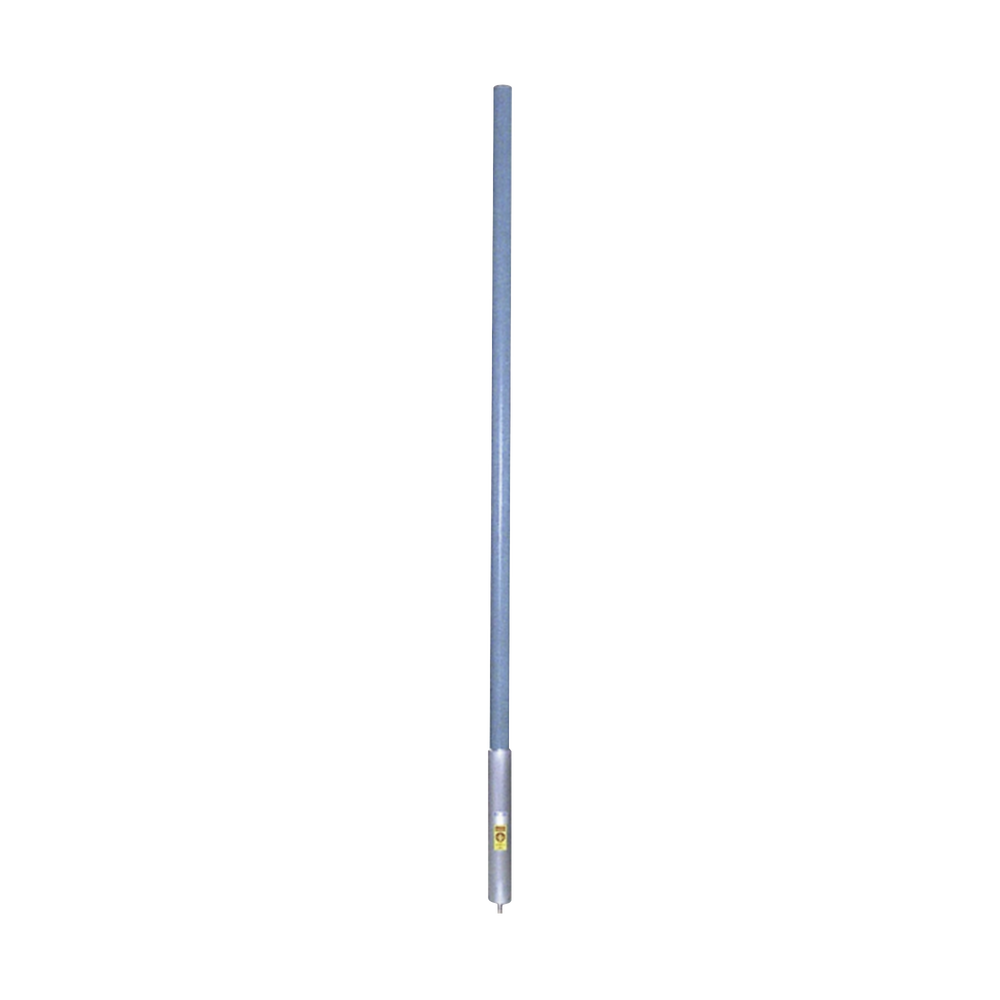

Fiberglass Collinear Omni Antenna for Base, 380-400 MHz, 6 dB, 500 Watt, DIN 7/16 Female, Optional Down Tilt of 0, 3, or 6 Degrees.

Fiberglass Collinear Omni Antenna for Base, 380-400 MHz, 6 dB, 500 Watt, DIN 7/16 Female, Optional Down Tilt of 0, 3, or 6 Degrees.

$7.286.490 COP
$7.969.598 COP $7.286.490 COP
Sale Sold out
Shipping calculated at checkout.

Fiberglass Collinear Omni Antenna for Base, 380-400 MHz, 6 dB, 500 Watt, DIN 7/16 Female, Optional Down Tilt of 0, 3, or 6 Degrees.


Collinear Omni Fiberglass Antenna, 380-400 MHz, 6 dB, DIN 7/16 Female.

  • Frequency Range: 380-400 MHz.
  • Bandwidth: 20 MHz.
  • Gain (nominal): 6 dB (8.1 dBi).
  • Downward tilt (Optional): 0, 3 or 6 Degrees.
  • VSWR (max): 1.5:1
  • Polarization: Vertical.
  • Impedance: 50 Ohm.
  • Pattern: Omni-directional.
  • Vertical Opening (typ.): 12º
  • Average Power Input: 500 Watt.
  • Discharge protection: DC grounding.
  • Connector: DIN 7/16 Female.
  • Dimensions (Height/Width/Depth): 3607/ 51/ 51 mm.
  • Tube Base Diameter: 51 mm.
  • Base Tube Mount Length: 305mm.
  • Mounting: Clamp130 Optional (Requires 2 pieces)
  • Weight: 4.99 kgs .
  • Wind resistance: 242 km/h.

*Ask for delivery time.

    Out of stock

    MODELO: SC346-HT1LDF
