EPCOM TITANIUM
Compatible Receiver for TT-683-MATRIX-4.0 Matrix Kit / 4K@30Hz Resolution / Cat 5e/6 / IR Control / Compatible with IGMP Switch (Only for version 4.0 transmitter).
Compatible Receiver for TT-683-MATRIX-4.0 Matrix Kit / 4K@30Hz Resolution / Cat 5e/6 / IR Control / Compatible with IGMP Switch (Only for version 4.0 transmitter).
Regular price
$369.413 COP
Regular price
$441.869 COP
Sale price
$369.413 COP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Compatible Receiver for TT-683-MATRIX-4.0 Matrix Kit / 4K@30Hz Resolution / Cat 5e/6 / IR Control / Compatible with IGMP Switch (Only for version 4.0 transmitter).

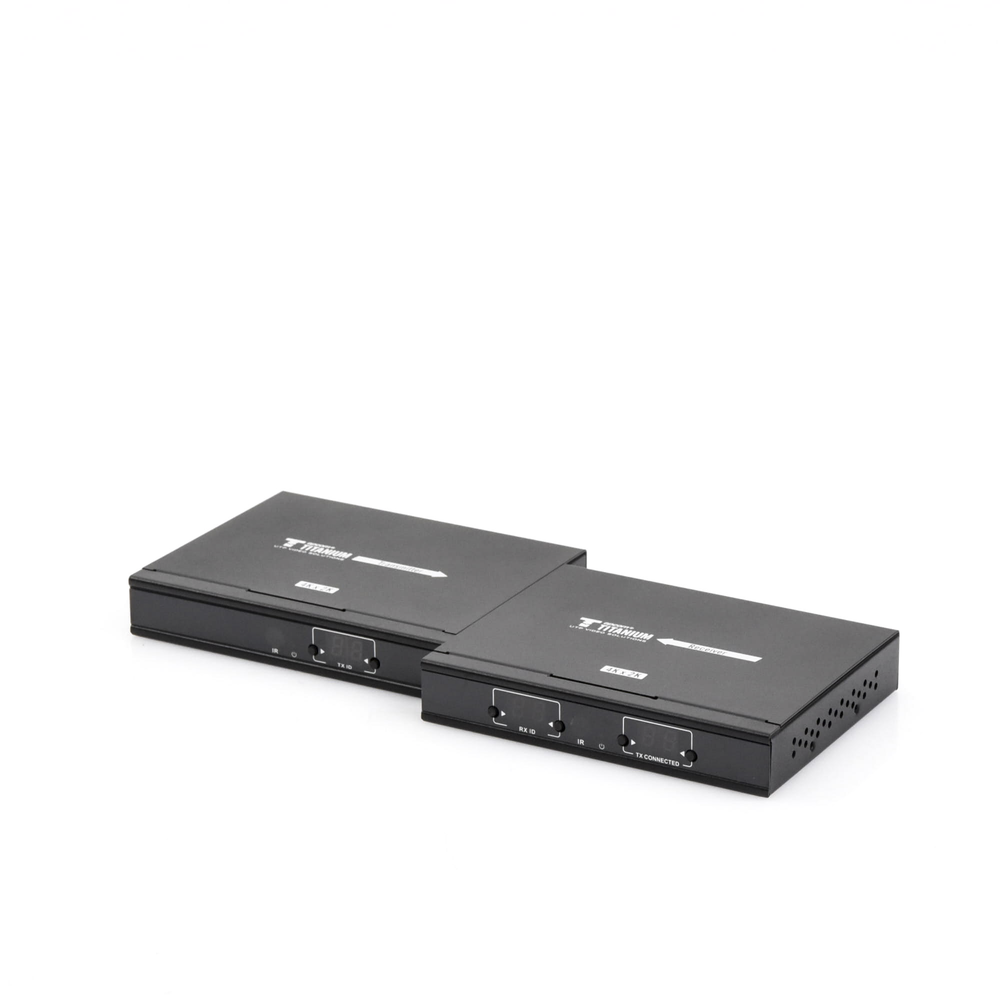

TT-683-MATRIX-4.0-RX
120M HDMI over IP HDbitT Matrix Receiver (This model is only the receiver)
This HDMI matrix receiver uses advanced HDbitT over IP technology. By connecting to the IGMP switch, it creates an HDMI signal connection and control system via UTP cabling, allowing the connection of up to 100 input transmitters and unlimited output receivers...
Main Features:
- This model is only the receiver
- Transmission distance with CAT5e/6 up to 120m
- Supports resolutions up to 4k
- Supports IR Pass Back function to control devices (using the TX)
- Supports IGMP compatible Lan Switch.
- Control by PC or computer.
- Control directly on the receiver.
- Control using the remote control.
Physical and Electrical Characteristics:
- 5 Vdc, 2 A power supply included
- Power consumption: 5W
- Dimensions 164(L) x 107.6(W) X23.6(H) mm.
- Net weight 310g
- Dimensions 164(L) x 107.6(W) X23.6(H) mm.
- Operating temperature 0~60°C.
- 1-year warranty against manufacturing defects.
- Note: The remote control does not include the battery, the suggested model is: CR2025
Highlighted Features:
- The bandwidth is 28 Mbps, the size per packet is: 1,460 bytes,
- Suggested IGMP Switches: 8 ports: TL-SG3210; 16 ports: TL-SG2218 ; 24 ports: TL-SG3428; 48 ports: TL-SG3452
- The remote control does not include the battery, the suggested model is: CR2025;
- Download the software for computer control by clicking here
- Computer Configuration Guide Click Here
Out of stock
MODELO: TT-683-MATRIX-4.0-RX
