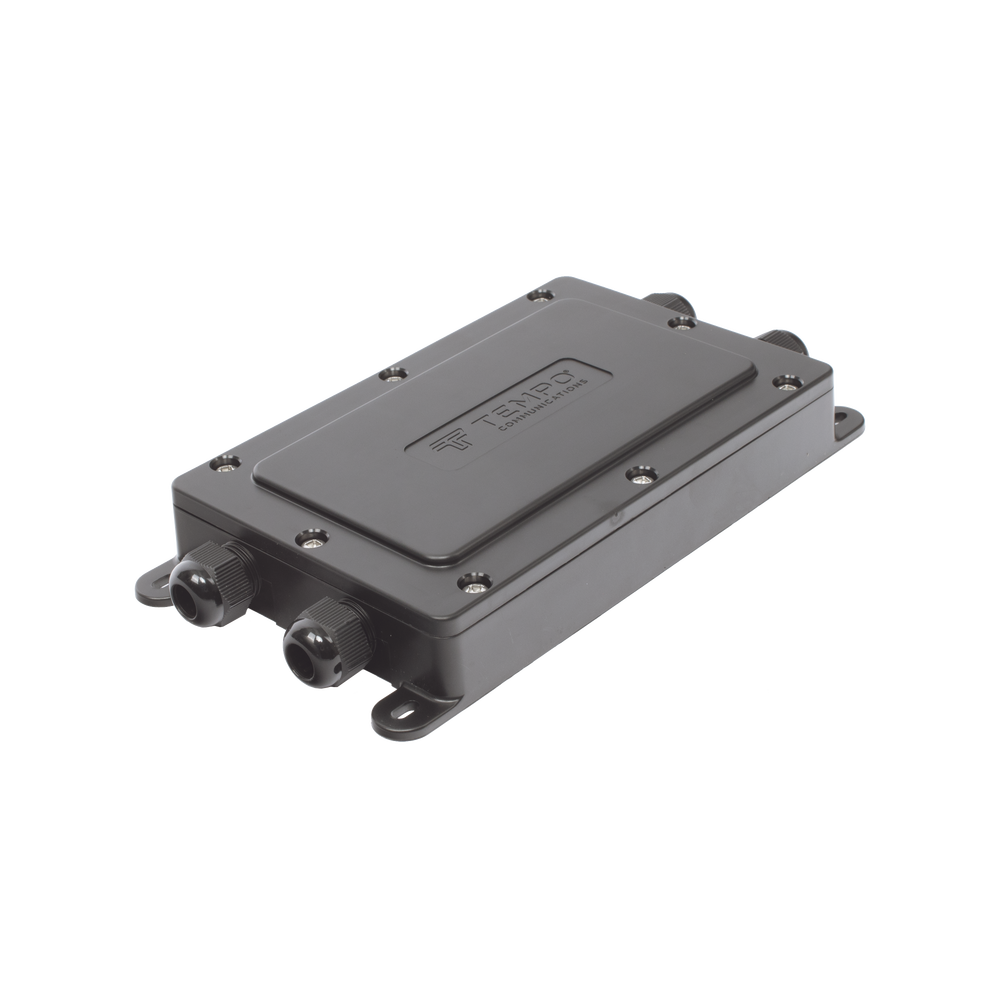

Indoor/Outdoor Splice Closure for 12 fusions, IP68, 4 ports

Indoor/Outdoor Splice Closure for 12 fusions, IP68, 4 ports

The DFE101 splice closure is used to facilitate fiber optic cable repairs. Common fiber sizes of 8.1 mm, 5.4 mm, and 5.1 mm rectangular cables and 3.0 mm and 5.1 mm round cables are accommodated with the supplied sealing glands.

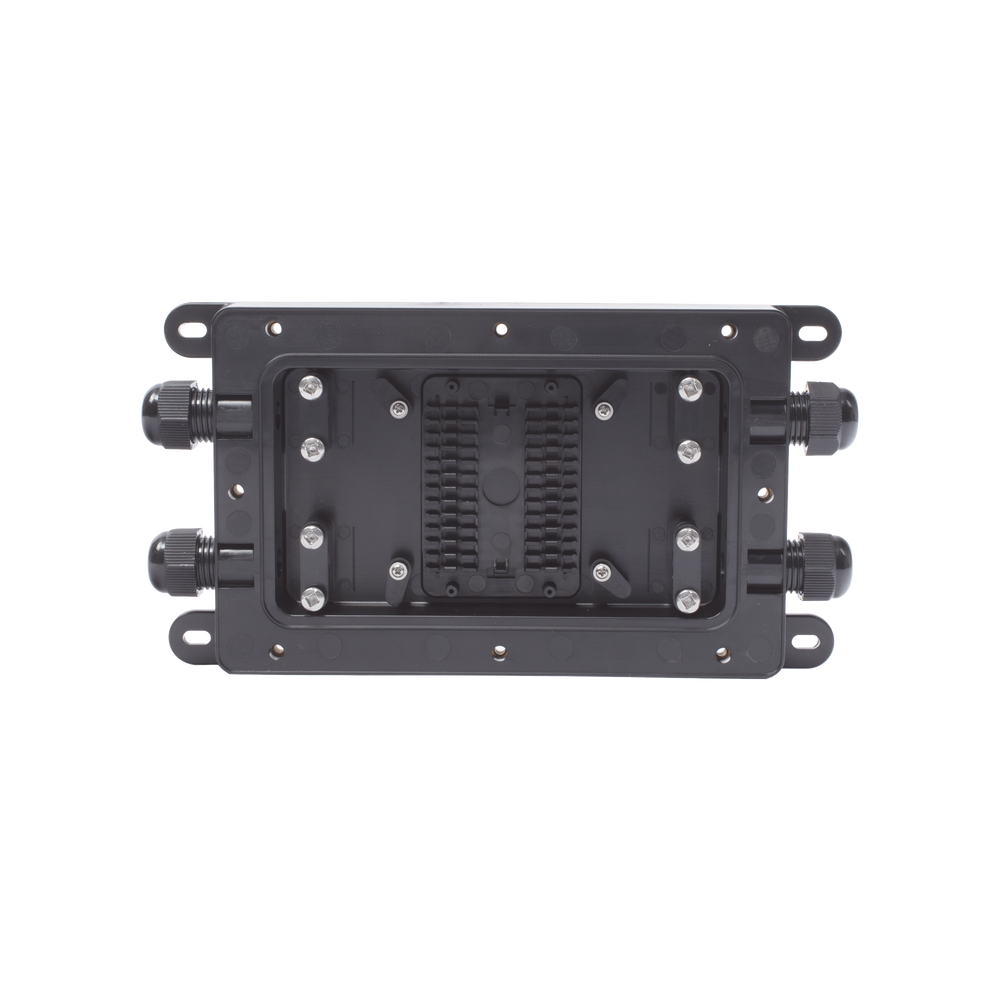

It supports a total of 12 fusion splices and 2 mechanical splices, which are securely housed within the IP68 ingress protection enclosure. The DFE104 can be permanently buried or mounted on the side of a building.

The DFE101 provides a splice point location within the network building as well as a demarcation point at the facility.

Characteristics:

• IP68 Ingress Protection for direct burial applications

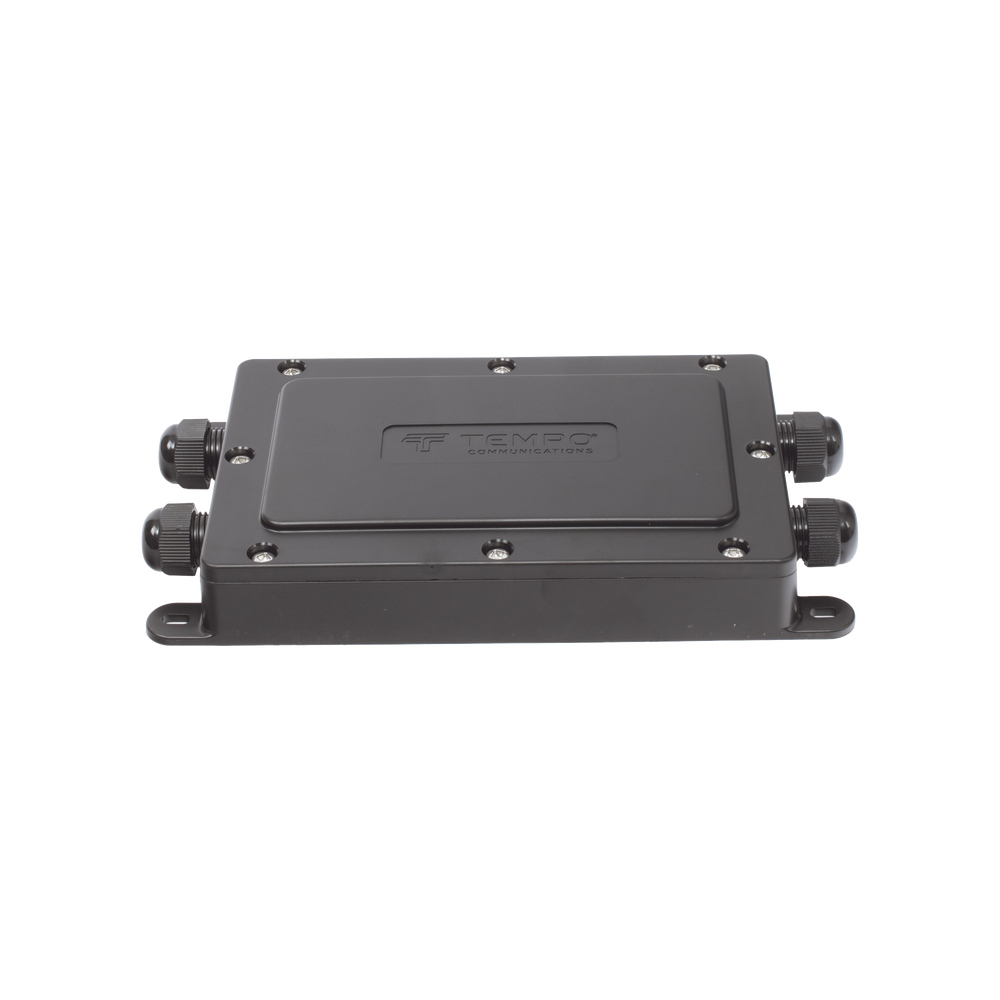

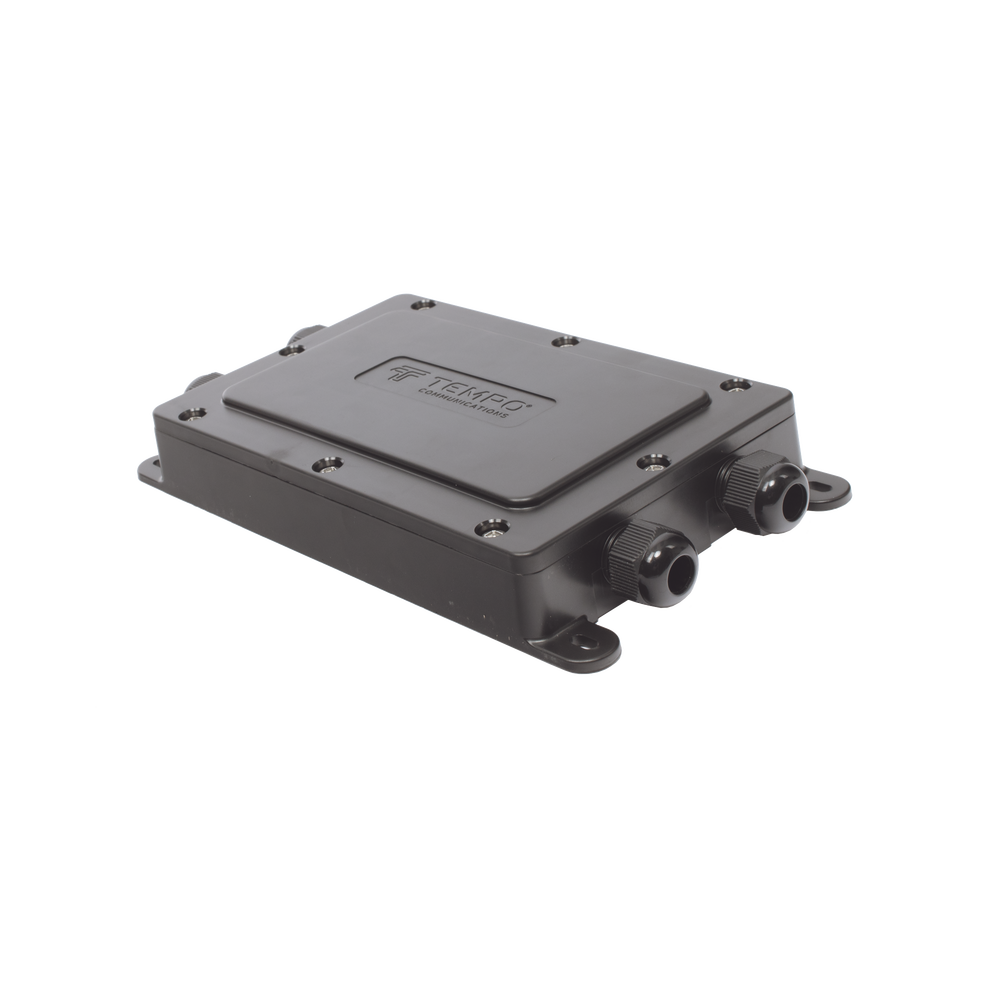

• 4 side ports for fiber optic cable
• Space to accommodate up to 12 fibers

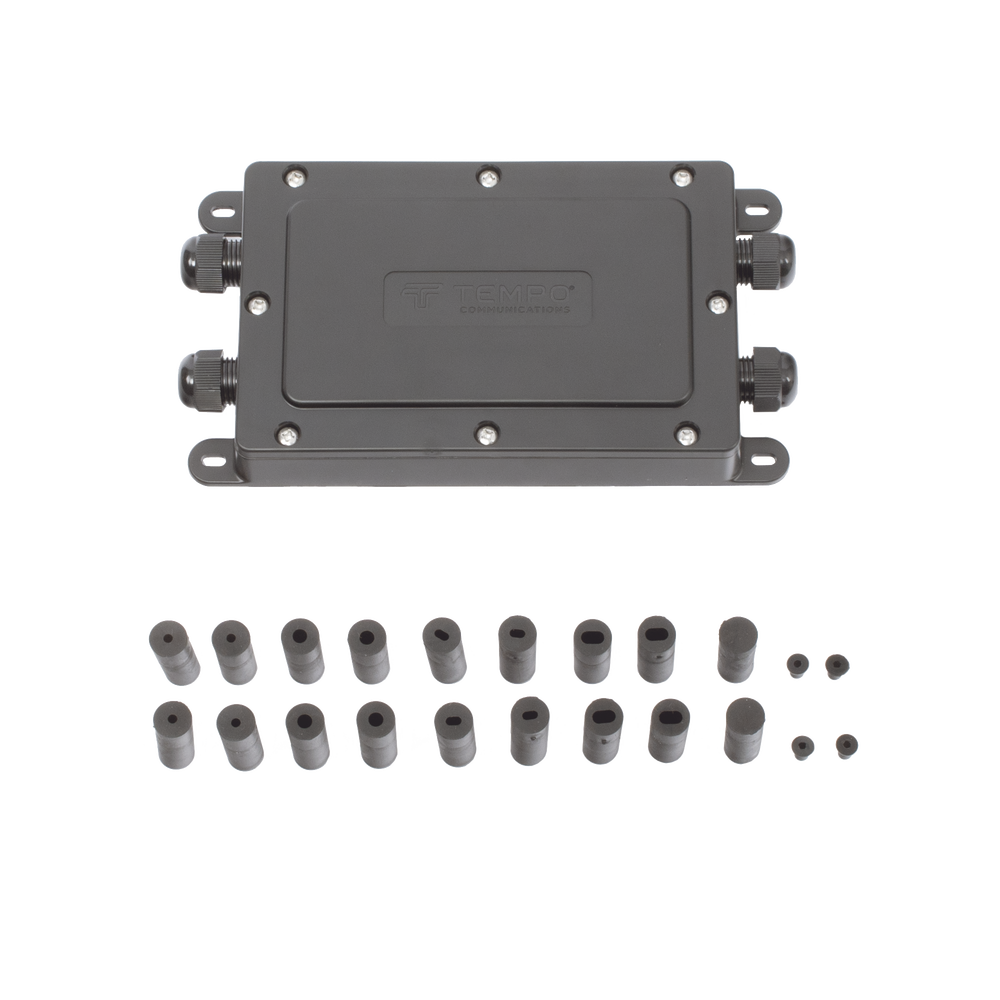

• Individual glands for rectangular cables of 8.1, 5.4 and 5.1 mm and round cables of 3.0 and 5.1 mm
• Quick assembly with common tools
• Size: 225 x 120 x 34mm (8.85' x 4.72' x 1.34)
• Weight: 0.3kg (0.66 lb)
• Material: ABS with polycarbonate (UV resistant)
• Color: Black
• Operating Temperature: -40 to +80ºC
• Storage Temperature: -40 to +80ºC
• Indoor/Outdoor Installation

4 side ports for fiber optic cable, IP68 Ingress Protection for direct burial applications, Storage Temperature: -40 to +80°C
