TURBOHD Transceiver Kit (Balluns) / Up to 8 MP (4K) / 100% Copper / Supports HD-TVI / AHD / CVI / CVBS / Audio via Coaxitron / Data for Camera Configuration Menu

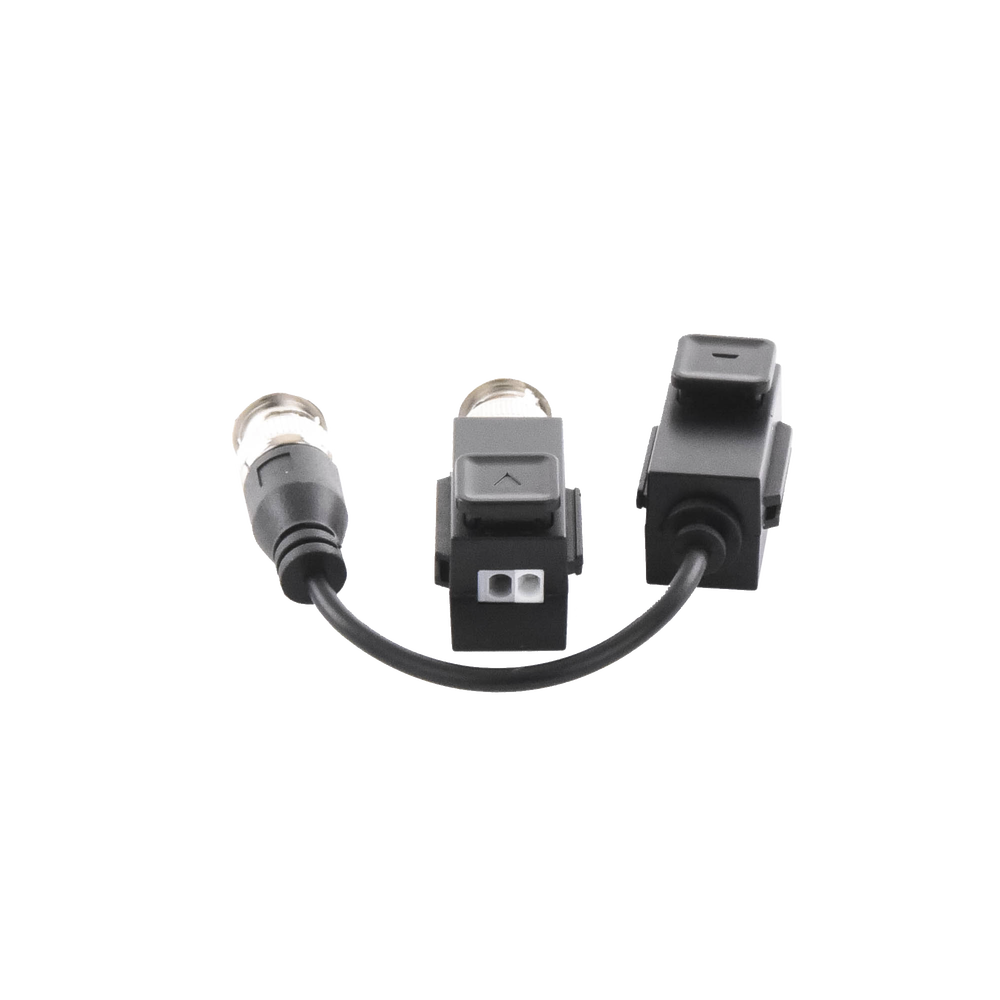

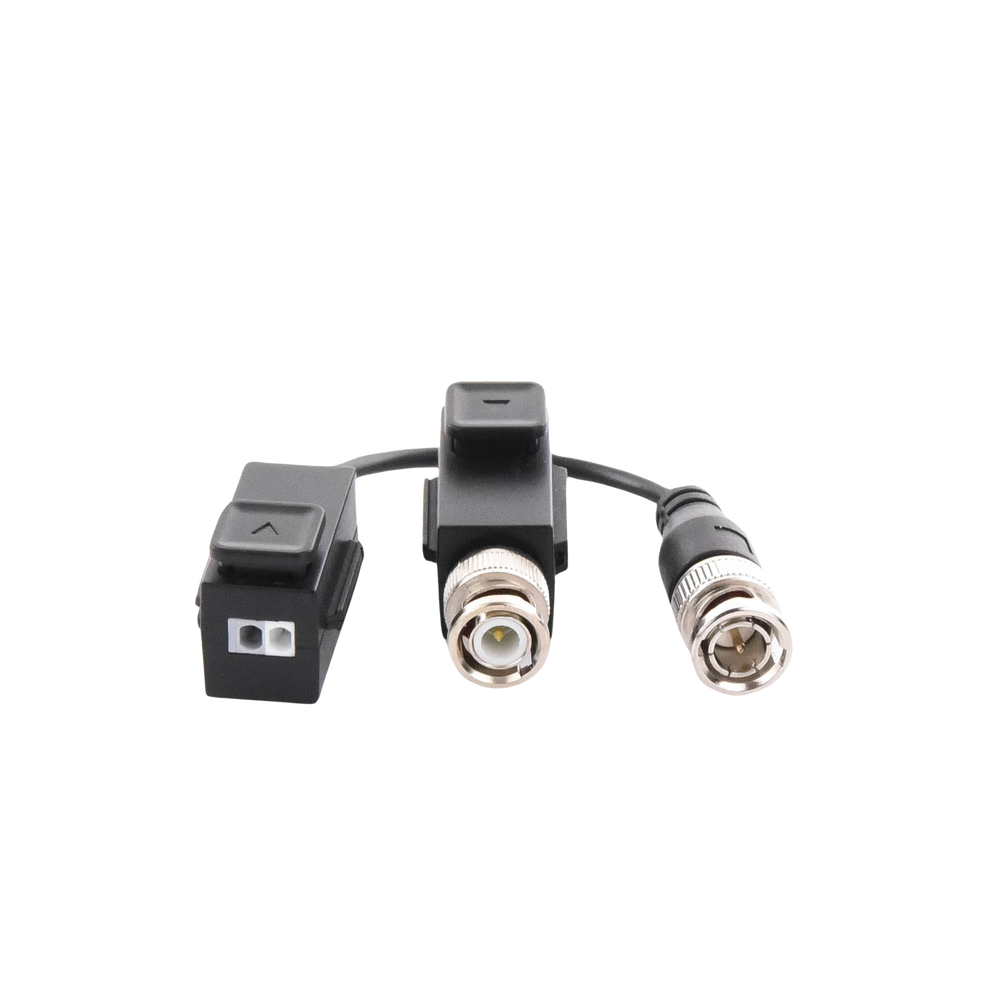

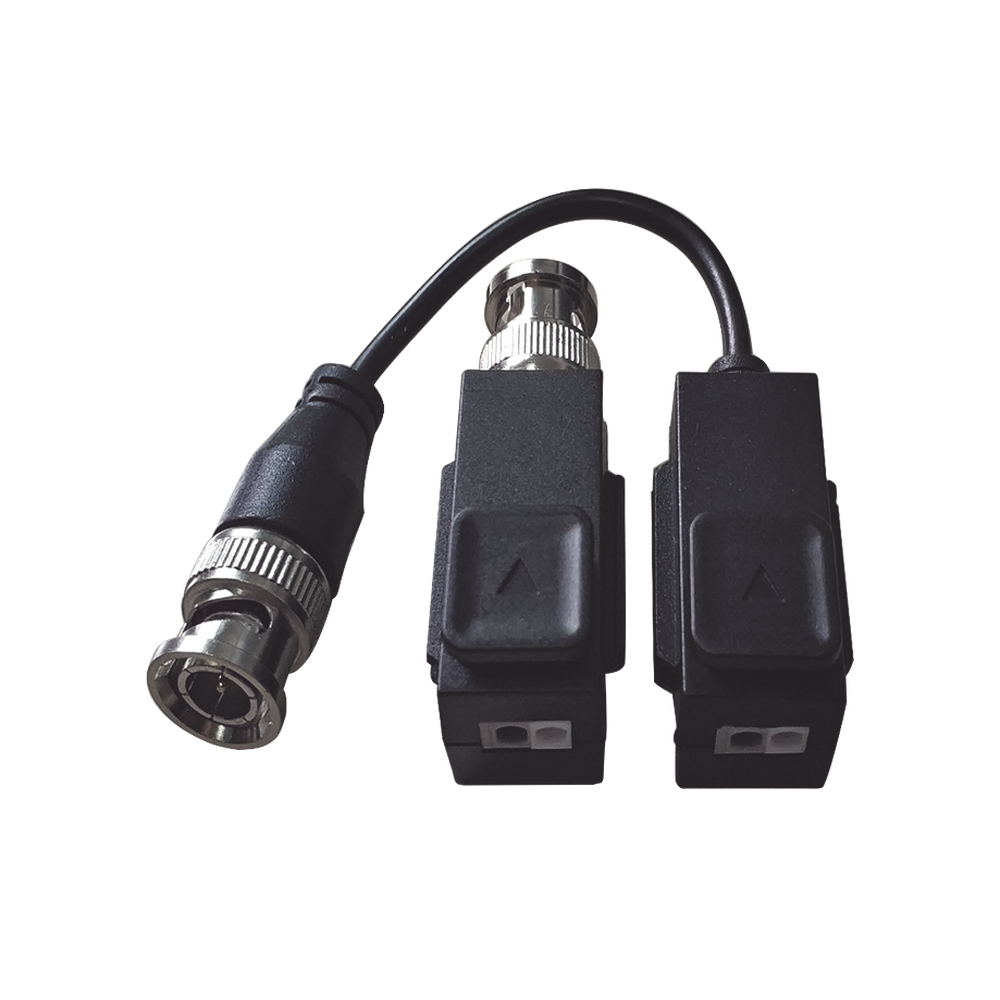

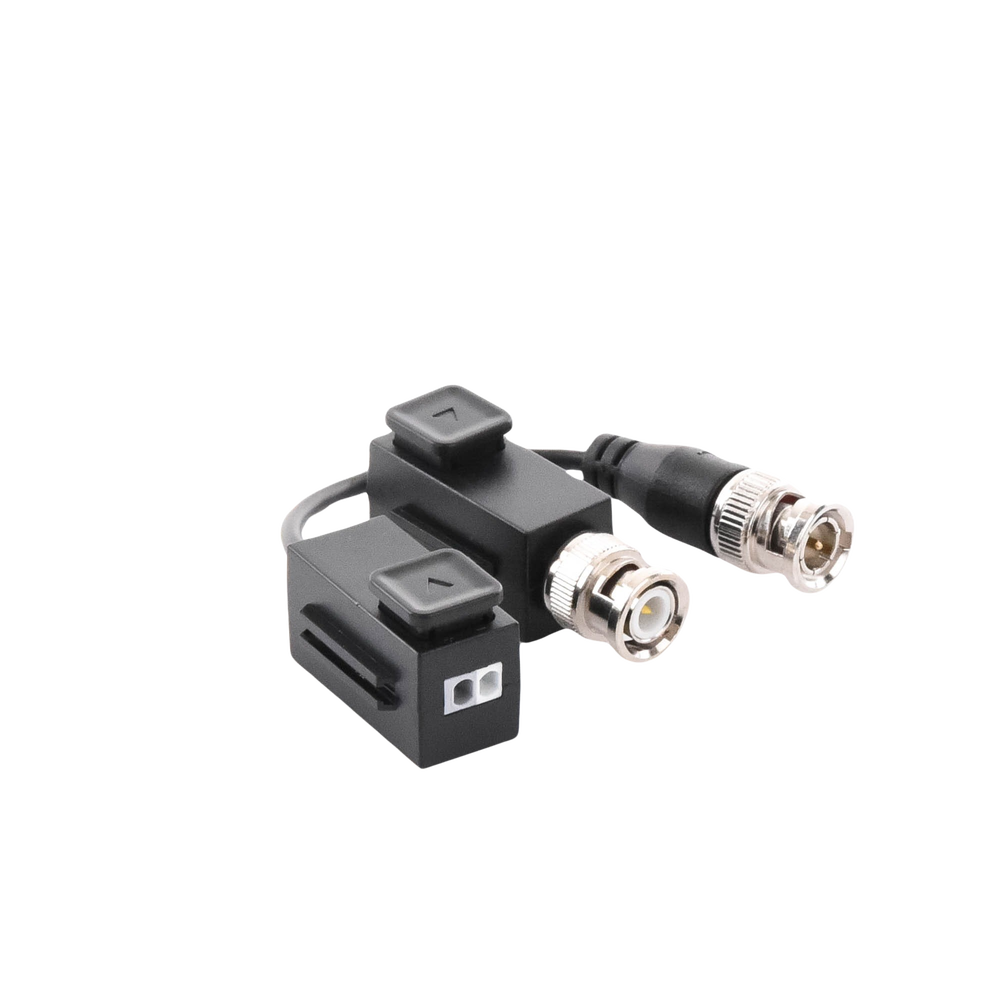

DS1H18S/E(C) Transceiver Kit
The HIKVISION DS-1H18S/E(C) is a 1-channel passive UTP video balun used to transmit video signals from security cameras to a DVR or NVR via an Ethernet network cable. It supports HDTVI/HDCVI/AHD/CVBS formats and has a transmission distance of up to 250 meters for non-POC cameras and 150 meters for POC cameras.
The DS-1H18S/E(C) is easy to install and use. Simply connect the camera's coaxial cable to the balun's BNC connector and the UTP cable to the balun's twisted pair connector. Then, connect the UTP cable to the DVR or NVR.
Main features:
- Video transceiver compatible with all EPCOM and HIKVISION cameras.
- Accepts resolution of: 8 Megapixel / 5 Megapixel / 4 Megapixel / 2 Megapixel / 1 Megapixel.
- Compatible with cat 5e and cat 6 cable.
- Video distances up to 250 meters without PoC.
- Video distances up to 150 meters with PoC.
- Supports multi technology HDCVI/TVI/AHD/CVBS.
Physical and Electrical Characteristics:
- Black color.
- Noise immunity of 60 dB.
- Impedance of 75 Ohms.
- Operating temperature: -10º - 55ºC.
- Dimensions: 50 x 20 x 22 mm.
- Weight: 22 grams.
- Warranty: 1 year.
- Transceiver Kit (Female and Male), Up to 8 Megapixel Resolution, Distance up to 250 meters without PoC
500 in stock
MODELO: DS-1H18S/E(C)
