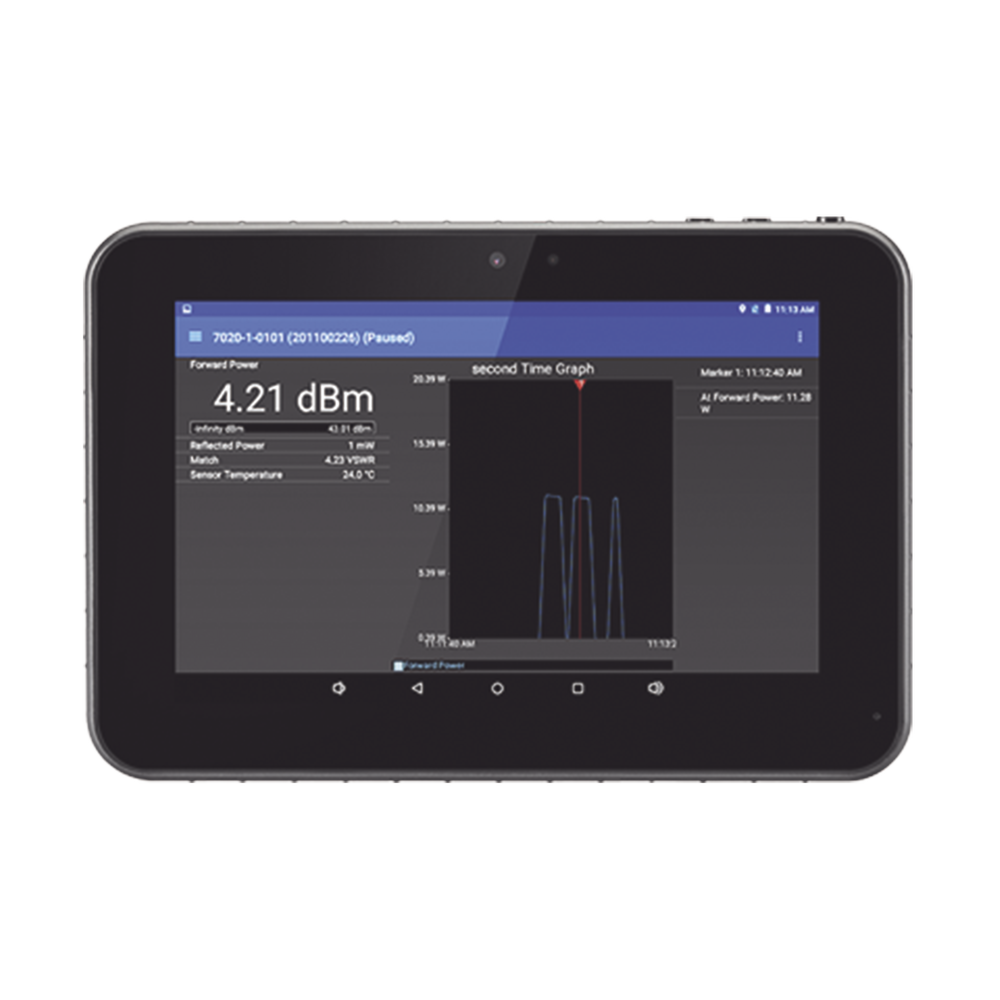

Digital Power Meter on Display, for the range of 2 MHz to 6 GHz depending on the Sensor, Provides readings of True Average Power, Peak, VSWR, PEP etc. Compatible with 4000, 5000 and 7000 Series Sensors.

Digital Power Meter on Display, for the range of 2 MHz to 6 GHz depending on the Sensor, Provides readings of True Average Power, Peak, VSWR, PEP etc. Compatible with 4000, 5000 and 7000 Series Sensors.

Digital Power Meter on Screen, 2 MHz to 6 GHz Depending on Sensor.

• Bird's new 5000-NG RF power meter display transforms RF power meter test performance.
• A major step forward, this portable handheld meter captures, compiles, and displays RF power measurements on a high-resolution touchscreen, allowing for quick and easy data review in the field or in a diagnostic and repair lab environment.
• Operating over a wide frequency range using one of Bird's USB-powered RF Power Sensors, the 5000-NG allows you to quickly measure True Average Power, VSWR, Return Loss, and more.
• This fully digital power meter automatically detects the sensor in use and saves session information.
• Takes RF power measurements, allowing a smoothed level for more stable readings, or peak hold to detect maximum power.
• Bird's new lightweight, portable tablet features a large, sunlight-readable color touchscreen.
• This intuitive, easy-to-use interface saves time and ensures a rapid learning curve for technicians.

Characteristics:

• 8” rugged color touchscreen (1280 X 800 pixels) for worry-free field use.
• Operating System: Android 5.1
• Storage: 16 GB.
• Automatic sensor detection that works with 14 compatible Bird field sensors.
• 48 hours of battery life for extended use.
• 5.0 megapixel camera to document equipment serial and model numbers for documentation, warranty, and installation validation.
• Proven, real-world power measurement with easy setup.
• Data logging, numerical and graphical display.
• Easy data transfer via USB or WiFi.
• Operating Temperature: -20°C to 60°C
• Dimensions: 233 mm x 160 mm x 28 mm.
• Weight: 0.59 kg.

Basic Measurements:

• Actual average power (forward and reflected).
• VSWR, return loss, rho, matching efficiency.
• Peak power, peak to average ratio, crest factor, PEP.
• Burst power and burst average.
• CDF, CCDF, % confidence.
• IEEE 194 Pulse Parameters.
• Sensor temperature.

Standard Accessories:

• 5A2653-3R5NL4 Cable, SeaLatch USB cable, 72 in.
• 5A2653-6L Cable, 72-inch USB.
• 5B5000-2 Soft carrying case.
• 5B5002-1 Charger, international, 5 V, 2.5 A P.
• 5B5002-2 Charger, USA, 5V, 2.5A.
• SK-TP-112 Stylus.
• 920-5000-NG Instruction Manual.

Compatible Sensors:

• 5012D Broadband Power Sensor, 350 MHz to 4 GHz, 150 mW to 150 W, 400 W peak.
• 5014 Directional Power Sensor, 2 MHz to 2.7 GHz, 125 mW to 1 kW, Full Scale.
• 5016D Broadband Power Sensor, 350 MHz to 4.0 GHz, 25 mW to 25 W, 60 W peak.
• 5017D Broadband Power Sensor, 25 MHz to 1.0 GHz, 500 mW to 500 W, 1300 W peak.
• 5017D-AV Wideband power sensor, 100 MHz to 1.3 MHz, 500 mW to 500 W, 1300 W peak.
• 5018D Wideband Power Sensor, 150 MHz to 4.0 GHz, 100 mW to 25 W, 60 W peak.
• 5019D Broadband Power Sensor, 25 MHz to 1.0 GHz, 100 mW to 100 W, 250 W peak.
• 7020-1-010101 Broadband Power Sensor, 350 MHz to 4.0 GHz, 150 mW to 150 W.
• 7020-1-030301 Broadband Power Sensor, 25 MHz to 1.0 GHz, 500 mW to 500 W.
• 7022 Statistical RF Power Sensor, 350 MHz to 6 GHz, 0.25 W to 500 W.
• 4042 Series Channel Power Sensor 100 MHz to 1.0 GHz, 50 W.
• 4043 Serial Directional Power Sensor 118 MHz to 940 MHz.
• 4044 Serial Non-Directional Power Sensor, 144 MHz to 940 MHz, 125 W.

*Ask for Delivery Time.
