(CRS212-1G-10S-1S+IN) Cloud Router Switch Layer 3, 10 SFP Ports, 1 SFP+ (Desktop)

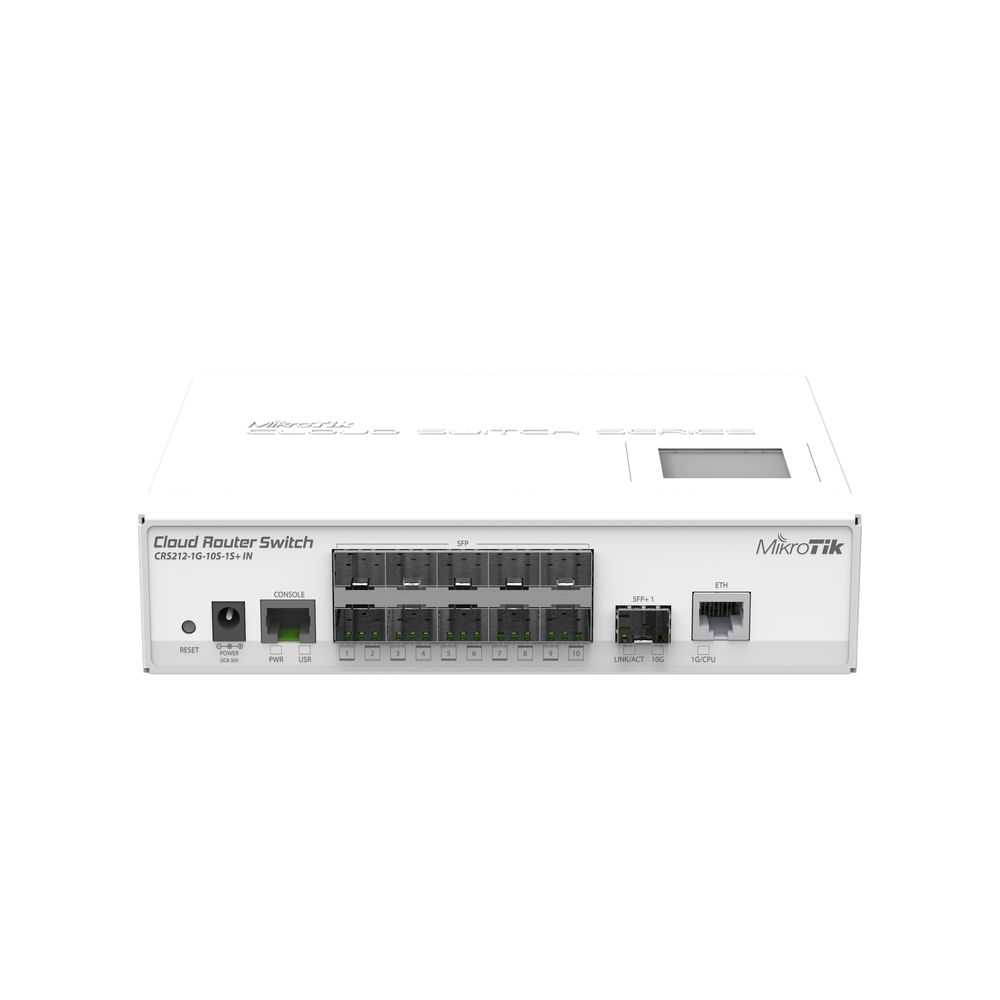

The Cloud Router Switch 212-1G-10S-1S+IN is a new, low-cost, and small-sized member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP ports, and one 10G SFP+ port, along with an LCD panel and serial port (RJ45). The product includes an internal desktop case and power supply. Special lugs are provided for rack mounting.
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, powered by the familiar RouterOS. All switch-specific configuration options are available in a dedicated switch menu, but ports can be removed from the switch configuration and used for routing purposes if desired.
Specifications
| Details | |
|---|---|
| Product code | CRS212-1G-10S-1S+IN |
| Architecture | MIPSBE |
| CPU | QCA8519 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 200x144x47mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20C to +55C tested |
| Suggested price | $219.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input voltage | 8-30 V |
| Maximum power consumption | 20 W |
| Max power consumption without attachments | 20W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 10 |
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| Current Monitor | Forks |
| PCB temperature monitor | Forks |
| Voltage Monitor | Forks |
Switching results
| CRS212-1G-10S-1S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 bytes | 512 bytes | 1518 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 31,250.0 | 16,000.0 | 4,934.2 | 20,210.5 | 1,706.8 | 20,726.9 |
| Switching | Non-blocking Layer 2 capacity | 31,250.0 | 32,000.0 | 4,934.2 | 40,421.1 | 1,706.8 | 41,453.8 |
| Switching | Non blocking Layer 1 throughput | 31,250.0 | 21,000.0 | 4,934.2 | 21,000.0 | 1,706.8 | 21,000.0 |
| Switching | Non-blocking Layer 1 capacity | 31,250.0 | 42,000.0 | 4,934.2 | 42,000.0 | 1,706.8 | 42,000.0 |
Ethernet test results
| CRS212-1G-10S-1S+IN | QCA8519 Max possible throughput test | ||||||
| Mode | Configuration | 1518 bytes | 512 bytes | 64 bytes | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 26.7 | 324.2 | 28.6 | 117.1 | 24.5 | 12.5 |
| Bridging | 25 bridge filter rules | 21.4 | 259.9 | 22.4 | 91.8 | 22.2 | 11.4 |
| Routing | none (fast path) | 23.0 | 279.3 | 23.5 | 96.3 | 24.5 | 12.5 |
| Routing | 25 simple queues | 19.6 | 238.0 | 22.4 | 91.8 | 21.0 | 10.8 |
| Routing | 25 ip file | ||||||
