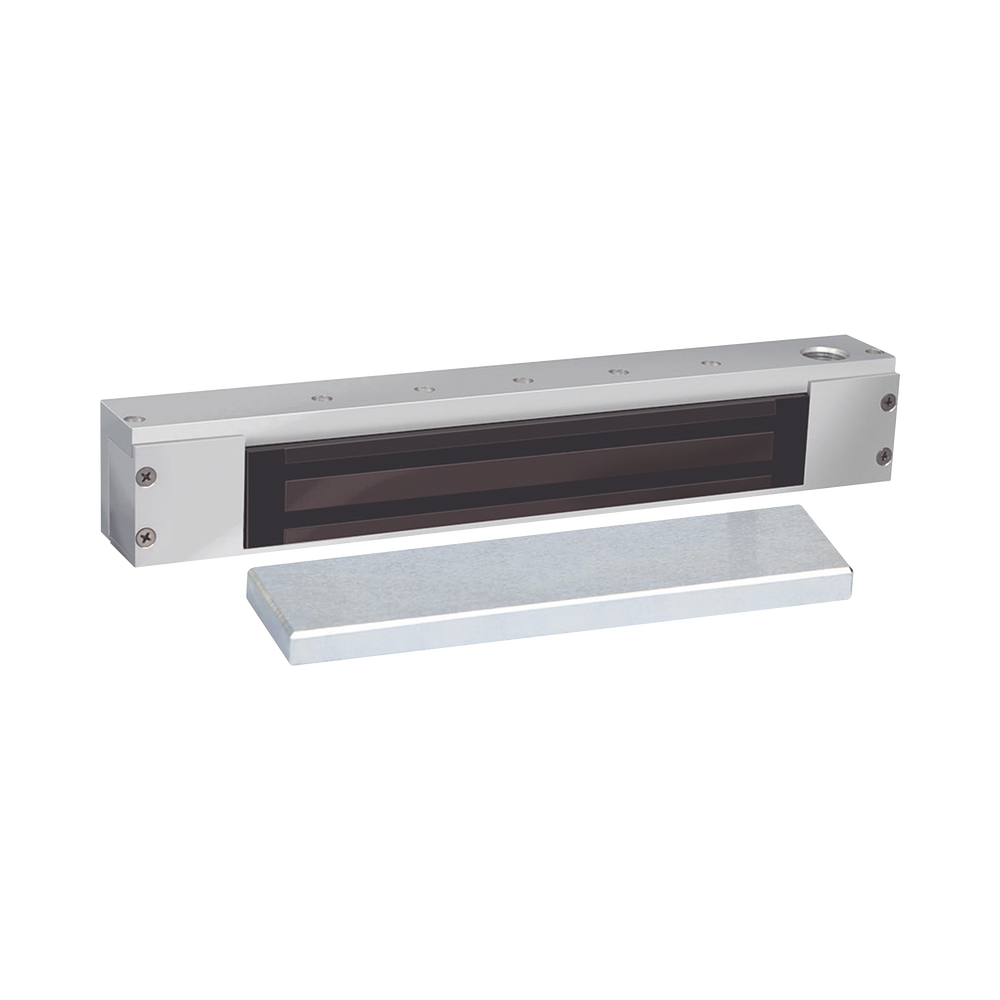

1200 lbs explosion-proof electromagnet

1200 lbs explosion-proof electromagnet

Characteristics:

Low power consumption; 0.26 amps at 24 VDC. 24 VDC is supplied as standard voltage.

• 1200 lbs holding force.
• Standard function of the door position switch (DPS).
• Built-in surge protection.
• Easy installation and maintenance.
• No pins, latches, or moving parts to prevent failures that could impede safe exit in an emergency situation.
• Finished in satin anodized aluminum.
• Door stays for hazardous locations: Category - FDGF. Meets Class I, Division 2.
• Tested to UL228 - door closer brackets with/without integrated smoke detectors.
• File number: E146590.
• Release devices:
  • Category - SZNT.
  • Tested to ANSI/UL864: Control Units and Accessories for Fire Alarm Systems.
  • File number: S5020.
• Dimensions: 14“W x 1-3/4“H x 2“D (355mm x 45mm x 51mm)
• Plywood: 10-3/4“W x 1-3/4“H x 5/8“D (273mm x 45mm x 16mm)
