Four-color Warning Light to Indicate Presence or Alarms in Room / RS485 BUS / Compatible with NX0019/B, NX1021 and NX0015
Four-color Warning Light to Indicate Presence or Alarms in Room / RS485 BUS / Compatible with NX0019/B, NX1021 and NX0015
- Marca
- IBERNEX
- Referencia / SKU
-
NX0176
- Disponibilidad
-
Agotado por ahora
- Envíos a toda Colombia. El envío y el IVA se calculan al pagar.
- Pago seguro y factura electrónica.
- ¿Dudas? Escríbenos por WhatsApp
Descripción y especificaciones

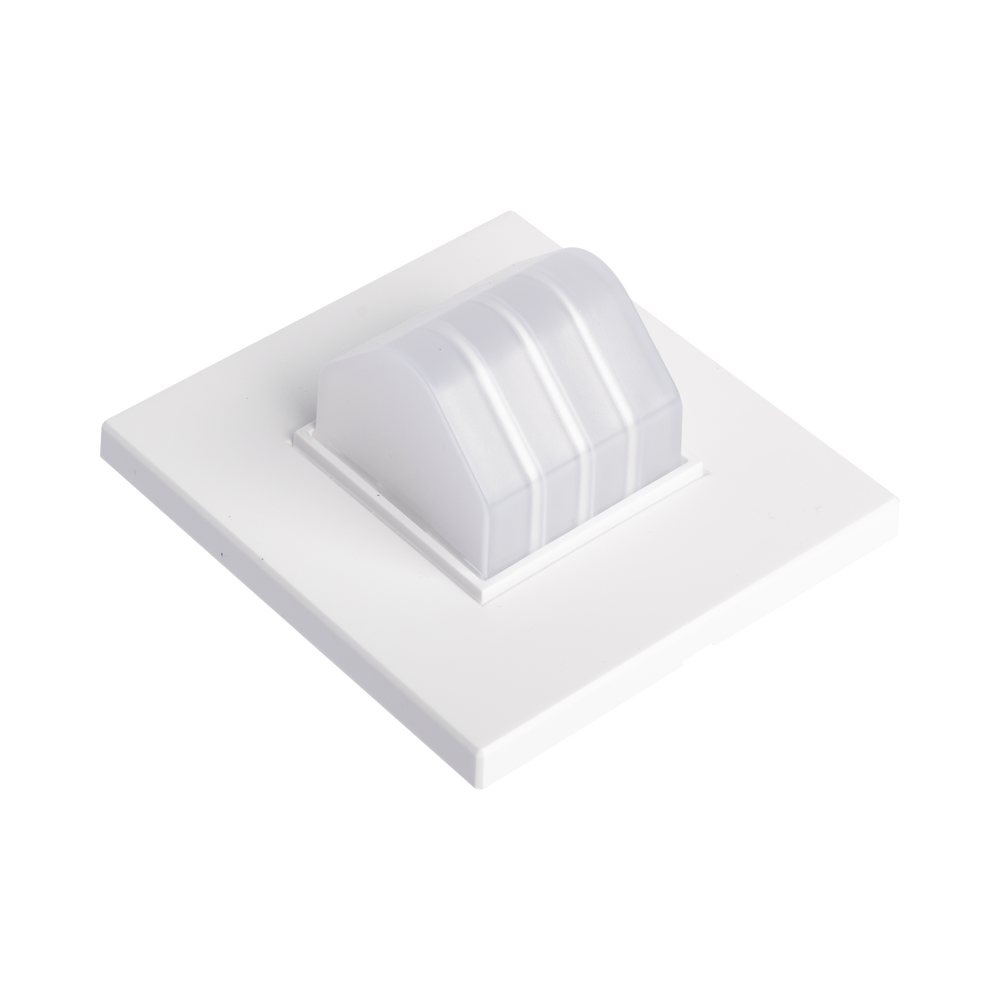

Four-color Warning Light to Indicate Presence or Alarms in Room / RS485 BUS / Compatible with NX0019/B, NX1021 and NX0015
- High energy efficiency LEDs
- Excellent lateral visibility
- Complies with DIN VDE 0834 standard
- Acoustic warning device
- Requires NX9003 frame
- Compatible with NX0019/B, NX1021 and NX0015
- 12 Vdc power supply
- 3 fixed lights and 1 RGB light
- Dimensions: 45 x 45 x 30 mm
- Check the full sheet
The NX0176 four-color warning light can be used to indicate different alert situations or other reasons thanks to its four adjustable-intensity colored light segments:
- Different types of alarms
- Presence of different staff profiles (doctor, nurse, maintenance, cleaning...)
- Pending tasks to be done in the room
The light segments are divided into 3 fixed color lights (white, red and green) and a fourth RGB light with configurable color among 16,777,216 possible colors.
Furthermore, this indicator light complies with DIN VDE 0834.
Note: Certification is required for installation and to request technical support.
Examples of use

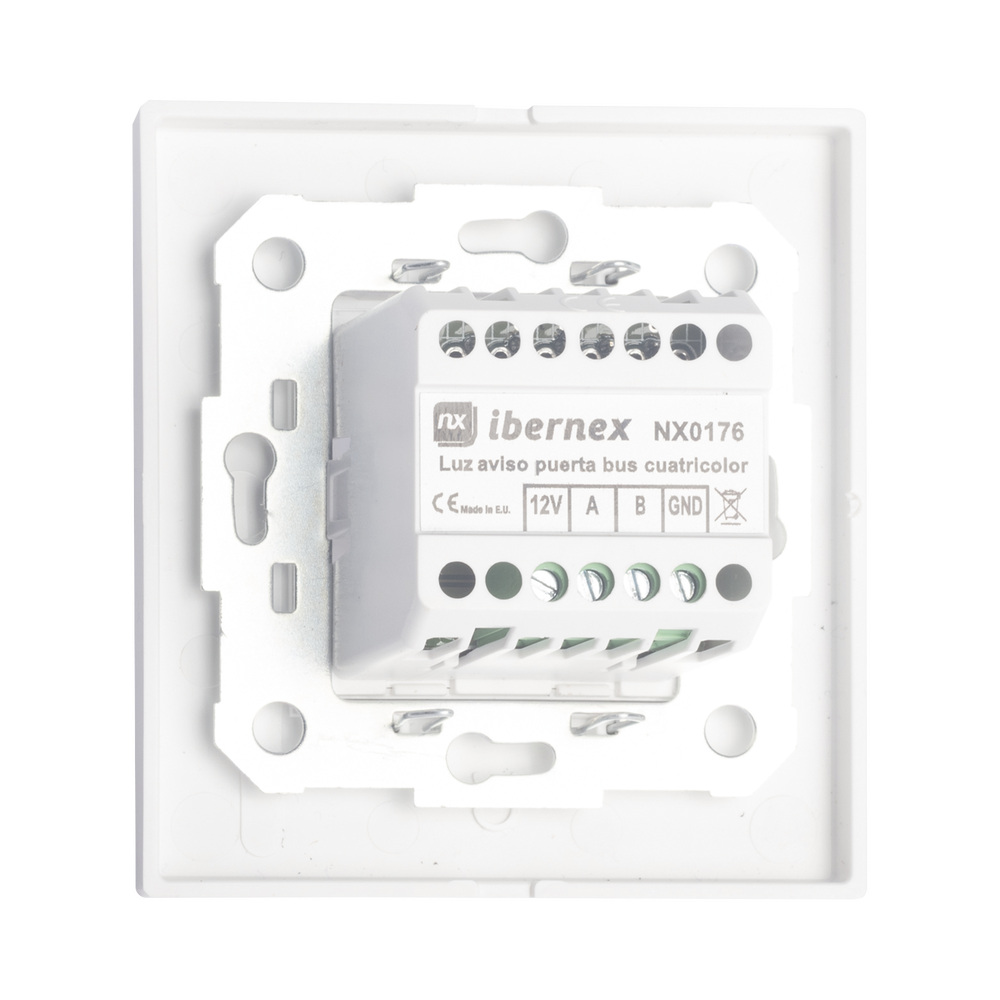

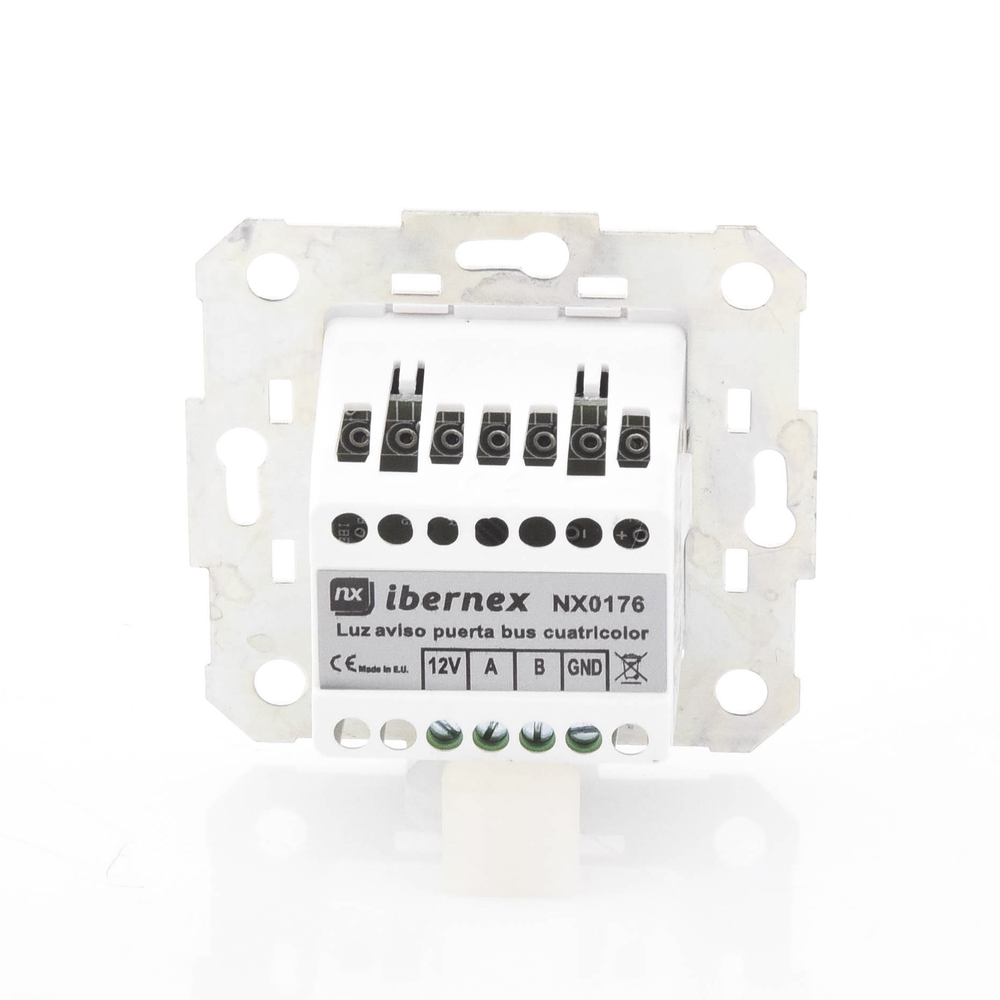

The connection is made with 2 pairs of UTP cable to any of the room terminals NX0019/B, NX1021 or NX0015.
Normal Alarm
Fixed red light
Indicates that there is a normal alarm in the room pending attention.
Bathroom Alarm
Fixed Red and White Lights
Indicates that the alarm is coming from the bathroom in the room.
Nurse Presence
Steady Green Light
Indicates the presence of a nurse in the room.
Call to Doctor
Solid Green light, Red, White and Blue lights flashing
A doctor's call can only be made when a nurse is present in the room.
Presence of Doctor and Nurse
Fixed Blue and Green Lights
Indicates the presence of a doctor and a nurse in the room
Presence of cleaning staff
Steady Amber Light
Indicates the presence of a cleaning or maintenance person in the room.
Alarm or Task Pending Coding
Fixed light, Customizable color
Indicates that an alarm or room assistance task is pending coding
Installing the module

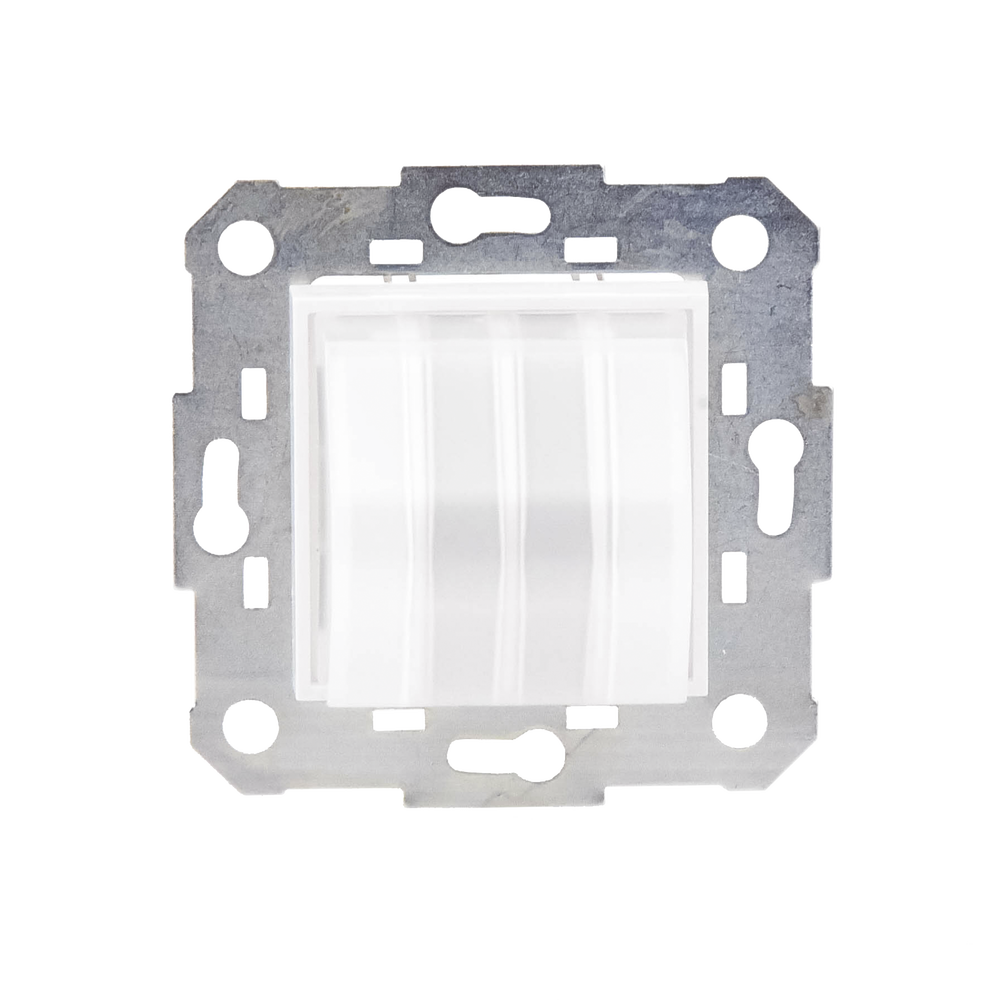

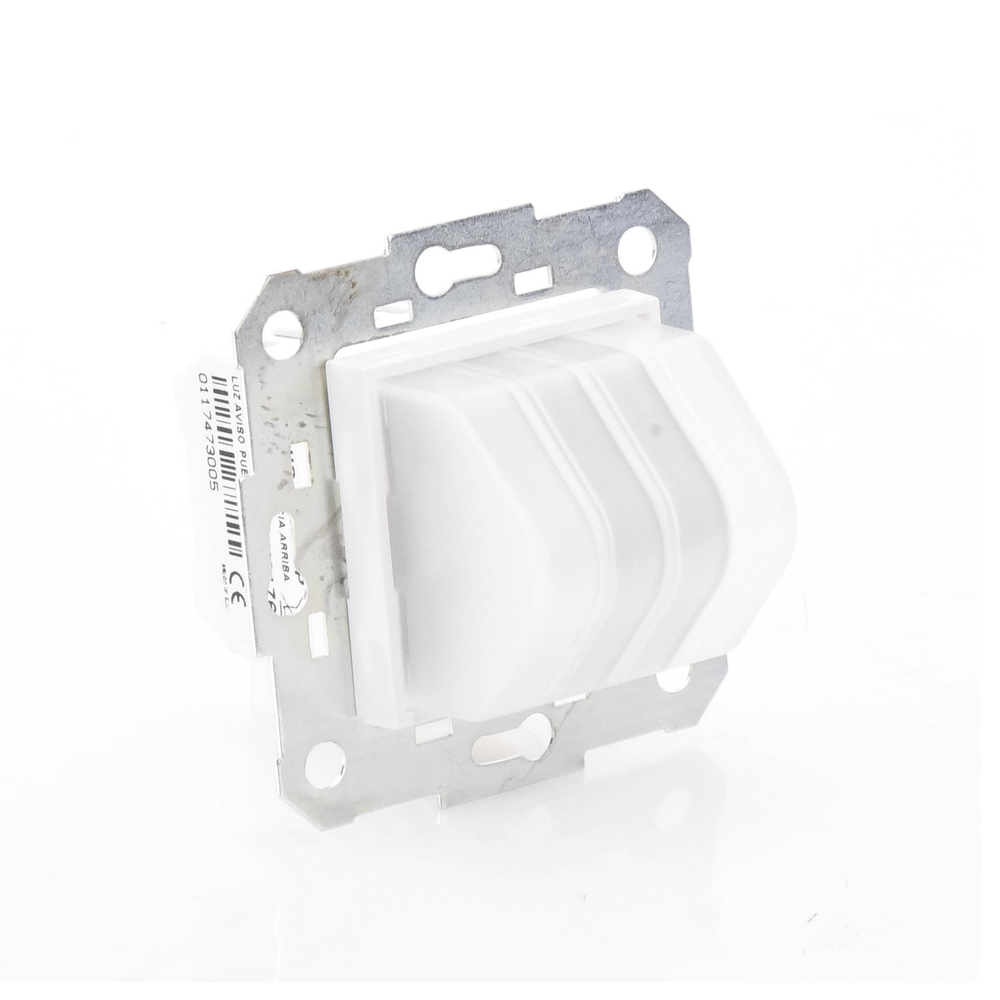

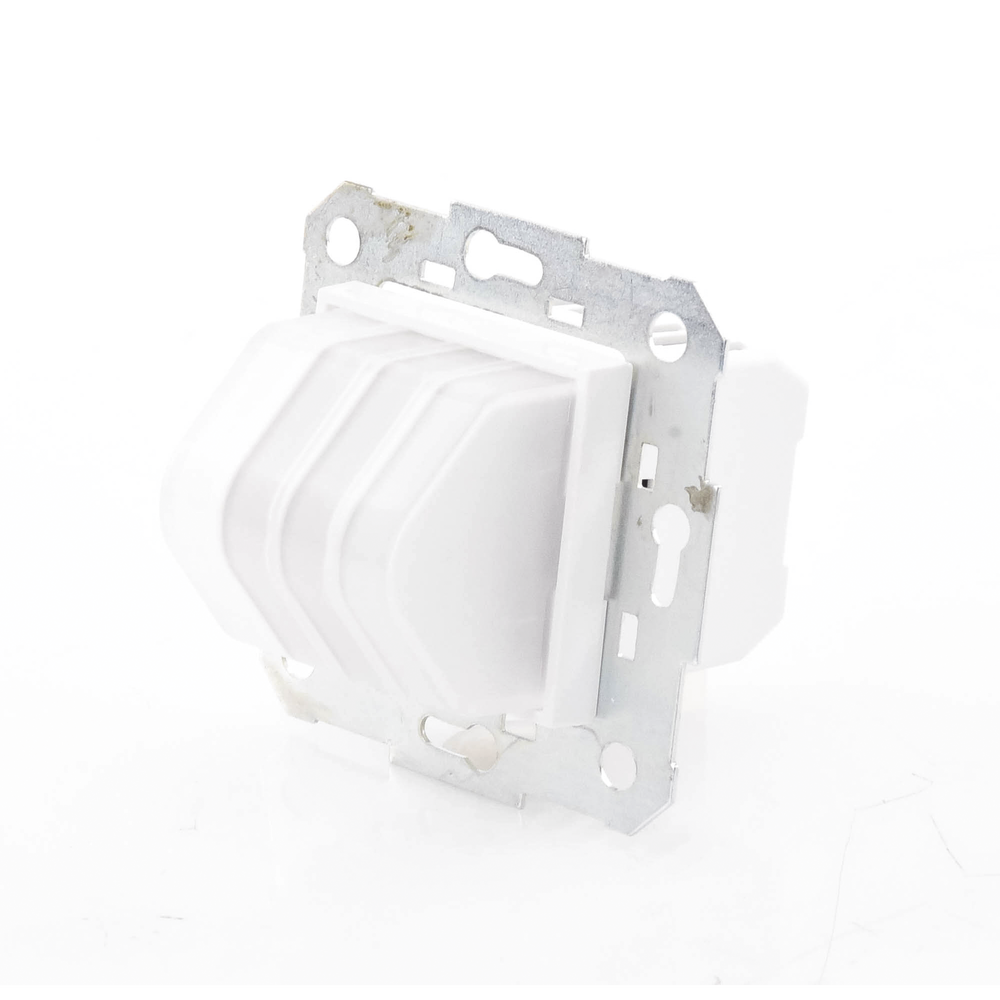

The module includes a frame for direct mounting to a 2x2 inch square box (not included) and the NX9003 trim frame (not included) is attached.
- NORMAL AND BATHROOM ALARM, PRESENCES: NURSE, DOCTOR, CLEANING, PENDING TASKS
