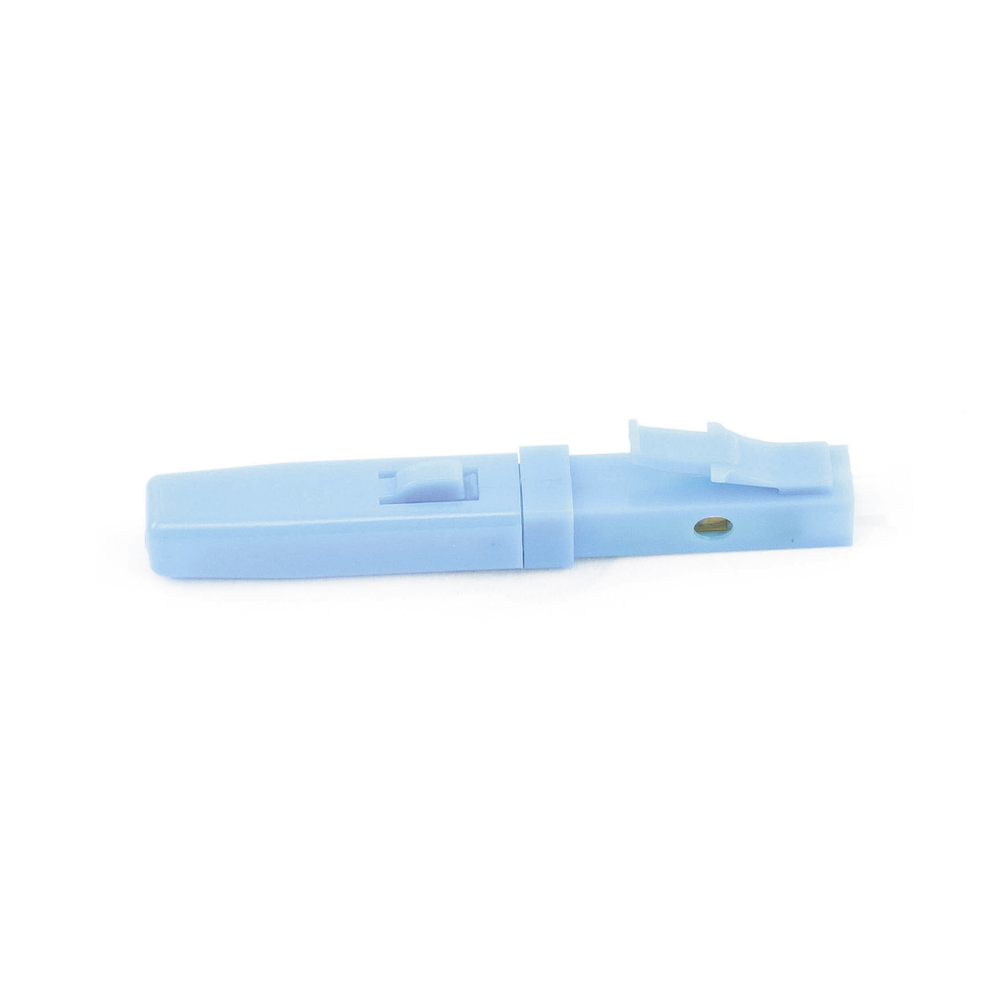

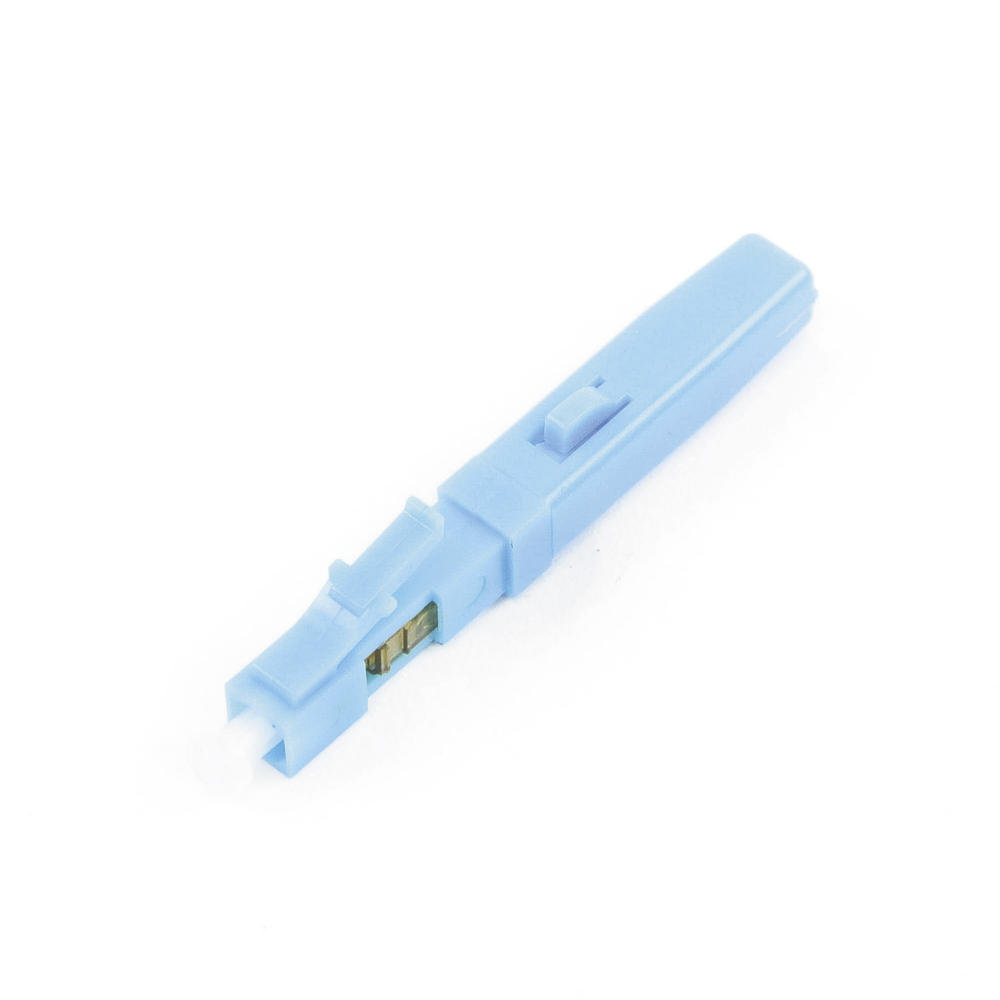

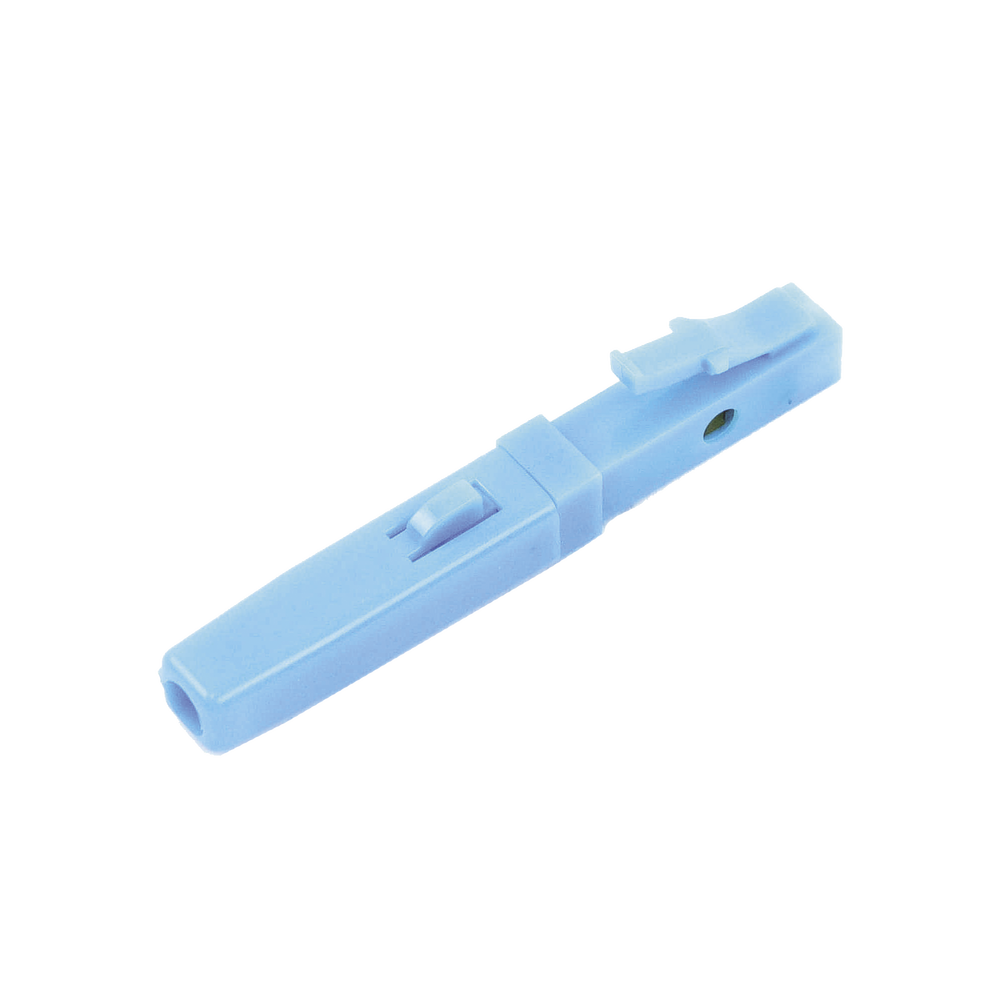

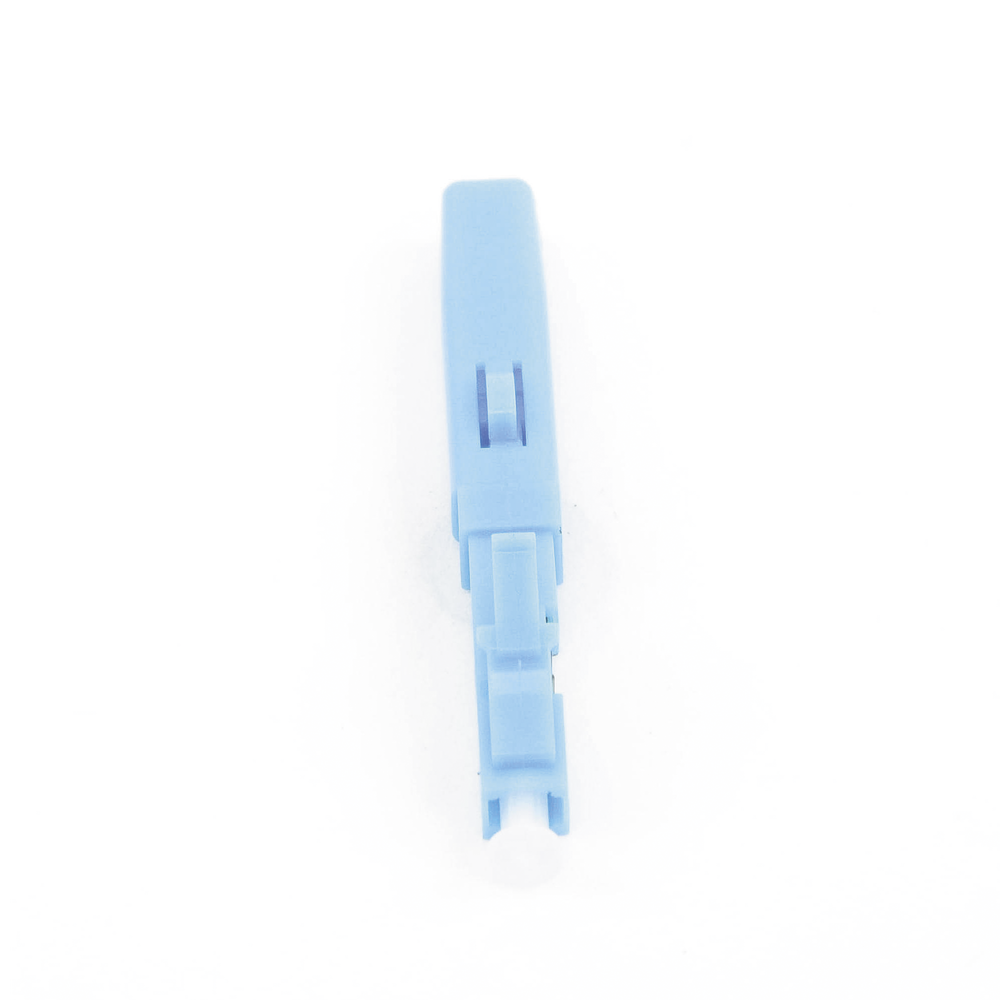

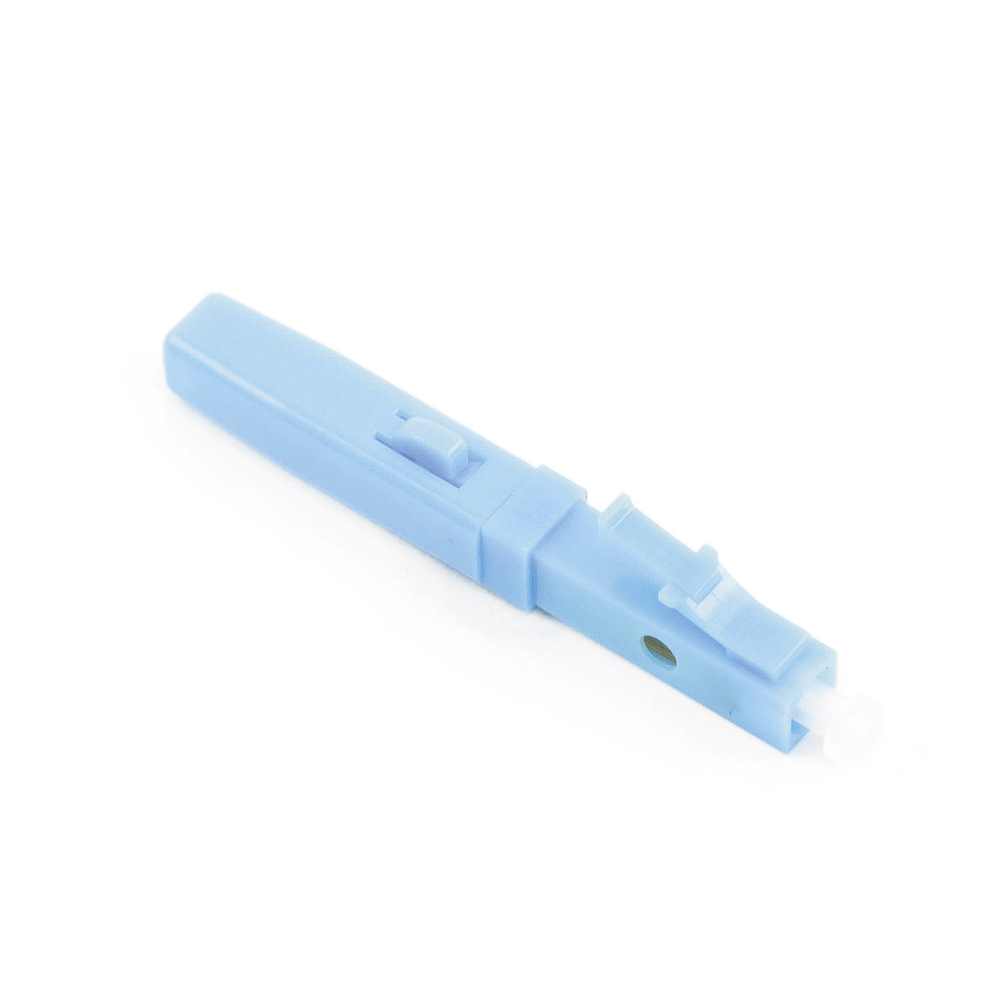

Field-Installable, Single-Mode, LC/UPC, Pre-Polished, Re-Terminatable Quick Connector for Flat Drop Fiber

Field-Installable, Single-Mode, LC/UPC, Pre-Polished, Re-Terminatable Quick Connector for Flat Drop Fiber

Field-installable LC quick connectors provide easy deployment without polishing and are the best choice for terminating DROP-type fiber optic cables.

• Easy installation without the need for special tools to open or close the connector
• Connection easily verifiable after installation

Specs:

• Connector Type: LC/UPC
• For flat Drop fiber
• Reterminable (up to 3 times)
• Insertion loss:
  • Maximum ≤ 0.50 dB
  • Typical ≤ 0.30 dB
• Return loss:
  • UPC ≤ 50 dB
  • APC ≤ 55 dB
• Operating temperature: -45 to 85ºC
