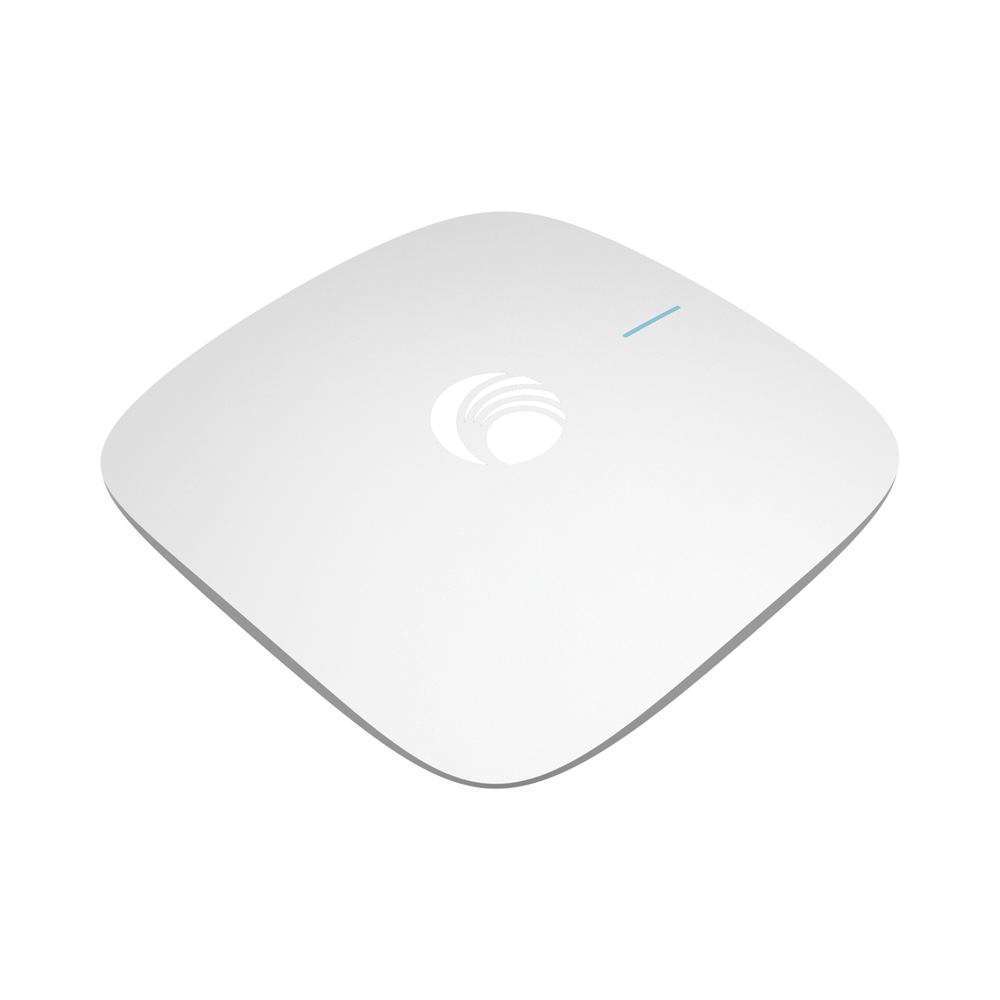

cnPilot e410 Indoor WiFi Access Point, Dual Band, Wave 2, MU-MIMO 2X2, Omnidirectional Beamforming Antenna, up to 256 clients

e410 Indoor

802.11ac
Standard + MESH 256
Omi users
360º Controller
gratuitous

---

Free management in cnMaestro Comprehensive management of the entire network for inventory management, device onboarding, daily operations, maintenance, configuration, and provisioning, as well as ticket and/or voucher creation, time and bandwidth control, and a captive portal.	Designed for high capacity Triple Play Supports up to 256 active users with high traffic and up to 16 SSIDs.

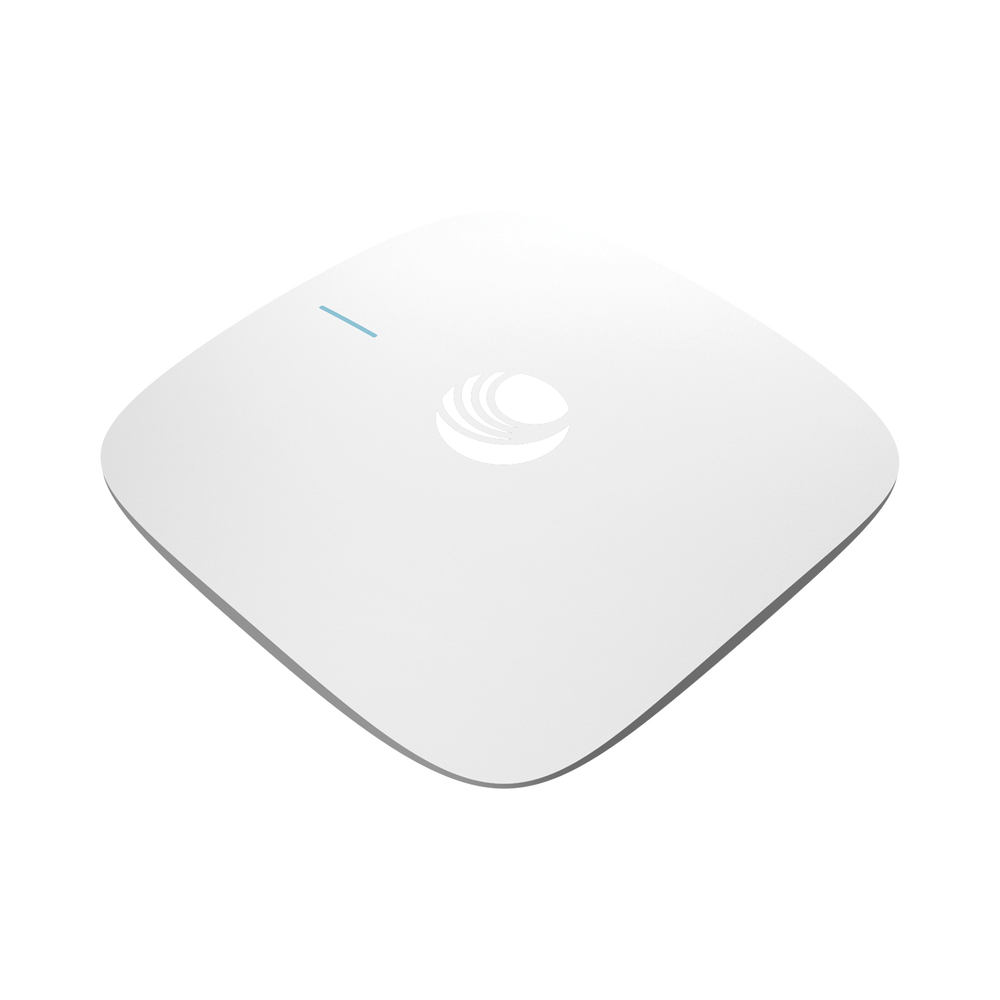

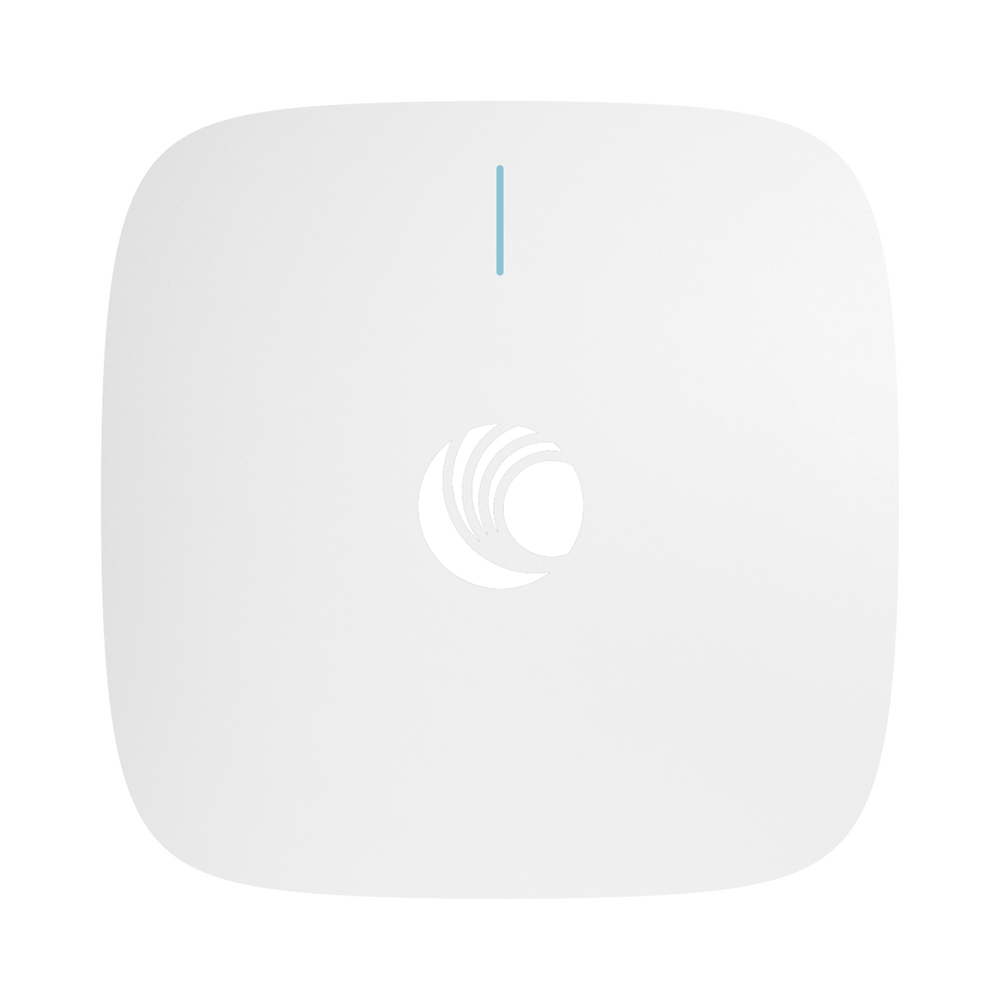

Aesthetic design for ceiling Designed to be installed on the ceiling of hallways or offices without sacrificing the aesthetics that a network device might create, it adapts to any setting.	Roaming and MESH Backhauling capability for MESH designs and supports Roaming to avoid losing connectivity when moving around rooms.
Guaranteed, categorized as the best Cost-benefit Access Point The e410 offers a reliable, high-capacity indoor Wi-Fi networking solution at a significantly lower cost than its high-end competitors. You'll save network nodes, and we guarantee the equipment for 5 years.	Monitor what's happening on your network. Limit access to restricted pages using the cn Maestro ACL

cnPilot e410 Indoor MU-MIMO2X2 delivers a maximum transmit power of 25 dBm and channels up to 80MHz wide at 5GHz, offering more flexibility than ever, coverage and capacity.

Maximum number of connected devices: 256 Wi-Fi devices.

Maximum line-of-sight coverage: 180m  (Requires Wi-Fi survey to correctly calculate coverage, free with cnPilot equipment)

Operating modes: Access Point or Router (NAT, DHCP Server and Firewall).

Main features:

802.11 a/b/g/n/ac Wave 2 standard.

Simultaneous dual band 2.4 and 5 GHz.

MU-MIMO 2X2.

Up to 400 Mbps at 2.4 GHz.

Up to 867 Mbps at 5 GHz.

Beamforming antenna to increase performance in communication with devices.

Omnidirectional Antennas: 5.25 dBi at 2.4 GHz and 5.5 dBi at 5 GHz.

Power: 24dBm at 2.4 GHz and 25 dBm at 5 GHz.

General characteristics:

Management type: Standalone, cnMaestro Cloud Managed (free), and cnMaestro on-premises VM.

Up to 16 SSIDs (Flexible on any band)

Fast Roaming: Browse from cell to cell without losing connection.

ACL: Create blocking rules for web pages.

ACS function for automatic channel switching to avoid interference.

Schedule SSID to activate SSID on desired days at certain times.

Cloud-based Hotspot captive portal, customizable vouchers.

Limit bandwidth per user or SSID.

Isolation between clients to prevent broadcast and multicast storms from entering the network.

Load Balancing to balance the load between each band.

Supports MESH.

Physical and electrical characteristics.

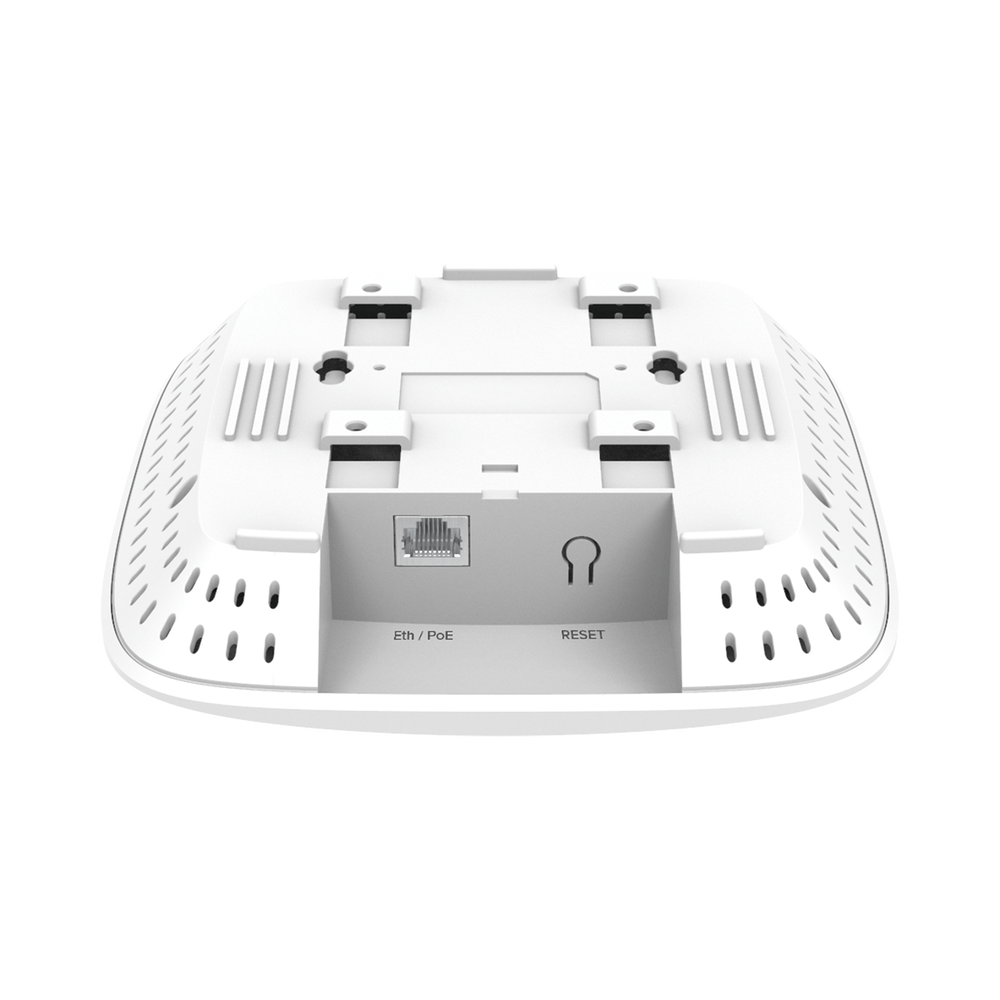

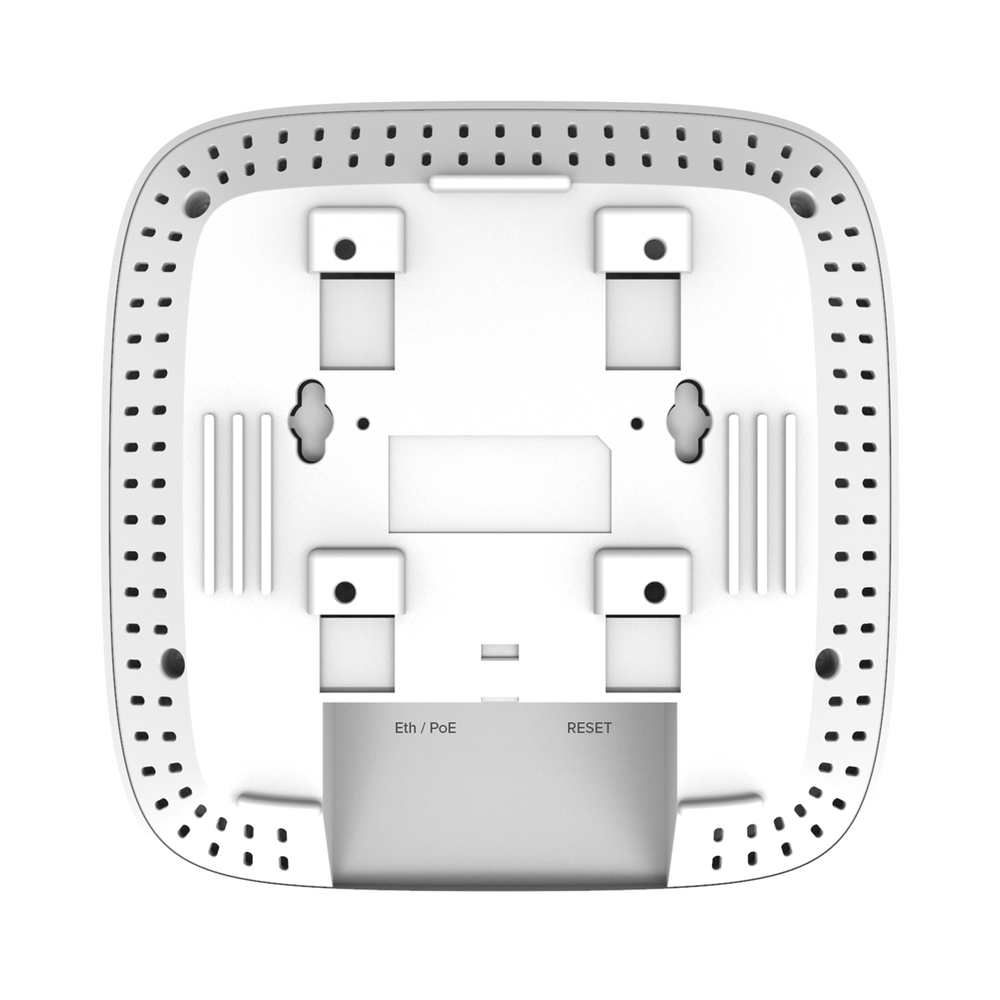

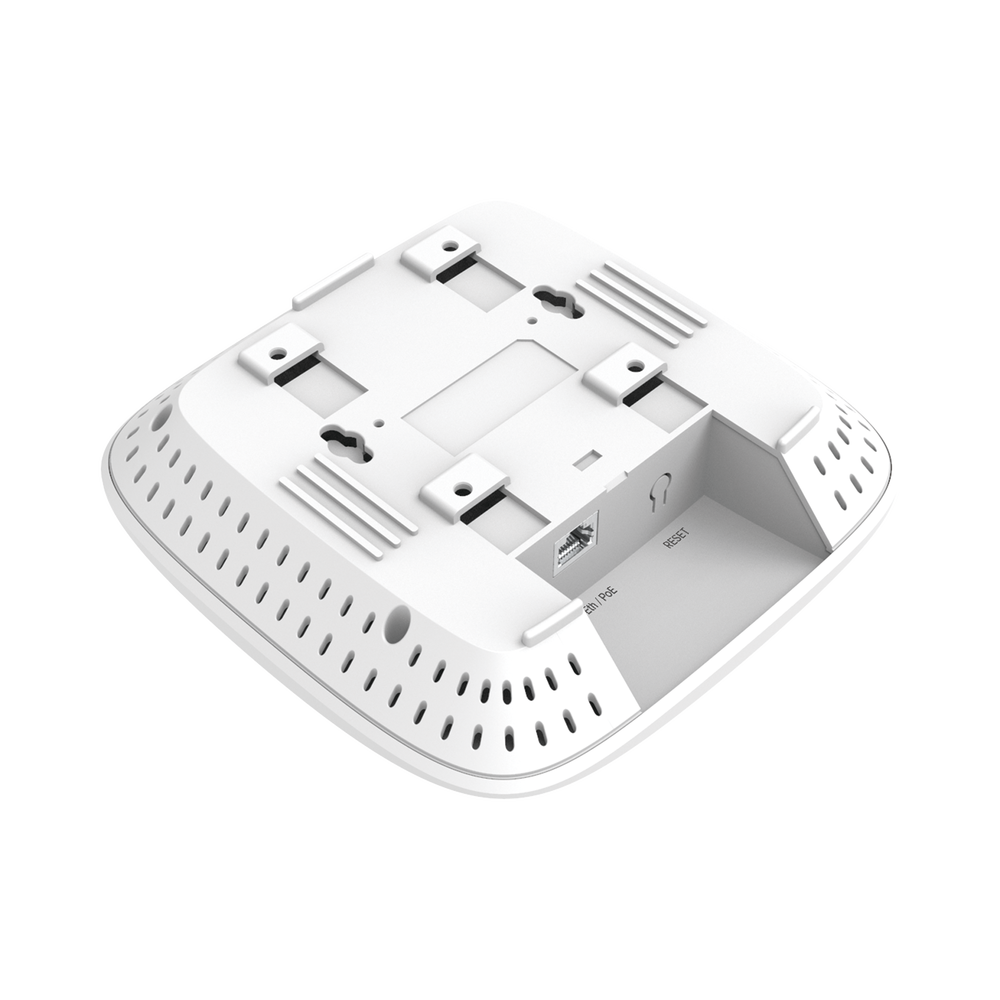

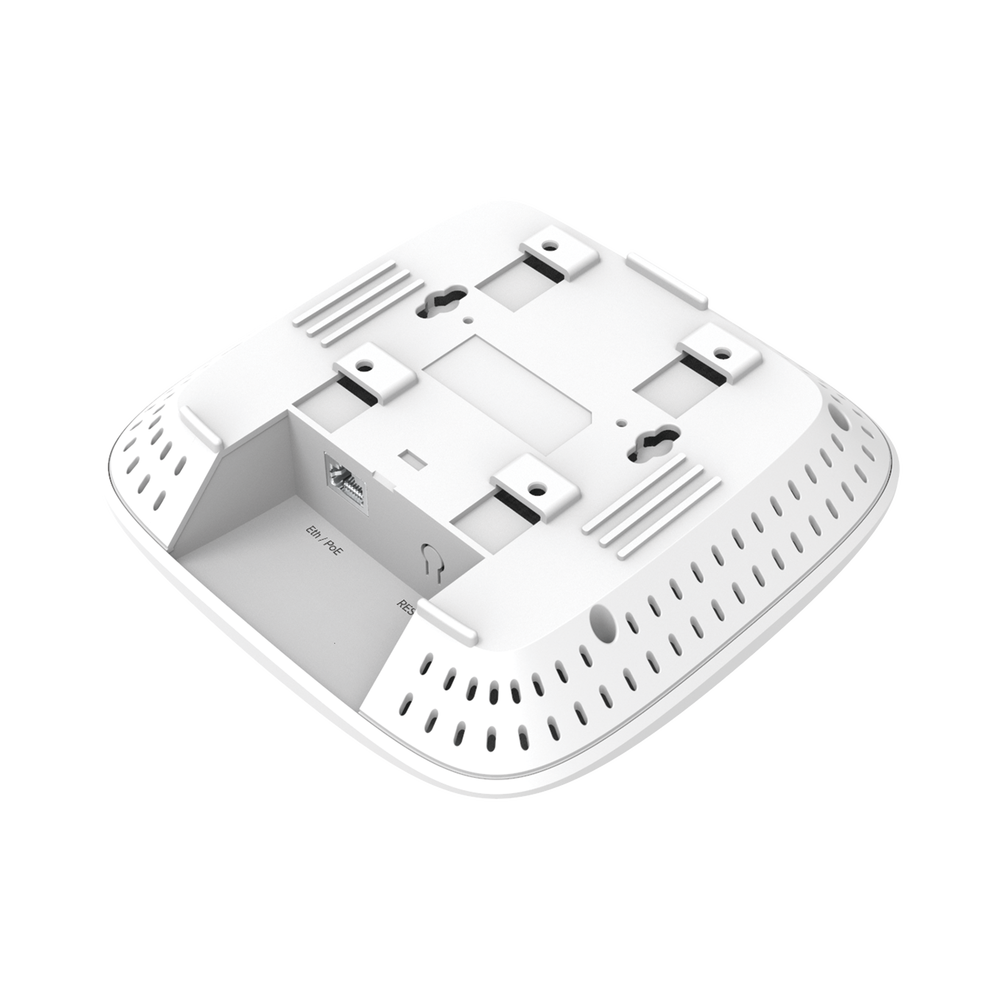

1 Gigabit PoE IN 802.3af port.

Maximum consumption: 12.95W

Free management via cnMaestro controller from the cloud, no additional equipment required.

Package includes the following:

Requires PoE power supply or PoE switch.

Comparison with e600.

Comparison with other models.

It includes ACLs to create website blocking rules, a free Captive Portal with a cloud-based voucher creator, an ACS function for automatic channel switching to avoid interference, and a Beamforming antenna to increase device communication performance.
