• Switch Core Capa 3, 24 Puertos SFP 100/1000X, 8 Puertos Compartidos Gigabit Ethernet, 4 Puertos SFP de 10 Gbps
1 4

PLANET

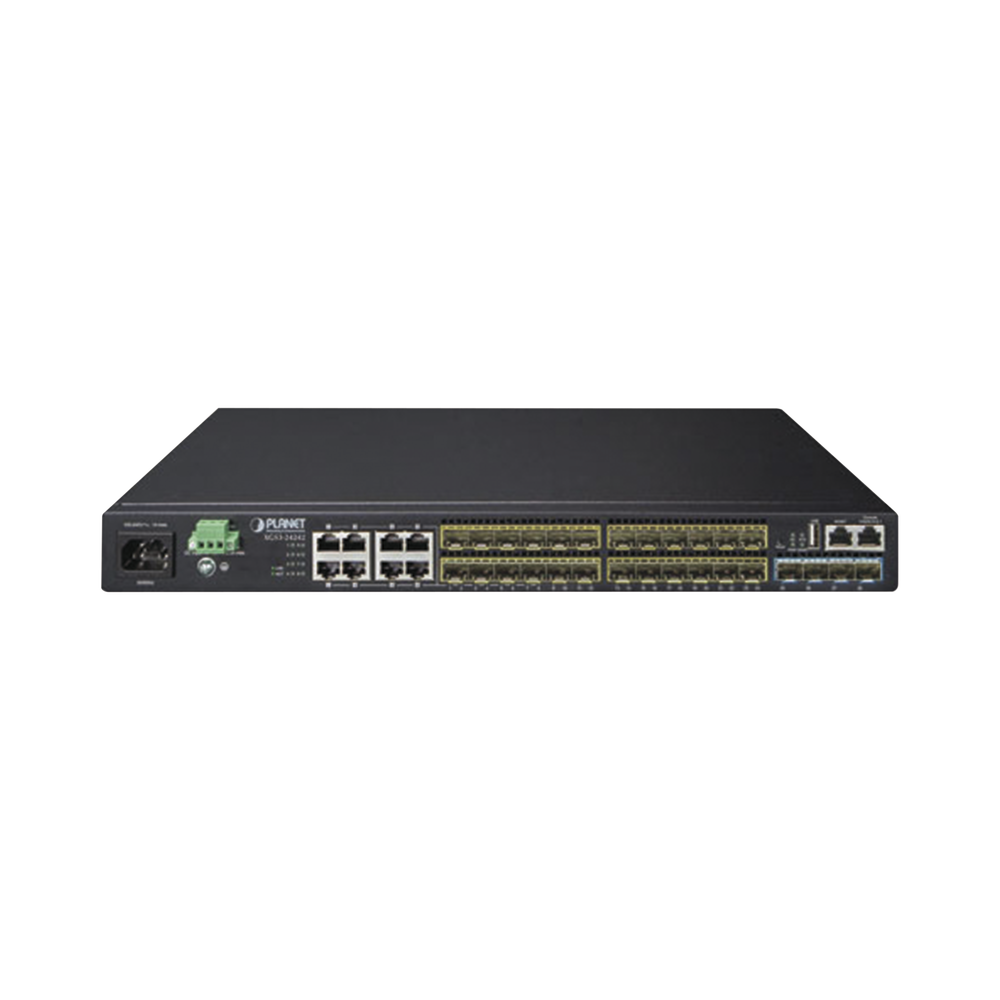

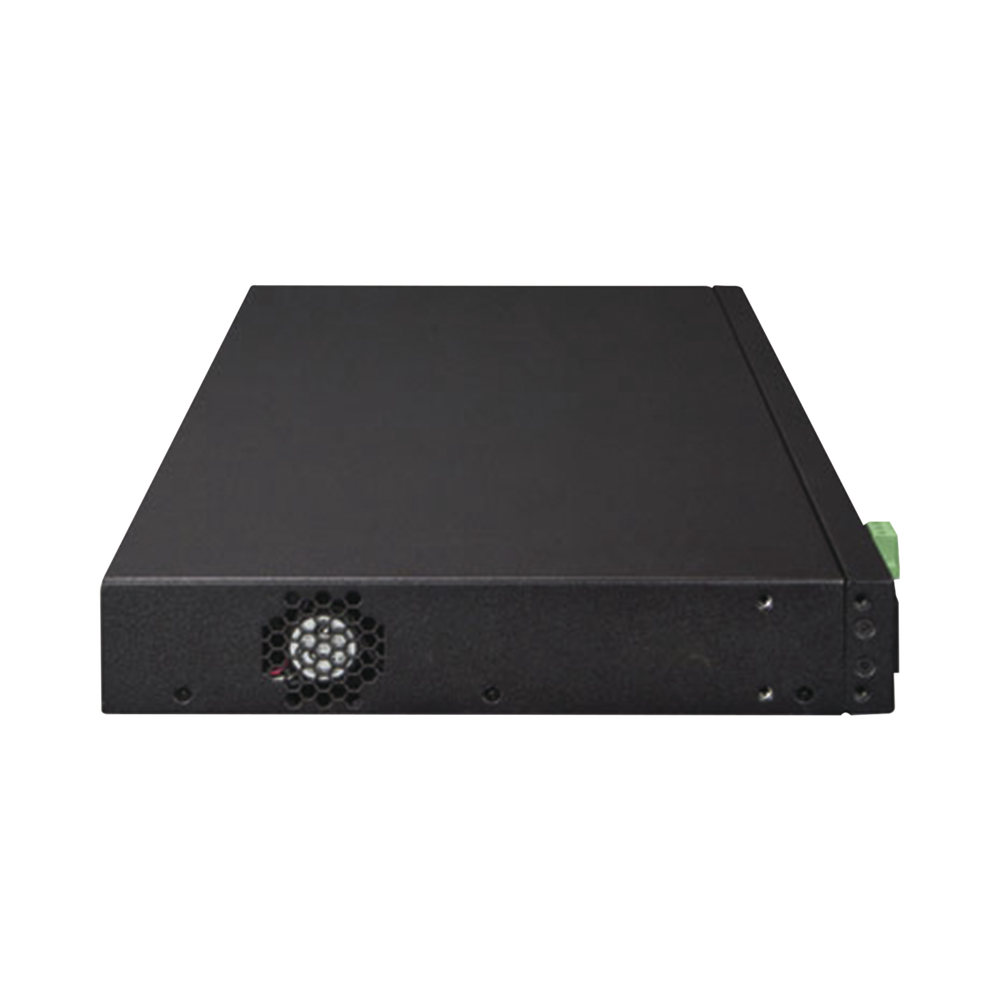

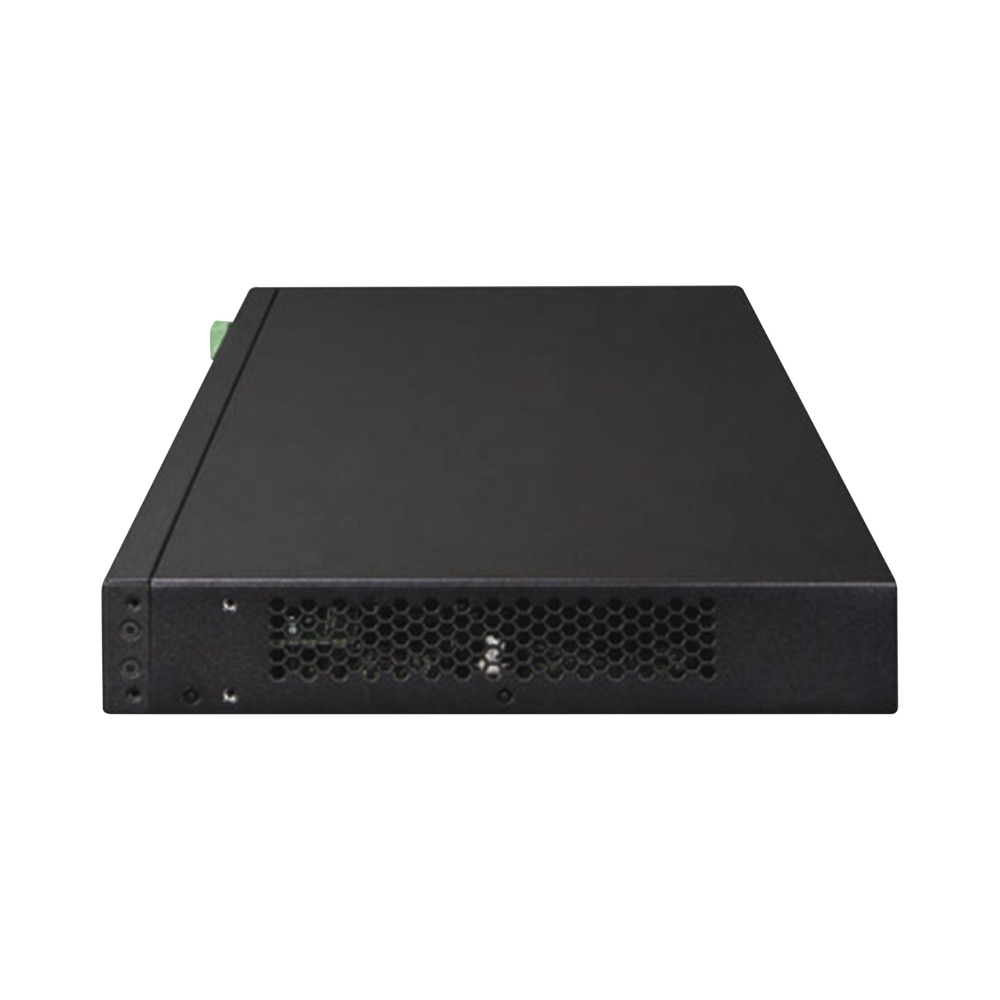

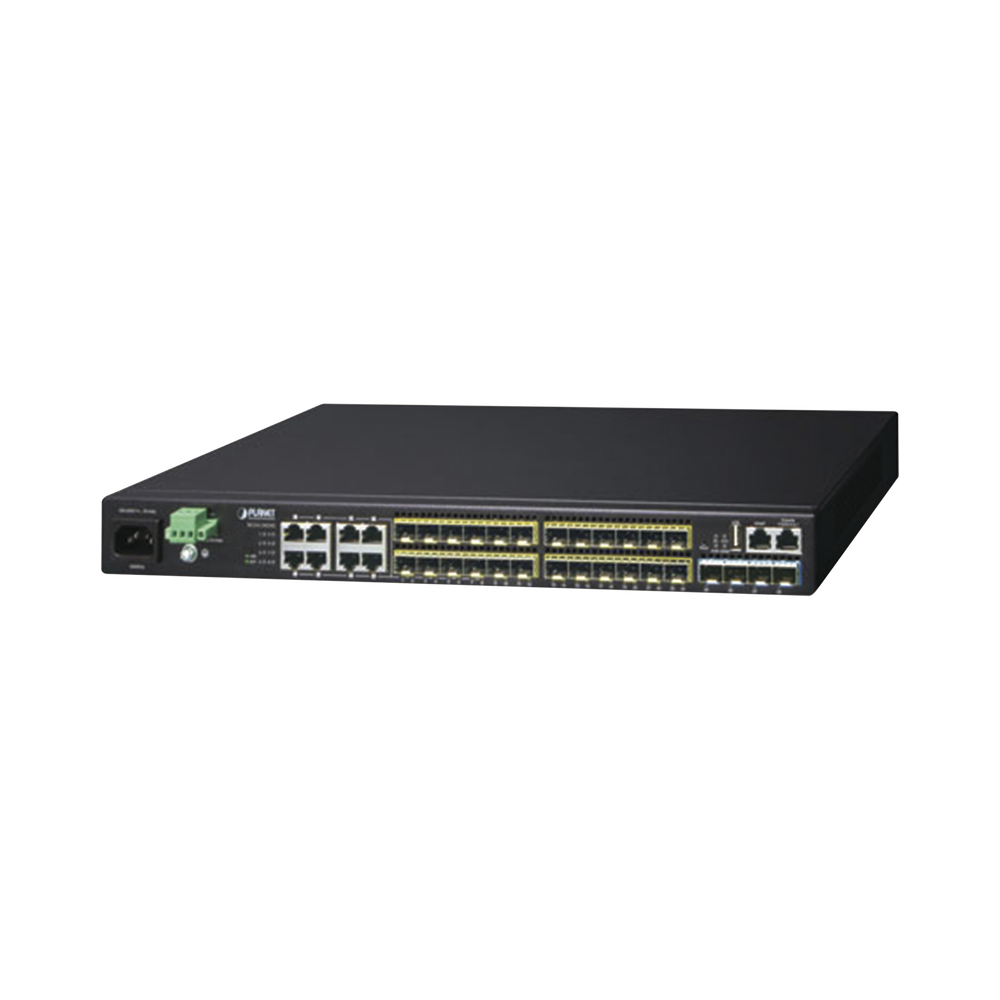

Layer 3 Core Switch, 24 100/1000X SFP Ports, 8 Shared Gigabit Ethernet Ports, 4 10 Gbps SFP Ports

Layer 3 Core Switch, 24 100/1000X SFP Ports, 8 Shared Gigabit Ethernet Ports, 4 10 Gbps SFP Ports

$8.437.931 COP
$9.228.987 COP $8.437.931 COP
Sale Sold out
Shipping calculated at checkout.

Layer 3 Core Switch, 24 100/1000X SFP Ports, 8 Shared Gigabit Ethernet Ports, 4 10 Gbps SFP Ports

Common Solutions

Mesh network solution for Big Data systems

Data Center

Layer 3 VLAN Routing

Hardware specifications
SFP / mini-GBIC slots 24 SFP 100/1000BASE-X interfaces
Compatible with 100BASE-FX SFP transceiver
Copper ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with port 1 to port 8
SFP+ slots 4 10GBASE-SR/LR SFP+ interfaces (port 25 to port 28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Console 1 RJ45 to RS232 serial port (115200, 8, N, 1)
Performance 95.23 Mpps
Routing table IPv4 Routing Entry: 13K
IPv6 Routing Entry: 3.2K
Dimensions 440 x 240 x 43.6 mm
Weight 3173g
Energy consumption Max. 51.1 Watts / 174 BTU (AC input)
Max. 47.6 Watts / 162 BTU (DC input)
Energy requirements AC 100~240V, 50/60Hz
DC 36V-75V, 2.5A max.
IPv4 Layer 2 and 3 Functions
IPv6 Layer 2 and 3 Functions
IP Cluster Compatibility List (Stacking) XGS3-24242v3
XGS3-24042v3
SGS-6341-24T4Xv2
SGS-6341-24P4Xv2
SGS-6341-16S8C4XRv2
SGS-6341-48T4X
Hardware Stacking Compatibility List XGS3-24242v3
System Configuration Console, Telnet, SSH, web browser, SNMP v1, v2c and v3
Operating temperature Temperature: 0 ~ 50 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
Storage temperature Temperature: -10 ~ 70 degrees C
Relative humidity: 5 ~ 90% (non-condensing)
    RJ45 to DB9 console interface for basic configuration, Stacking management, up to 24 switches of the same series, Features a second power input for redundant power supply, USB 2.0 port for configuration and firmware storage

Out of stock

MODELO: XGS3-24242-V3

View full details
