MIKROTIK
(CRS305-1G-4S+IN) Dual OS Managed Switch, 1G RJ45 Port, 4 10G SFP+ Ports for Desktop
(CRS305-1G-4S+IN) Dual OS Managed Switch, 1G RJ45 Port, 4 10G SFP+ Ports for Desktop
Couldn't load pickup availability
(CRS305-1G-4S+IN) Dual OS Managed Switch, 1G RJ45 Port, 4 10G SFP+ Ports for Desktop

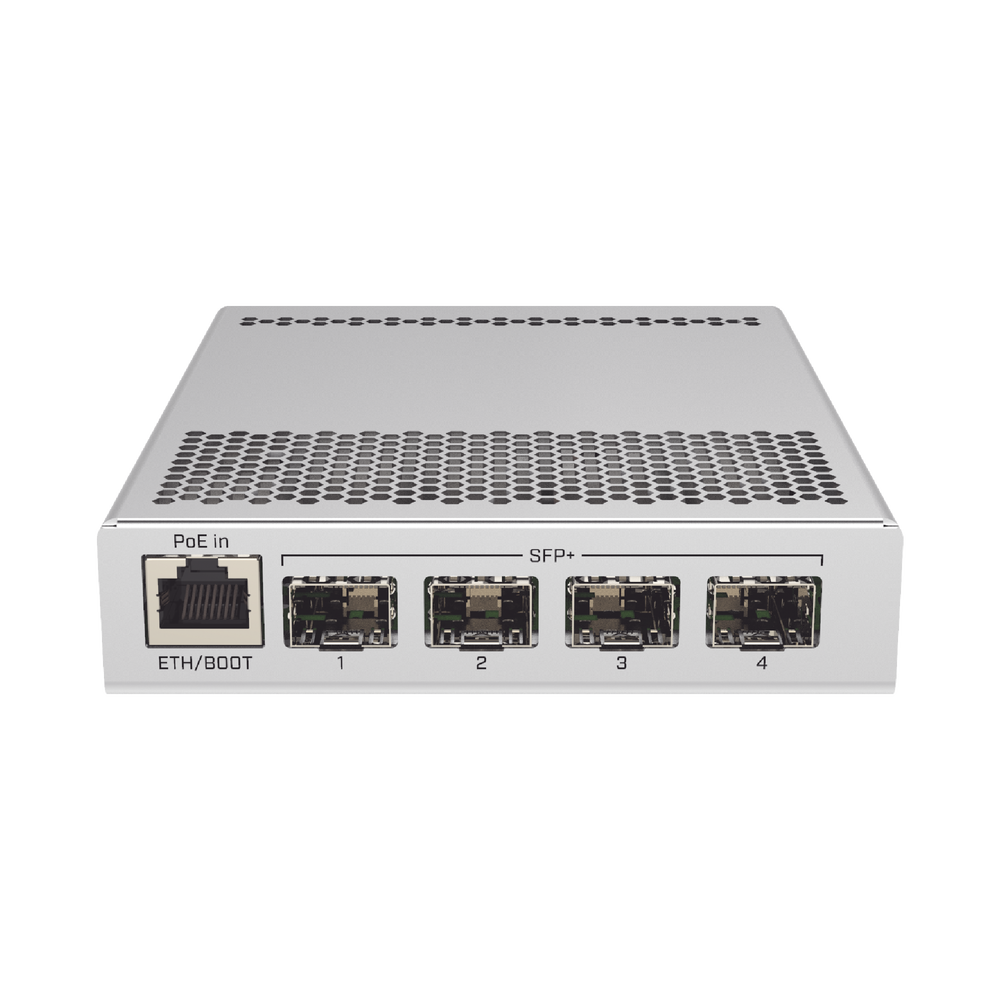

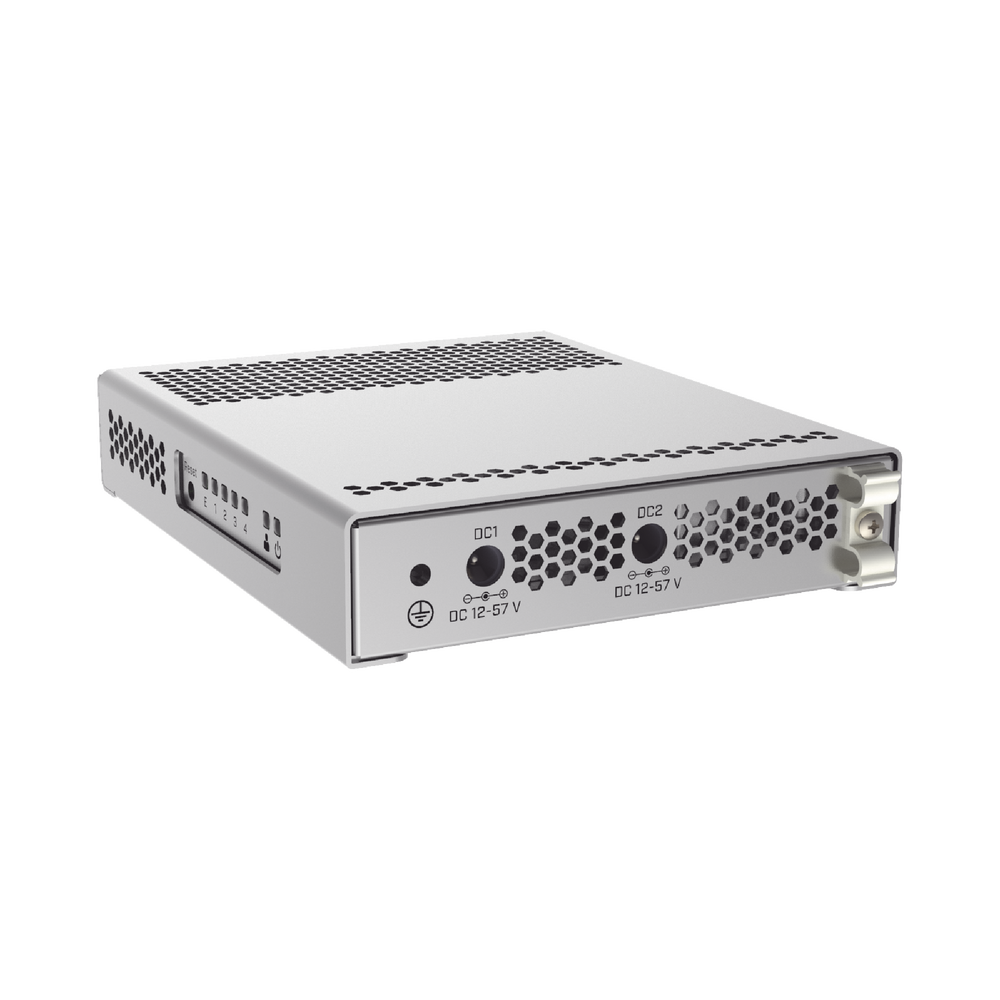

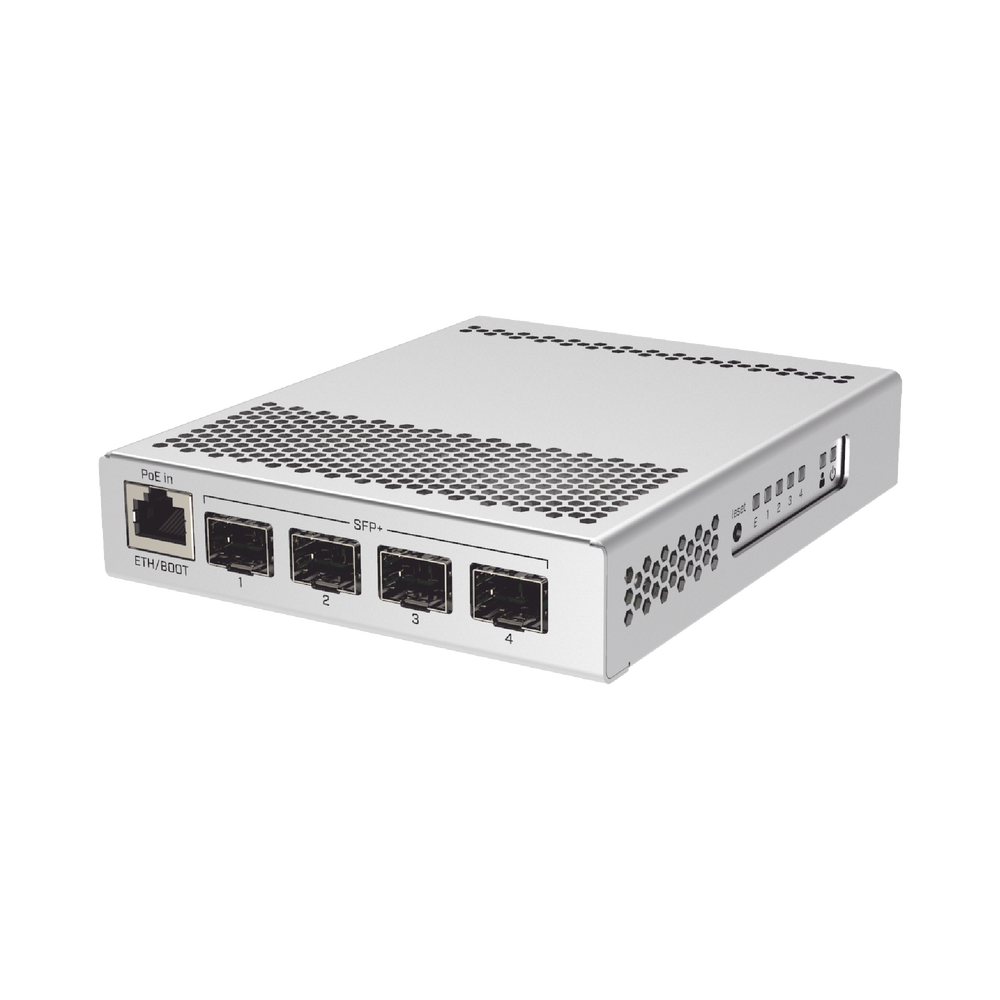

The CRS305 is a compact yet powerful switch with four SFP+ ports, for up to 10 Gbit/s per port. The device has a 1 Gbit/s copper Ethernet port for management access and two DC connectors for power redundancy. The device is housed in a sleek and compact metal enclosure with no fans for quiet operation.
The device has a dual-boot feature that allows you to choose between two operating systems: RouterOS or SwOS. If you prefer a simplified operating system with only specific features toggled, use SwOS. If you want the ability to use routing and other Layer 3 features on your CRS, use RouterOS. You can select the desired operating system from RouterOS, SwOS, or the RouterBOOT loader settings. The entire feature set comes at a disruptive price, providing the best price/performance ratio on the market.
Specs
| Details | |
|---|---|
| Product code | CRS305-1G-4S+IN |
| Architecture | ARM 32bit |
| CPU | 98DX3236 |
| CPU core count | 1 |
| Nominal CPU frequency | 800 MHz |
| Dimensions | 141 x 115 x 28 mm |
| License level | 5 |
| Operating system | RouterOS / SwitchOS |
| RAM size | 512 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Room temperature tested | -40°C to 70°C |
Feeding
| Details | |
|---|---|
| PoE in | 802.3af/at |
| PoE on input voltage | 12-57 V |
| Number of DC inputs | 3 (DC jack, PoE-IN) |
| DC jack input voltage | 12-57 V |
| Maximum energy consumption | 18 W |
| Maximum power consumption without accessories | 10 W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 4 |
Other
| Details | |
|---|---|
| CPU Temperature Monitor | Yeah |
Certifications and approvals
| Details | |
|---|---|
| Certification | CE/RED, EAC, ROHS |
Parts included
-
24V 0.8A power adapter
- Dual RouterOS/SwitchOS operating system, 4 10G SFP+ ports, 802.3af/at power
Out of stock
MODELO: CRS305-1G-4S+IN
