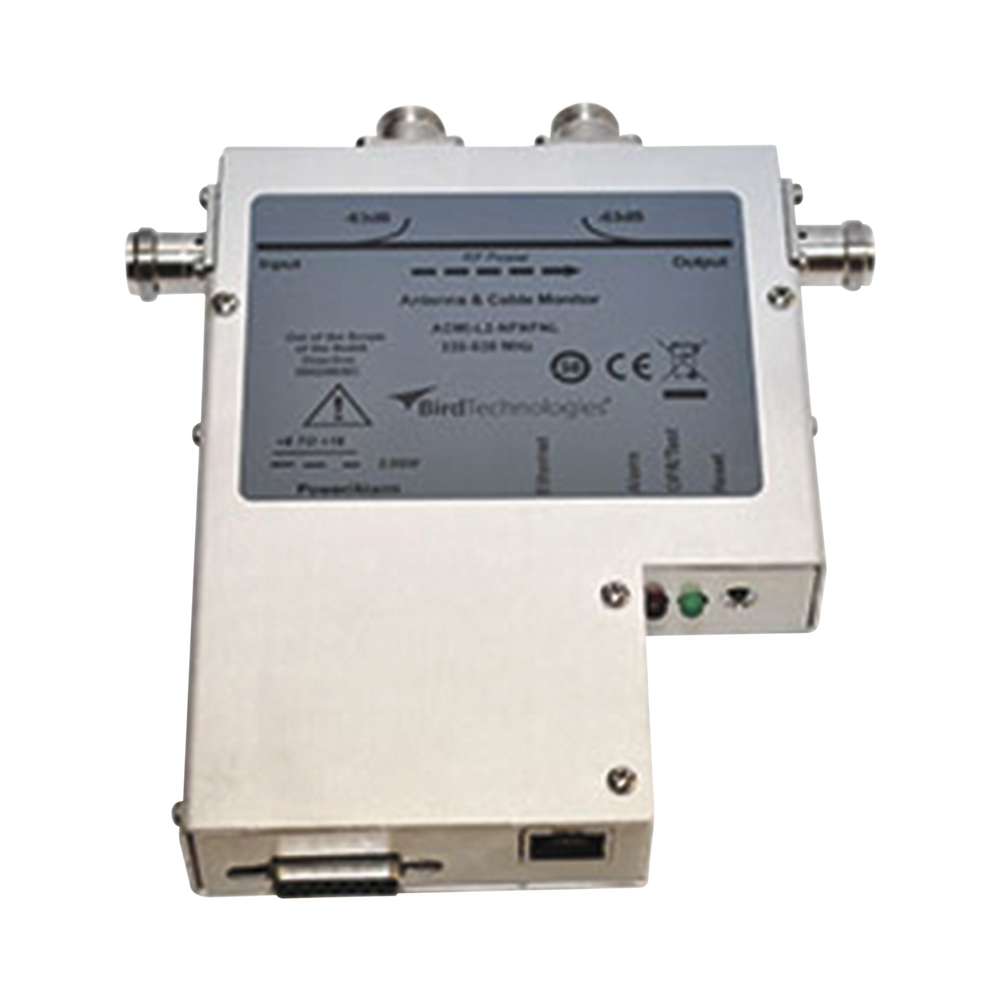

Antenna and Cable Monitor with Alarm, 136-225 MHz, 100 Watt, N Female/ N Female/ N Female, 12 Vdc.

Antenna and Cable Monitor with Alarm, 136-225 MHz, 100 Watt, N Female/ N Female/ N Female, 12 Vdc.

Antenna and Cable Monitor with Alarm, 136-225 MHz, 100 Watt. 12 Vdc.

• BIRD's Antenna and Cable Monitor is the reliable solution for monitoring your RF transmission systems.
• Service providers and self-sufficient end users can rely on this monitor and alarm to keep their critical sites running.
• Designed to detect antenna and cable faults that the transmitter's internal VSWR monitors may not detect.
• An integral coupler with high directivity optimizes measurement accuracy.
• Measures small changes in antenna VSWR with high feeder and interface losses and provides accurate online RF power measurement functionality.

Product Features

• Provides multiple alarms if an antenna or cable fault occurs.
• Measures the true average power of signals with high peak-to-average characteristics; works with any modulation.
• Monitors transmitter output power and includes low or high power alarms.
• Remote access with monitoring and control via serial and Ethernet interfaces.
• It is included as a standard Push-To-Talk (PTT) input to prevent false alarms from being triggered when the transmitter (radio) is not activated.

Applications

• 3G
• Low power transmission.
• CDMA and CDMA 2000
• Edge
• GSM
• Microwave
• Pagination
• TDMA
• TETRA AND TETRAPOL
• VHF and UHF
• LMR
• WLL

SPECS

Measurement

• Frequency range: 136 to 225 MHz.
• ACMI measuring range: 2.5 to 100 W.
• Power Accuracy: 136 to 225 MHz, ± 10%
• Insertion loss: 108 to 960 MHz, 0.1 dB
• VSWR for 108 to 960 MHz: 1.07 (No. or 7/16 connectors)
• Reflected directivity for 108 to 960 MHz: 30 dB

VSWR Characteristics of the Alarm

• Alarm set point: 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5 to 1.
• Relay Contact Type: Dry, Form C, Relay Contacts, Common, Normally Open, Normally Closed.
• Contact Rating: 100 VDC @ 0.5A
• Visual Alarm: The red LED will illuminate to indicate an alarm.
• Boost: When the VSWR set point is exceeded, response time proportional to the overload.
• Reset: Local mechanical reset switch remote input (Reset if VCC is 0 to +0.8 volts).
• Push to talk: +5/+24 VDC to activate.

System

• General: Thruline® sensor for direct insertion into 50 ohm line.
• Maximum power of the line section: Depends on the frequency and connector.
• Passive intermodulation products: Less than -130 dBc.
• ACMI Power Requirements: ±9 to 18 VDC or ±18 to 36 VDC or ±36 to 72 VDC.

Interfaces

• Connectors: Female N, TNC or BNC.
• Coupling: -63 dB approx., Subject to changes at full scale power.
• RF Connectors: N or 7/16 DIN, see table.
• Alarm/Power Connector: 15-pin female “D” connector.
• Serial Port (ACM): RS-232, 9600 baud, no parity, 8 data bits, 1 stop bit, no handshaking.
• Ethernet Port (ACMI): 10/100-BASE-T (auto-sensing) Ethernet Version 2.0 / IEEE 802.3
• Protocols: ARP, UDP/IP, DHCP, BOOTP, Auto IP, HTTP and SNMP.
• Left LED: Amber: 10 Mbps. Green: 100 Mbps.
• Right LED Amber: Half duplex. Green: Full duplex.
• Security: 128-bit encryption.

Environment

• Operating Temperature: 32°F to 122°F (0°C to 50°C).
• Storage Temperature: -4°F to 176°F (-20°C to 80°C).
• Humidity: 0 to 95% maximum (non-condensing).
• Altitude: Up to 3000 meters above sea level.

Physics

• Size (with connectors): 7.6' x 7.2' x 1.06' (192 mm x 183 mm x 27 mm).
• Weight: Less than 2 lb (0.9 kg).
