Mini-GBIC SFP Transceiver 1GB Singlemode LC up to 10 km

Mini-GBIC SFP Transceiver 1GB Singlemode LC up to 10 km

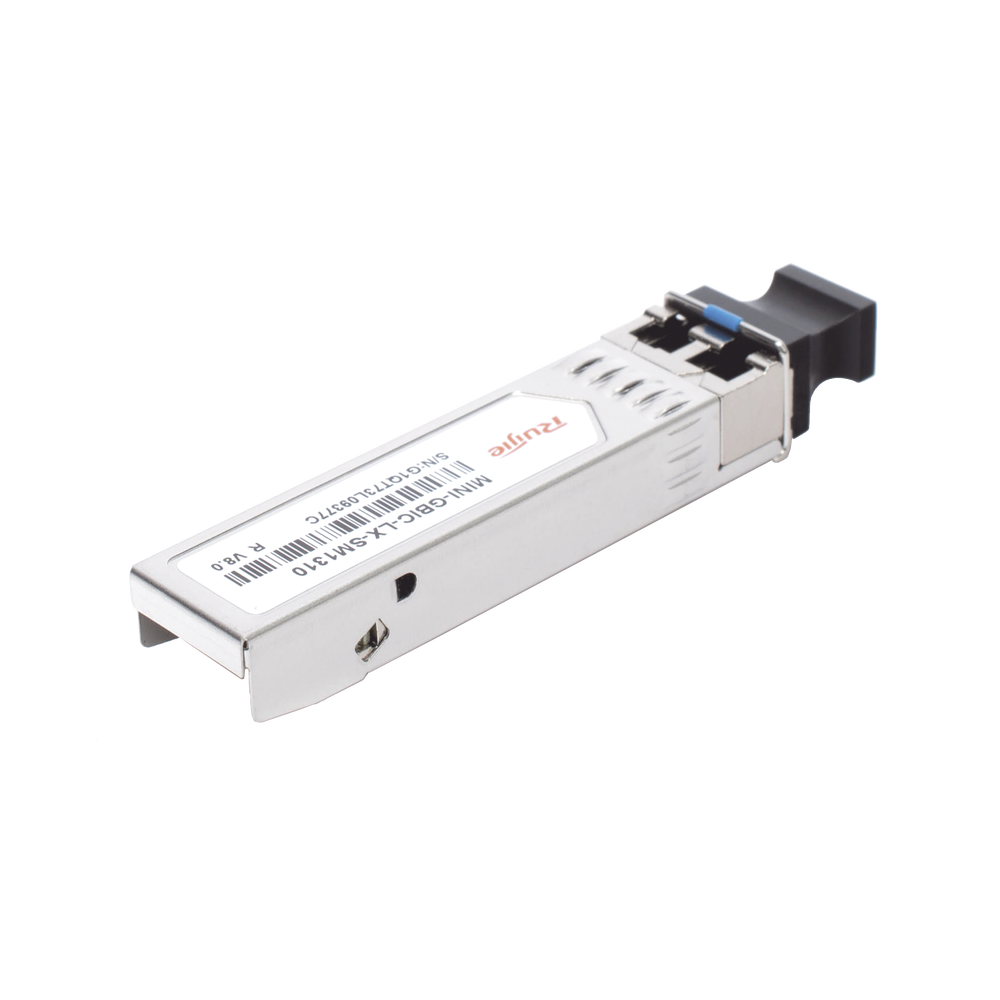

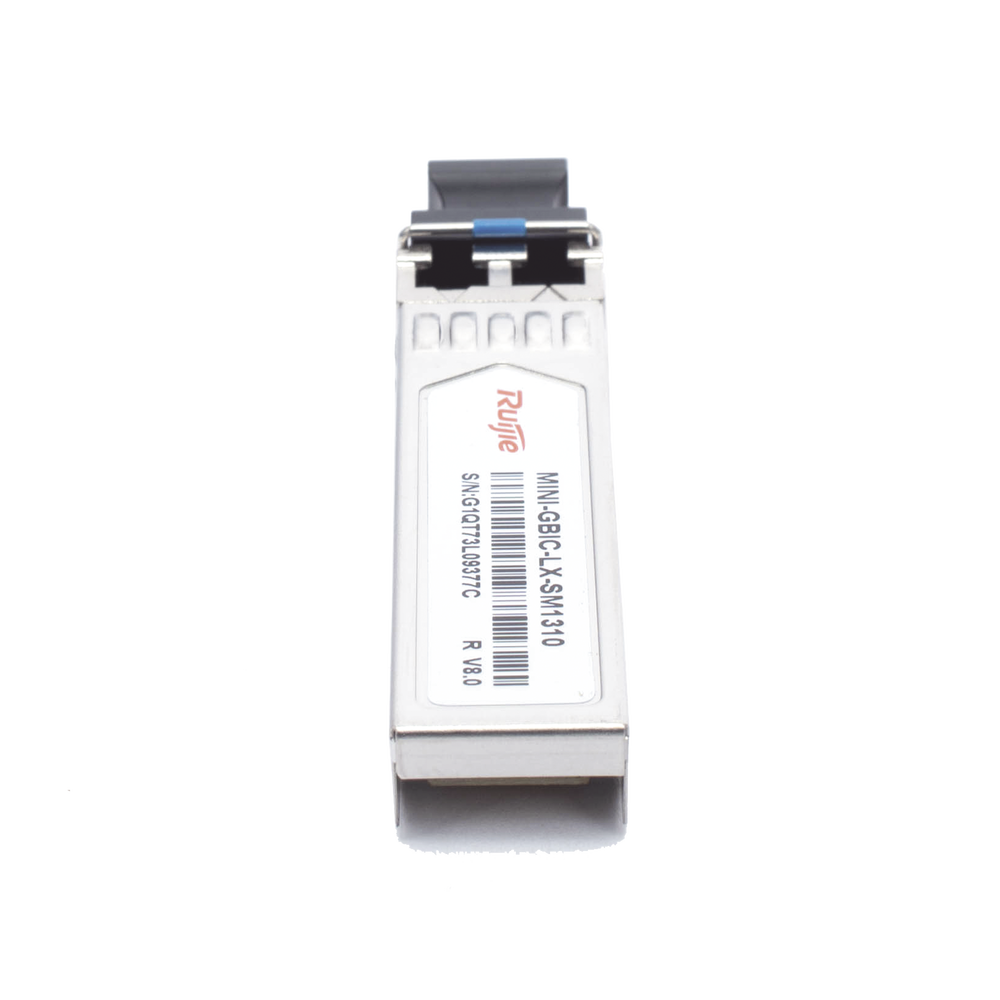

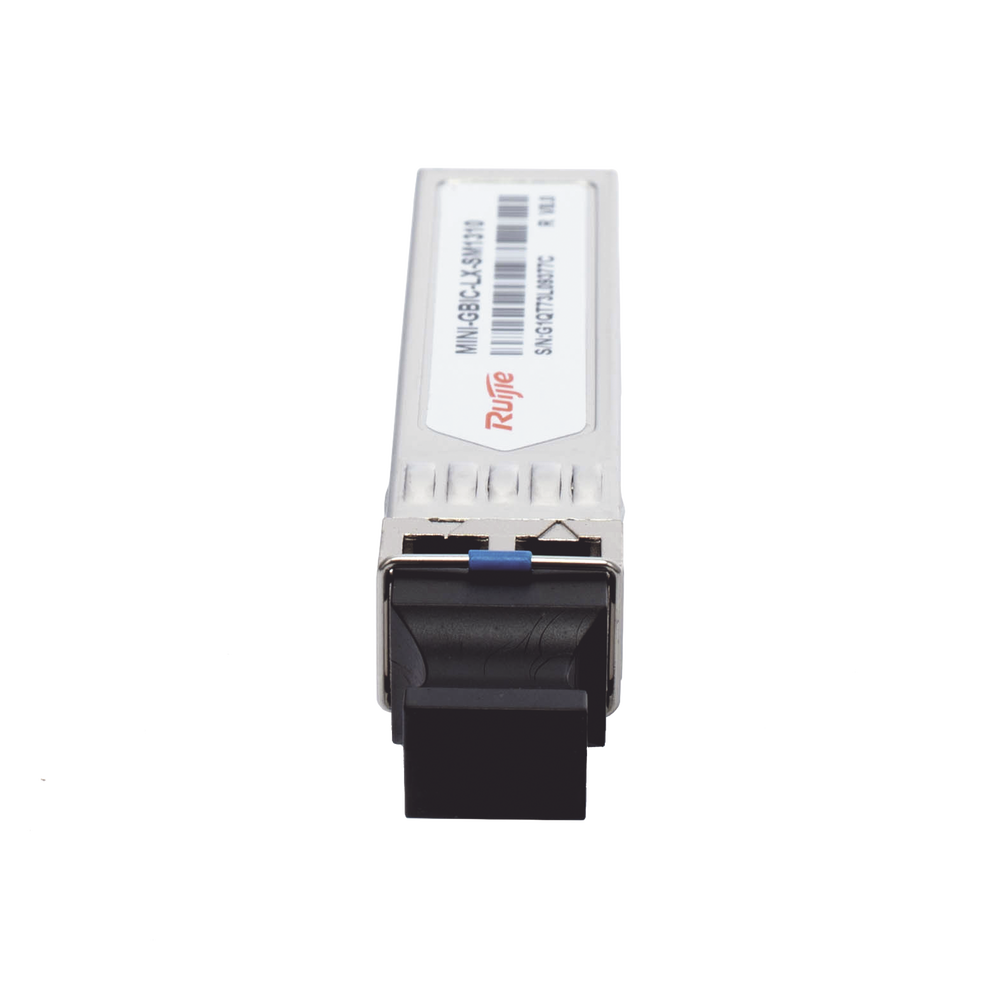

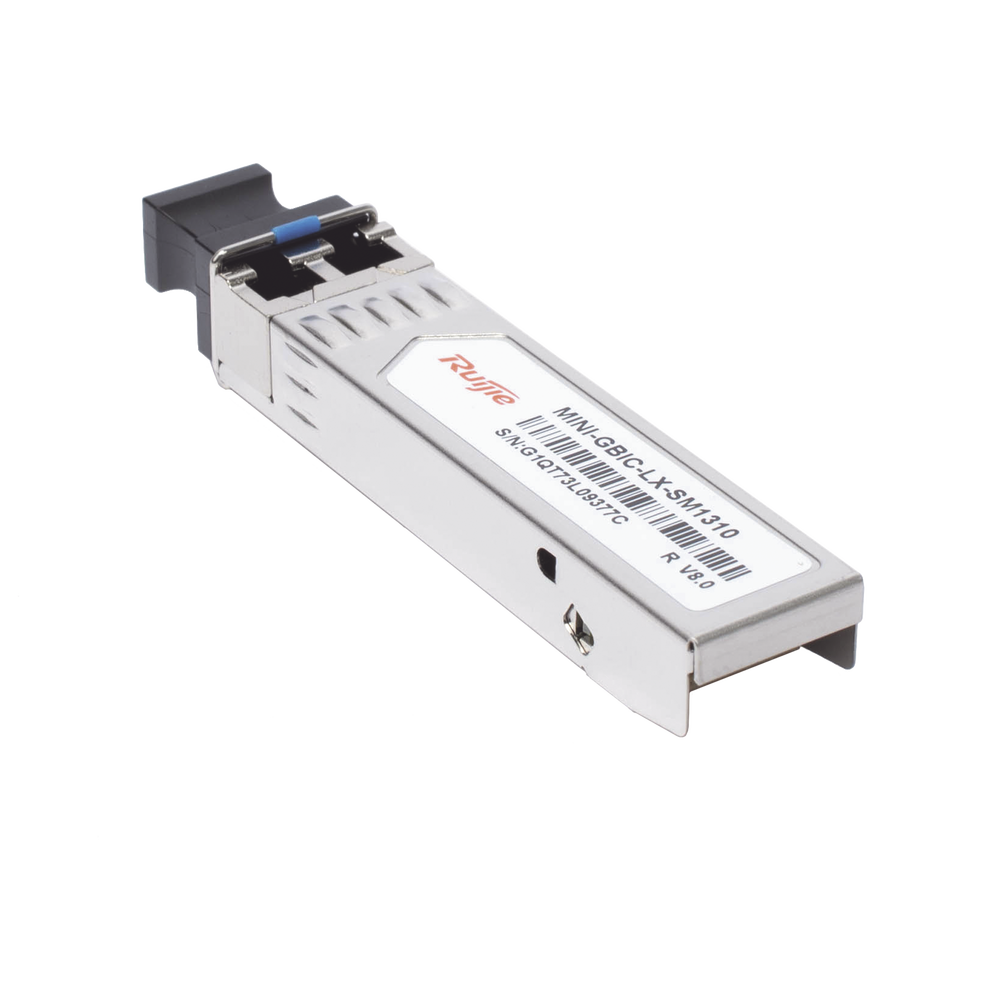

MINI-GBIC-LX-SM1310

The MINI-GBIC-LX-SM1310 is aligned with IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a 1310 nm wavelength. The transceiver complies with IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.

Maximum power consumption 1.5 W, Hot-pluggable and MSA-compliant SFP module, Digital optical monitoring capability for advanced diagnostic capabilities, Compliant with IEEE 802.3z Gigabit Ethernet, Class 1 laser safety and RoHS compliance
