• Sensor de combustible (Diesel y Gasolina) para localizador vehicular / Puerto Analógico / RS485 / RS232 / 1000mm recortable
1 7

ESCORT

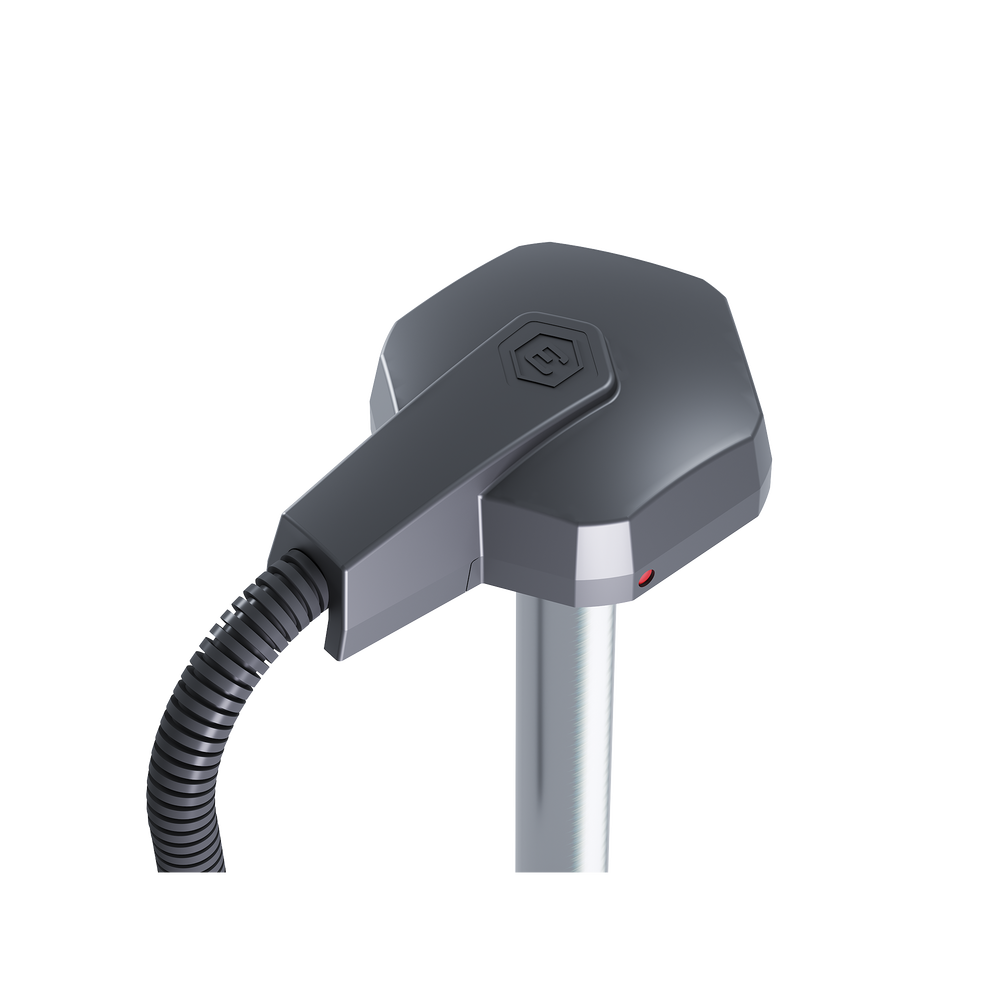

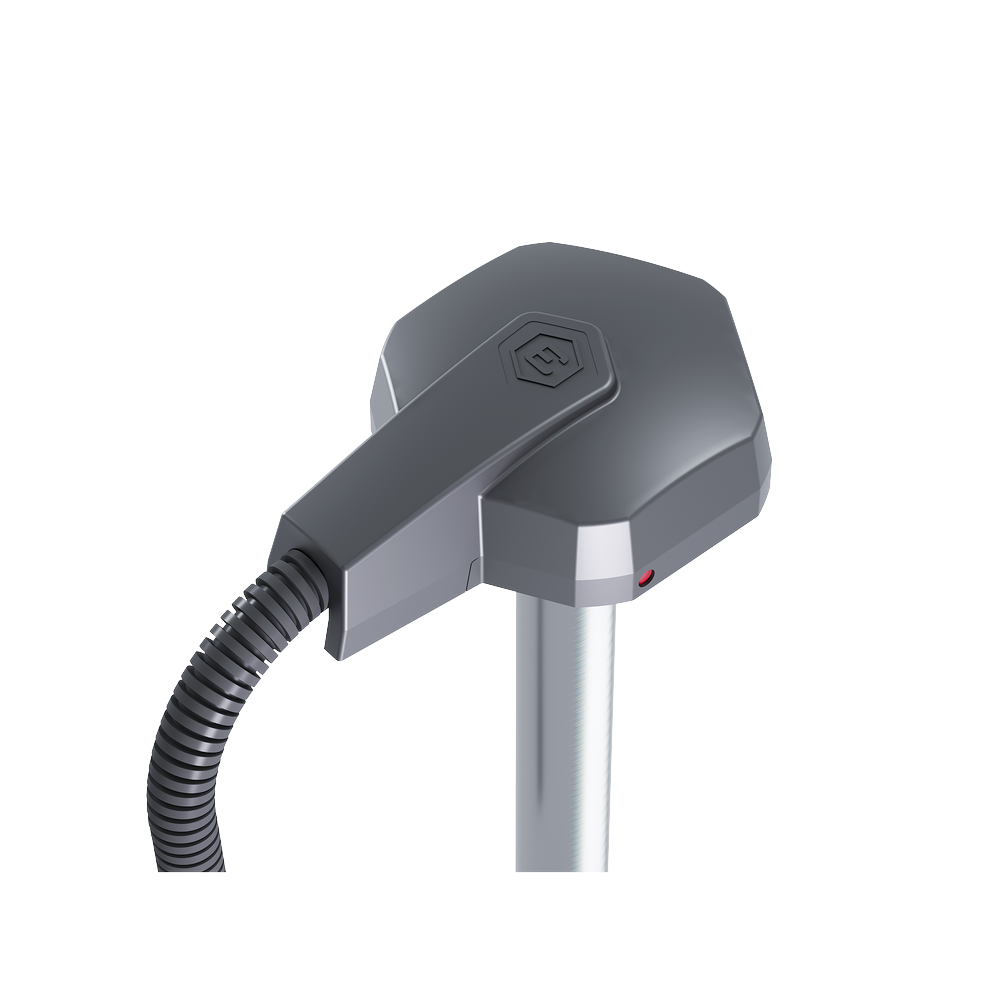

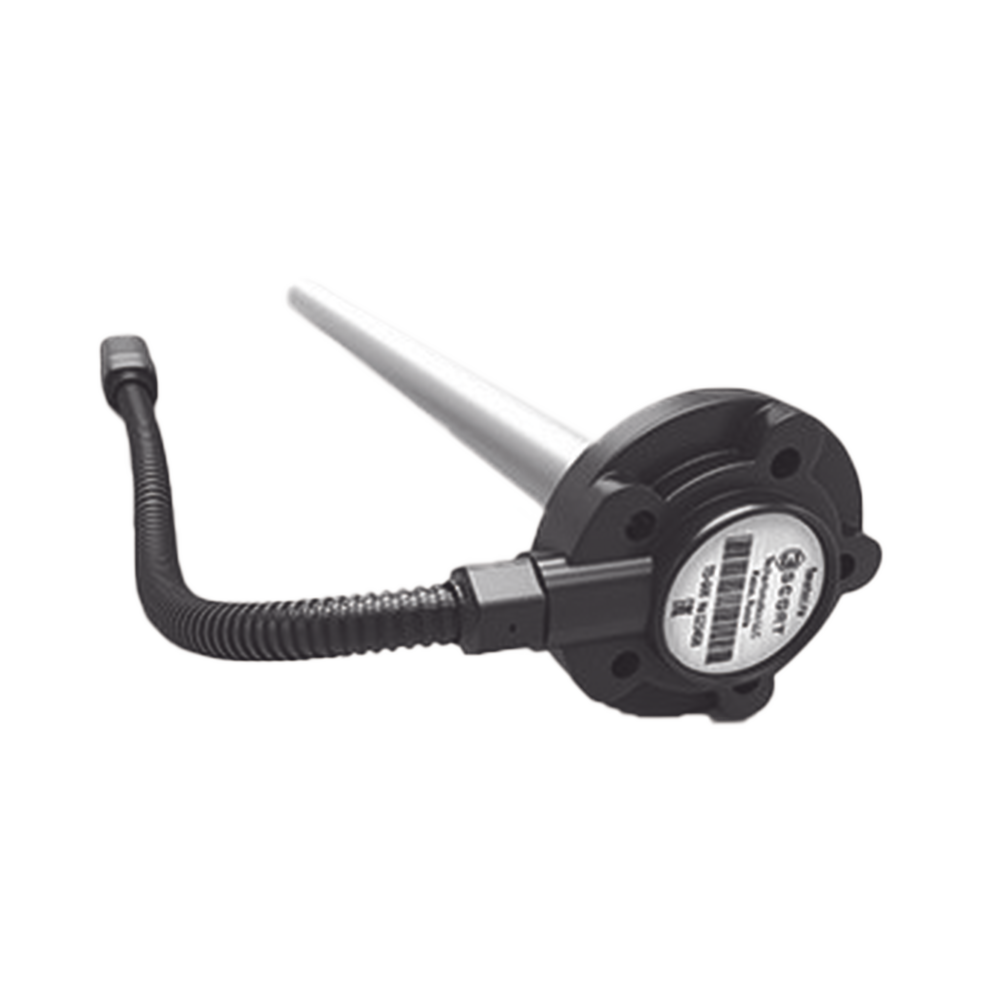

Fuel sensor (Diesel and Gasoline) for vehicle tracking / Analog port / RS485 / RS232 / 1000mm cuttable

Fuel sensor (Diesel and Gasoline) for vehicle tracking / Analog port / RS485 / RS232 / 1000mm cuttable

$678.509 COP
$742.119 COP $678.509 COP
Sale Sold out
Shipping calculated at checkout.

Fuel sensor (Diesel and Gasoline) for vehicle tracking / Analog port / RS485 / RS232 / 1000mm cuttable

Universal fuel level sensor.

Practical, safe and with excellent performance.

This device features five connection interfaces, making it universally compatible with a wide variety of existing vehicle tracking devices.

Keep track of your vehicles' fuel levels and prevent fuel theft or underfilling. Designed to save!

Unparalleled advantages.

RS232 / RS485 / Analog / Frequency / Impulse Connection

  • Insulation of the entire sensor housing
  • Analog signal range from 0.2 to 9V
  • Temperature range -60 / +85ºC
  • Improved thermal compensation algorithm.
  • High degree of protection against dust and water IP69S.
  • Properly insulated connection cable with extremely safe corrugated sheath.

Technical characteristics

Measured product Gasoline, diesel
Type of output signal RS-485, RS-232, analog, frequency, impulse
Digital output resolution 0.1%
Analog output resolution 0.25%
Frequency signal range 300 - 4395 Hz
Analog signal range 0.2 - 9 V
Measurement accuracy is not worse 1%
Non-linearity is not worse 1%
Nominal supply voltage 9 ... 36 V
Consumption current, up to 30 мÐ
Level of protection IP69S
Ambient temperature range from -60 to +85 °C

    103 in stock

    MODELO: TD6001000
