WILSONPRO / WEBOOST

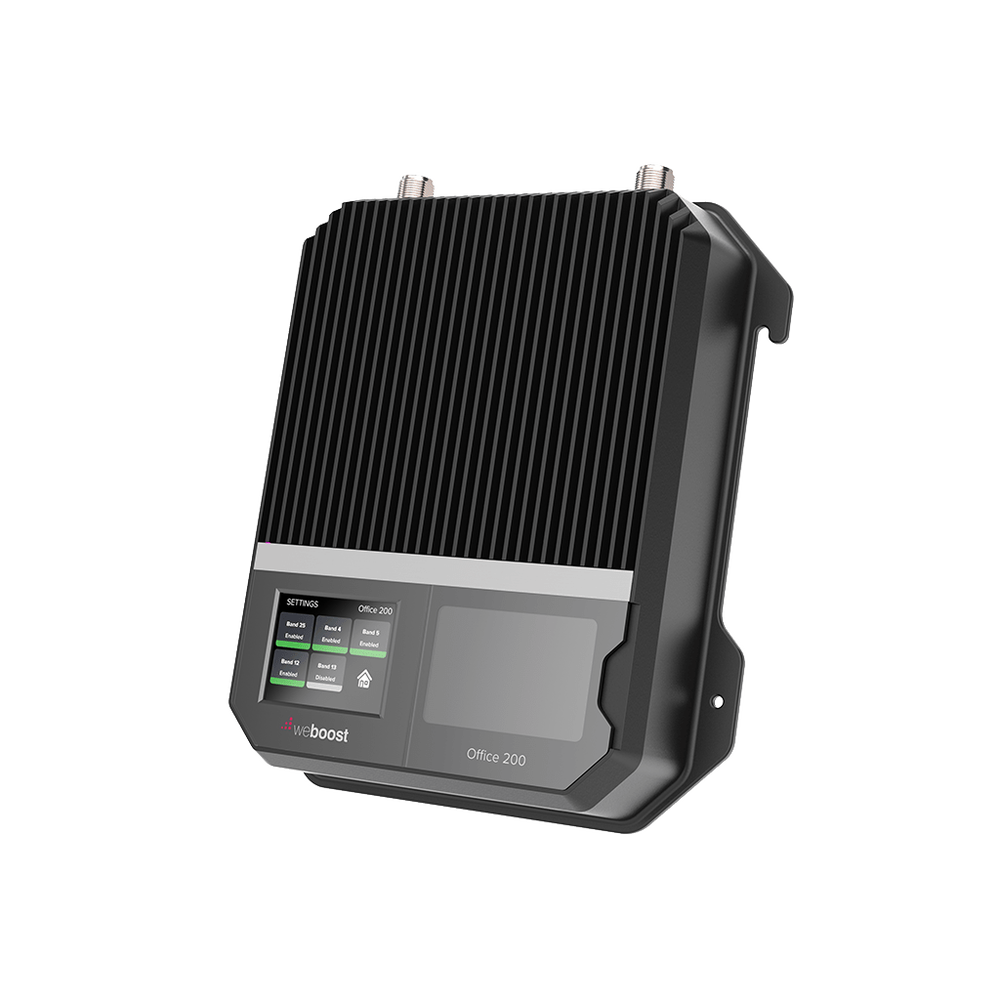

Office 200 amplifier for 4G, 3G, 2G, VoLTE, and conventional calls. Specially designed for customization with antennas, cables, and accessories according to installation requirements. Covers areas up to 4,300 square meters.

Office 200 amplifier for 4G, 3G, 2G, VoLTE, and conventional calls. Specially designed for customization with antennas, cables, and accessories according to installation requirements. Covers areas up to 4,300 square meters.

Regular price $7.853.654 COP
Regular price $8.589.934 COP Sale price $7.853.654 COP
Sale Sold out
Shipping calculated at checkout.

Office 200 amplifier for 4G, 3G, 2G, VoLTE, and conventional calls. Specially designed for customization with antennas, cables, and accessories according to installation requirements. Covers areas up to 4,300 square meters.

This equipment is not intended for use by the general public. Its operation is only permitted for concessionaires authorized to use the frequency band by the competent authority. Persons operating this equipment without authorization may be subject to administrative or criminal liability.

Office 200 Customizable to Installation

This amplifier model allows you to use antennas, coaxial cables and accessories according to the needs of the installation or the client's requirements .

In the Optional Accessories section, you'll find everything you need for optimal operation and installation.

Thanks to the Office 200's gain and power, you can integrate from one to four service antennas to distribute and enhance the signal in different areas of the building. Distributing the signal with two, three, or four additional service antennas ensures the signal is not affected by walls and interfloor slabs.

Applications

  • Small to medium-sized businesses.
  • Residences.
  • Executive buildings.
  • Industrial warehouses.
  • Warehouses.
  • Hotels.
  • Schools.
  • Hospitals.

*Package includes Amplifier and Power Supply.

**At least it must be complemented with a Donor Antenna, a Service Antenna, two coaxial jumpers and a mast for the external antenna.

Main Features:
  • XDR function that allows a larger input signal.
  • Easy-to-navigate touch screen.
  • Allows you to turn each frequency band on or off.
  • Operates with multiple operators.
  • Supports 4G, 3G and 2G.
  • Improves conventional and VoLTE calling.
  • It can cover up to 4300 square meters.
Characteristics:
  • Triple Band Frequency Amplifier.
  • Amplifies bands: B5, B2 and B4.
  • Frequency bands: 850, 1900 and 2100 MHz
  • Frequency ranges:
    • Downlinks: 869-894, 1930-1990 and 2110-2155 MHz.
    • Uplinks: 824-849, 1850-1910 and 1710-1755 MHz.
Electrical and Physical Specifications:
  • Maximum gain: 74 dB
  • Maximum power: 22 dBm (158 mW)
  • Impedance in RF connectors: 50 Ohm

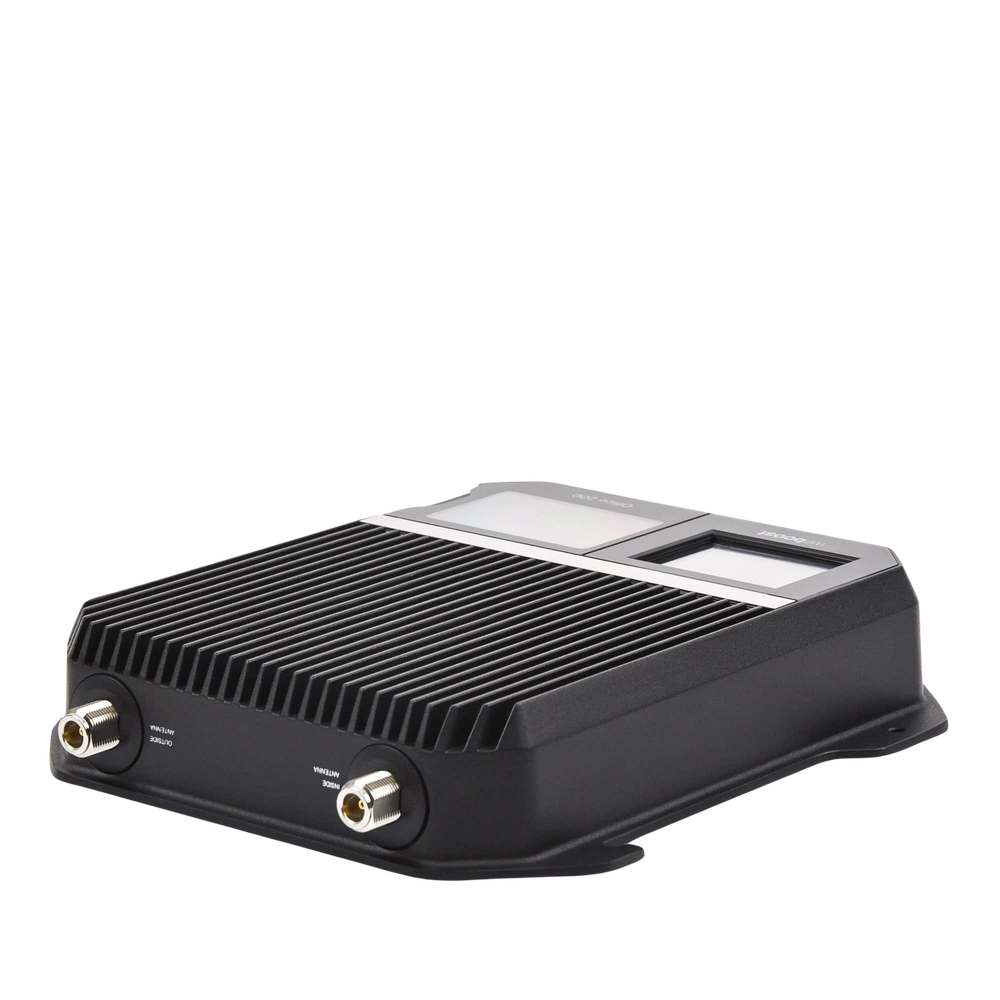

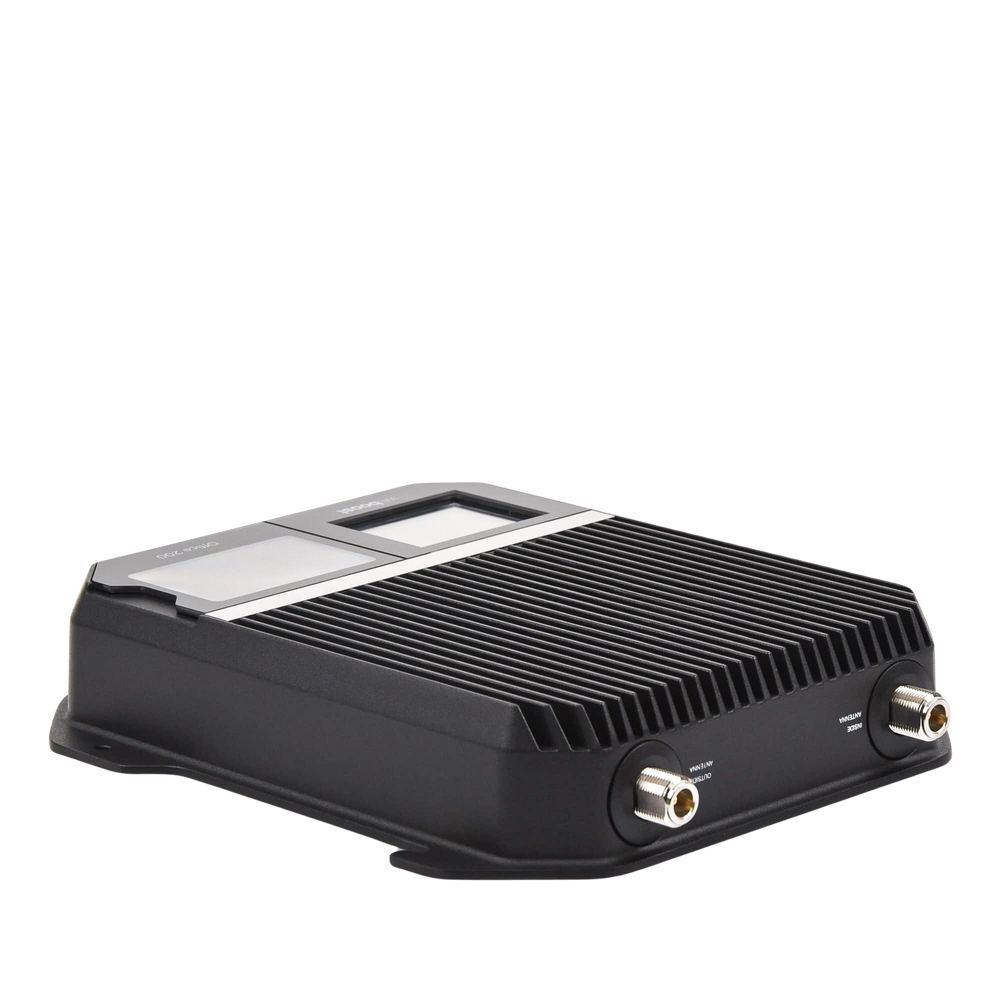

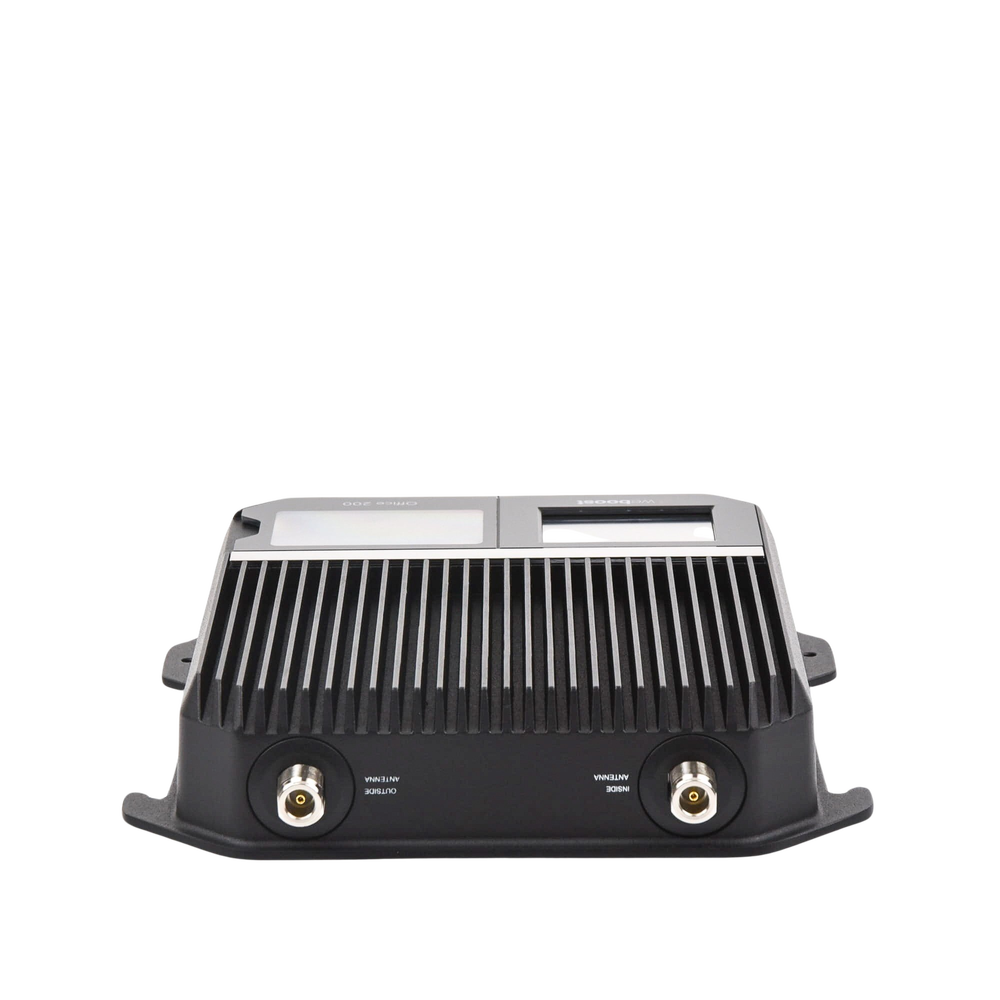

  • RF Connectors: N Female
  • Power requirement: 12 Vdc, 3A
  • Power consumption: 20 W
  • Amplifier Dimensions: 27.30 x 36.19 x 5.71 cm
  • Amplifier Weight: 3.49 kg

How It Works

1. The outdoor antenna captures the signal from the operators available in the area.

2. The amplifier amplifies the signal and technologies available in the B5, B2 and B4 bands.

3. The indoor antenna broadcasts the amplified signals to benefit the cellular devices within its range. The process is reversed.

The power of the amplifier is thanks to the signal that enters it.

    XDR feature allows for a larger input signal., Easy-to-navigate and read touchscreen., Improves conventional and VoLTE calls., Works with multiple operators, technologies, and users.

Out of stock

MODELO: 530-047
