• OLT de 4 puertos GPON con 4 puertos Uplink (2 puertos Gigabit Ethernet + 2 puertos Gigabit Ethernet SFP) , hasta 512 ONUS,
1 4

V-SOL

4-port GPON OLT with 4 Uplink ports (2 Gigabit Ethernet ports + 2 Gigabit Ethernet SFP ports), up to 512 ONUs,

4-port GPON OLT with 4 Uplink ports (2 Gigabit Ethernet ports + 2 Gigabit Ethernet SFP ports), up to 512 ONUs,

$4.334.821 COP
$4.741.210 COP $4.334.821 COP
Sale Sold out
Shipping calculated at checkout.

4-port GPON OLT with 4 Uplink ports (2 Gigabit Ethernet ports + 2 Gigabit Ethernet SFP ports), up to 512 ONUs,

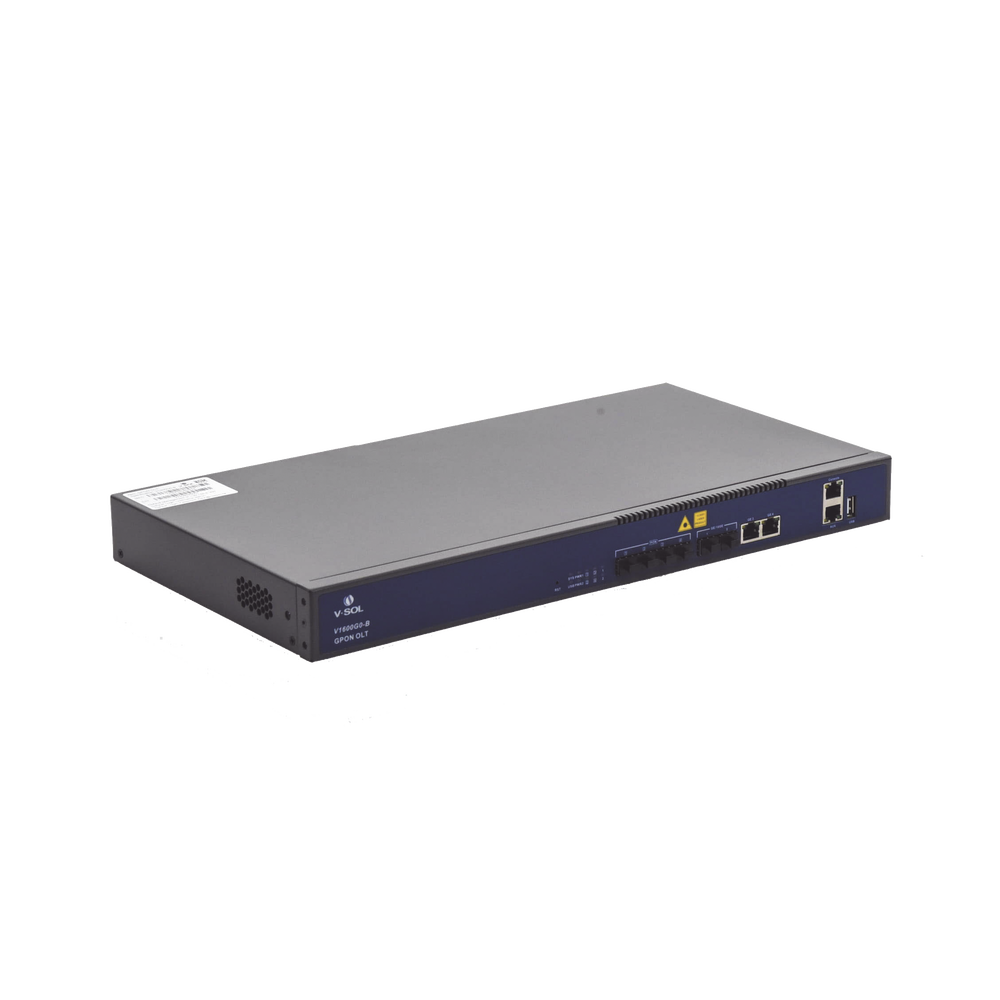

  • The V1600G0-B GPON OLT is a 1U, 19-inch rack-mountable product. The OLT features small size, convenience, flexibility, ease of deployment, and high performance. It is suitable for deployment in a compact room environment. The OLT can be used for Triple-Play, VPN, IP cameras, enterprise LAN, and ICT applications.

' 4-port GPON OLT V-SOL '

  • Up to 512 ONUs .
  • 2 Uplink RJ45 Gigabit ports.
  • 2 SFP/SFP+ Uplink ports.
  • GPON.
  • Triple Play.
  • Layer 3 functions.
  • Includes AC power supply.
  • Up to 4,096 Vlans.
  • Distance 20 Km on each PON port .
  • Local management software .
  • Remote management software .
  • Management from mobile APP .

Main features:
  • Dimensions: 442*200*43.6mm (length × width × height).
  • Applications: Data, Video Surveillance, IP Telephony, CATV.
  • Online ONU configuration and management.
  • Rackable.
  • Bandwidth per PON port: Upstream 1.244Gbps, Downstream 2.488Gbps.
  • Supports QoS.
  • Wavelength: TX: 1490 nm & RX: 1310 nm.
  • User-friendly management of: EMS / Web / Telnet / CLI / SSH.
  • CLI command style similar to conventional manufacturers.
  • Management APP.
Physical and Electrical Characteristics:
  • Power supply ( Includes AC power supply )
  • Alternating Current: 90-240 Vac, 47/63 Hz
  • Maximum consumption: 35W.
  • Weight: 2.8 Kg.
  • Operating temperature: -0 to 55° C.
Network Features:
  • Layer 3 and Layer 2 functions.
  • 4 GPON ports.
  • 2 Uplink RJ45 10/100/1000 Mbps ports.
  • 2 SFP/SFP+ Uplink ports.
  • 1 Management port.
  • 1 Console port.
  • GPON Class C+.
  • Reception sensitivity: -30dBm.
  • 9/125 μm SMF fiber type.
  • Split ratio 1:128.
  • Supports VLAN tag/Untag, VLAN transparent transmission, QinQ.
  • DHCP Server.
  • QOS based on port, VID, TOS and MAC address.
  • IGMP snooping.
  • Access control list.

  • Does not include PON modules.

FTTX network design.

    Layer 3 Functions, Up to 4096 VLANs, Management via: CLI, SNMP, WEB and Telnet, Online ONU Configuration and Management, Management from Cellular APP, Up to 1.25 Uplink / 2.5 Gbps Downlink per PON port, Only includes 1 AC power supply

25 in stock

MODELO: V1600G-0B
