V-SOL

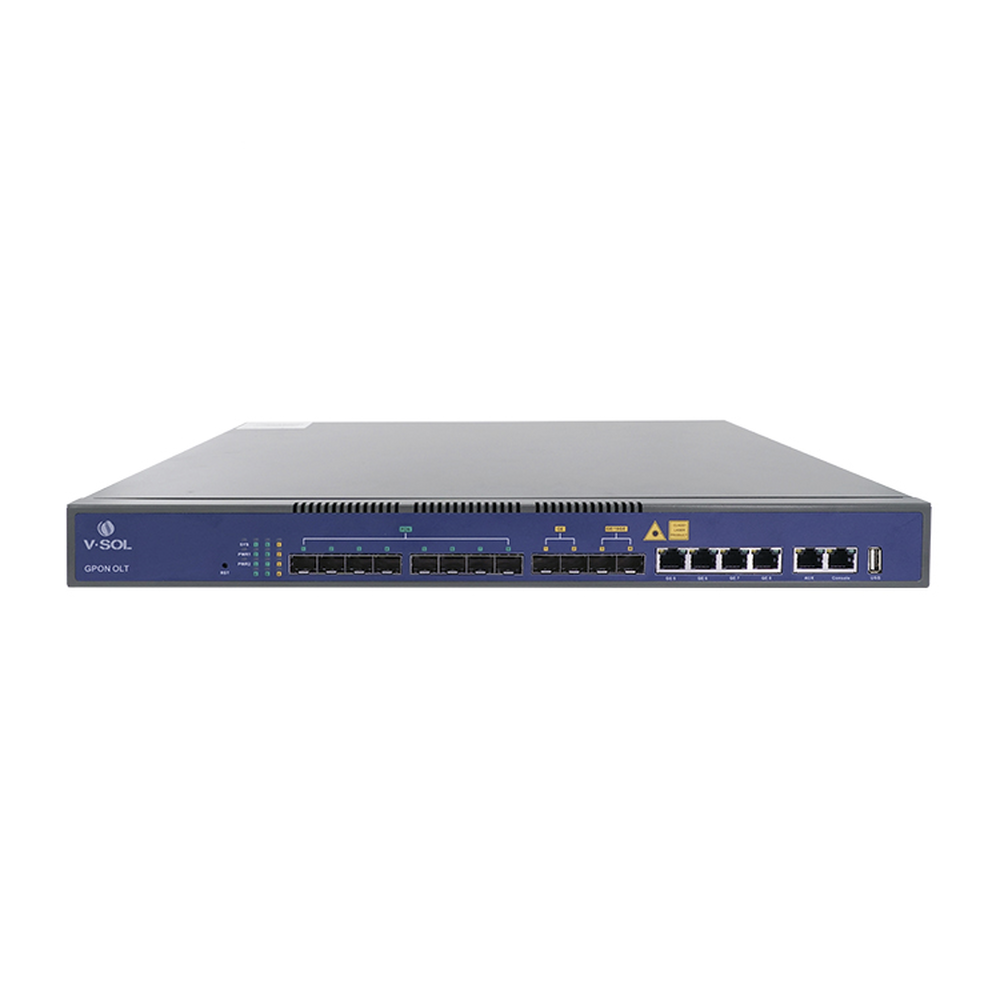

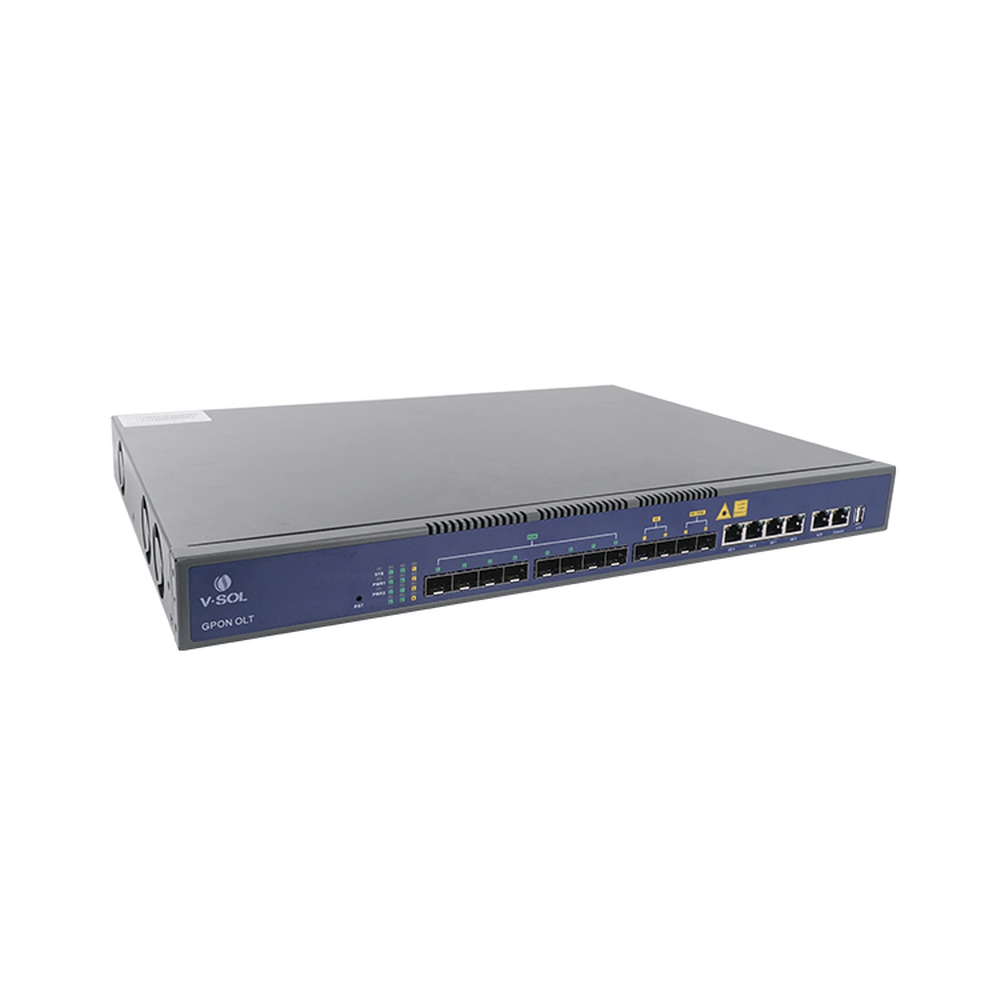

8-port GPON OLT with 8 Uplink ports (4 Gigabit Ethernet ports + 2 SFP ports + 2 SFP+ ports), up to 1024 ONUs

Name: 8-port GPON OLT with 8 Uplink ports (4 Gigabit Ethernet ports + 2 SFP ports + 2 SFP+ ports), up to 1024 ONUs
Brand: V-SOL
SKU: V1600G-1B
Price: 6411757.00 COP
Availability: InStock

$6.411.757 COP

~~$7.012.859 COP~~ $6.411.757 COP

Sale Sold out

Shipping calculated at checkout.

Quantity

8-port GPON OLT with 8 Uplink ports (4 Gigabit Ethernet ports + 2 SFP ports + 2 SFP+ ports), up to 1024 ONUs

Main features:

Dimensions: 442*320*43.6mm (length × width × height).
Applications: Data, Video Surveillance, IP Telephony, CATV .
Online ONU configuration and management.
Rack mount.
Bandwidth per PON port: Upstream 1.244Gbps, Downstream 2.488Gbps.
User-friendly management: EMS / Web / Telnet / CLI / SSH.

Physical and Electrical Characteristics:

Includes an AC power supply.
AC: 100-240 Vac, 47/63 Hz
Maximum consumption: 45W.
Weight: 3 Kg.
Operating temperature: -0 to 55° C.

Accessories:

Rack mount.
Console cable (USB adapter not included).
Anti-skid rubber.
Not include PON modules (Add model: GPON-SFP-C ).
Cable to land the OLT.
1 Year warranty.

Network Features:

Up to 1,024 UNs.

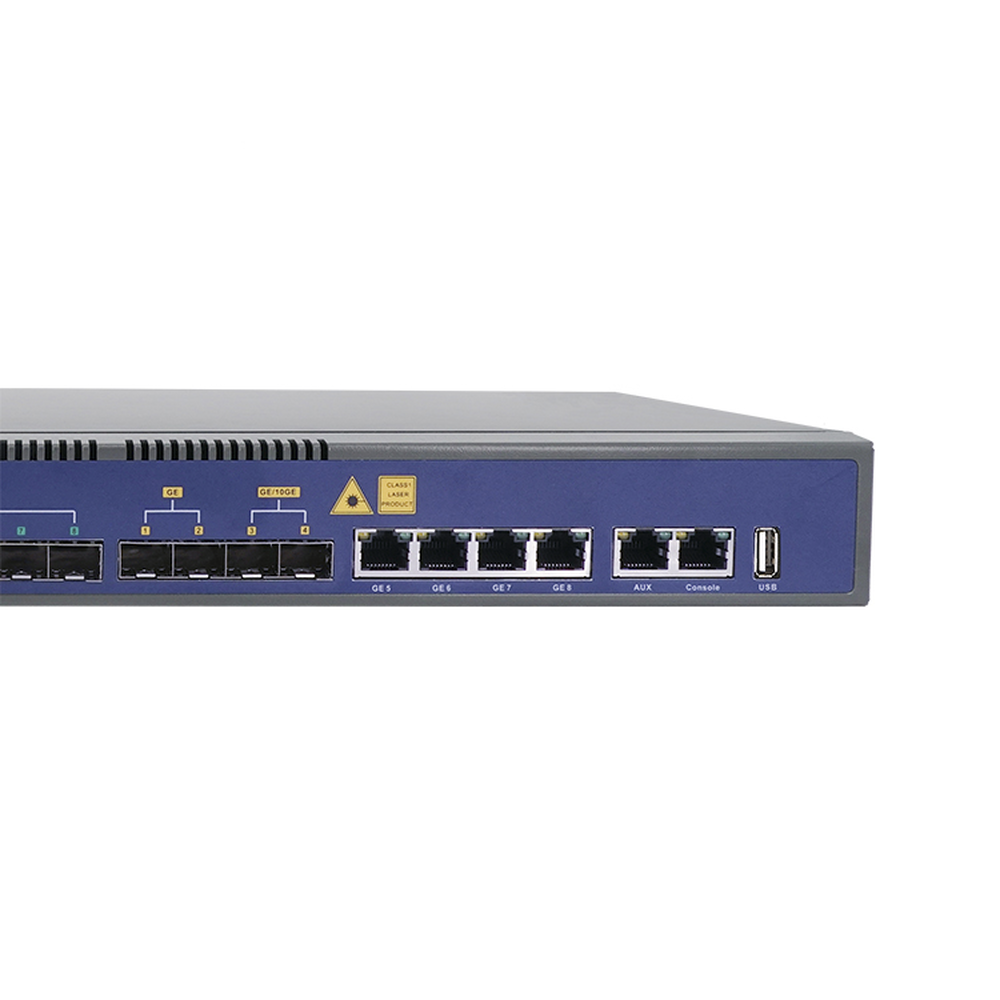

4 Uplink RJ45 Gigabit ports.
2 Uplink SFP+ 10 Gigabit ports.
2 Gigabit SFP Uplink ports.
Distance 20 km on each PON port.
Basic Layer 3 and Layer 2 functions.
1 Auxiliary Port. (Out-Band Management)
1 Console Port (Command Line)

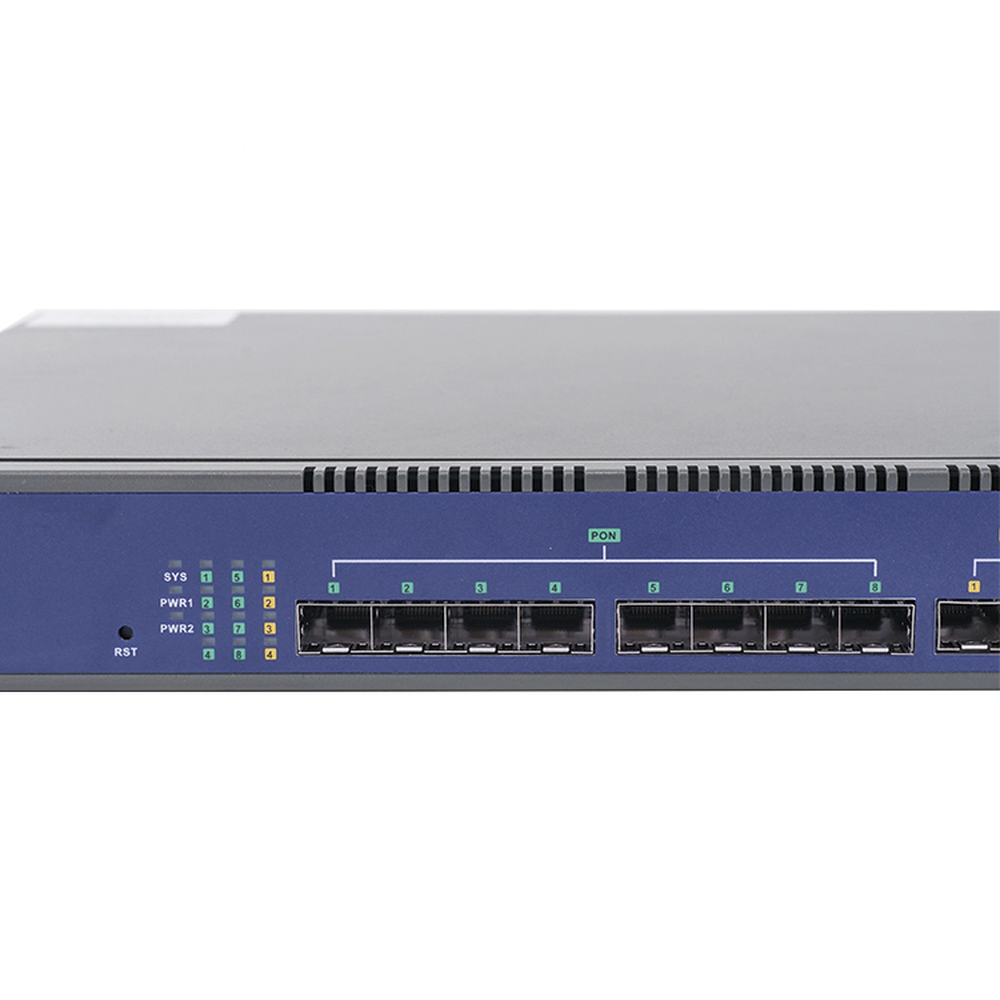

8 GPON ports.
Splitting ratio per PON port: 1:128.

GPON OLT

Application Scenarios

Basic Layer 2 and Layer 3 OLT

Plug and Play Configurations

Security Protection

Full Service Management

V-SOL GPON FTTH Application

Layer 3 Functions, Management via: CLI, SNMP, WEB and Telnet, 16 Uplink Ports, Management from Cellular APP, Up to 1.25 Uplink / 2.5 Gbps Downlink per PON port
