5G, 4G, 3G, VoLTE, and Conventional Voice Cellular Signal Booster Kit. Works with All Carriers. Supports Multiple Devices and Technologies. Coverage up to 1,200 square meters.

5G, 4G, 3G, VoLTE, and Conventional Voice Cellular Signal Booster Kit. Works with All Carriers. Supports Multiple Devices and Technologies. Coverage up to 1,200 square meters.

This equipment is not intended for use by the general public. Its operation is only permitted for concessionaires authorized to use the frequency band by the competent authority. Persons operating this equipment without authorization may be subject to administrative or criminal liability.

5-Band Cellular Signal Booster Kit.

Supports multiple users, technologies, operators, and enhances the signal strength of three frequency bands—ALL at the same time!

1. Repeats and amplifies the cellular signal to improve the data transfer of the 5G, 4G and 3G networks of your cellular device.
2. Reduce dropped and dropped calls from conventional voice and VoLTE.
3. Covers 1 to 5 rooms or up to 1200 square meters.
4. Increases signal strength and extends battery life.
5. Supports multiple devices simultaneously.
6. Very easy and simple to install.

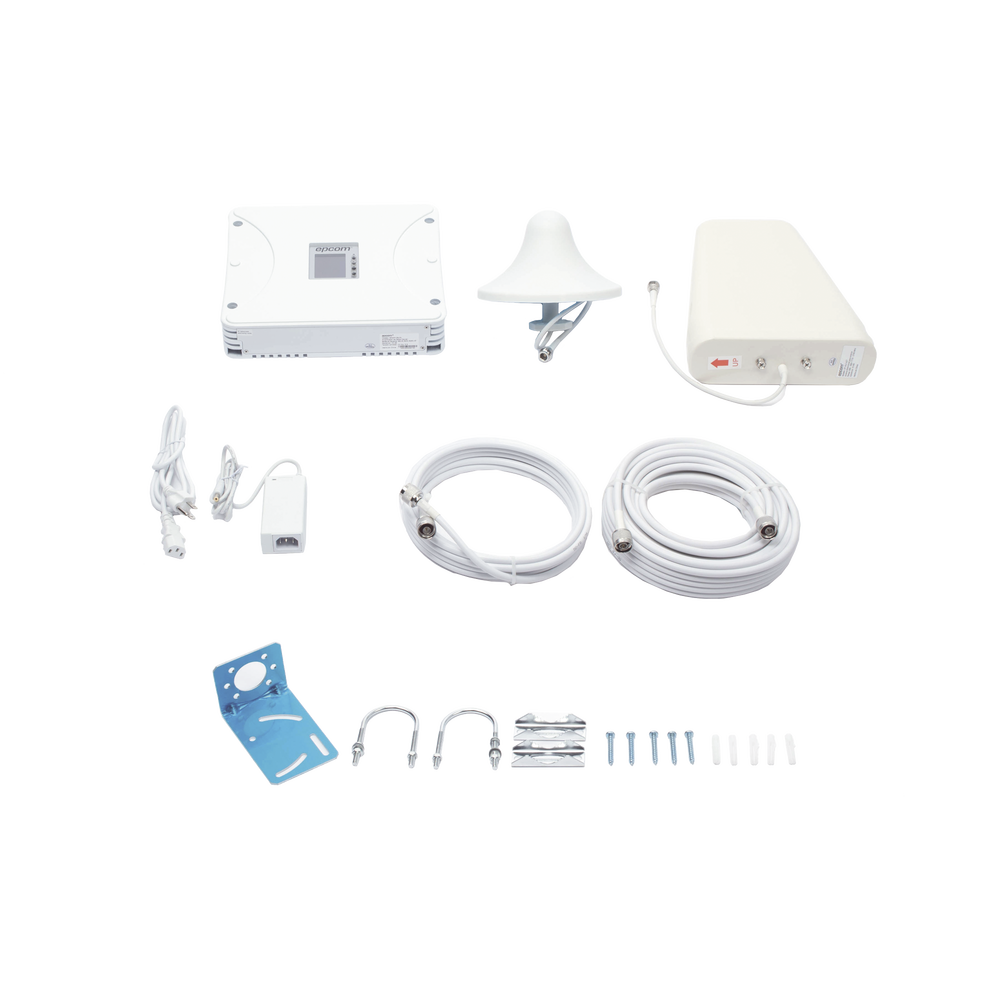

The kit includes virtually everything you need to enhance or create a cellular zone.

• Amplifier.
• Power supply.
• Donor antenna (exterior).
• Service antenna (indoor).
• 15 m LMR300 type coaxial jumper.
• 5 m LMR300 type coaxial jumper.

Main specifications:

• Frequency bands amplified: 700 MHz, 850 MHz, 1900 MHz, 2100 MHz and 2600 MHz, Bands 28, 5, 2/25, 4/66 and 7 respectively.
• Gain: 70 dB +- 2 dB
• Output power: 20 dBm +- 2 dBm
• Consumption: <24W
• Operating voltage: 12 Vdc, 3A.
• Temperature range: -10°C~+55°C
• Connectors: N female
• Impedance: 50 Ohm
• Amplifier dimensions: 253 x 178 x 59 mm
• Weight: <2.4 kg

Grades:

• Amplifies the 5G network on bands 66 and 7.
• The phone or cellular device must support the 5G network.
• The mobile phone or device interacts between 5G and 4G networks.
• 5G network coverage is very limited.

The power of the amplifier is thanks to the signal that enters it.

Supports 5G, 4G, 3G, 2G networks., Improves VoLTE and conventional voice calls., Auto-adjusts power levels., 2-Year Warranty.
