2-zone analyzer unit / Each zone supports up to 305 meters / 2 Relay outputs

2-zone analyzer unit / Each zone supports up to 305 meters / 2 Relay outputs

Analyzer unit up to 2 zones, each zone supports 305 meters, with 2 relay outputs, one for the alarm of each zone


1 year warranty

Specs

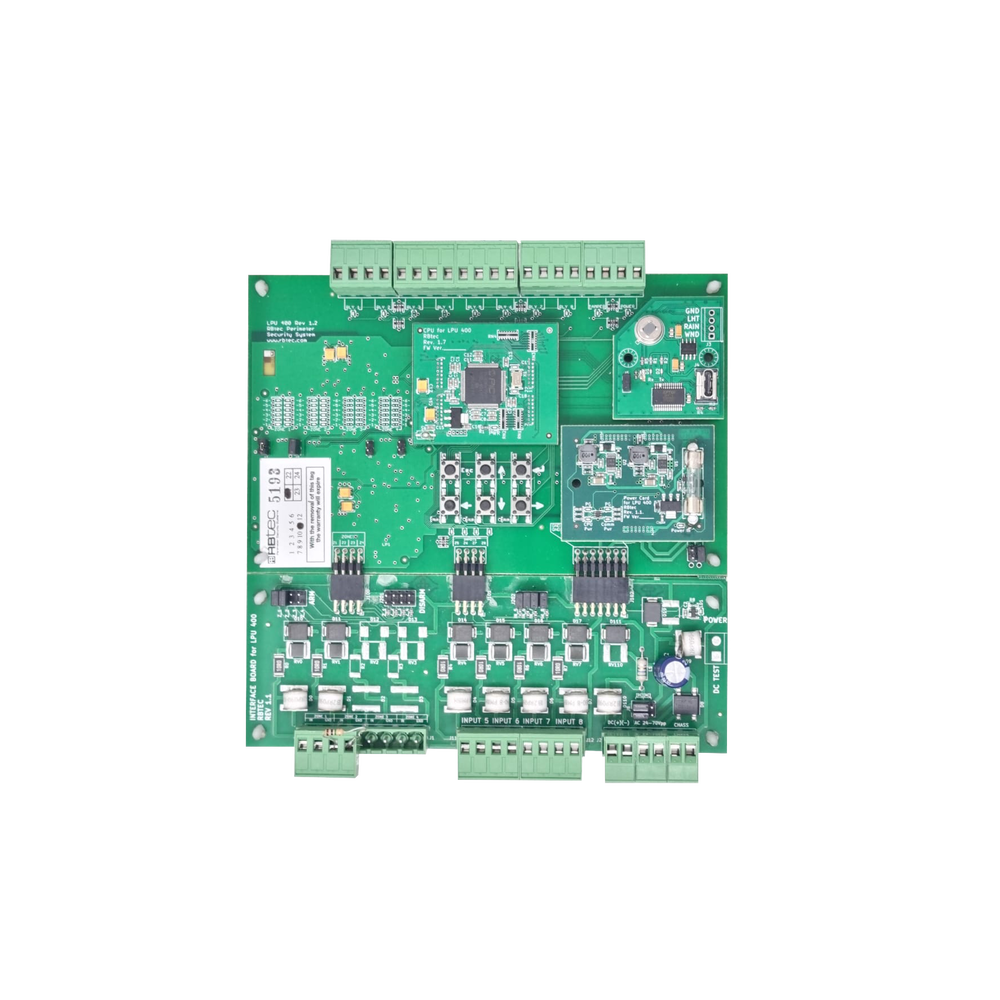

Single/Dual Zone Microcontroller Module (LPU-400).

• Auto-calibration and automatic noise cancellation
• 20 levels of local sensitivity levels adjusted by integrated controls
• Unlimited levels of software-adjusted sensitivity levels with easy-to-use software
• Up to 4 sensor input zones
• 24V AC power input
• 9-48V DC power input
• Arm/Disarm zones via jumpers directly on board
• Dedicated alarm outputs for power loss and tampering
• Integrated PIR tamper sensor
• Alarm Indicators:
  Power LED.
  Alarm Relay Status LED.
  LED tamper indicator.

• The main motherboard has sockets for 3 boards:
  1. CPU 2. Power Management 3. Communication/Configuration USB-C + Tamper Sensor.

• Environment: Operating Temperature: - 40°F to 176°F (-40°C to 80°C)
  Relative humidity up to 98% non-condensing.
