Switch Administrable Stacking Capa 3 de 48 puertos SFP de 10G+, 2 Puertos QSFP+ de 40G, 4 Puertos QSFP28 de 100G, Capacidad de Conmutación de Hasta 1.92Tbps

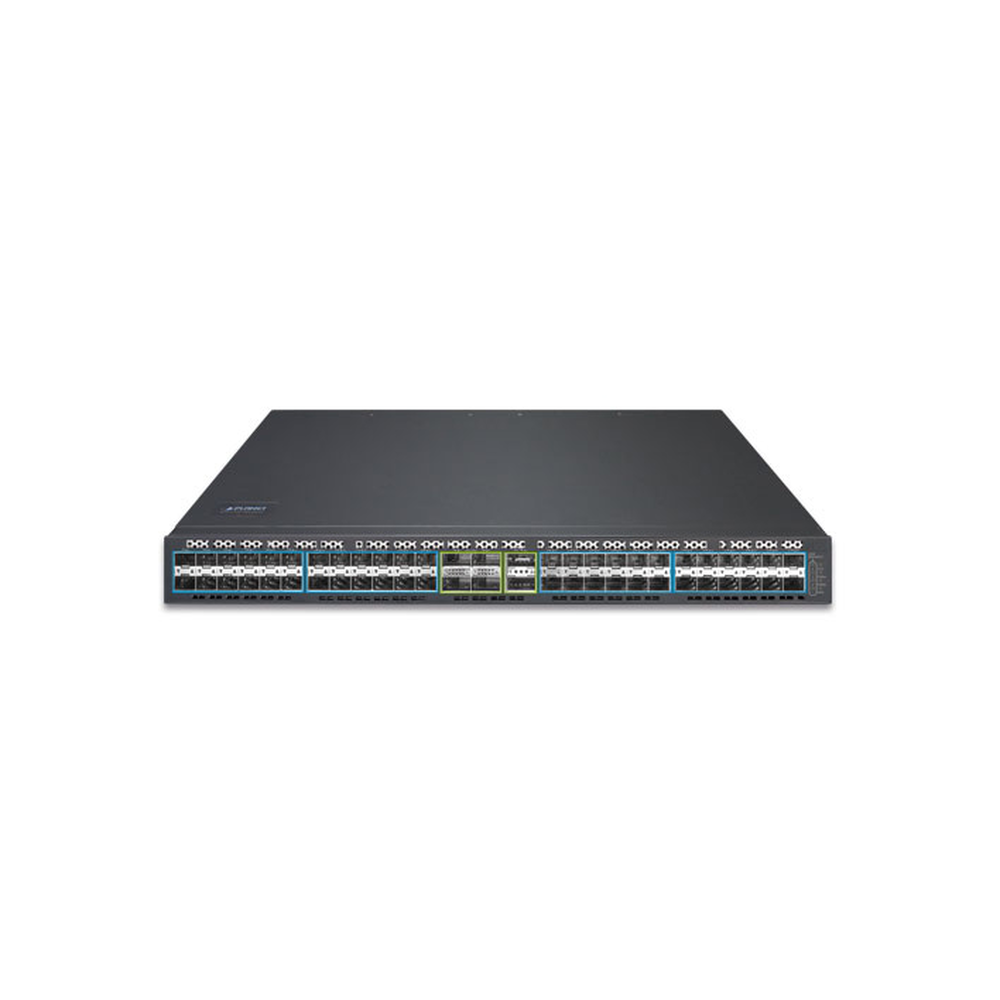

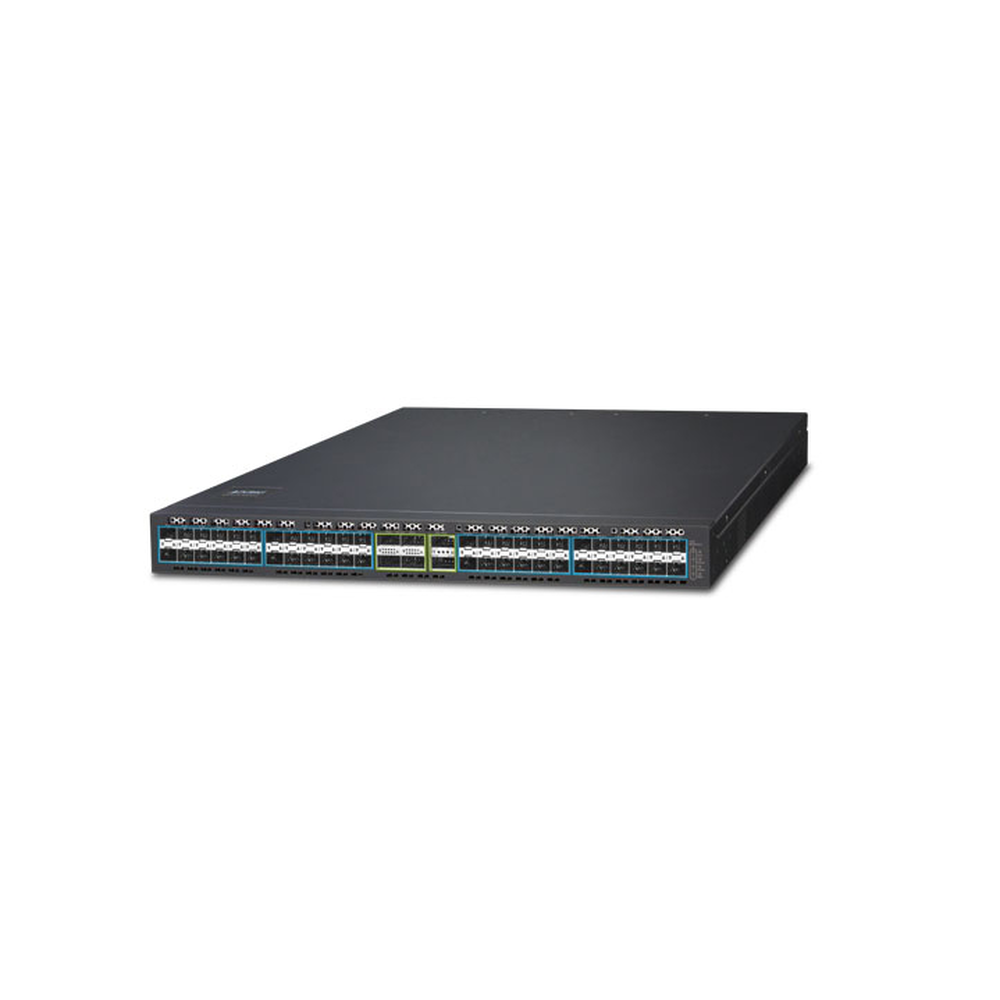

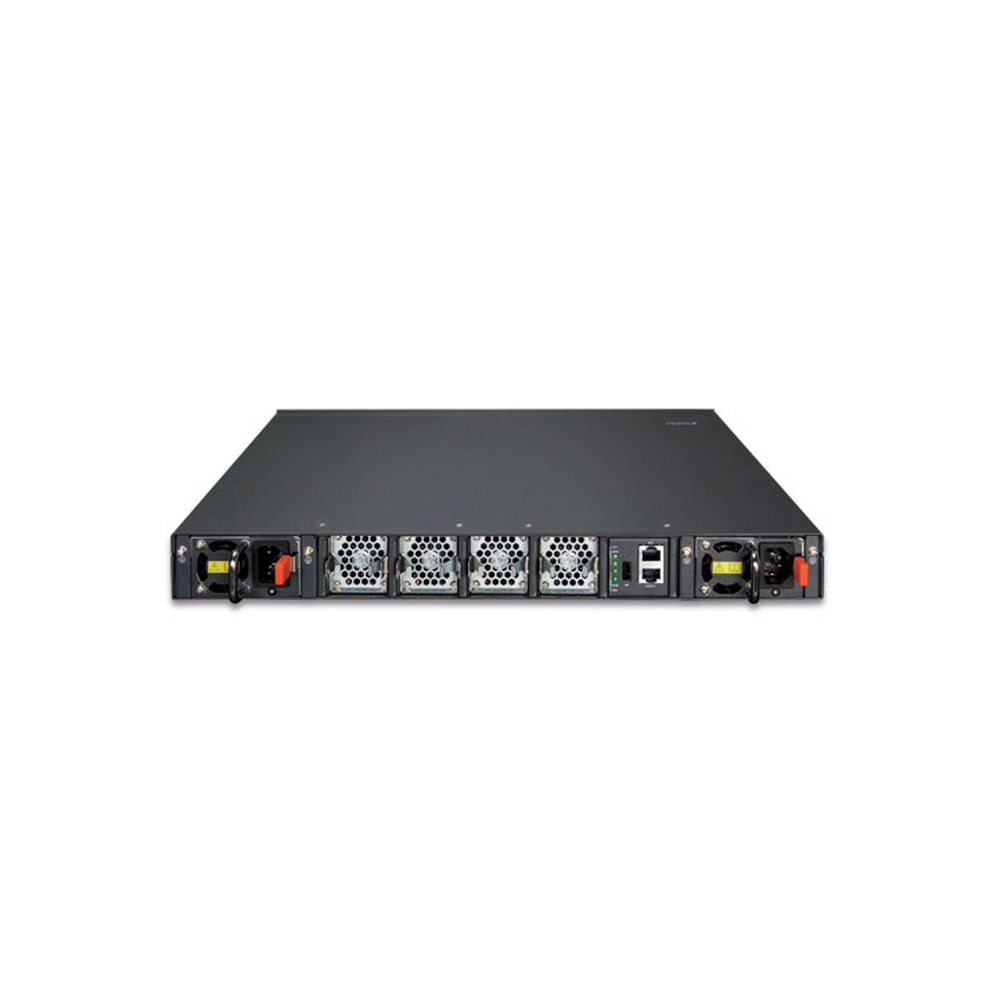

Layer 3 Stacking Managed Switch with 48 10G+ SFP ports, 2 40G QSFP+ ports, 4 100G QSFP28 ports, Switching Capacity up to 1.92Tbps

Sale price  $26,471,364 Regular price  $33,173,318
Skip to product information
Switch Administrable Stacking Capa 3 de 48 puertos SFP de 10G+, 2 Puertos QSFP+ de 40G, 4 Puertos QSFP28 de 100G, Capacidad de Conmutación de Hasta 1.92Tbps

Layer 3 Stacking Managed Switch with 48 10G+ SFP ports, 2 40G QSFP+ ports, 4 100G QSFP28 ports, Switching Capacity up to 1.92Tbps

Sale price  $26,471,364 Regular price  $33,173,318
Shipping calculated at checkout.
Marca
PLANET
Referencia / SKU
XGS-6350-48X2Q4C
Disponibilidad
Agotado por ahora
Descripción y especificaciones

Layer 3 Stacking Managed Switch with 48 10G+ SFP ports, 2 40G QSFP+ ports, 4 100G QSFP28 ports, Switching Capacity up to 1.92Tbps

The administrator can flexibly choose the appropriate SFP transceiver according to not only the transmission distance but also the required transmission speed.

Reliable, high-performance, high-density enterprise backbone switch

Hardware specifications
QSFP28 interfaces 4, each supporting native 100/40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes

QSFP+ interfaces 2, each supports 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes
SFP+ interfaces 48 10GBASE-SR/LR SFP+ interfaces
Compatible with 1000BASE-SX/LX/BX SFP transceiver
MNG 1 RJ45 10/100/1000BASE-T port
Console
1 RJ45 to DB9 serial port (9600, 8, N, 1)
USB 1 x USB 2.0
Dimensions 442 x 404 x 44, 1U
Weight 8.8 kg
Energy consumption 147 Watts / 504.3 BTU (maximum)
Energy requirements
AC 100~240V, 50/60Hz
DC 36~72V (optional)
Fan 4
Switch Architecture store and forward
Switching capacity 1.92 Tbps / non-blocking
Address table 64K MAC address table with machine learning feature
Operating temperature Temperature: 0 ~ 50 degrees C
Relative humidity: 10 ~ 85% (non-condensing)
Storage temperature Temperature: -40~80 degrees C
Relative humidity: 5 ~ 95% (non-condensing)
System Configuration Console and
Telnet web browser
SNMP v1, v2c
Secure management interfaces SSHv2, SSLv3, TLSv1.0 and SNMPv3
Maximum 8 sessions for SSH and Telnet connection
Package Included

- Manageable switch

- Installation Guide

- Console cable (DB9 to RJ45 RS232 interface)

- Rack mounting kit

- AC voltage source cable

- 54 SFP port covers

    Input for redundant power supply connection, Centralized stacking management, Redundant ring for fast recovery in critical networks
