4G LTE, 3G, and Voice Cellular Signal Booster Kit. Works with all carriers. Supports multiple devices and technologies. Coverage up to 1,000 square meters.

4G LTE, 3G, and Voice Cellular Signal Booster Kit. Works with all carriers. Supports multiple devices and technologies. Coverage up to 1,000 square meters.

This equipment is not intended for use by the general public. Its operation is only permitted for concessionaires authorized to use the frequency band by the competent authority. Persons operating this equipment without authorization may be subject to administrative or criminal liability.

4G LTE Cellular Signal Booster Kit for Home or Office. Multi-user. Tri-band. Multi-technology.

Supports multiple users, technologies, operators, and enhances the signal strength of three frequency bands—ALL at the same time!

1. Repeats and amplifies the cellular signal to improve the Voice and Data of 4G LTE and 3G of your cellular device.
2. Reduce dropped and dropped calls.
3. Covers 1 to 5 rooms or up to 1000 square meters.
4. Increases signal strength and extends battery life.
5. Supports multiple devices simultaneously.
6. Very easy and simple to install.

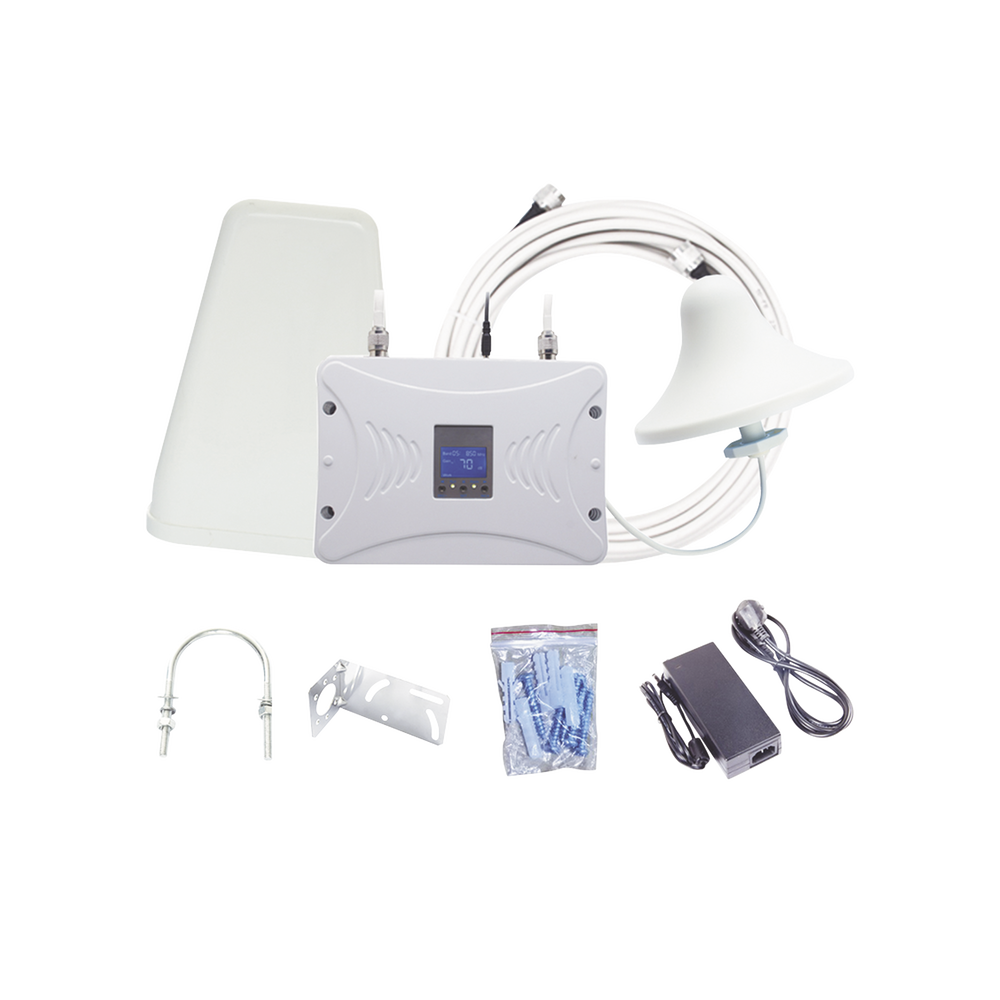

The kit includes virtually everything you need to enhance or create a cellular zone.

• A Triple Band amplifier (B5|850 MHz, B25|1900 MHz and B66|2100 MHz)
• A logarithmic antenna. For outdoor use.
• An omnidirectional dome antenna. For indoor use.
• A coaxial jumper with 15 meters of LMR-300 type cable and N male connectors.
• A coaxial jumper with 5- meter LMR-300 type cable and N male connectors.
• Power supply for the amplifier.

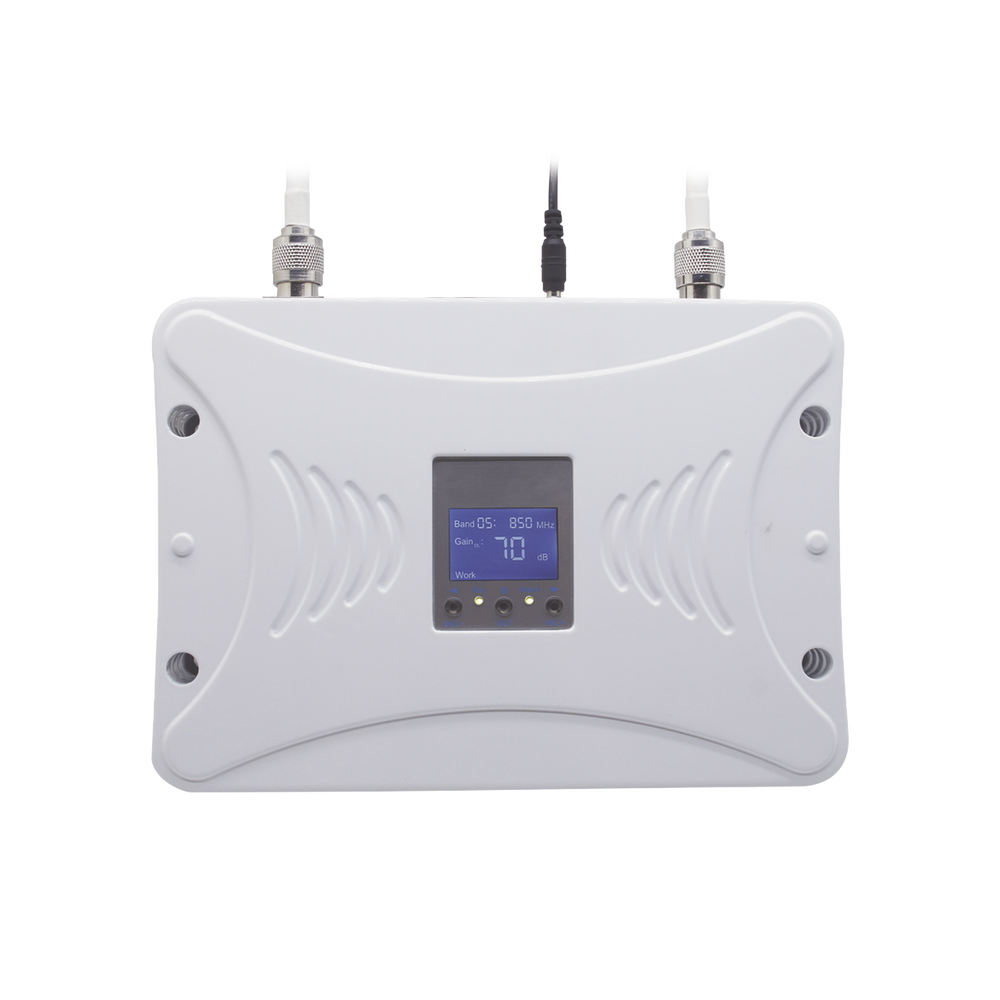

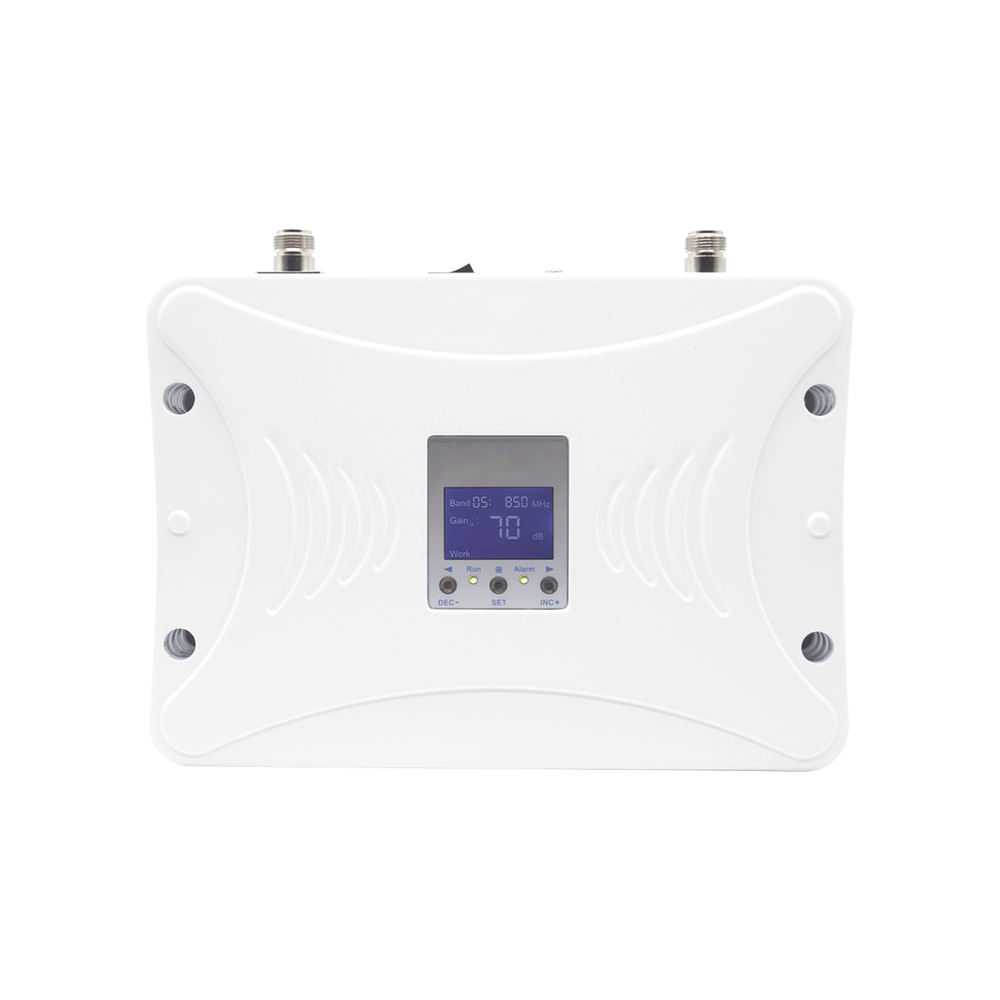

The amplifier features a display (LCD) that allows you to monitor the input and output signal strength, helping you get the most out of your system.

Main specifications:

• Frequency bands amplified: 850 MHz, 1900 MHz and 2100 MHz. Bands 5, 25 and 66 respectively.
• Downlink Frequency Range: 869-894 MHz, 1930-1995 MHz and 2110-2180 MHz
• Uplink Frequency Range: 824-849 MHz, 1850-1915 MHz and 1710-1780 MHz
• Gain: 70 dB +- 2 dB
• Output power: 20 dBm +- 2 dBm
• Consumption: <24W
• Operating voltage: 12 Vdc, 3A.
• Temperature range: -10°C~+55°C
• Connectors: N female.
• Amplifier dimensions: 253 x 178 x 59 mm
• Weight: <2.4 kg

The power of the amplifier is thanks to the signal that enters it.

Includes everything you need for operation., With a screen to display signal and amplifier conditions., Supports 4G LTE, 3G, 2G and improves the signal of any provider., Intelligent isolation detection., Amplifies frequency bands 5, 25 and 66.
