ALLIED TELESIS
Layer 3 Switch Stack 40 Gigabit ports, 8 Multi-Gigabit 100/1G/2.5G/5G ports, Redundant power supply
Layer 3 Switch Stack 40 Gigabit ports, 8 Multi-Gigabit 100/1G/2.5G/5G ports, Redundant power supply
Regular price
$0 COP
Regular price
$0 COP
Sale price
$0 COP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Layer 3 Switch Stack 40 Gigabit ports, 8 Multi-Gigabit 100/1G/2.5G/5G ports, Redundant power supply
x530DP-52GHXm

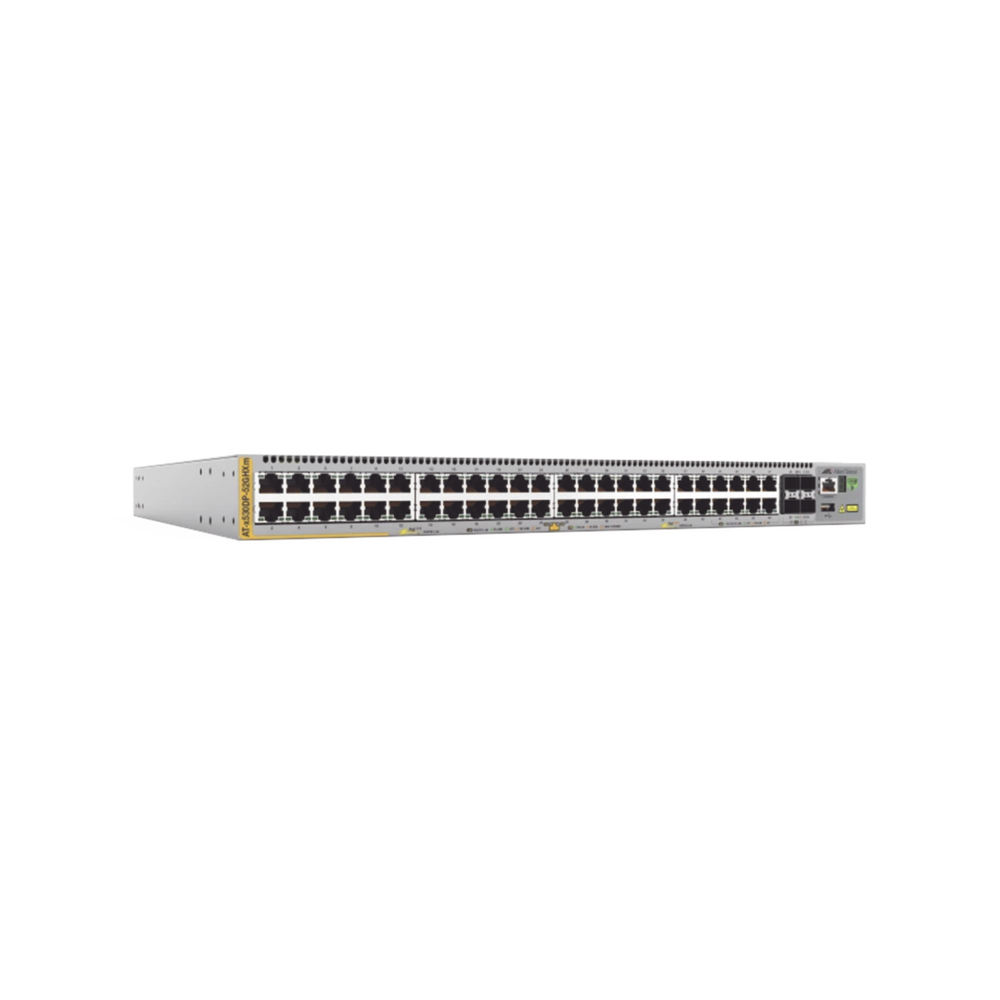

Multi-Gigabit Layer 3 Stackable Hot-Swap Dual Power Supply Switch
The x530DP-52GHXm Layer 3 Multi-Gigabit Stackable Switch is high-performance and feature-rich, with 40 x 100M/1G and 8 x 100M/1G/2.5G/5G ports, 4 x 10G uplinks, and two hot-swap PSU ports.
Overview
- Dual hot-swappable power supplies and extended temperature operation of 0 to 65°C support flexible, heavy-duty deployment and maximum network uptime.
- Enable high-speed Wi-Fi 6 solutions and network upgrades over legacy cabling, with 2.5G and 5G connectivity
- Power budgeting for high-density or multi-device IoT applications
- Vista Manager mini enables integrated wireless management, including floor and heat maps for visual performance monitoring.
- VCStack up to 8 units locally or remotely to support resilient networks
- EPSRing™ and G.8032 ERPS support resilient, high-speed ring-based networks
Specs
| Product | 10/100/1000T copper ports (RJ-45) | 100M/1/2.5/5 Gigabit Ports | 1/10 Gigabit SFP+ ports | Stacking ports | PoE-enabled ports | PoE++ enabled ports | Change of fabric | Forwarding rate |
|---|---|---|---|---|---|---|---|---|
| x530DP-52GHXm | 40 | 8 | 4 | 2* | 0 | 0 | 240 Gbps | 179Mpps |
* Stacking ports can be configured as additional 1G/10G Ethernet ports when the switch is not stacked
Physical
| Product | Width x Depth x Height | Mounting | Unpackaged weight | Packaged weight | Packed dimensions |
|---|---|---|---|---|---|
| x530DP-52GHXm |
441 x 421 x 44 mm (17.36 x 16.57 x 1.73 inches) |
Rack mount | 5.6 kg (12.26 lbs) | 7.7 kg (17.02 lbs) |
557 x 548 x 153 mm (21.93 x 21.57 x 6.02 inches) |
Power and noise characteristics
| No PoE charging | PoE+ charging complete | |||||
|---|---|---|---|---|---|---|
| Product | Maximum power consumption (W) | Maximum heat dissipation (BTU/h) | Noise (dBA) | Maximum power consumption (W) | Maximum heat dissipation (BTU/h) | Noise (dBA) |
| x530DP-52GHXm | 150 | 512 | 54 | 1930 | 6586 | 63 |
Noise: Tested according to ISO7779; frontal viewer position
- For WiFi 6 solutions, 8 Ports 100/1G/2.5G/5G, VCStack up to 8 units
Share
Out of stock
MODELO: AT-X530DP-52GHXM-B01
