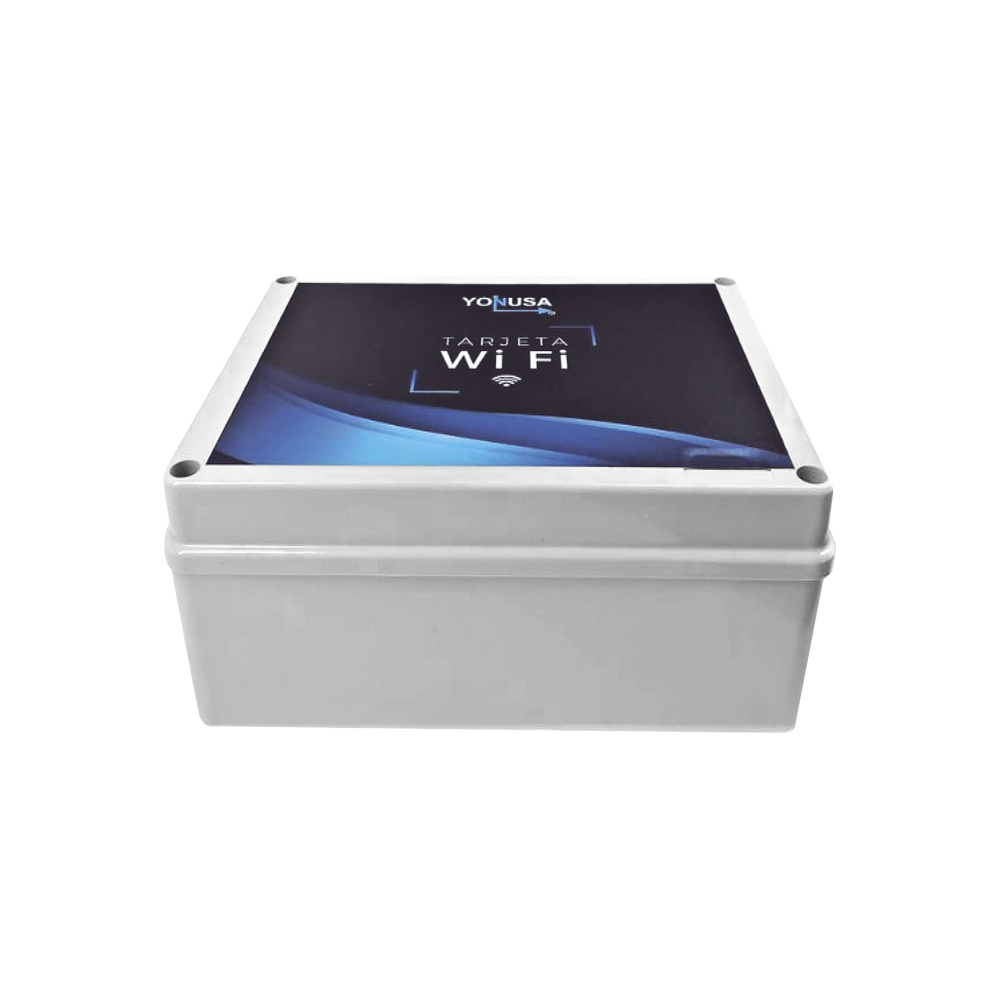

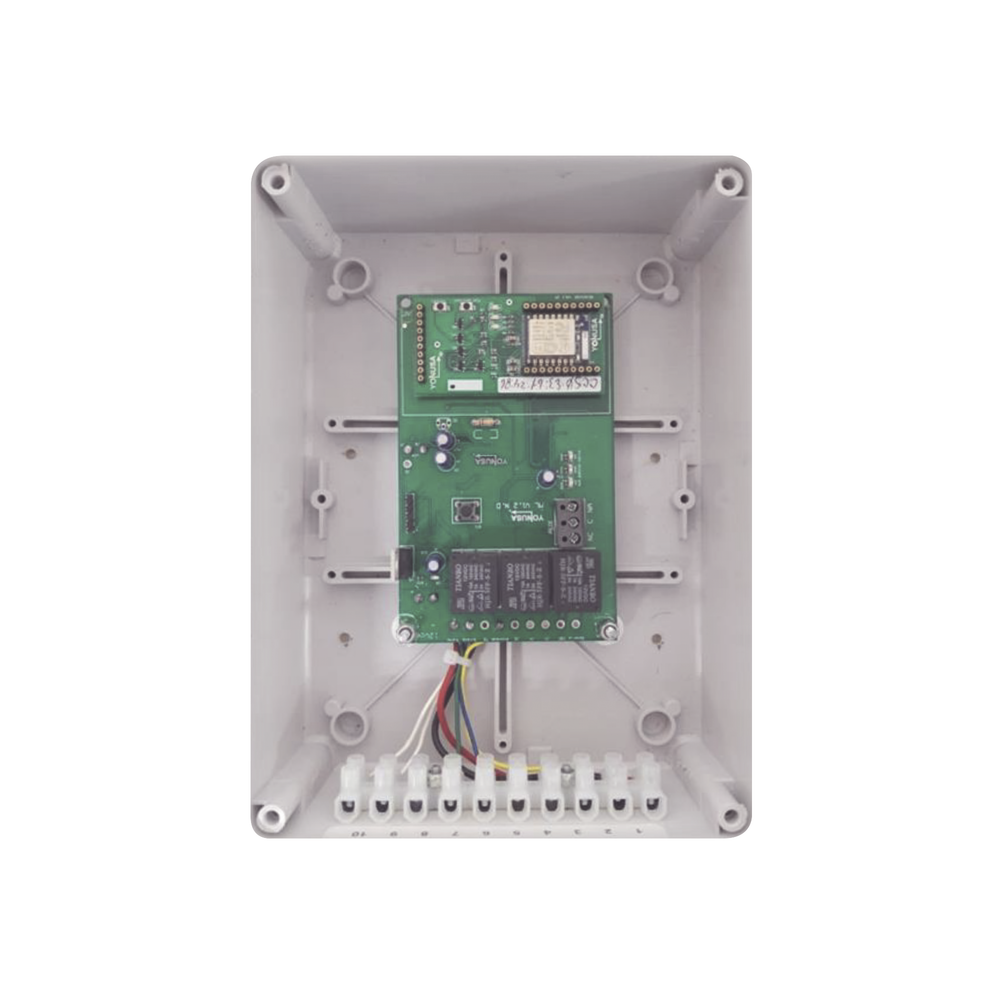

WIFI LITE module with cabinet for use in YONUSA Energizers / Free application / Panic button / 1 General Purpose Output

• Compatible with ALL YONUSA energizers.
• Control the On/Off of an energizer.
• Event history.
• Immediate notification in case of cutting or grounding of fence line.
• Panic button in the APP.
• Control of the on or off of a general purpose relay.
• Low battery or AC disconnection notification.
• Share APP with multiple users (permission control, only 1 Admin).

• Power supply: 12 Vdc 1A input
• WIFI Standard: 805.11 b/g/n
• Communication freq.: 2.4 GHz.
• Data transfer speed: 130Mb/s
• Encryption: WPA, WPA-2, TKIP
• Data frequency channels: 1, 6, 11.
• Recommended connection power: 55 - 75 dBm
• Temperature range: -30 to 60°C
• Relay Capacity: 120Vac 10A.
• Dimensions: 14 x 19 x 7 cm
• Cabinet protection grade: IP55

The main use and objective of the WIFI module is the control and monitoring of YONUSA energizers (Electric fences).

The WIFI module connects to the energizer via connections through the kulka of both devices, allowing it to be turned on and off using the control button in the application, notifying the user in real time of the action performed from the application.

In addition, the application has a panic button to control the on and off of the siren as well as providing a notification the instant the siren is activated due to the energizer.

NOTE: It is recommended to use 14 or 16 gauge aluminum wire.
