2-Button Illuminated Module with 125 KHz RFID Reader / Alarm and Cancel / RS485 BUS / Compatible with NX0019/B, NX1021 and NX0015
2-Button Illuminated Module with 125 KHz RFID Reader / Alarm and Cancel / RS485 BUS / Compatible with NX0019/B, NX1021 and NX0015
Couldn't load pickup availability
2-Button Illuminated Module with 125 KHz RFID Reader / Alarm and Cancel / RS485 BUS / Compatible with NX0019/B, NX1021 and NX0015
- Momentary action push button
- 2 illuminated keys with tactile and audible feedback
- Cancellation of services
- Recessed installation in universal box (includes metal frame)
- Requires NX9003 frame
- Nominal voltage: 12 V
- RS485 Bus Connection
- Acoustic signaling
- Integrated 125 KHz RFID reader
- Check the full sheet
- Dimensions: 44 x 44 x 46 mm

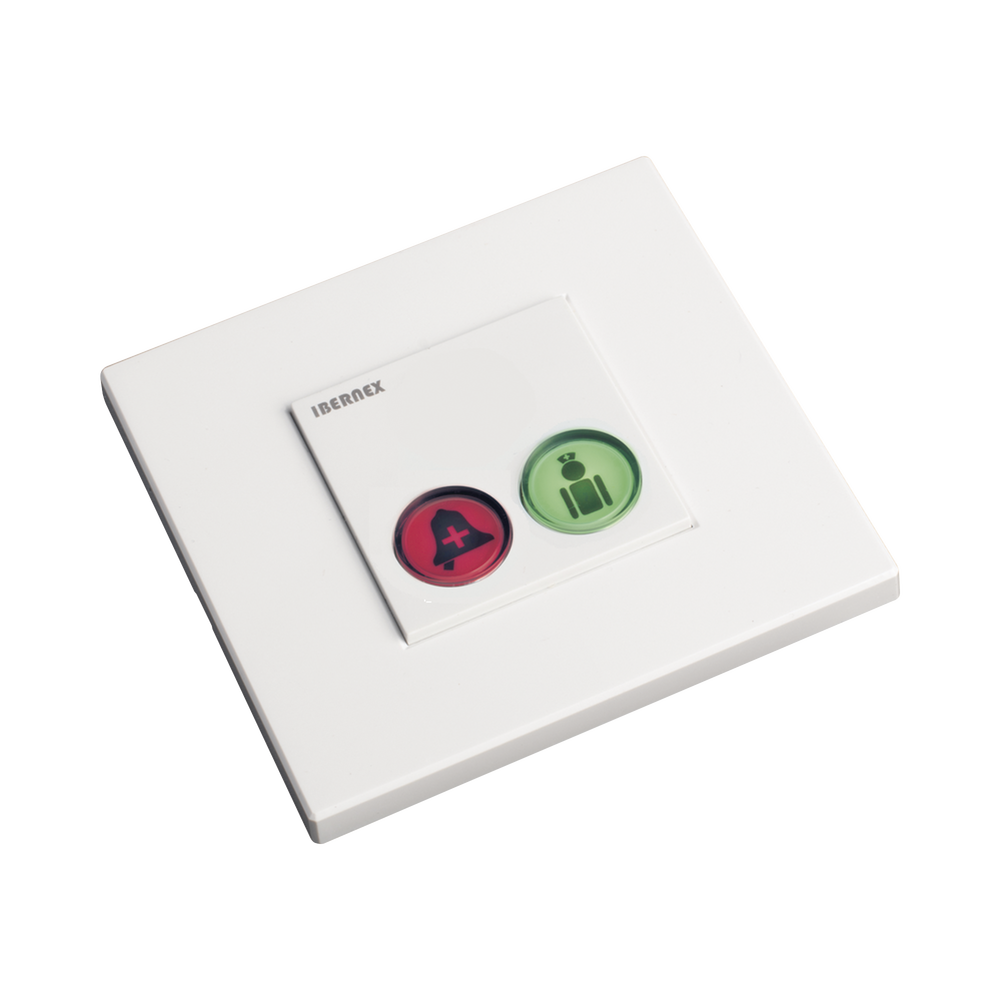

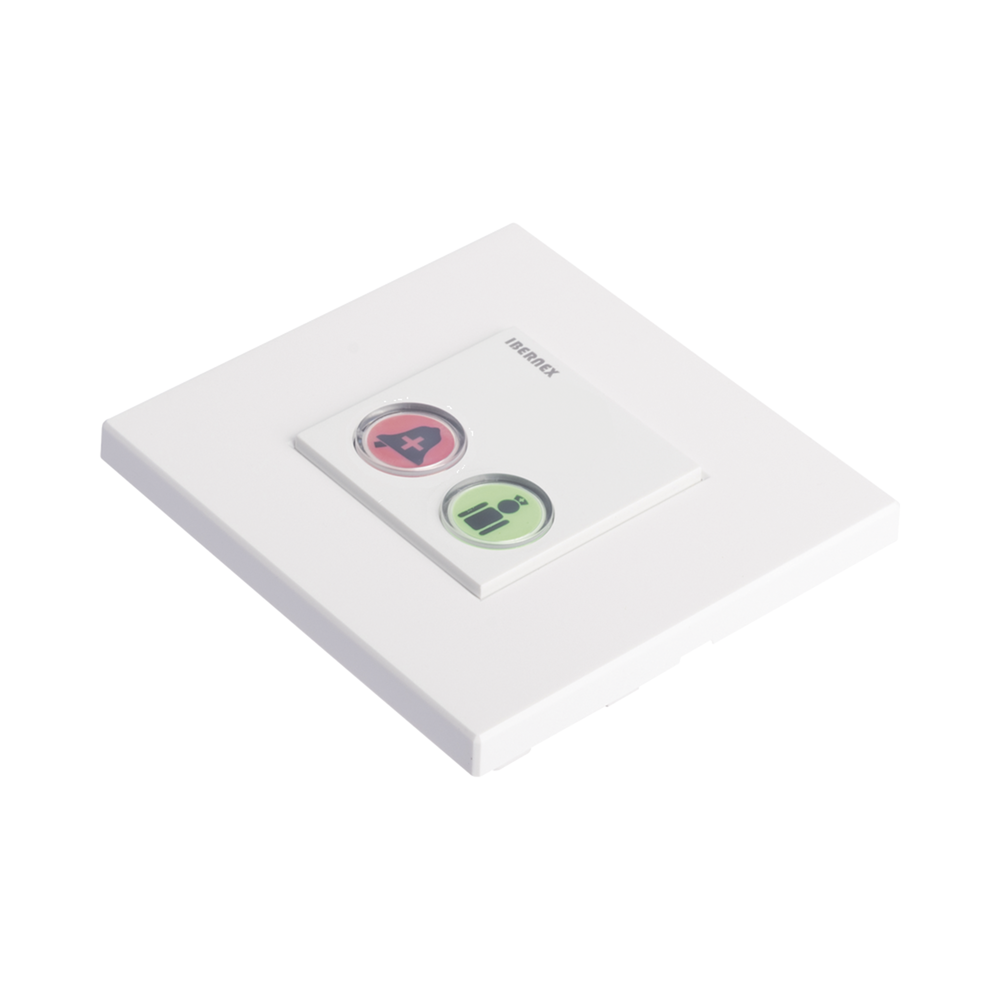

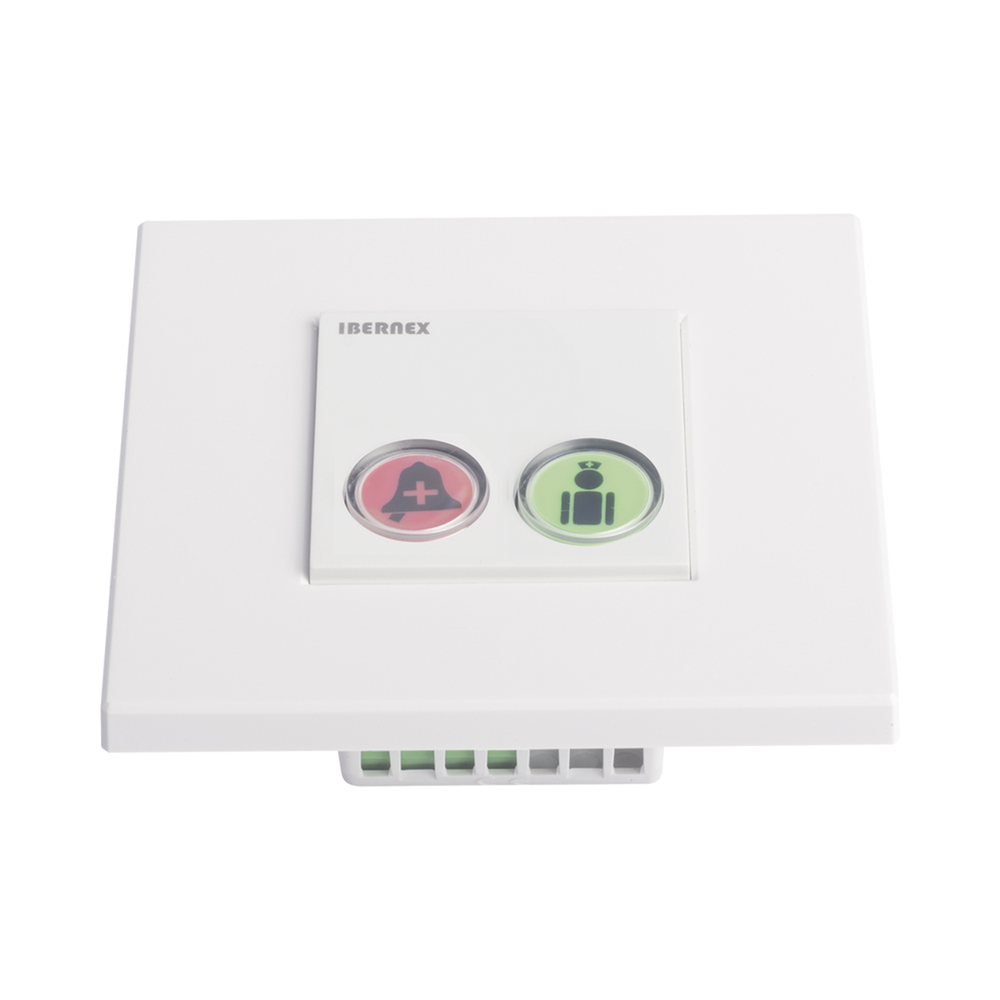

The two illuminated buttons allow you to trigger calls for help and urgent calls, as well as register the presence of staff in the rooms by pressing the green button or using the 125 KHz RFID card.
Red: generate alarms
Green: presence of medical personnel and alarm cancellation.
Note: Certification is required for installation and to request technical support.
Normal alarm
Fixed Red Light
Indicates that there is a normal alarm in the room that needs to be addressed. In standby mode, the light is dimmed so the button can be quickly located in the dark.
Presence of nurse
Steady Green Light
It indicates that there is a nurse in the room. This can be indicated by pressing the green button or presenting an RFID card. The advantage of the card is that it records which nurse responded to the alarm.
Installing the module
The module includes a frame for direct mounting to a 2x2 inch square box (not included) and the NX9003 trim frame (not included) is attached.
- Nurse presence, Acoustic warning
Out of stock
MODELO: NX0393
