IP intercom (SIP), code opening, IK10 vandal-resistant, 2 relays, IP66, PoE

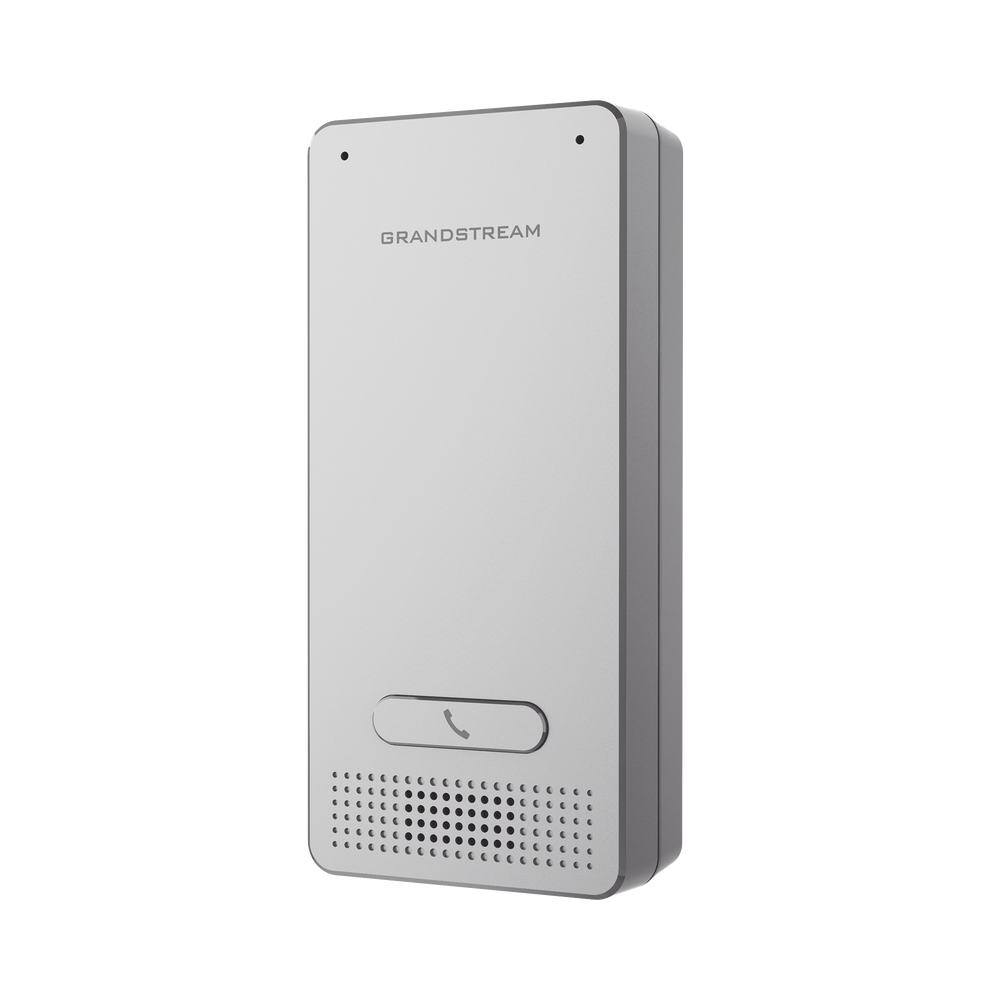

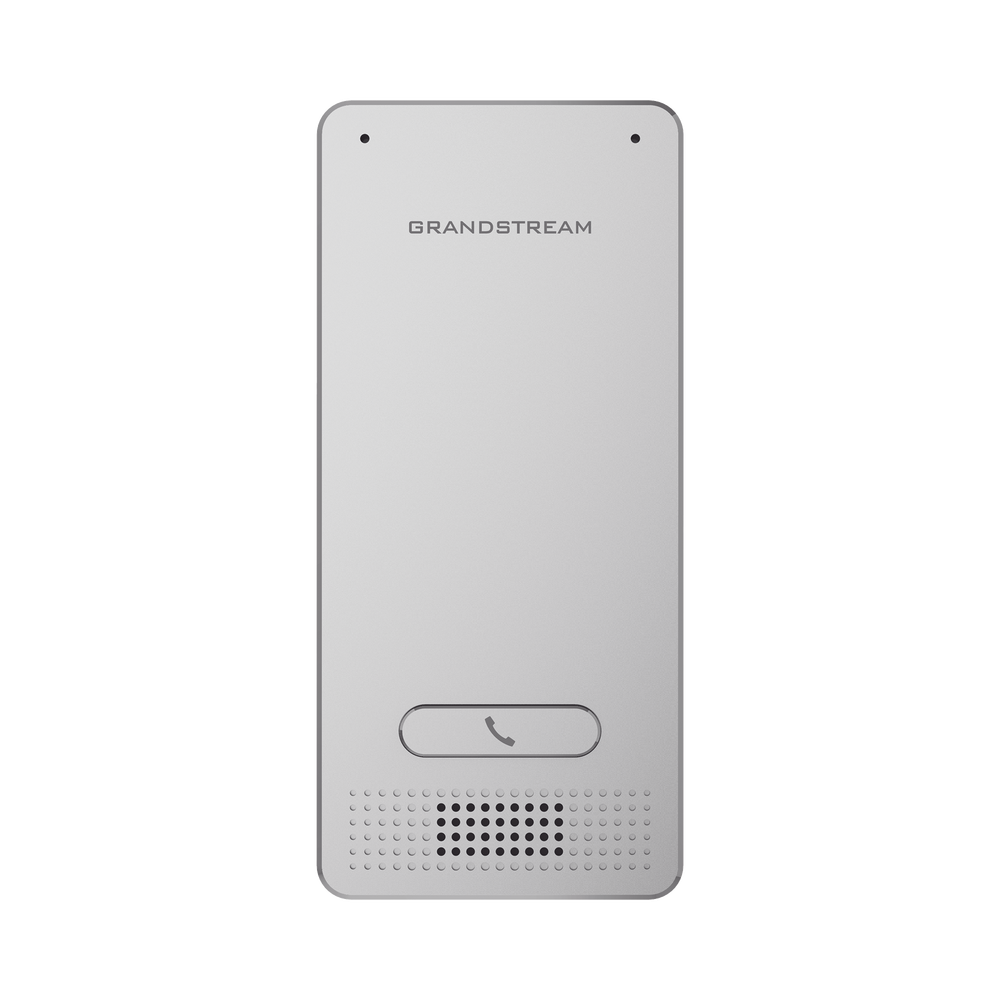

The GDS3702 is an HD audio IP intercom system for providing remote access control for buildings of all sizes.

The device includes a built-in microphone and speaker to support intercom functionality and offers alarm input and output support for integration with existing security systems. The GDS3702 works with Grandstream’s free management interface, GDS Manager. It features SIP/VoIP technology with two-way HD audio and an IP66-rated weatherproof and vandal-resistant enclosure. The GDS3702 combines Grandstream’s GXP21xx IP phones, GXV video phones, the GS-Wave mobile app, and other third-party IP devices to provide a complete end-to-end solution for access control and intercom needs.

HD audio options with up to 1.5m audio input and 3m audio output
Supports SIP calls to IP phones for easy communication
Constructed with a metal casing to make it weather and vandal resistant
2 relays for electric lock and alarm output, 2 alarm inputs for exit button and door sensor
Integrated PoE to power the device and provide a network connection
Built-in microphone and speaker provide voice options and intercom functionality
1 year warranty.

Technical specifications

Network Interfaces/ PoE	1 x 10/100 Mbps auto-sensing RJ45 Ethernet port / IEEE 802.3af Class3 PoE
Entrance	2 Optocoupler input, Vin<15V, for door sensor or other low voltage device
Exit	2 relays, 125V AC/0.5A or 30V DC/2A, normally open or normally closed, for electric lock, light switch or other relative high voltage device
Certifications	IP66 and IK10
Voltage	12VDC /1A (AC adapter not included)
Audio input	Built-in microphones up to 1.5 m
Audio output	2W HD speaker, up to 3m
Package Contents	GDS3702 intercom, accessories for installation.
