HDMI Splitter and Extender Kit / Splits 1 HDMI Source to 4 Displays / Extends HDMI signal up to 70 m / 4K @ 60 Hz Resolution / Cat 6/6a/7 / IPCOLOR / ZERO LATENCY / 24/7 Use / S/PDIF Port / EDID / RS232 / Loop Output / Feed only the Tx

CLICK ON THE VIDEO

1 HDMI input to 4 output splitter and extender kit

The TT-824 kit allows you to split the signal from an HDMI source device to 4 receivers, each at a distance of 70 meters using CAT6 / 6a / 7 cable. The supported resolution is 4K @ 60Hz, supports IR control, and with EDID technology it allows the transmitted image to be adapted to the capabilities of the monitor or screen, its HDMI Loop output on the transmitter allows us to place a screen locally for the monitoring function, thanks to PoC technology only the transmitting equipment requires power.

Adopts ipcolor technology, which is an innovative and world-leading technology for ultra-high definition digital video transmission, focuses on UNCOMPRESSED AND ZERO LATENCY 4K@60Hz transmission, compared with other ipcolor products have higher video quality and longer distance.

Main Features:

Distributes and extends 1 HDMI source to 4 HDMI displays via network cable simultaneously.
Zero latency streaming.

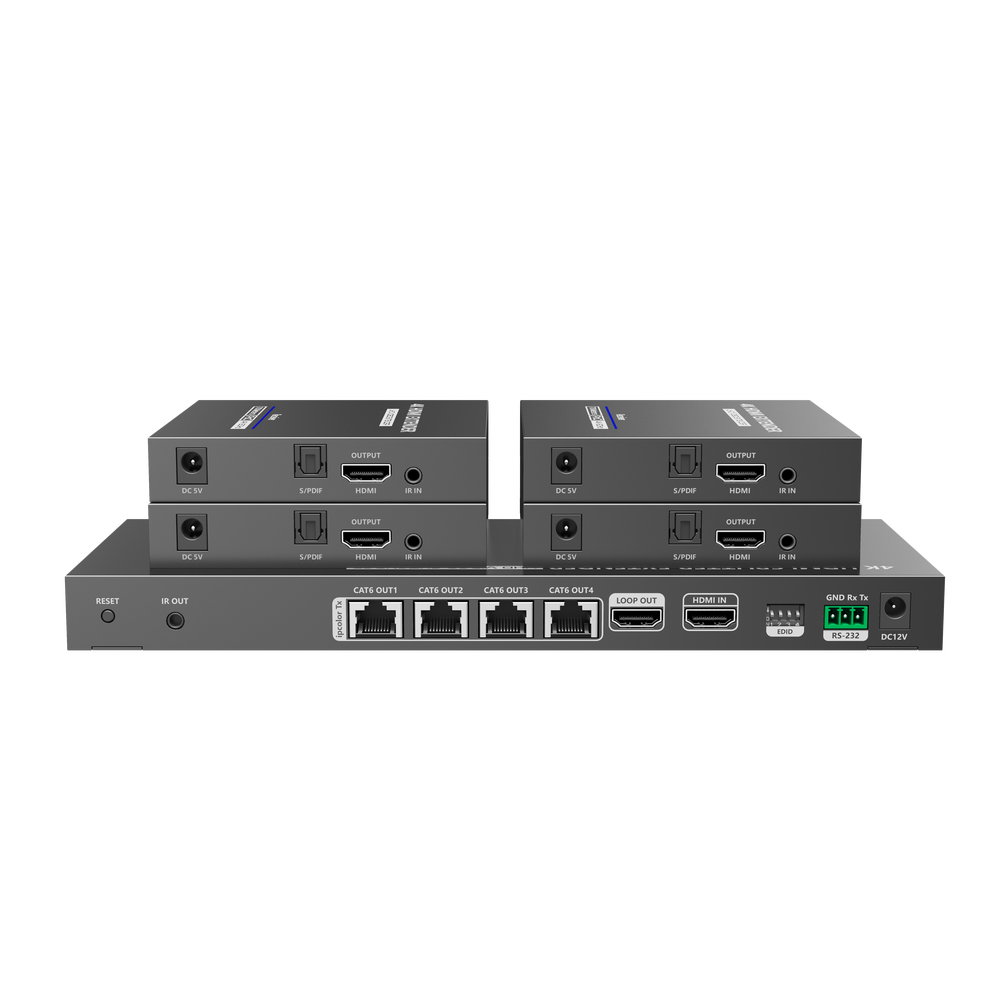

The KIT contains the concentrator + 4 receivers
Compatible with CAT6/6a/7 network cables.
The transmission distance is up to 70m / 229ft.
Supports 4K @ 60Hz resolution.
HDMI Loop output for local display or monitoring function on the TX.
The receiver can output digital audio from the TV or source device from the S/PDIF port.

Physical and Electrical Characteristics:

12 Vdc, 3 A power supply included.
(only the Transmitter requires power)
RXs powered by TX
Power consumption TX<24W RXï¼œ4W
TX dimensions: 260.00(L) x 120.00(W) x 23.50(H)mm ; RX : 106.0(L) x 99.0(W) x 26.2(H)mm
TX Weight: 640g X 1 Pcs; RX: 243g X 4 Pcs
Operating temperature 0~60°
Storage temperature -30~70â„ƒ
Black Color
1 Year Warranty for manufacturing defects
