Unmanaged Industrial Switch 8 Gigabit PoE ports 802.3af/at, 2 SFP ports
Industrial Non-Manageable PoE+ Switch

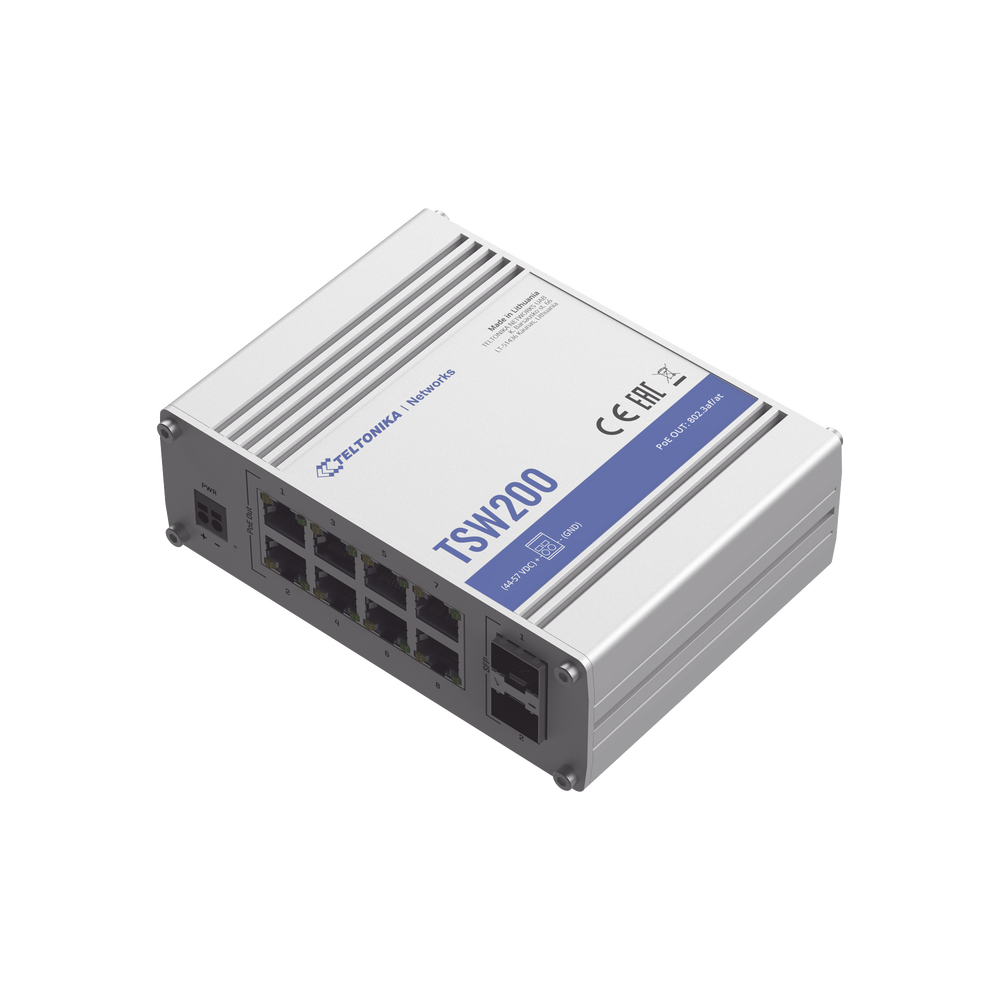

TSW200 is an unmanaged industrial switch from Teltonika Networks.

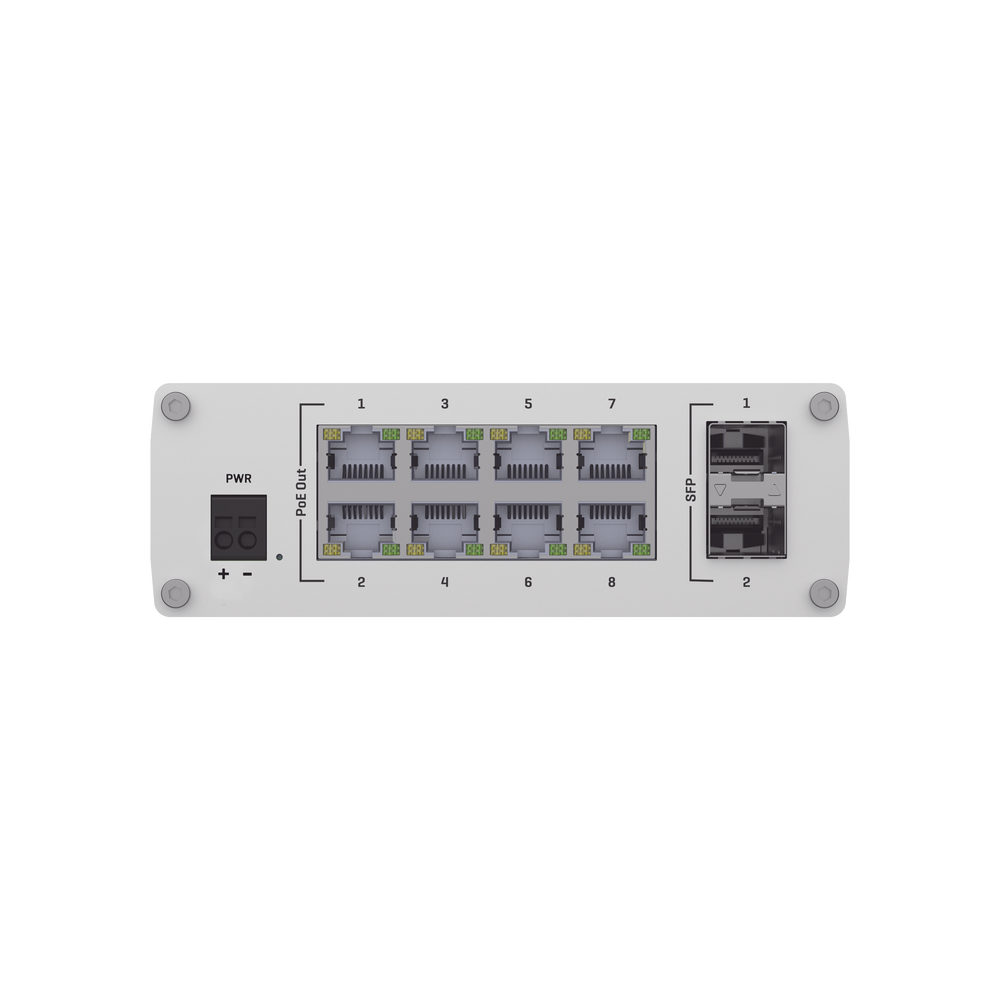

TSW200 is equipped with 2 SFP ports for long-range fiber optic communication and 8 Gigabit Ethernet ports supporting IEEE802.3af and IEE802.3at Power-over-Ethernet standards.
Classified as Power Sourcing Equipment (PSE), it allows for centralization of the power supply, providing up to 30 watts per port and reducing power installation effort.
It has 10/100/1000 Mbps Ethernet ports for a cost-effective, high-bandwidth solution for your industrial Ethernet network.
This rugged unmanaged industrial switch is ideal for high-bandwidth professional applications where both a reliable data connection and power supply are required.
Characteristics
General
- Powers equipment with 802.3 af/at standards, up to 30 Watts per port.
- Robust aluminum housing construction with DIN rail mounting option.
- Wide operating range in extreme environments.
- Compact size.
Connectivity
- 8 LAN ports, 10/100/1000 Mbps
- 8 ports with PoE 802.3 af/at
- 2 SFP 1G ports
Performance
- Bandwidth: 20 Gbps
Electrical and Physical
- Power: 7 - 57 Vdc, Requires 44 - 57 Vdc to activate PoE. ( Power supply sold separately, suggested power supply PR320USA )
- Consumption: 5.5 W without PoE, 245.5 W with PoE
- Weight: 456 g
- Dimensions: 132x44.2x95.1 mm (W x H x D)
- Operating Temperature: -40 to 75º C
- Ingress protection: IP30
Remote Management System RMS
(RMS use requires a Primary Router)
- Aluminum housing, Temperature range -40°C to 75°C, Dimensions (width x height x depth) 115 x 32 x 95 mm
39 in stock
MODELO: TSW200
