• Bobina de Cable 4 x 18 AWG CM-CL2 / 305 mts / Para uso Interior / Resistente a la Luz Solar / Sin Blindaje/ Para Aplicaciones de Alarmas de Intrusión / Control de Acceso / Automatización / Voceo
1 3

HONEYWELL HOME RESIDEO

4 x 18 AWG CM-CL2 Cable Reel / 305 m / For Indoor Use / Sunlight Resistant / Unshielded / For Intrusion Alarm Applications / Access Control / Automation / Paging

4 x 18 AWG CM-CL2 Cable Reel / 305 m / For Indoor Use / Sunlight Resistant / Unshielded / For Intrusion Alarm Applications / Access Control / Automation / Paging

$1.296.538 COP
$1.418.088 COP $1.296.538 COP
Sale Sold out
Shipping calculated at checkout.

4 x 18 AWG CM-CL2 Cable Reel / 305 m / For Indoor Use / Sunlight Resistant / Unshielded / For Intrusion Alarm Applications / Access Control / Automation / Paging

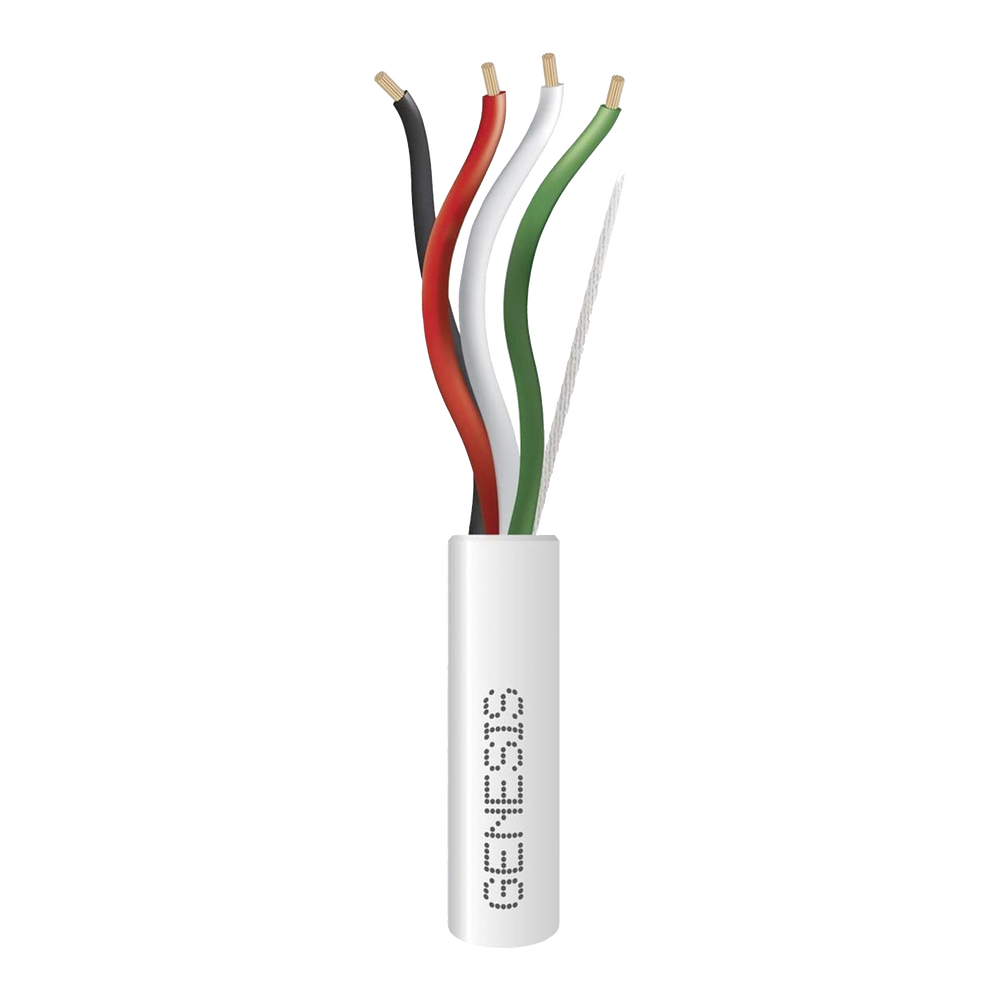

4-conductor, 18-gauge, direct burial cable with white sheath, for use in alarms, automation, access control, and paging.

In automation, access control, and alarm systems, Honeywell's Genesis® brand brings us 4 x 18 AWG stranded cable, a true masterpiece of electrical engineering. This exceptional cable, manufactured with meticulous attention to detail and the highest quality standards, represents the ultimate choice for those who demand maximum performance from their electrical systems based on reliability.

Solid soft copper conductors with PVC insulation, used in alarm applications, sensor wiring, siren wiring, and automation systems.

 Physical Characteristics:
  • Wire gauge (AWG): 18
  • Number of drivers: 4
  • Insulation colors: Black , Red , White and Green
  • Ripcord: Yes
  • Nominal Outside Diameter: 0.44958 cm (0.177 in)
  • Solid or multi-stranded: Multi-stranded
  • Conductor material: Bare copper
  • Conductor insulation material: Polypropylene
  • Jacket material: PVC
  • Shielding: No

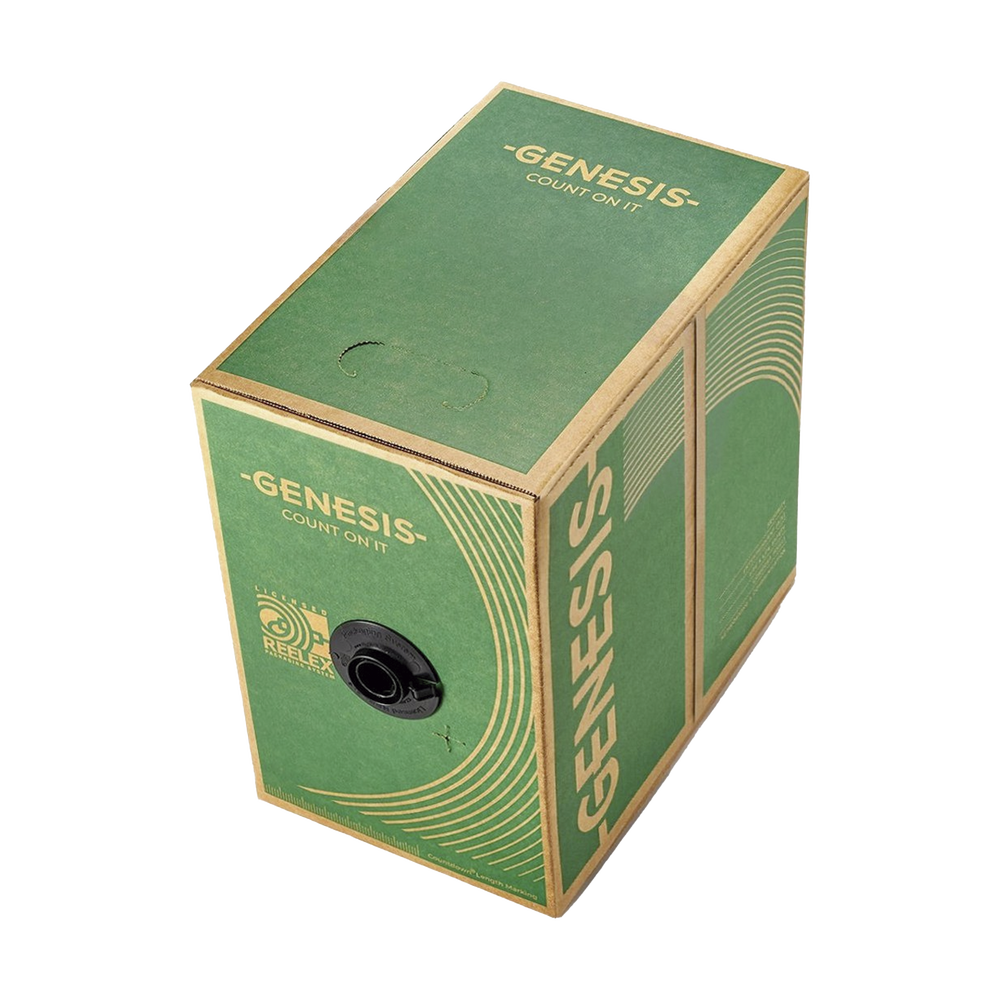

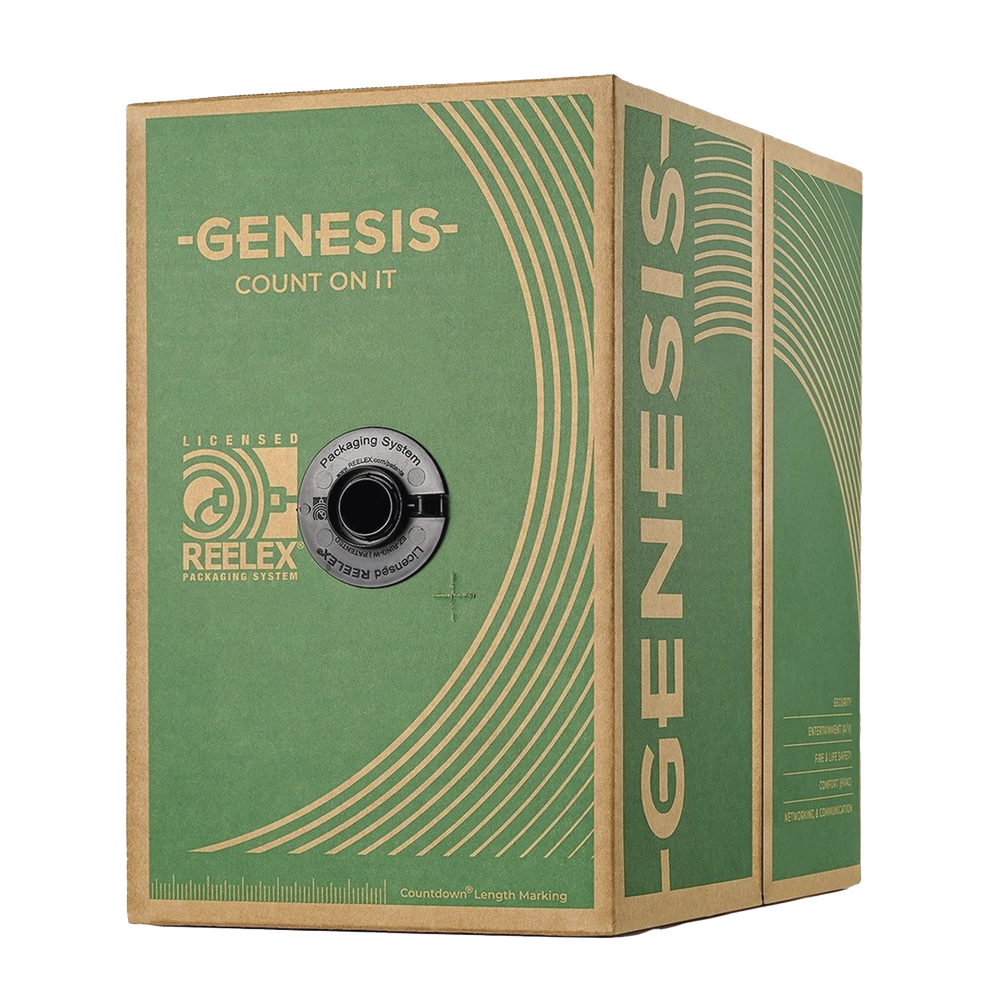

  • Cable packaging: Pull Box
  • Length per unit: 305 meters (1000 feet)
  • Dimensions: 19.6 x 33 x 33 cm (7.75 x 13 x 13 inches)
Electrical Characteristics:
  • Nominal voltage (max.): 300 V
  • Direct Current Resistance (max): 6.66 ohms/1000 ft at 20°C
  • Capacitance (nominal): 22.7 pF/ft
  • Impedance (nominal): 67 Ohms
  • Operating temperature: -20°C to 60°C
Highlighted Features:
  • Cable list: CL2 , CM .
  • It can be installed in locations exposed to sunlight, as it has been tested for 720 continuous hours of sunlight without any alterations.
  • This Genesis® cable features four stranded 18 AWG copper conductors and a general-purpose rating. Choose this cable for a reliable connection for security, controls, audio, and other low-voltage applications.

* Price per 305 meter coil

    4 x 18 AWG spool of 305 meters, For general use, Multi-stranded cable

30 in stock

MODELO: 11191101/1000
