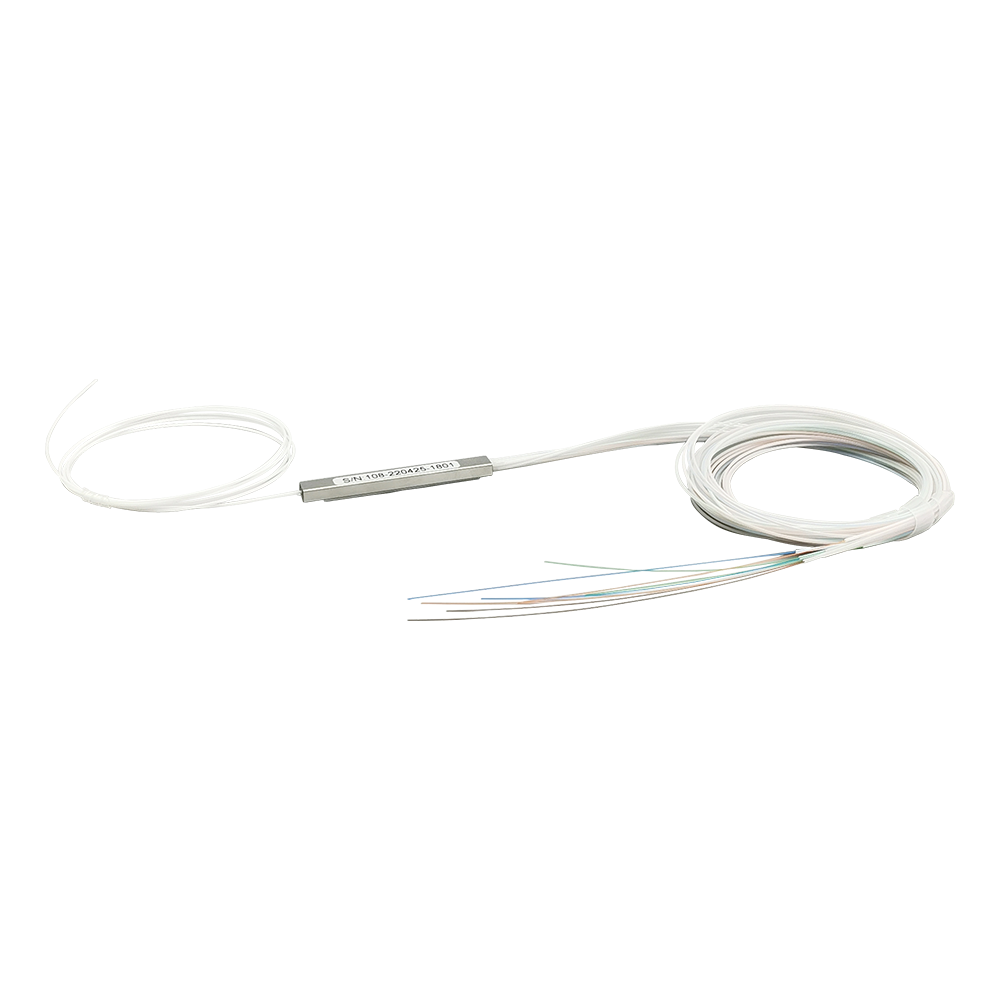

PLC type splitter, 1x8, for fusion (without connectors)

PLC type splitter, 1x8, for fusion (without connectors)

The Fiberall fiber optic PLC (planar lightwave circuit) splitter is an optical power management device manufactured using silicon optical waveguide technology for distributing optical signals from central office (OLT) to multiple premises locations (ONU/ONT). It features small size, high reliability, a wide operating wavelength range, and good channel-to-channel uniformity, and is widely used in PON networks to perform optical signal power splitting as a low-cost solution.

Technical Specifications:

• Complies with G.657A fiber optic standard
• 1x8 divider
• Operating Temperature: -40 to 85ºC

Optical Properties:

• Operating Wavelengths: 1260 ~ 1650nm
• Directivity: ≤ 55 dB
• PDL: ≤ 0.2 dB
• Insertion Loss: ≤ 10 dB
• Return Loss: ≤ 50 dB

Applications:

• FTTx
• LAN, WAN
• CATV
• Tests and Measurements

Insertion Loss: ≤ 10 dB, Return Loss: ≤ 50 dB, Operating Wavelengths: 1260 ~ 1650 nm
