• 7' LCD touch screen (1024x600)
• Dual 2MP camera, with complementary lighting (IR, WDR).
• IP communication (10/100/1000 Mbps)
• Face recognition distance: 0.3 to 3 meters.
• Multiple authentication.
• Supports up to 10,000 faces.
• Supports up to 50,000 Mifare, Feñica, Desfire cards.
• Supports up to 10,000 fingerprints with module (separate).
• Supports up to 150,000 events.
• Access control by time.
• Two-way audio.
• Face mask detection.
• Supports multi-person recognition (up to 5 at the same time).
• Warranty: 2 Years.
• - IVMS4200 Scope (data sheet)
• – HikCentral (via license).

• Power: 12 Vdc to 24 Vdc @ 2A (Not included)
• Operating temperature: -30°C to 60°C.
• Humidity supported: 0 to 90% (non-condensing).
• Dimensions (mm): 110.5 x 209.2 x 24
• Protection index: IP65

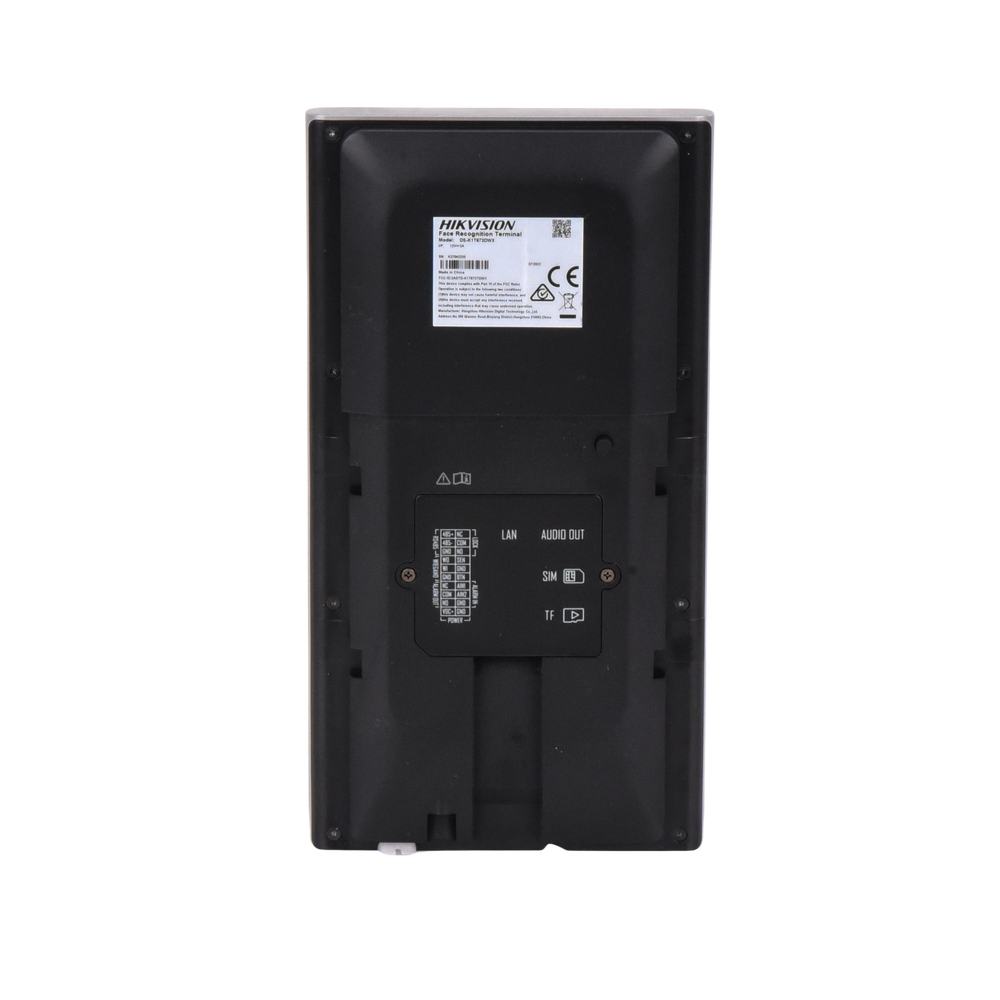

Interfaces:

• Wiegand: 1
• Network :1
• WiFi: 1
• USB (for module): 1
• RS-485: 1
• Alarm IN/OUT: 2/1
• Doorbell:1
• Exit button: 1
• Tamper:1
• Relay output for sheet metal
• 3.5mm audio output

• Instant facial recognition, with a 99% accuracy rate.
• You can add a fingerprint reader module model
• Compatible with Hikvision IP door entry TV solution.
• Managed by IVMS4200.

Compatible monitors:

• DS-KH6220-LE1 (local only, no call to the App).
• DS-KH6320-WTE1
• DS-KH8520-WTE1
• DS-KH9510-WTE1
• DS-KH9310-WTE1

Fingerprint, QR Code and Bluetooth reader module is purchased separately ( DS-KAB673-FBQR )
