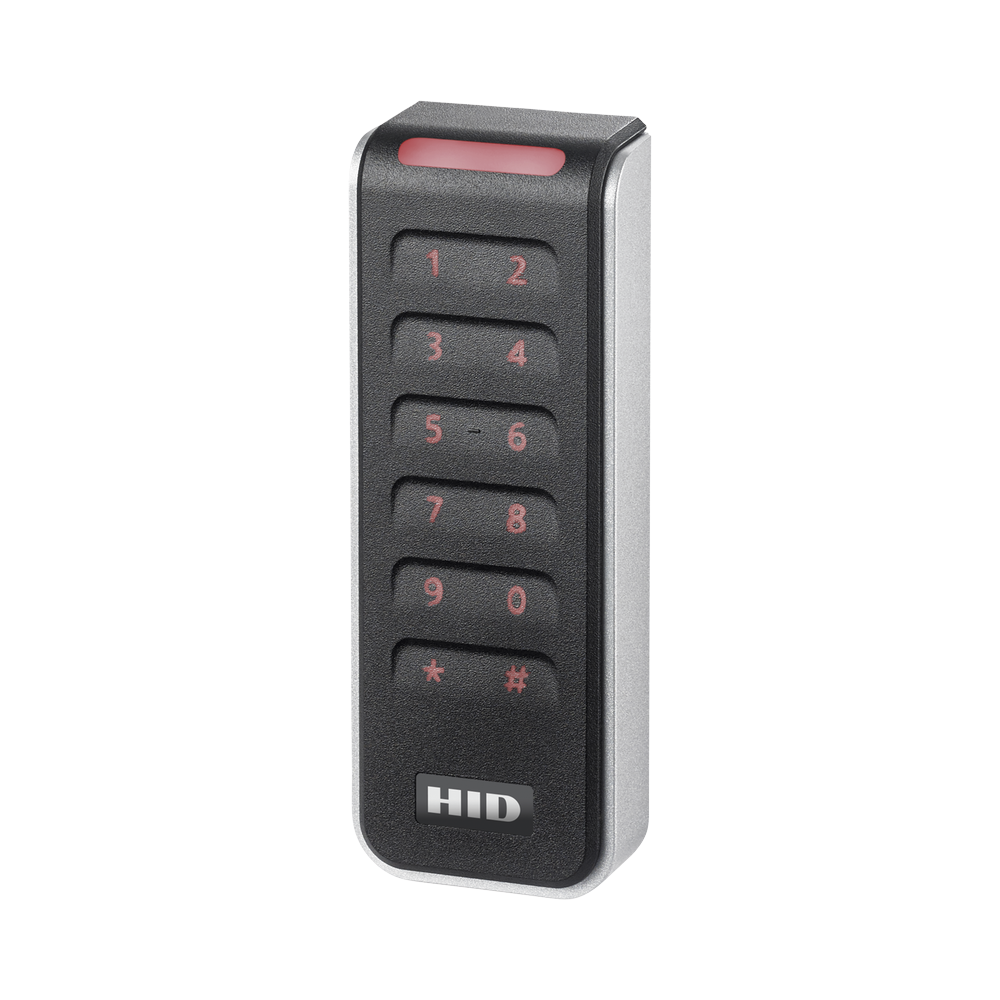

SIGNO Standard Multi-technology Reader/ 20KNKS-03-000WC3/ Lifetime Warranty/ Pigtail/Wiegand & OSDP/ELITE

SIGNO Standard Multi-technology Reader/ 20KNKS-03-000WC3/ Lifetime Warranty/ Pigtail/Wiegand & OSDP/ELITE

HID Signo™ is HID Global's iconic line of access control readers. The versatility, performance, and connectivity of HID Signo readers set a new industry benchmark as the most adaptable, interoperable, and secure solution for electronic access control.

Characteristics:

• Reader model 20KNKS-03-000WC3
• KEYPAD
• Supply voltage: 12 V DC
• Supported technology: Seos, iCLASS SE®, iCLASS SR®, iCLASS®, MIFARE Classic, MIFARE DESFire EV1 / EV2, mobile credentials with Seos technology (HID Mobile Access).
• Supported technology: HID Proximity®, Indala® Proximity, AWID Proximity and EM Proximity
• Ideal for installation in door frames or any flat mounting surface
• Dimensions: 45 mm x 121.5 mm x 19.5 mm (1.77 in x 4.78 in x 0.77 in)
• Input: Tricolor LED, acoustic indicator, active low hold.
• Data output via Pigtail.
• Data output: Wiegand and RS-485 half-duplex ( OSDP ) via flexible cable (18 inches / 0.5 m) or terminal block
• Warranty: Lifetime.
• ELITE, requires completion of Authorization form.

How are readers programmed?

They only need to be programmed if you use NFC or Bluetooth, or when you want to adjust the ranges and colors of the LEDs.

• Here is a video tutorial . Tutorial
