Cloud Core Router 16 ARM Cores, 12 Gigabit ports, 4 SFP+ 10G
Cloud Core Router 16 ARM Cores, 12 Gigabit ports, 4 SFP+ 10G
Couldn't load pickup availability
Cloud Core Router 16 ARM Cores, 12 Gigabit ports, 4 SFP+ 10G
We wanted to see the full potential of good, old-fashioned, reliable 10G networks combined with a modern CPU. The CCR2116-12G-4S+ lets you forget about CPU limitations in your setup. Like its smaller sibling, the incredible CCR2004, this router features Amazon's powerful Annapurna Labs Alpine CPU.
But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that's the most important aspect when it comes to heavy operations based on per-connection processing. Like queuing, for example. The CCR2116-12G-4S+ sets a new standard of single-core performance across the entire CCR product family! And it supports Layer 3 hardware offloading!

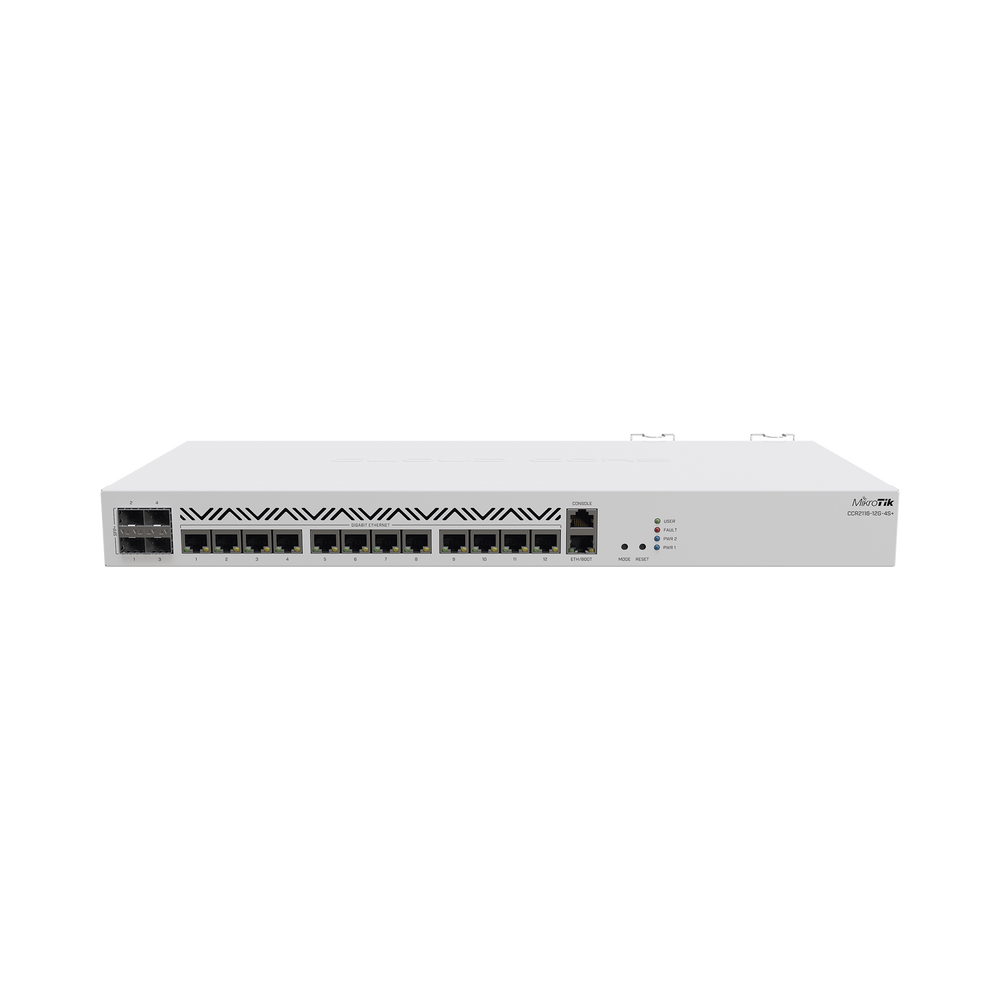

Obviously, you need the right connectivity to take advantage of this power. There are four 10G SFP+ ports. They have an independent full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them run through the Marvell chip. And there's another Gigabit port connected directly to the CPU for management purposes.
Each group of four ports has an independent full-duplex connection to the switch chip. There are no bottlenecks here. You can expect switch-like performance in most configurations. The new generation of processors delivers mind-blowing performance. If you look at the CCR1036, the powerhouse with a 36-core CPU, the new CCR2116 can easily double the performance. 16 cores versus 36 cores. Double the performance. Or even more.

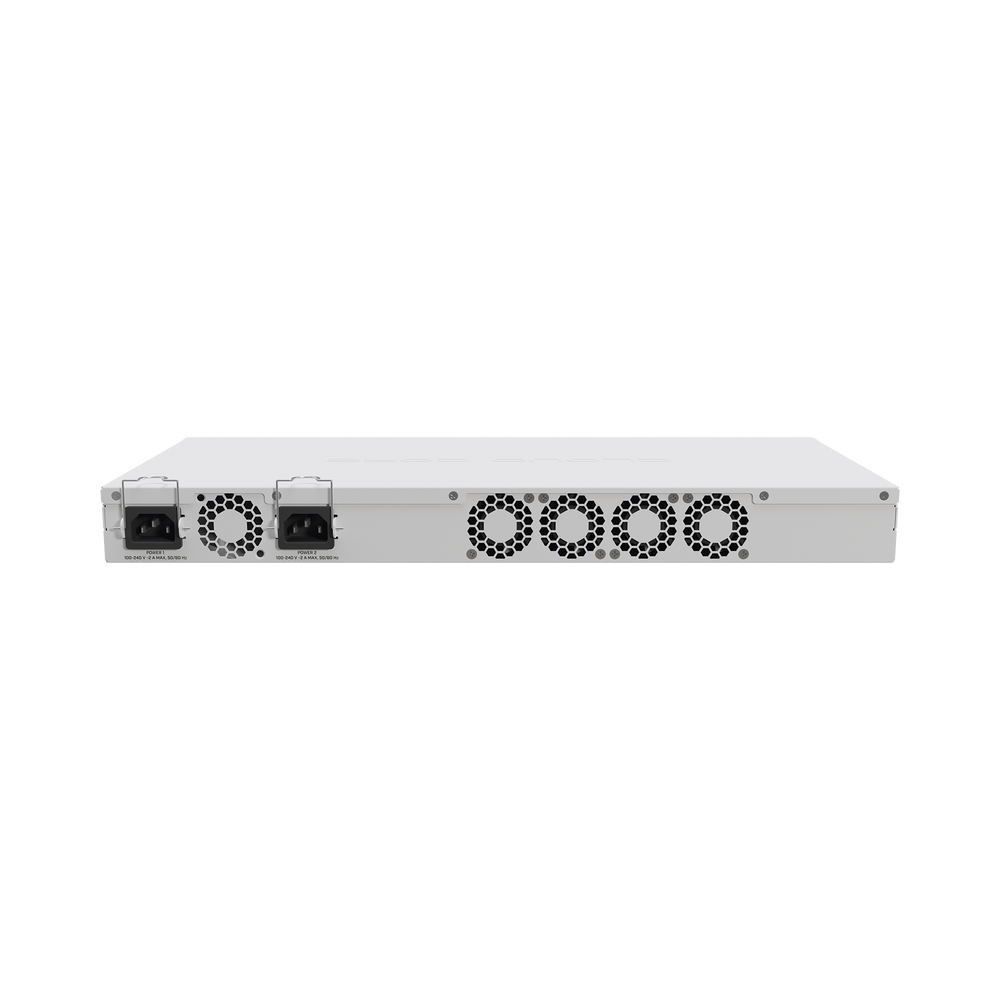

If you're a fairly large ISP, dealing with dynamic routing, massive BGP, complex firewall rules, and intricate QoS configurations, this is the device for you. Combining raw power and utility with reliable 10G networking. And yes, as with any ISP-grade device, we've included a dual redundant power supply. So you have one less thing to worry about.
CCR2116-12G-4S+: Time-tested technology, designed for the future.
Specs
Details | |
---|---|
Product code | CCR2116-12G-4S+ |
Architecture | ARM 64-bit |
CPU | AL73400 |
CPU core count | 16 |
Nominal CPU frequency | 2000 MHz |
RouterOS License | 6 |
Operating system | RouterOS (v7 only) |
RAM size | 16 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200,000 hours at 25°C |
Room temperature tested | -20 °C to 60 °C |
Feeding
Details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Maximum energy consumption | 72 W |
Maximum power consumption without accessories | 60 W |
Cooling type | 4 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 13 |
Fiber
Details | |
---|---|
SFP+ ports | 4 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Number of M.2 slots | 1 |
Others
Details | |
---|---|
CPU Temperature Monitor | Yeah |
PCB Temperature Monitor | Yeah |
Mode button | Yeah |
Certification and approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
Parts included
The device comes with a pre-installed and licensed operating system. No separate purchase is required, and the product is ready to use. The device includes free software updates for the life of the product, or for a minimum of 5 years from the date of purchase.
