OLT de 4 puertos GPON, hasta 512 ONUs, 1 Gigabit RJ45, 1 puertos SFP+, Fuentes redundantes AC- DC (incluidas)

4-port GPON OLT, up to 512 ONUs, 1 Gigabit RJ45, 1 SFP+ port, AC-DC redundant power supplies (included)

$4,776,171 $5,782,156
Skip to product information
OLT de 4 puertos GPON, hasta 512 ONUs, 1 Gigabit RJ45, 1 puertos SFP+, Fuentes redundantes AC- DC (incluidas)
  • OLT de 4 puertos GPON, hasta 512 ONUs, 1 Gigabit RJ45, 1 puertos SFP+, Fuentes redundantes AC- DC (incluidas)
  • 4-port GPON OLT, up to 512 ONUs, 1 Gigabit RJ45, 1 SFP+ port, AC-DC redundant power supplies (included)
  • 4-port GPON OLT, up to 512 ONUs, 1 Gigabit RJ45, 1 SFP+ port, AC-DC redundant power supplies (included)
4-port GPON OLT, up to 512 ONUs, 1 Gigabit RJ45, 1 SFP+ port, AC-DC redundant power supplies (included)

4-port GPON OLT, up to 512 ONUs, 1 Gigabit RJ45, 1 SFP+ port, AC-DC redundant power supplies (included)

$4,776,171 $5,782,156
Shipping calculated at checkout.
Marca
TP-LINK
Referencia / SKU
DS-P7001-04
Disponibilidad
Agotado por ahora
Descripción y especificaciones

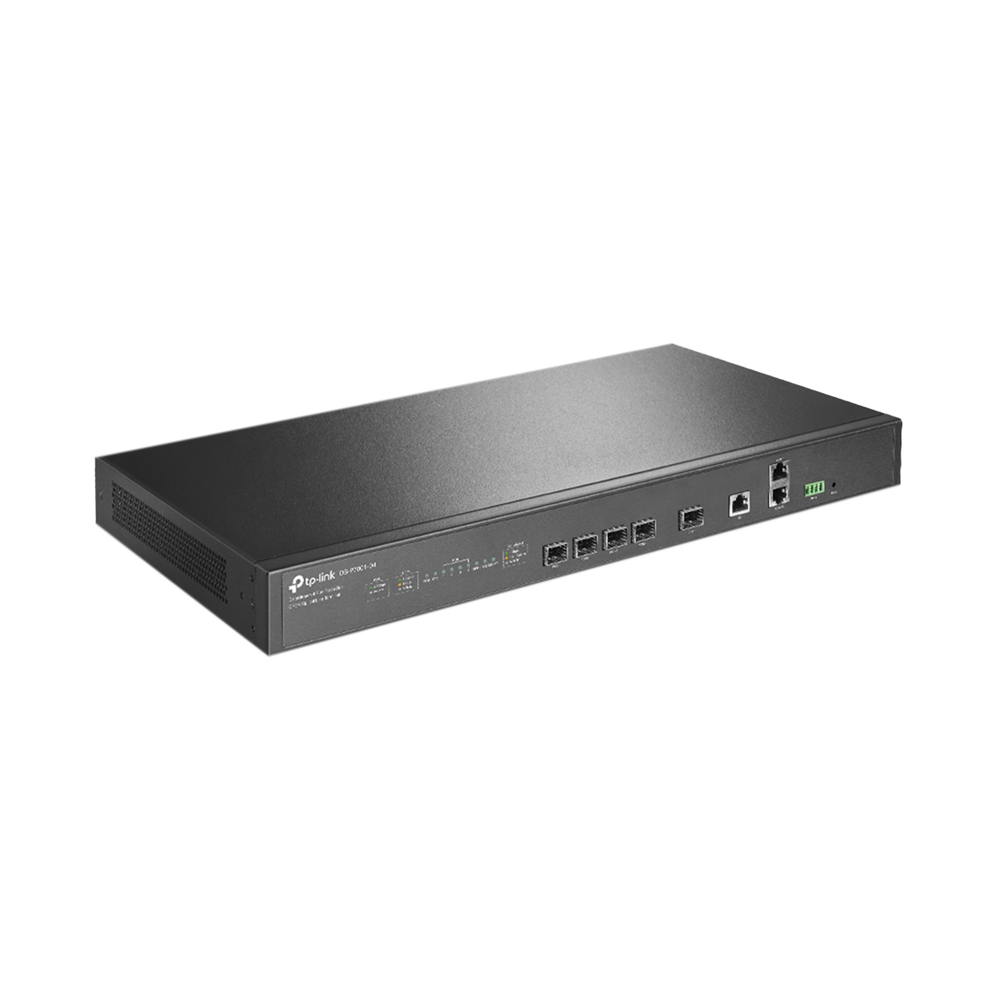

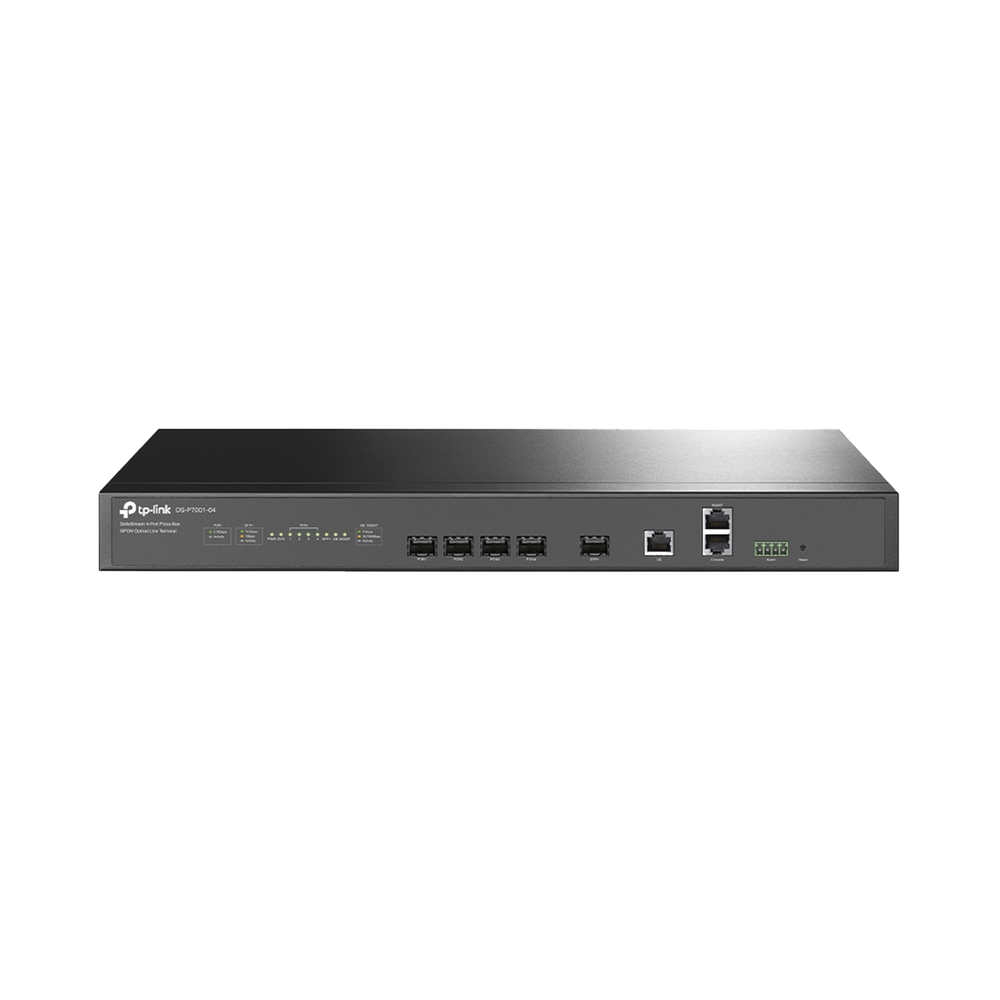

4-port GPON OLT, up to 512 ONUs, 1 Gigabit RJ45, 1 SFP+ port, AC-DC redundant power supplies (included)

4-port DeltaStreamPON (DPMS) GPON optical line terminal

  • 4 GPON ports: Supports 1:128 split ratio for each port, up to 512 ONTs per device.
  • High-speed uplink ports: Provides 1 SFP+ 10GE port and 1 gigabit uplink port.
  • Dual redundant power supplies: Carrier-class reliability with integrated dual AC+DC power supplies.
  • Full L2 and advanced L3 capabilities: Meets the needs of numerous business requirements.
  • Centralized management: through DeltaStream PON Management System (DPMS), SNMP, CLI and WEB UI.
  • Advanced L2/L2+ Features: Static Routing, IGMP Snooping and more meet the requirements for different applications.

Through the DeltaStream PON management system, we can centrally manage and maintain the various networks. Configure and update all devices connected to our management platform.

Download TP-Link DeltaStream PON Management System (DPMS)

User Manual and Configuration Guide for TP-Link DPMS

Main features:
  • 4 PON ports 2.5 Gbps
  • 1 SFP+ 10Gbps port
  • 1 Gigabit RJ45 port
  • 1 Console port
  • 1 alarm port
  • Reset button
  • Centralized Administration DPMS
  • Redundant AC and DC source
  • Up to 512 ONUs
  • Controller Management
  • WEB Administration
  • Bandwidth control.
  • Up to 20 km
  • Tx power: Class C+
Physical and Electrical Characteristics:
  • Dimensions 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.)
  • Rack mount.
  • Operating Temperature: 0℃~50℃ (32℉~122℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

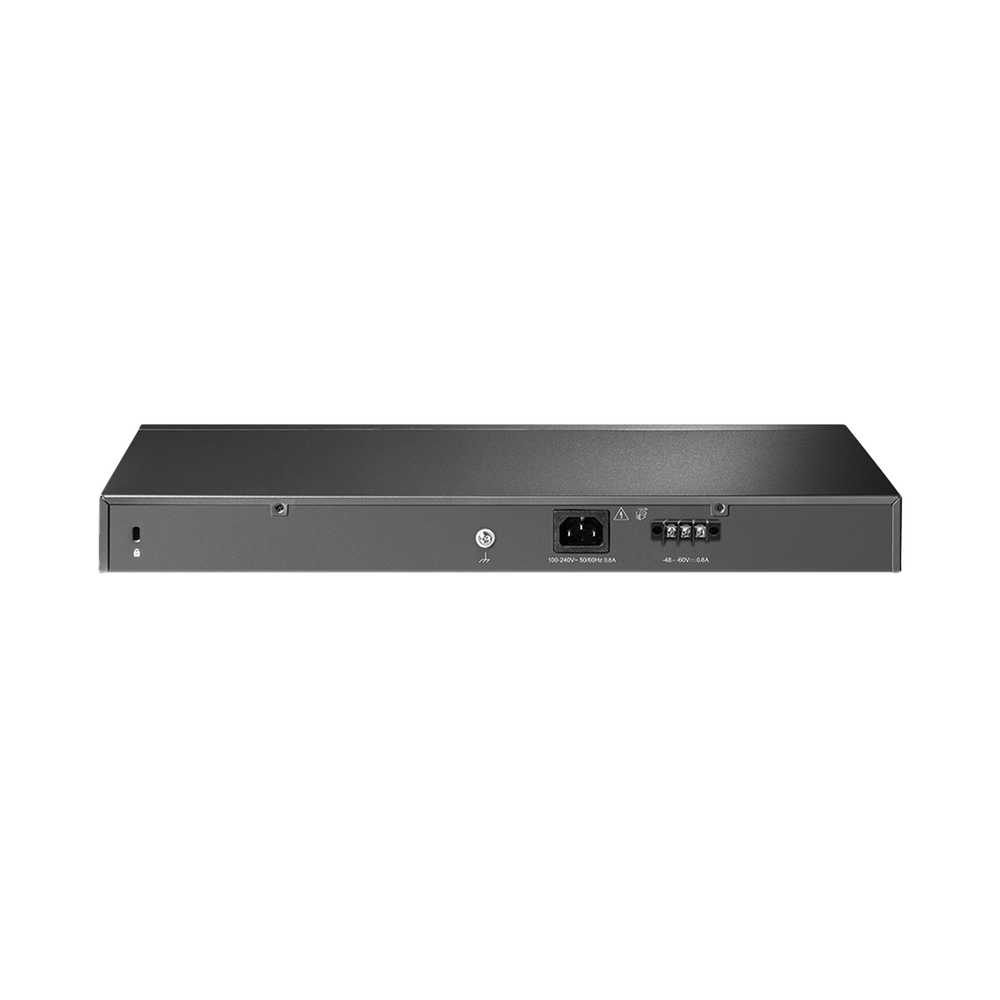

  • AC source: 100 ~ 240V, 50/60Hz
  • DC supply: 38.4~72V.
Content:
  • OLT DS-P7001-04
  • Power cable
  • Console cable
  • Installation Guide
  • Rack Mount Kit
  • Rubber feet

    4 PON ports, 512 ONUs, AC/DC redundant power supply, DPMS centralized management, L2/L3 functions
