OLT de 8 puertos GPON, hasta 1,024 ONUs, 1 Gigabit RJ45,  2 puertos SFP+, Fuentes redundantes AC- AC (incluidas)

8-port GPON OLT, up to 1,024 ONUs, 1 Gigabit RJ45, 2 SFP+ ports, AC-AC redundant power supplies (included)

Sale price  $7,492,800 Regular price  $8,191,542
Skip to product information
OLT de 8 puertos GPON, hasta 1,024 ONUs, 1 Gigabit RJ45,  2 puertos SFP+, Fuentes redundantes AC- AC (incluidas)

8-port GPON OLT, up to 1,024 ONUs, 1 Gigabit RJ45, 2 SFP+ ports, AC-AC redundant power supplies (included)

Sale price  $7,492,800 Regular price  $8,191,542
Shipping calculated at checkout.
Marca
TP-LINK
Referencia / SKU
DS-P7001-08
Disponibilidad
2 unidades disponibles
Descripción y especificaciones

8-port GPON OLT, up to 1,024 ONUs, 1 Gigabit RJ45, 2 SFP+ ports, AC-AC redundant power supplies (included)

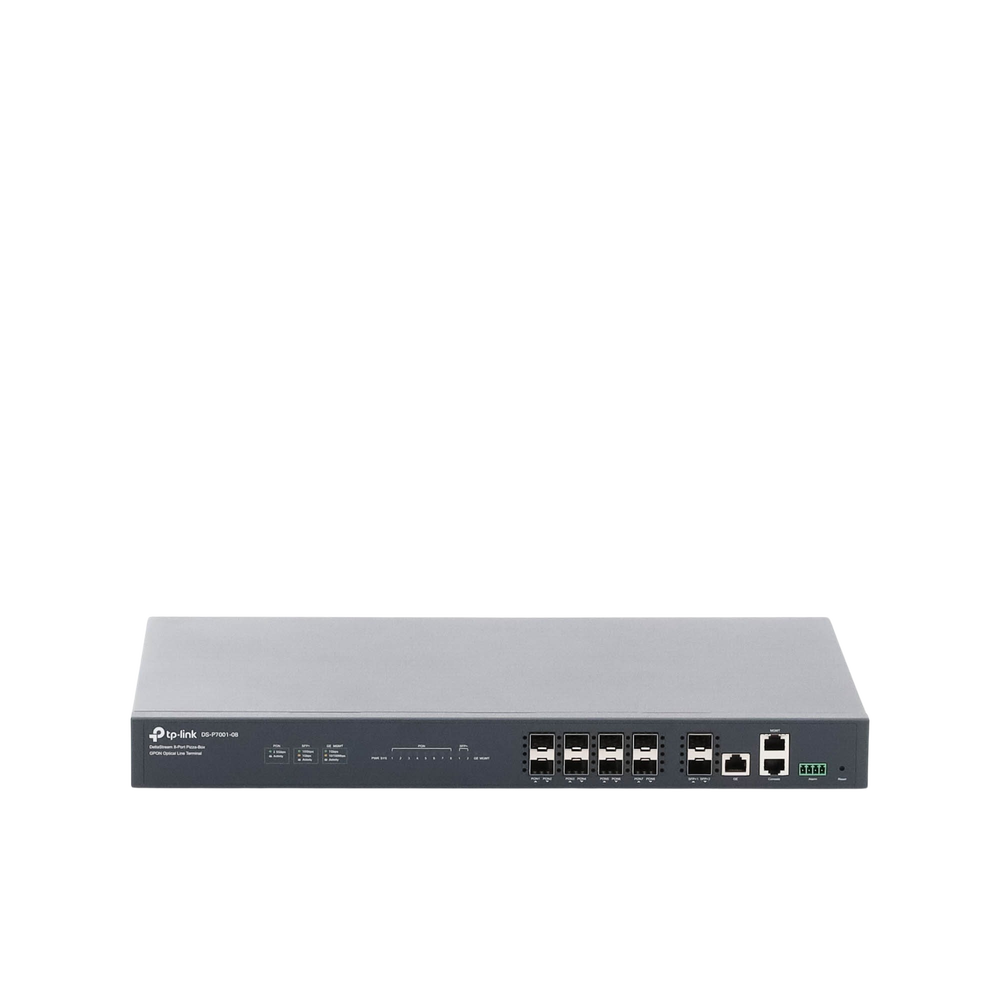

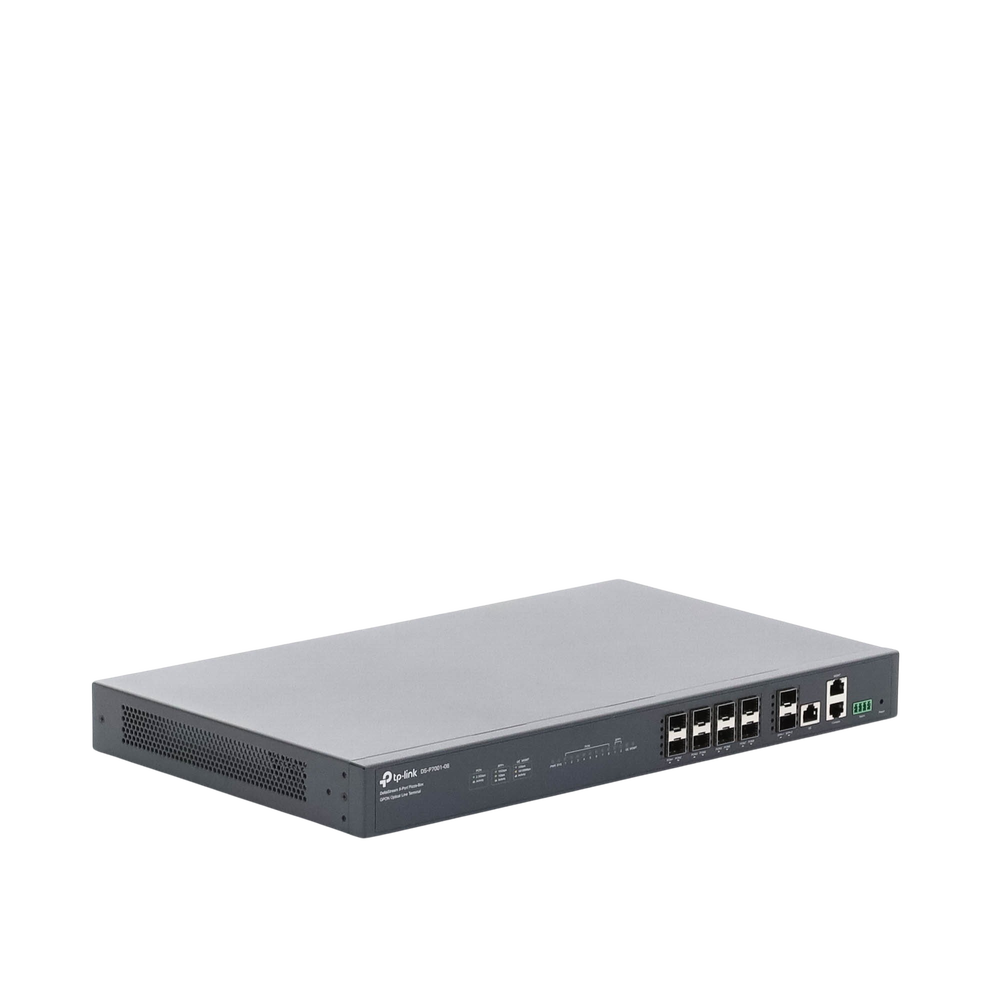

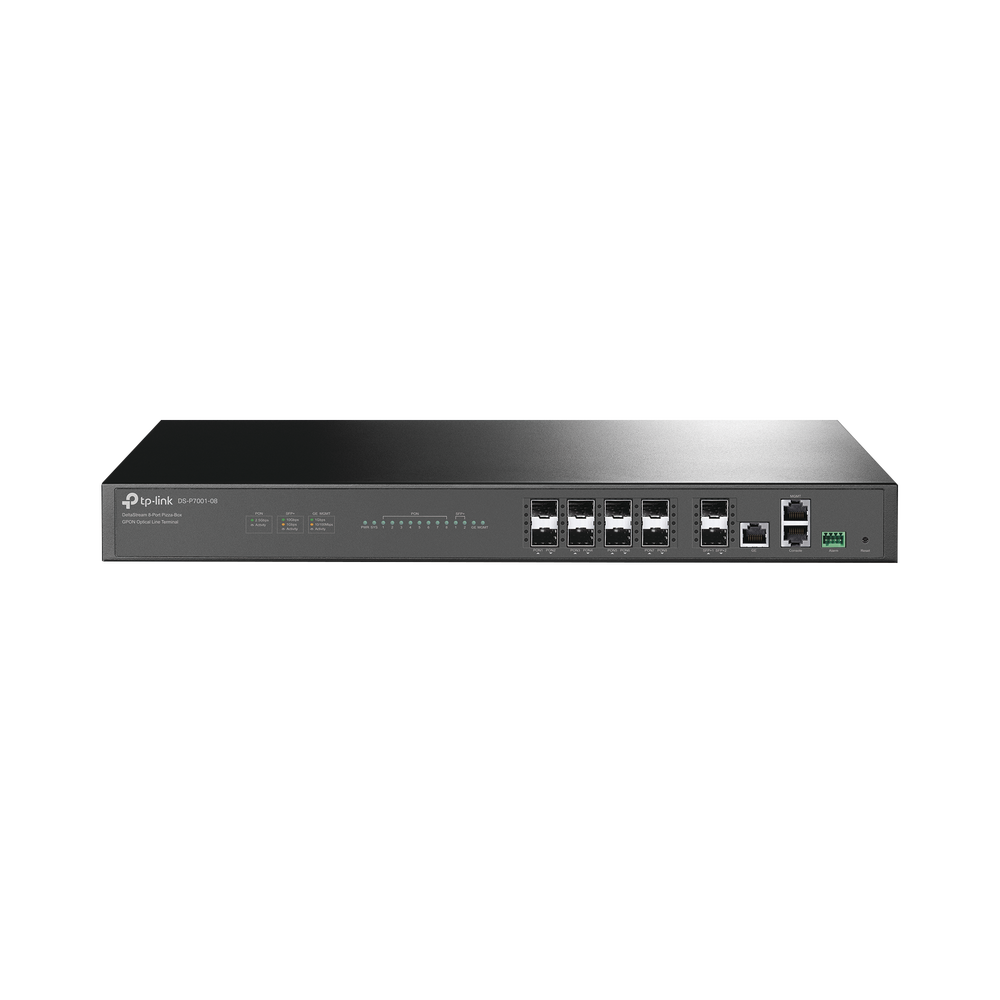

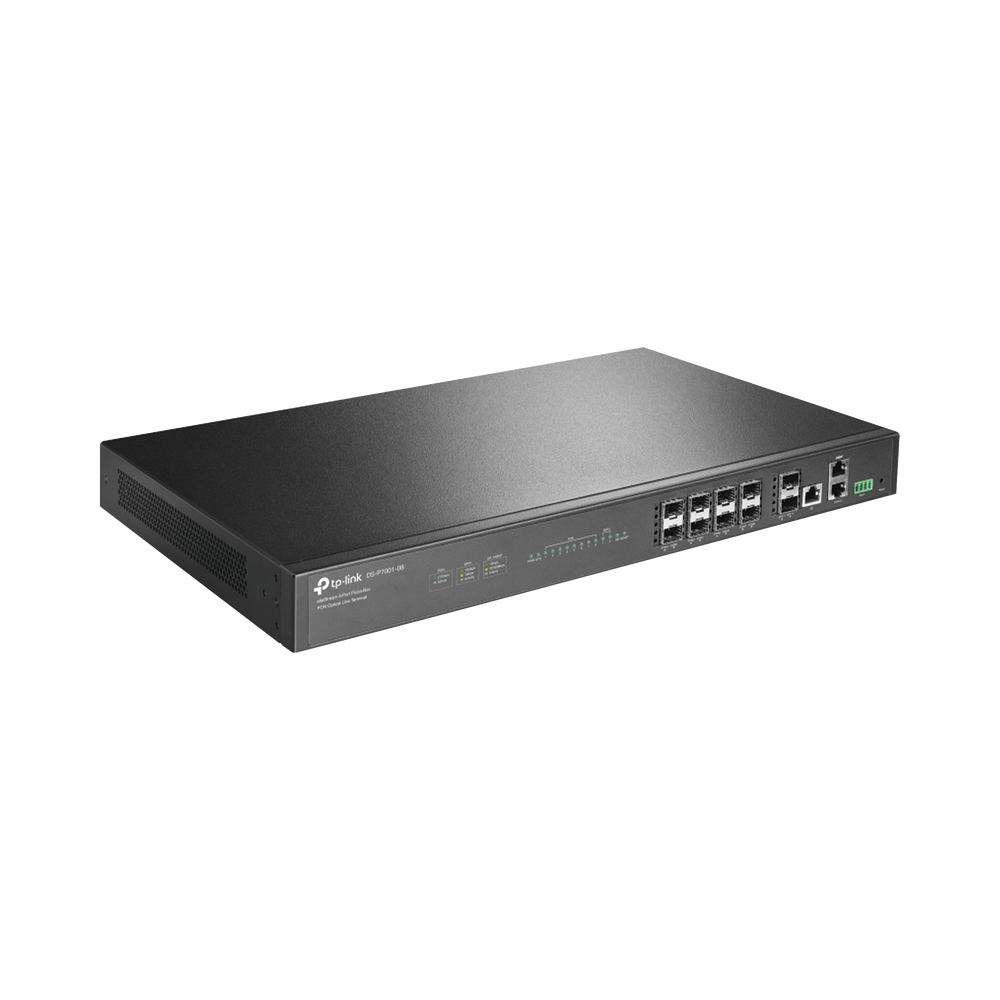

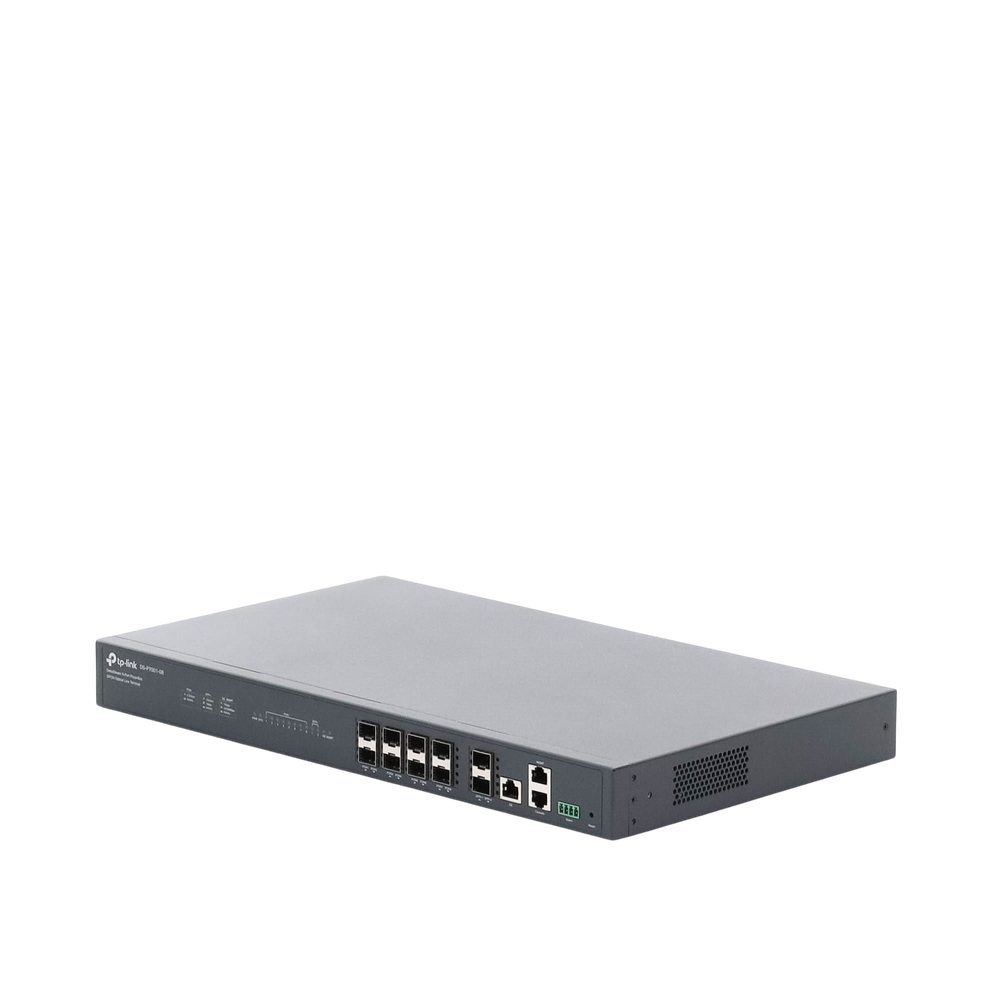

8-Port GPON Optical Line Terminal DeltaStreamPON (DPMS)

  • 8 GPON ports: Supports a split ratio of 1:128 for each port, up to 1,204 ONTs per device.
  • High Speed ​​Uplink Ports: Provides 2 SFP+ 10GE ports and 1 gigabit uplink port.

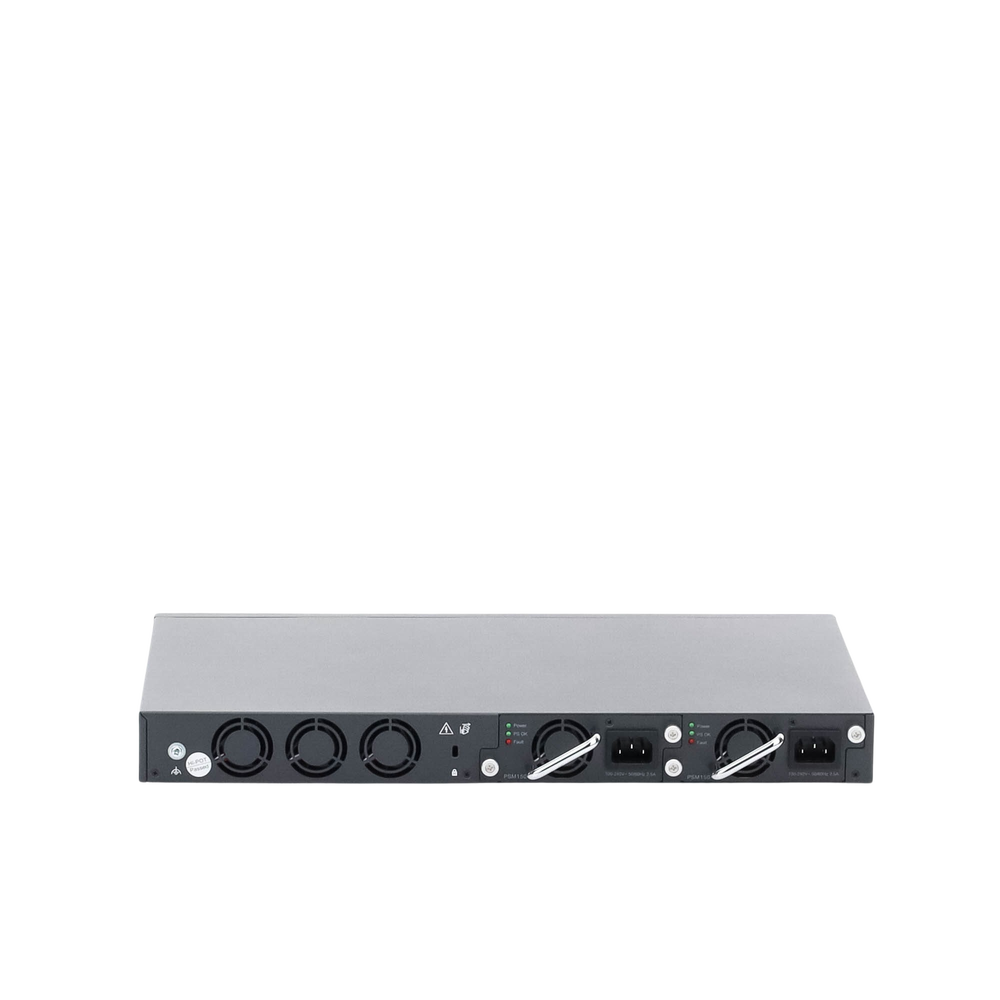

  • Dual redundant power supplies: Carrier-class reliability with integrated dual AC+AC power supplies.
  • Full L2 and advanced L3 capabilities: Meets the needs of numerous business requirements.
  • Centralized management: through DeltaStream PON Management System (DPMS), SNMP, CLI and WEB UI.
  • Advanced L2/L2+ Features: Static Routing, IGMP Snooping and more meet the requirements for different applications.

Through the DeltaStream PON management system, we can centrally manage and maintain the various networks. Configure and update all devices connected to our management platform.

Download TP-Link DeltaStream PON Management System (DPMS)

User Manual and Configuration Guide for TP-Link DPMS

Main features:
  • 8 PON ports 2.5 Gbps
  • 2 SFP+ 10Gbps ports
  • 1 Gigabit RJ45 port
  • 1 Console port
  • 1 alarm port
  • Reset button
  • Centralized Administration DPMS
  • Redundant AC and AC power supply
  • Up to 1,024 UNs
  • Controller Management
  • WEB Administration
  • Bandwidth control.
  • Up to 20 km
  • Tx power: Class C+
Physical and Electrical Characteristics:
  • Dimensions 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in.)
  • Rack mount.
  • Operating Temperature: 0℃~50℃ (32℉~122℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
  • AC source: 100 ~ 240V, 50/60Hz
  • DC supply: 38.4~72V.
Content:
  • OLT DS-P7001-08
  • Power cable
  • Console cable
  • Installation Guide
  • Rack Mount Kit
  • Rubber feet

    DPMS centralized management, L2/L3 functions, 8 PON ports, up to 1024 ONUs
