• Estación de guardia para sistema multi-apartamentos
1 3

AKUVOX

Guard station for multi-apartment system

Guard station for multi-apartment system

$1.606.294 COP
$1.756.884 COP $1.606.294 COP
Sale Sold out
Shipping calculated at checkout.

Guard station for multi-apartment system

A Business Telephone as well as an Intercom Guard unit

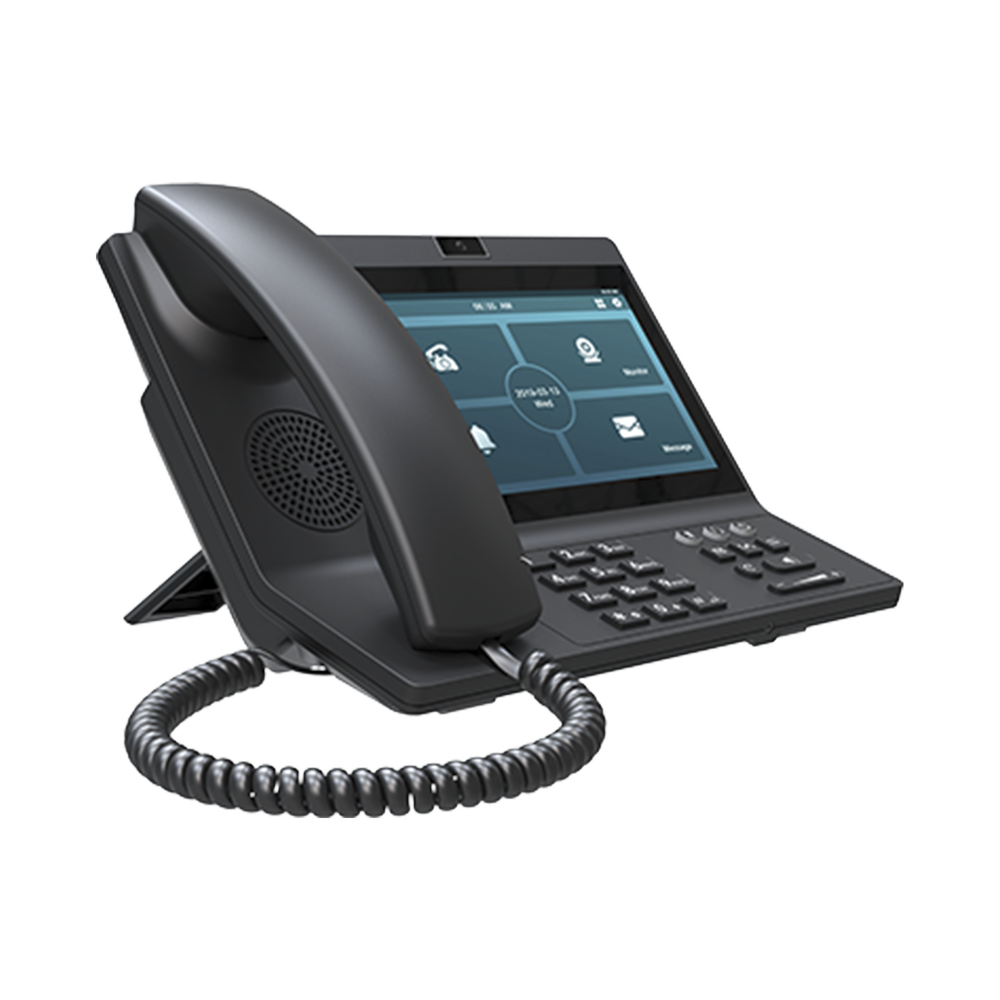

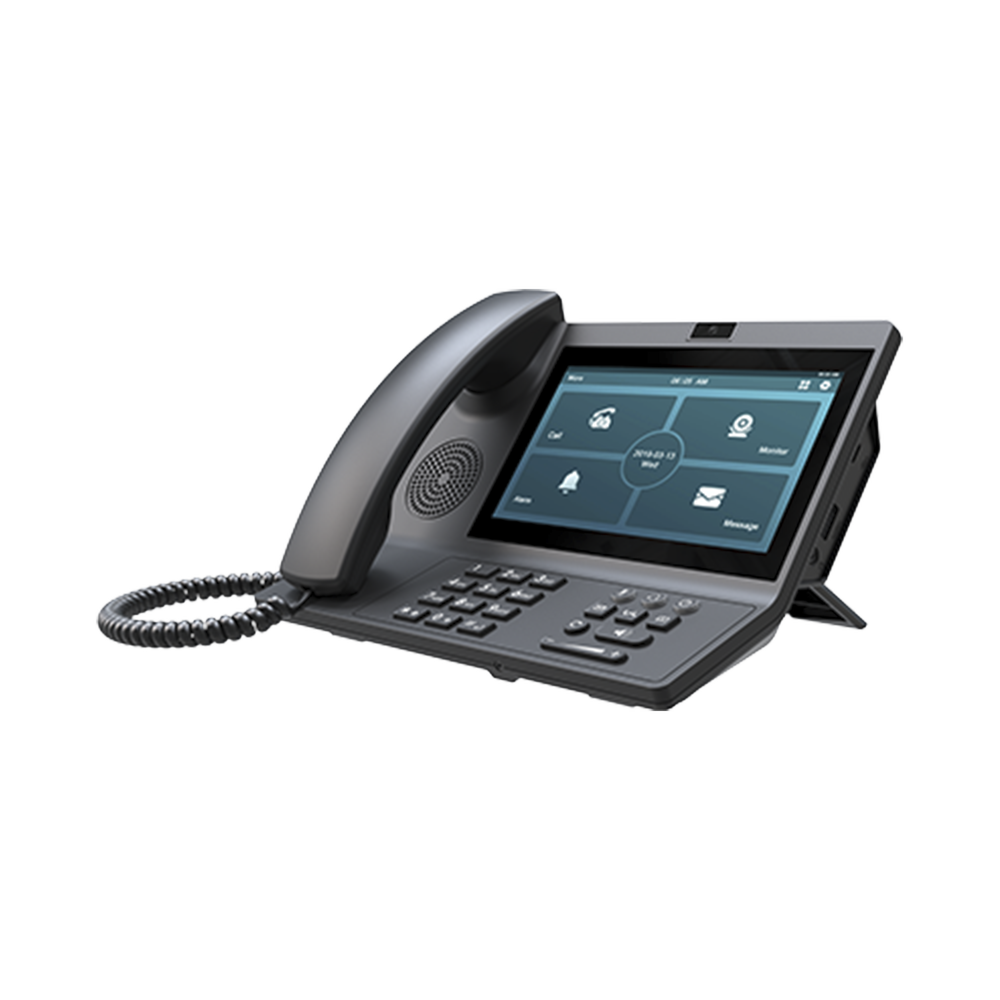

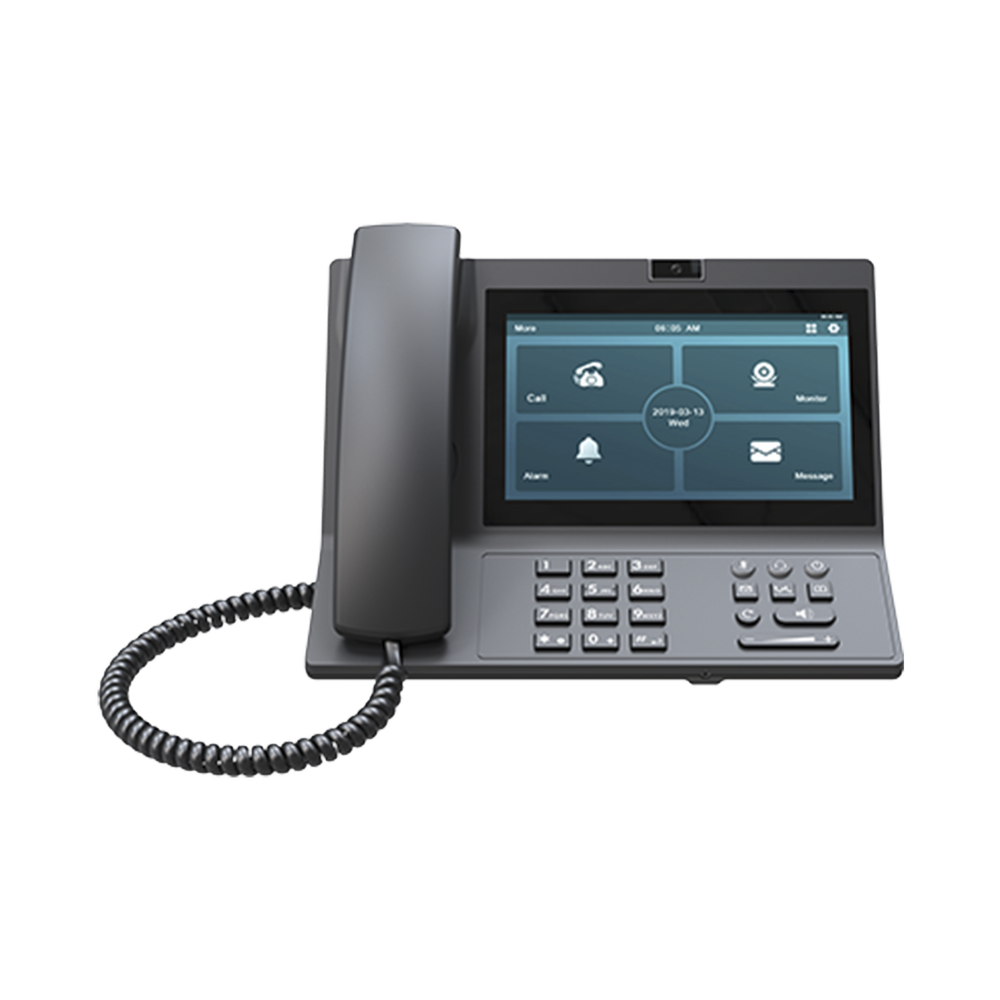

The Akuvox R49G is a SIP-based Android video phone with a 7-inch touchscreen. Featuring two sets of user interfaces designed for business and residential applications, it can function as a productivity-enhancing business phone or a feature-rich intercom protection unit.

  • 7 inch TFT LCD capacitive touch screen, 1024*600 pixels;
  • 2M pixel CMOS camera with privacy shutter;
  • Dual 10/100/1000Mbps switched Ethernet ports, supporting IEEE802.11af and IEEE802.3az Energy Efficient Ethernet;
  • Built-in Bluetooth, USBand Wi-Fi function;
  • Android 9.0 operating system and Android API support for installing third-party Android applications.
  • Voice and video codec: PCMA,PCMU, G. 722, G. 723, G. 729, H. 263, H. 264; ï¬ Protocol: SIP RFC3261, TCP/UDP/IP, PPPoE, RTP/RTCP, HTTP/HTTPS, etc;
  • AutoP: FTP/TFTP/HTTP/HTTPS

Video Features
  • Video codec: H. 263, H. 264, H. 265, VP8
  • Video solution: QCIF, CIF, VGA, 4CIF, 720P
  • Video bit rate: 64kbps-2Mbps
  • Adaptive Bandwidth Adjustment
  • Video Character: PIP, Full Screen, Local Video ON/OFF
  • Control, Color Enhancement
  • Image codec: JPEG, GIF, PNG, BMP
  • Hardware Encoding/Decoding Acceleration
  • Variable Bit Rate

Network and Security

  • SIP V1(RFC2543), SIP V2(RFC3261)
  • Network Type: IPv4 & IPv6
  • UDP is still alive
  • NAT traversal: STUN
  • IP Assignment: DHCP, Static IP, PPPoE, VPN, VLAN
  • QoS: Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ)
  • Protocols: HTTP / HTTPS / FTP / TFTP / SNMP / DNS / SNTP / RTSP / SRTP / RTP / TCP / UDP / TLS / ICMP / DHCP / ARP / DNS-SRV / PNP / ZRTP
  • Digest Authentication Using MD5/MD5-sess
  • AES encryption for the configuration file
  • Administration Access

Wireless

  • Wideband Audio Codec: G.722
  • Frequency: 2.400 GHz ~ 2.497 GHz
  • Channels: No
  • Bandwidth: 20MHz
  • EIRP: 802.11 b / 11Mbps: 18 dBm 802.11g /54Mbps: 17 dBm 802.11n /65Mbps: 16 dBm
  • Modulation mode: 802.11 b: DQPSK, DBPSK, CCK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK

Audio Features

  • Wideband Audio Codec: G.722
  • Narrowband audio codec: PCMA, PCMU, OPUS, iLBC, G. 729
  • Noise suppression, VAD, CNG, AGC,
  • Audio Accelerator
  • Echo cancellation: AEC, AES, NLP
  • Full duplex speakerphone
  • 4 DTMF Modes: RFC2833, In-band, SIP INFO, Auto
Bluetooth
  • EIRP: 11dBm ï ¬

Antenna

  • Type: Monopole antenna

Phone Features

  • Android 9.0 Operating System
  • Supports 2 SIP accounts
  • Call Waiting
  • Call Forwarding
  • Call Hold
  • Mute
  • Automatic Redial, Call Return
  • Speed ​​Dial
  • Direct IP call
  • Dialing Plan
  • Direct line
  • Multicast Paging
  • Action URL/URI
  • Local Recording of Audio/Video Calls
  • Congress
  • DND (Do Not Disturb)
  • Adjustable Volume
  • Selectable Ringtones
  • Multi-Language Support
  • Daylight Savings Time
  • Default Apps: Browser, Calculator, Calendar, Camera, Clock, Contacts, Dial, Downloads, Explorer, Gallery, Message, Music, Phone Settings, Reset Settings, Search, Settings, Sound Recorder, Surveillance, Video.
  • Third-Party Android Apps

Directory

  • Local Agenda up to 3000 Groups
  • Agenda with Contact Photo
  • Call Logs: 600 Entries (200 Missed Calls; 200 Dialed Calls; 200 Received Calls.)
  • Smart Search Method
  • Favorite
  • Blacklist
  • LDAP
Management ï ¬
  • Local Firmware Update: USB Flash Drive
  • Remote Firmware Update: HTTP/HTTPS Method on the Web
  • Auto Provisioning Using FTP/TFTP/HTTP/HTTPS, PNP/DHCP Option/Manual/Automatic Methods
  • Exporting System Logs
  • Restore to factory default
  • Configuration Management Via LCD

Physical Characteristics

  • 7-inch capacitive touch screen, 1024 * 600 resolution, 16:9 widescreen aspect ratio
  • 3 LED Lights (1 Power Light, 1 Network Light and 1 Message Light)
  • 8GB Flash Memory
  • 2GB of DDR3 memory
  • Foot of Foot
  • 2 Megapixel CMOS Camera
  • RJ9 Headset
  • 3.5mm headphone jack
  • 2 RJ45 10/100/1000M Ethernet Connectors
  • Energy-Efficient Ethernet: IEEE802.3az
  • Power over Ethernet: IEEE802.3af
  • Bluetooth
  • Wireless access: 802.11 b/g/n
  • 1 Type C
  • 1 HDMI Video Output Port
  • Power Adapter: AC 100~240V input, DC 12V/1A output
  • Dimensions: 250x210x98 (mm)
  • Operating temperature: 32º ~ 104ºF (0~ 40ºC)
  • Storage temperature: - 4º~ 158ºF (-20 ~ 70ºC)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 90% Non-condensing
  • Power consumption (approx.): 12W
  • Weight (approx.): 1.72 kg
  • Gift box size: 498x254x148 (mm)

    Low stock: 1 left

    MODELO: VPR49G
