Access Control Terminal / 1 Door / Web Management / 20,000 Users / Compact

Access Control Terminal / 1 Door / Web Management / 20,000 Users / Compact

$566.927 COP
$620.076 COP $566.927 COP
Sale Sold out
Shipping calculated at checkout.

Access Control Terminal / 1 Door / Web Management / 20,000 Users / Compact

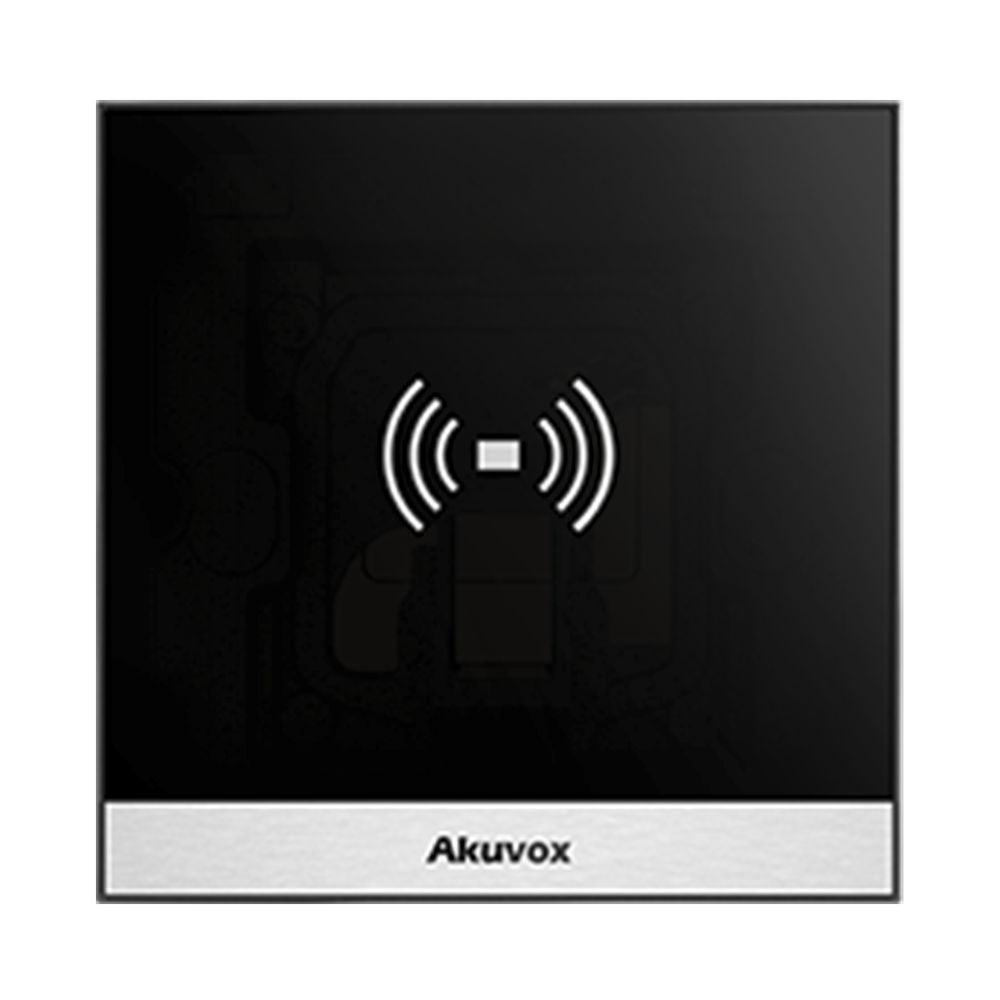

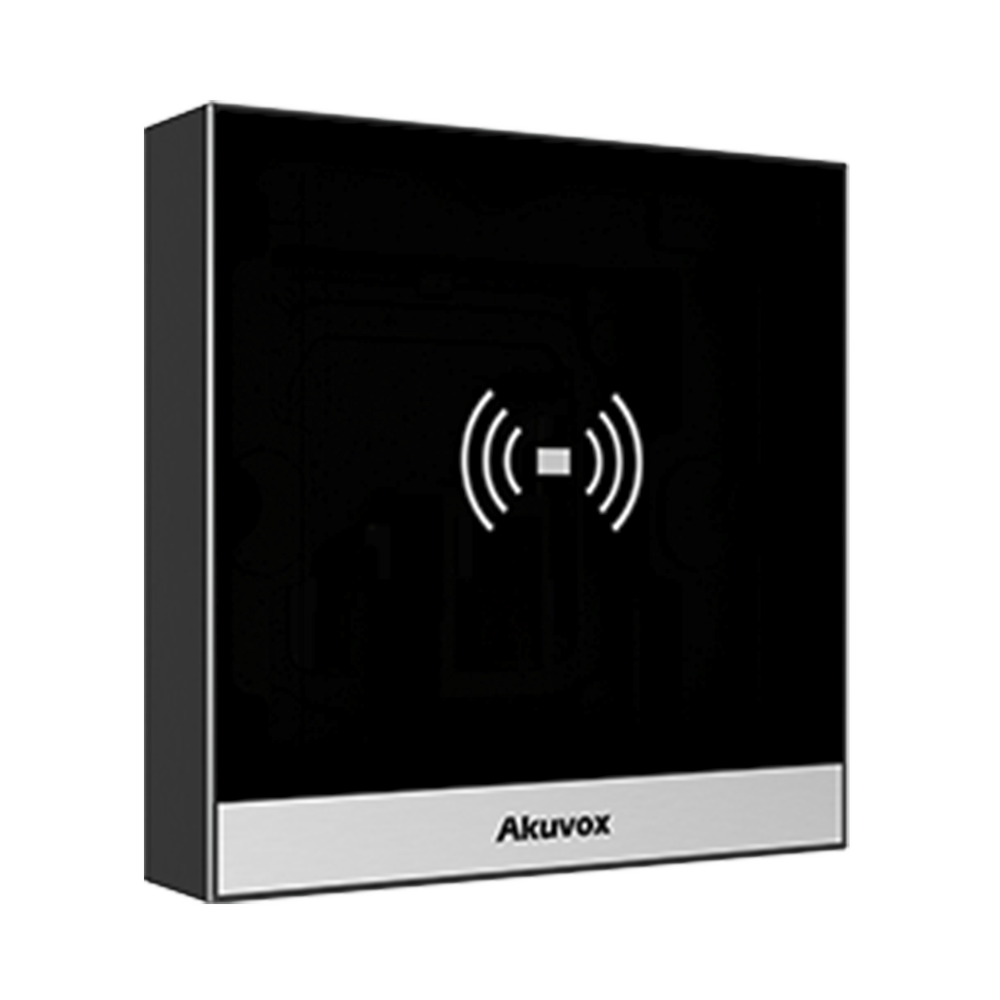

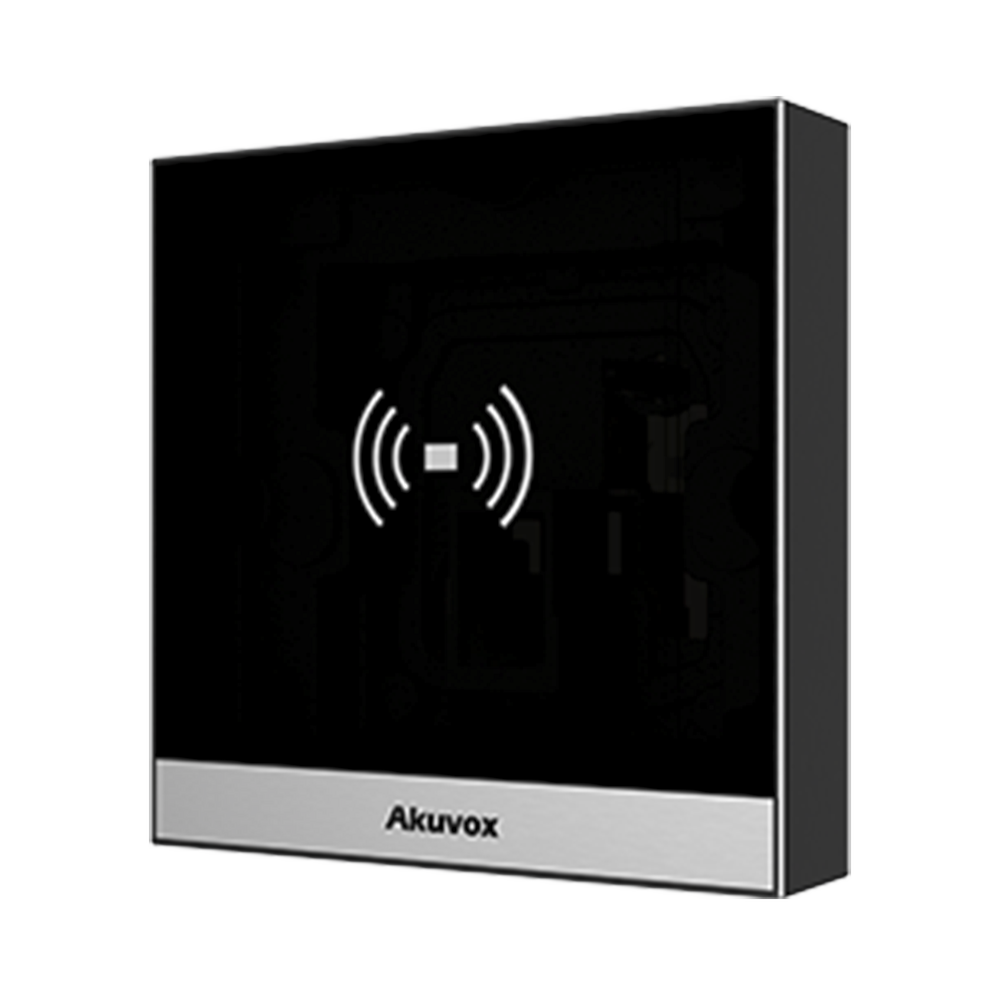

Smart, Compact and Elegant Access Control Terminal.

The A01 is an IP-based access control terminal that combines a door controller and card reader into a single device. It supports RFID cards and mobile access via NFC, offering users flexible credential options.

  • Elegant appearance design.
  • 20,000 card capacity and 100,000 event log.
  • Multi-frequency RFID card reader.
  • NFC support.
  • Compatible with the Akuvox Cloud.
  • Two-factor authentication.
  • Configuration via web browser.
  • Access management authority through ACMS (Access Control Management System).

Main features:
  • Front panel: Tempered glass
  • Frame: Aluminum alloy
  • RFID card reader: 13.56 MHz and 125KHz
  • Relay output: 1
  • Tickets: 2
  • Wiegand: Support
  • Speaker: 8 / / 0.5 W
  • Tamper-proof alarm: Support
  • Ethernet port: RJ45, 10/100Mbps adaptive
  • 12V DC connector (if not using PoE)
  • Output power: 12V 600mA
  • IP level: IP65
  • Installation: flush or wall mounted
  • Dimension: 86 x 86 x 33 (mm)
  • Working humidity: 10~90%, non-condensing
  • Working Temperature: -20°C ~ +55°C
  • Storage temperature: -30°C ~ +70°C
Ability
  • User capacity: 20,000
  • Card capacity: 20,000
  • Event log: 100,000

Implementation and Maintenance

  • Self-Provisioning
  • Web management portal
  • Web-based packet dumping
  • Backup/Restore Settings
  • Firmware update
  • System logs
Network connection
  • Protocol Support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Door Entry Feature

  • Export/Import Access Programming
  • Access level management
  • Support for switching reader modes
  • Query and export door access records
  • Flexible shift scheduling and attendance management.

    Out of stock

    MODELO: A01
