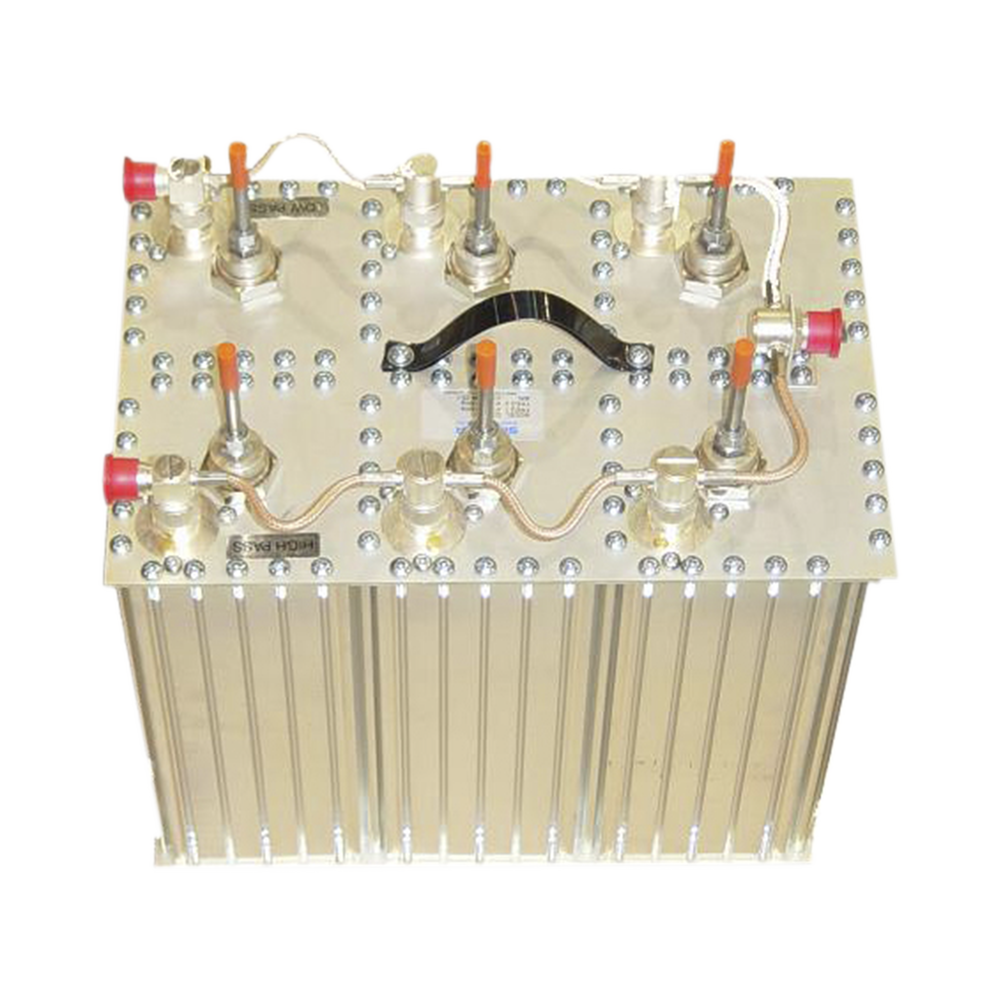

Bandpass-Band Reject Duplexer, 420-450 MHz, 6 x 4" Cav. per side, 1 MHz Bandwidth to 5 MHz, 350 Watt, N Females.

Bandpass-Band Reject Duplexer, 420-450 MHz, 6 x 4" Cav. per side, 1 MHz Bandwidth to 5 MHz, 350 Watt, N Females.

Bandpass/Band Reject Duplexer, 420-450 MHz, 1 MHz Bandwidth at 5 MHz Spacing, 350 Watt.

• 1/4 wave Band Pass Filters.
• Reduces interference, intermodulation and desensitization.
• Eliminates spurious radiation.
• Silver-plated copper/bronze inner conductors to eliminate corrosion and improve performance.
• Recommended in areas of high interference.
• 1 year warranty.

Specs:

• Frequency range: 420-450 MHz.
• Bandwidths: 1 MHz.
• Frequency separation: 5 MHz.
• Maximum insertion loss: 1.2 dB.
• Minimum insulation: 85 dB.
• Impedance: 50 Ω.
• Maximum power: 350 W.
• Cavities: 6 (4' per side).
• Connectors: N Female.
• Dimensions: 211 x 483 x 289 mm.
• Weight: 10.44 kg.
• Operating temperature: -40 to +60 ºC.
