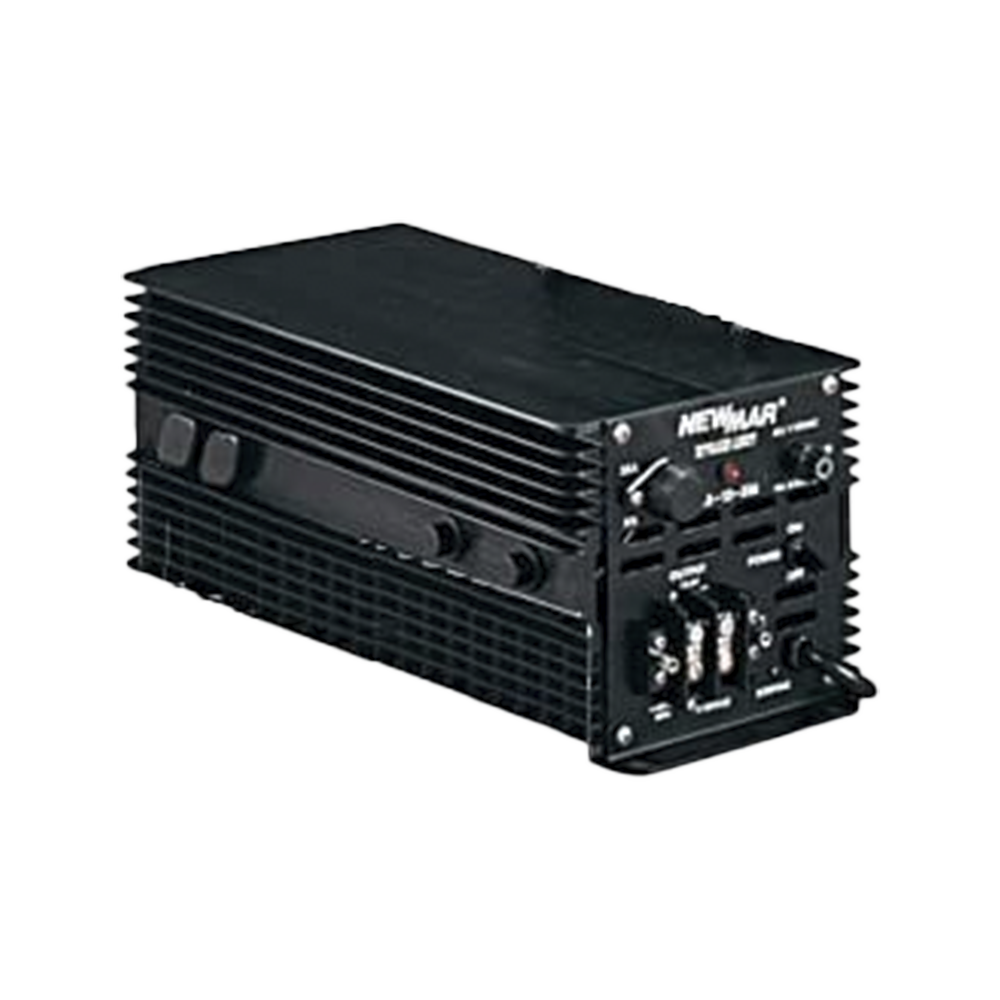

Heavy Duty Power Supply Ideal for Boats with 24hr Duty Cycle, 24Vdc/35A max

HEAVY DUTY POWER SUPPLIES

These heavy-duty DC power supplies are ideal for supplying 12 and 24 volts to equipment onboard commercial vessels where reliability is essential.

The proven linear circuit design provides pure noise-free output and long life.

Characteristics

• Excellent regulation and ripple specifications: Output voltage maintained within 1% under all nominal line and load conditions. Provides a robust power source for electronics.

• PC board with polyurethane conformal coating and

Corrosion-resistant aluminum case with integral shock absorbers ensures survival in harsh environments.

• Heat generated by the semiconductors is extracted and dissipated by large heat sink fins for cool operation.

• Protection: Overvoltage, current limit (set to 105% of rated value intermittently), thermal overload, and input/output fuses.

• Thermally activated cooling fan on “CD” drives

Specs

• Input Voltage: 105-125 / 210-250 (Selectable)
• Frequency: 50-60 Hz
• Output Voltage: 24.5Vdc (Internally adjustable 21-27.5 Vdc)
• Output Current: 35A continuous
• Duty Cycle: Intermittent: 20 min max / Continuous: 24hrs/day 100%
• Dimensions: 330 x 165 x 476 mm

Note:

Product on request, ask for delivery time

Powder-coated aluminum heat sink housing, Front terminal panel, Special coating of internal components for protection against moisture, water, corrosion, etc.
