9/125 Single-Mode Fiber Optic Cable, 6 Strands, Indoor/Outdoor, Tight Buffer 900µm, OFNR Riser, Dielectric, Price Per Meter

9/125 Single-Mode Fiber Optic Cable, 6 Strands, Indoor/Outdoor, Tight Buffer 900µm, OFNR Riser, Dielectric, Price Per Meter

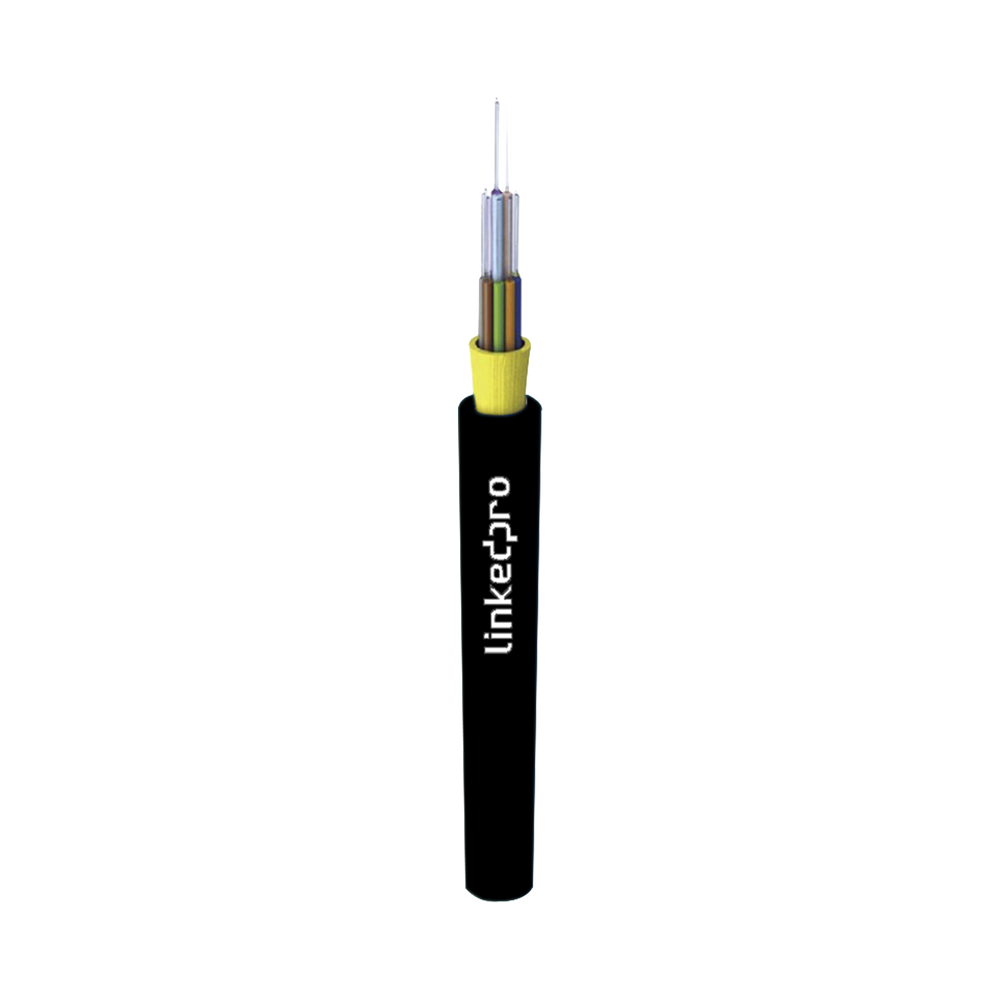

The LP-IOC-SMF-R-06 fiber optic cable is designed for indoor or outdoor horizontal or vertical installations, featuring a Riser Flame Retardant (OFNR) jacket. The fiber strands comply with the G.652D classification for high-speed operation across a wide wavelength range.

Technical Specifications:

• G.652D 9/125 Single-mode Optical Fiber
• Tight Buffer (900 µm)
• Lining: OFNR Riser/LSZH with UV protection
• Maximum tension: 400 N
• Operating temperature: -10ºC ～ +60ºC
• Storage temperature: -20ºC ～ +60ºC
• Nominal diameter (D): 5.5 ± 0.5 mm
• Minimum bending radius: Installation 20D, Operation 10D
• Crush resistance: 500N/10cm
• 6 threads
• Installation: Indoor/Outdoor (No overhead installation or direct burial)

*Price per meter
