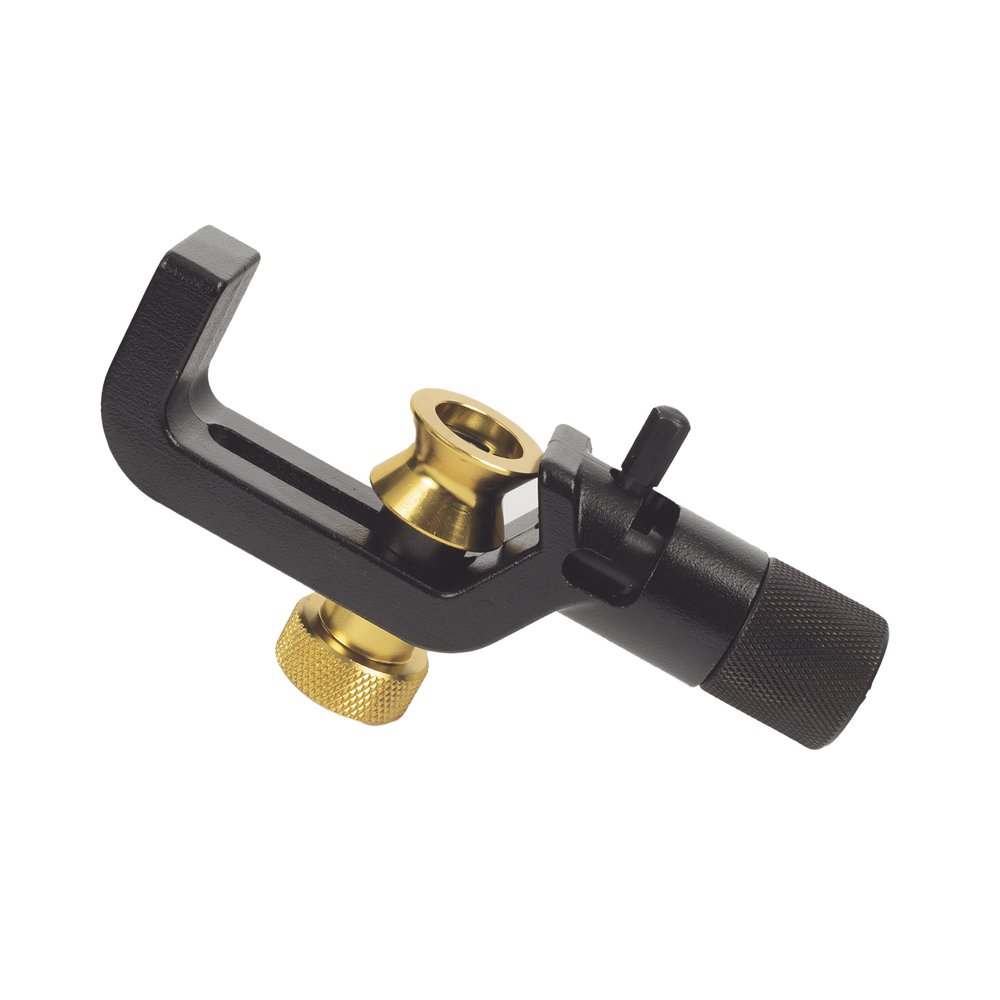

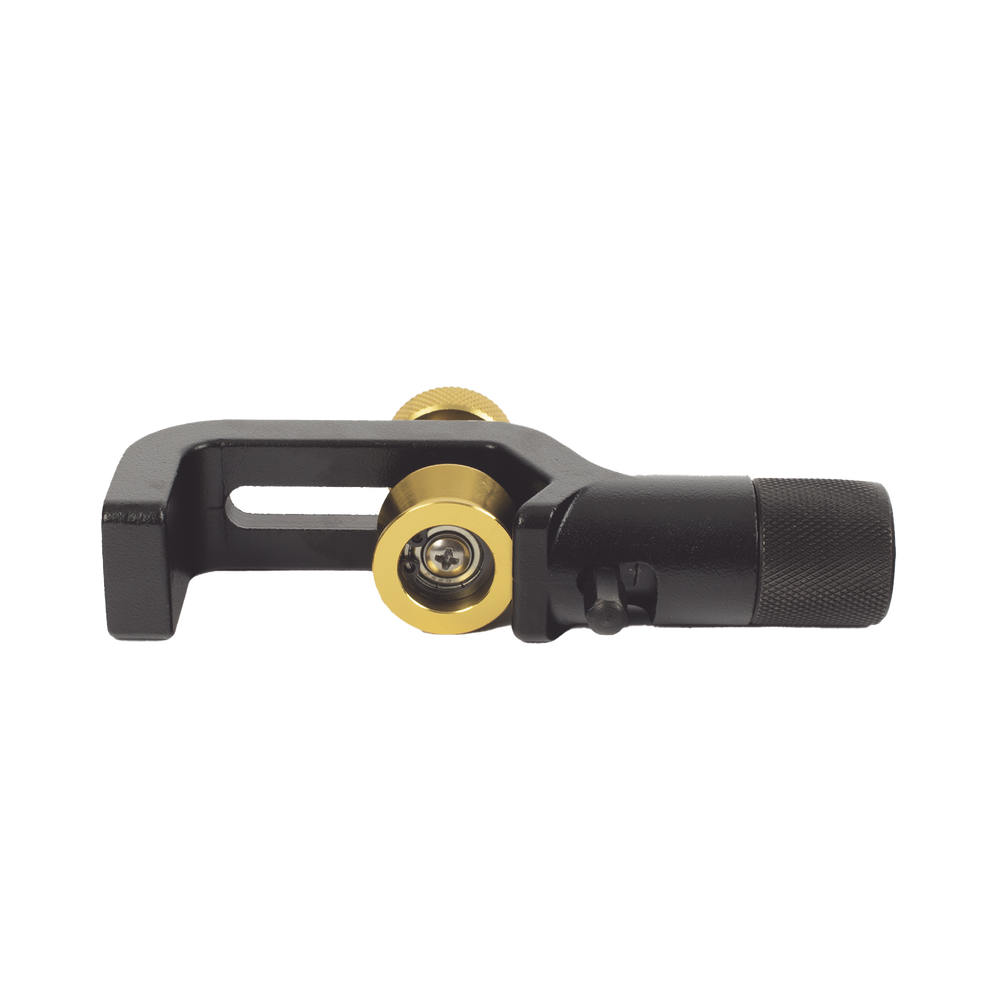

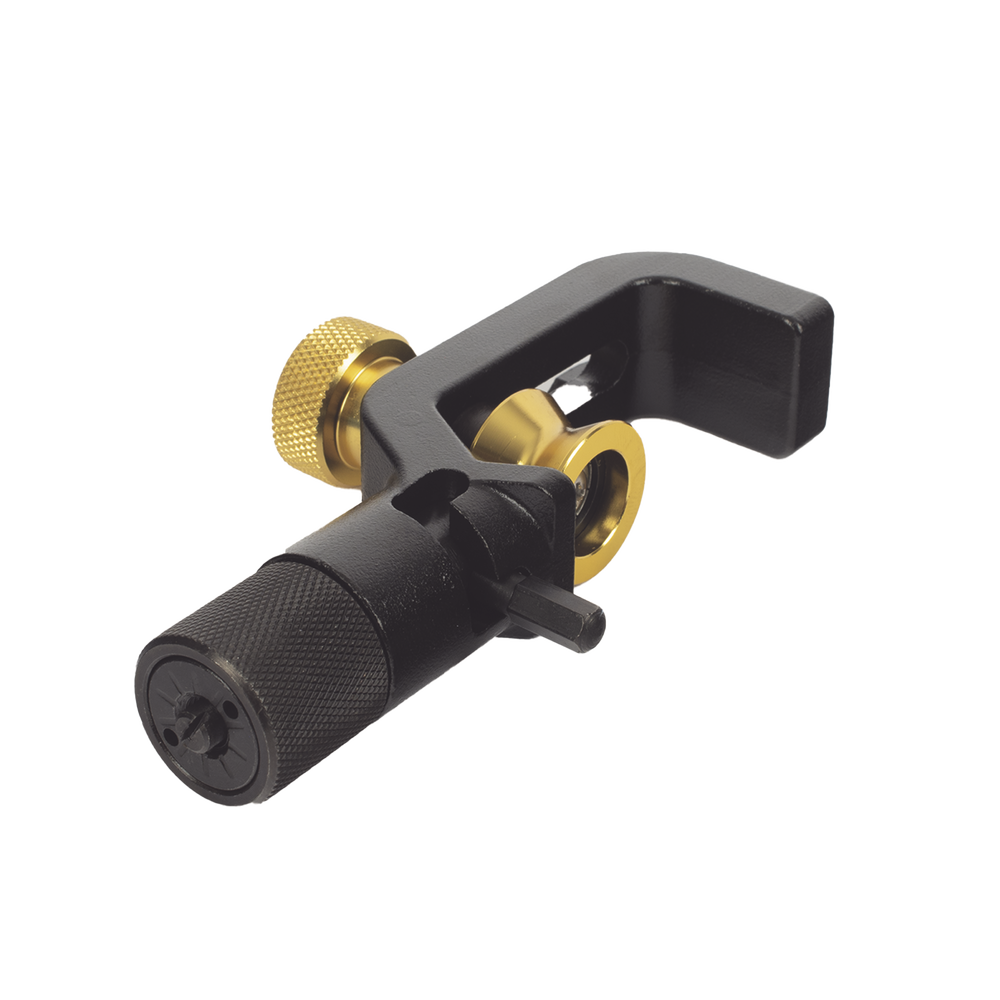

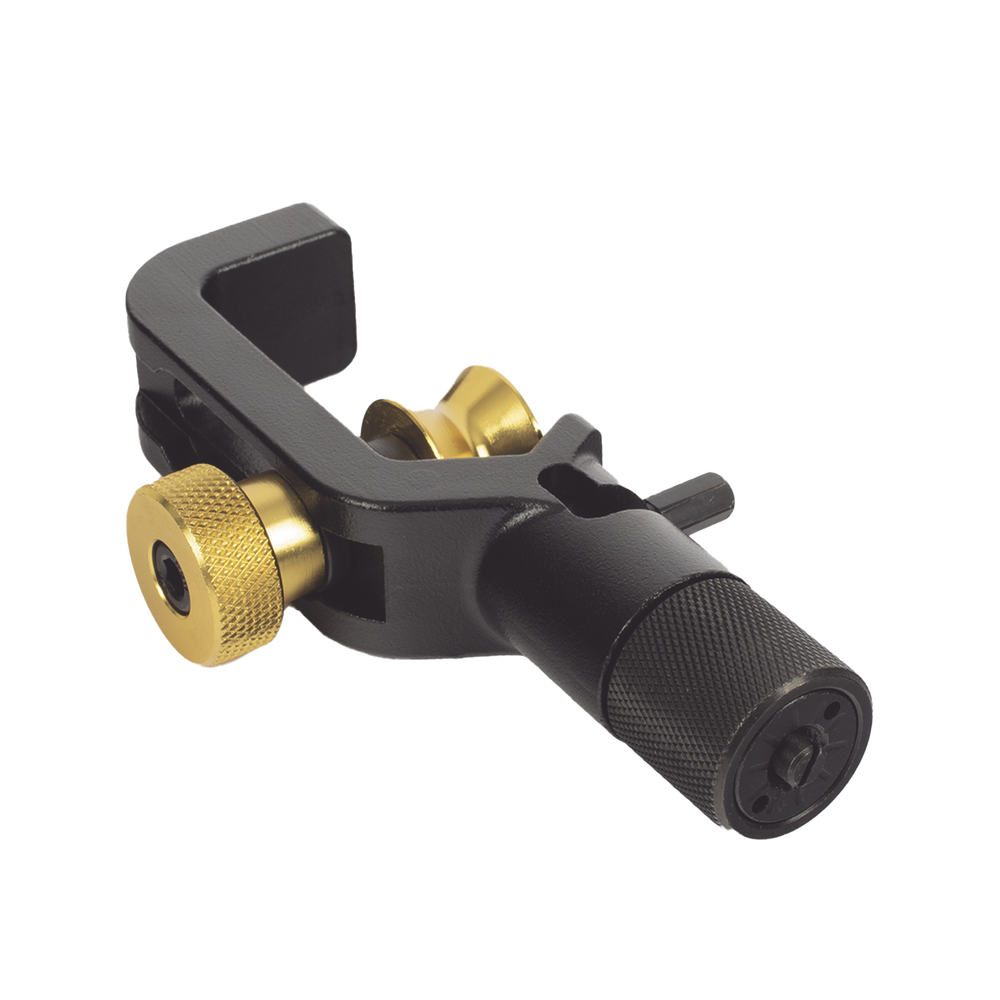

Adjustable Transverse and Longitudinal Stripper for Optical Fiber External Plant

Adjustable Transverse and Longitudinal Stripper for Optical Fiber External Plant

The tool is designed to work on multi-fiber jacketed or armored cables. Its primary purpose is to gain mid-span access to fiber optic conductors by cutting the outer jacket or the jacket and armor of existing cables. The tools are designed with a precision-adjustable blade to prevent damage to the fibers.

Characteristics:

- Applies to stripping loose tube or armored sheath fiber cables.

- Adjustable precision blade for different cutting depths and cutting directions.

- Sharp jaw blade polished from hardened and tempered carbon steel.

- Precise tolerances to ensure clean, smooth strips.

- Roller design to maintain stable cutting operation.

- Longitudinal ring cutting and cross cutting.

Minimum cable outer diameter: 4 mm (0.157”)

Maximum cable outer diameter: 10 mm (0.393”)

Adjustable blade depth: Up to 5.5 mm (0.22”)

Cable material: Armored corrugated copper, armored steel and armored aluminum.

Longitudinal ring cut and cross cut., Minimum cable outer diameter: 4 mm (0.157†), Maximum cable outer diameter: 10 mm (0.393†), Adjustable blade depth: Up to 5.5 mm (0.22†)
