• 8 zones wired directly into the panel.
• Expandable up to 64 zones (56 wireless or wired by adding expanders).
• 2 built-in outlets and 62 expandable wired/wireless outlets.
• Compatible with the new wired PIR + CAM sensor DS-PDPC12P-EG2 (maximum 8)
• Supports adding 4 IP cameras to the panel for 7-second recording when a sensor is triggered (5-second pre-alarm + 2-second post-alarm, or 2-second pre-alarm + 5-second post-alarm) for alarm verification receiving by email or mobile client ( Hik-connect )
• Supports wireless zone expanders ( DS-PM1-RT-HWB ).
• Supports 8 wired zone expanders ( DS-PM1-I8O2-H ).
• Supports 1 siren wired directly to the panel
• Supports up to 64 DS-PKF1-WB remote controls for arming and disarming (requires at least one DS-PM1-RT-HWB receiver module or one DS-PK1-LRT-HWB keypad).
• Supports up to 64 Mifare tags to arm and disarm (requires at least one DS-PK1-LRT-HWB keypad).
• Notifications via Hik-Connect app, SMS (add DS-PM2-S(AU) module) and local.
• Up to 32 partitions.
• Supports up to 8 DS-PK1-LRT-HWB keyboards
• Backup battery not included, quoted separately (suggested model: PL-4.5-12)

• Ethernet Connection: 1.
• 2.4 GHz WIFI connection
• Power supply 110 to 240 VAC (Cable included).
• Power consumption: 30 W.
• Supports Speed-X connection (High-speed RS-485 bus)
• Supports 3G/4G module (not included, recommended model DS-PM2-S(AU) )
• Operating temperature: - 10°C to 40°C.
• Dimensions: 261 x 199 x 86.4 mm.
• Weight: 997 grams.
• Warranty: 2 years.

Highlighted Features:

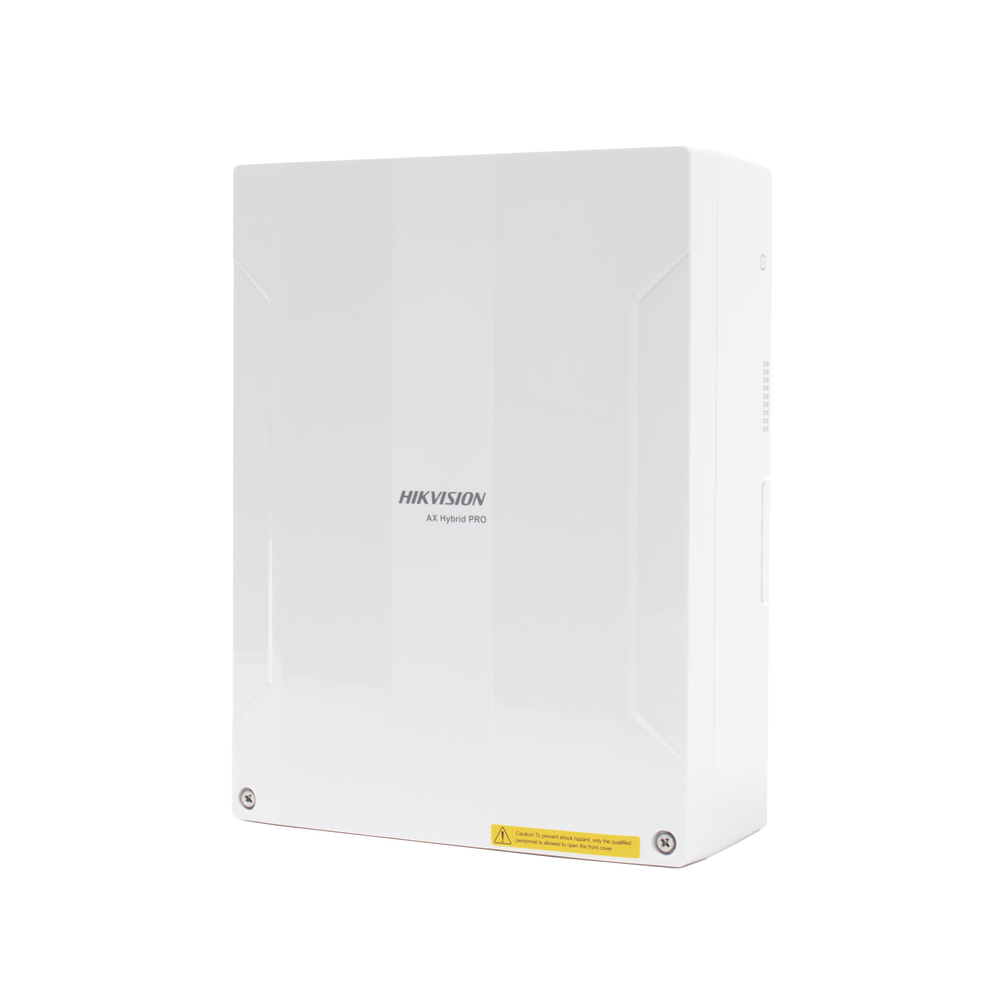

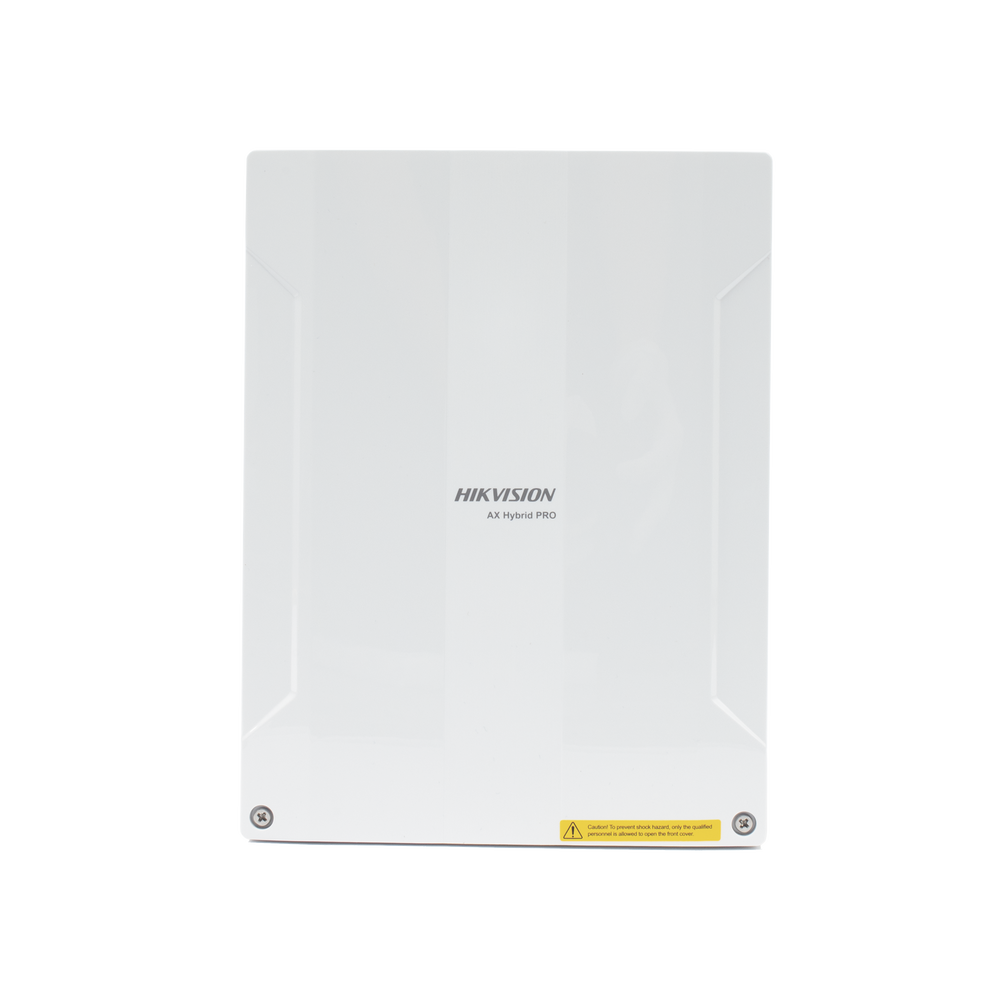

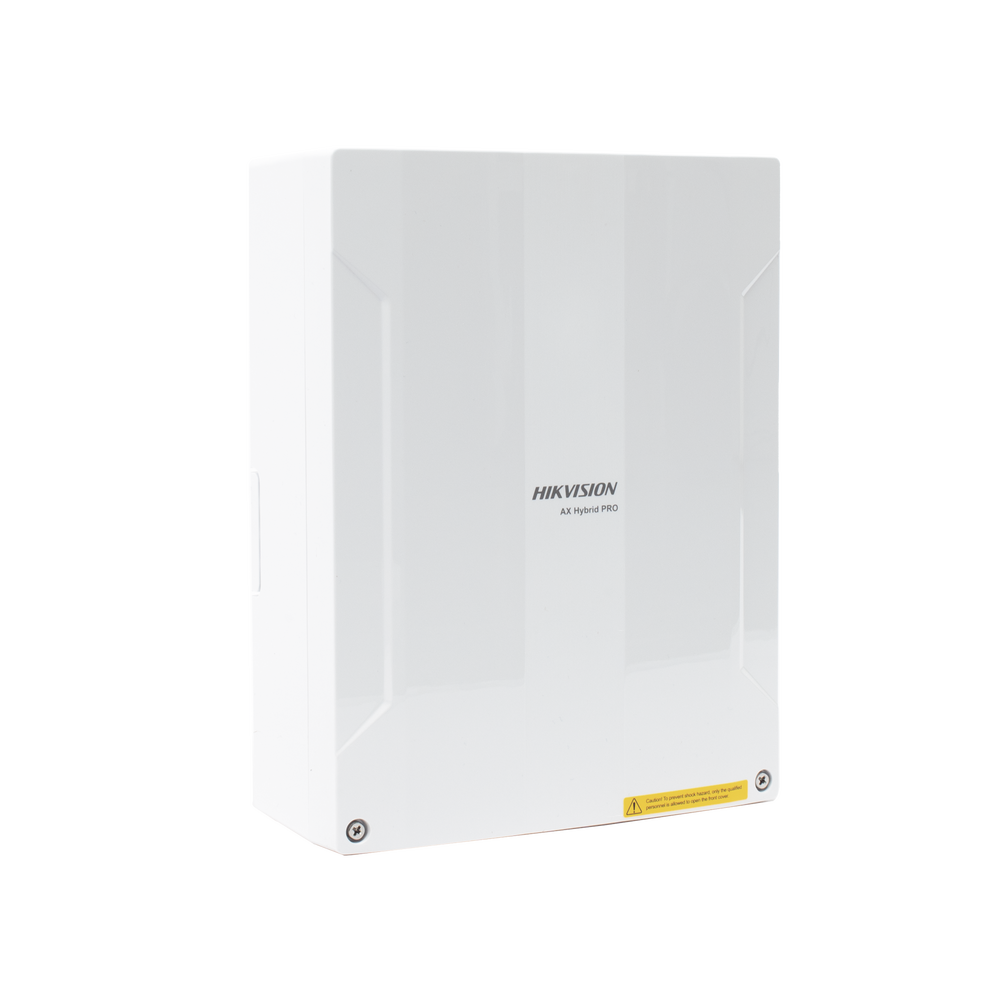

The AX Hybrid Pro control panel is a wired intrusion control panel with wireless detectors. It is the first control panel to support high-speed RS-485, a breakthrough technology used to transmit verification video/images from PIR-CAMs.

In addition, this hybrid control panel supports one custom voice library and is designed for users to upload custom voice files, which will be played via alarm phone call when the alarm is triggered. In terms of basic functions, it supports TCP/IP and GPRS/3G/4G communication methods. It is also compatible with Hik-ProConnect, Hik-Connect, Hik IP Receiver, Hik IP Receiver Pro, and Hik-Central, which is applicable to the scenarios of market, hotel, supermarket, warehouse, office, home (especially with pre-installed cables), etc.
