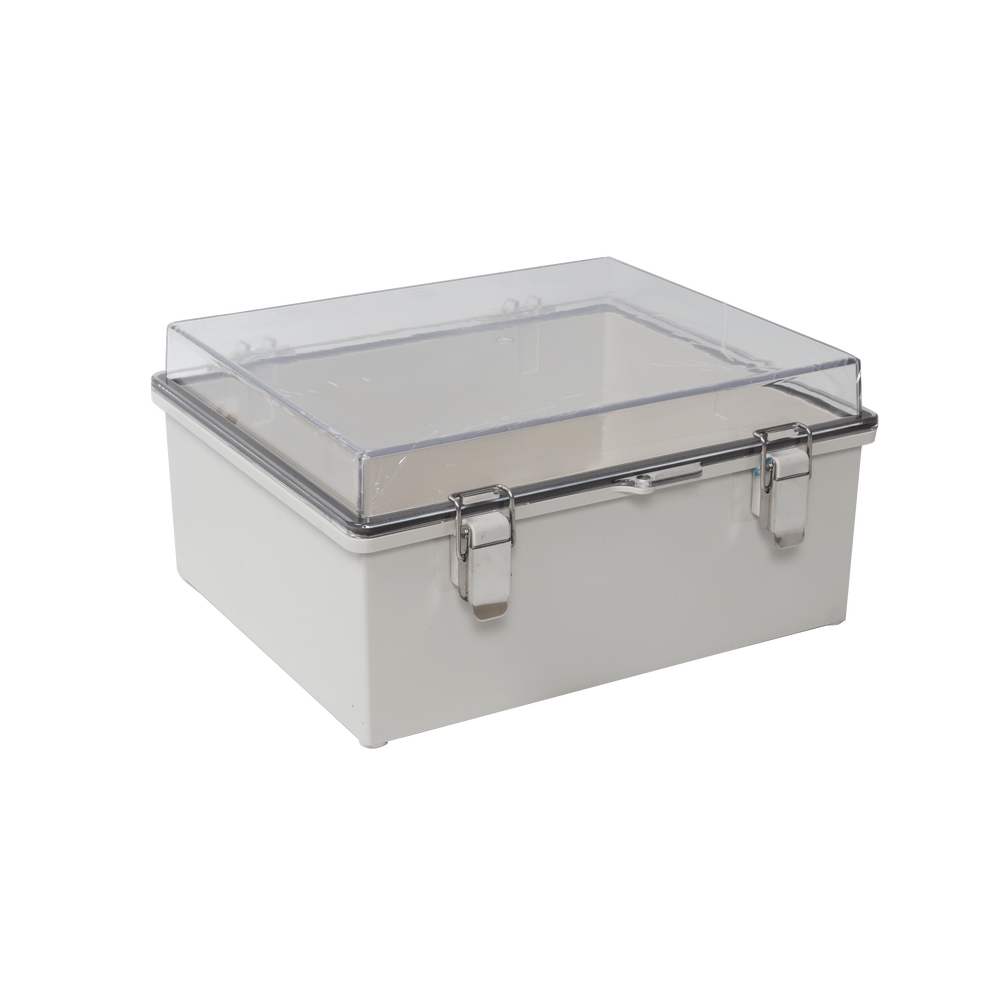

• Gabinete Plástico ABS, Puerta Transparente, Uso en Intemperie (350 x 460 x 160 mm) Cierre por Broches Inoxidables.
1 5

PRECISION

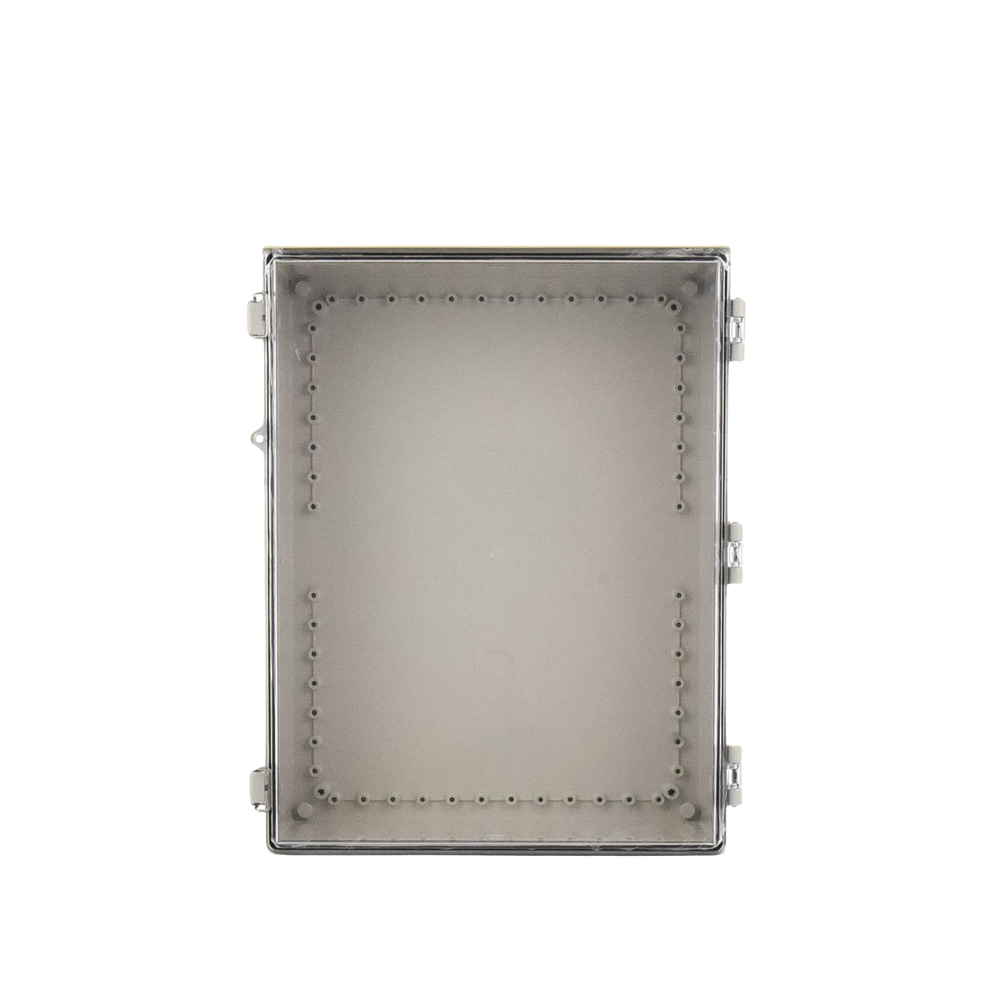

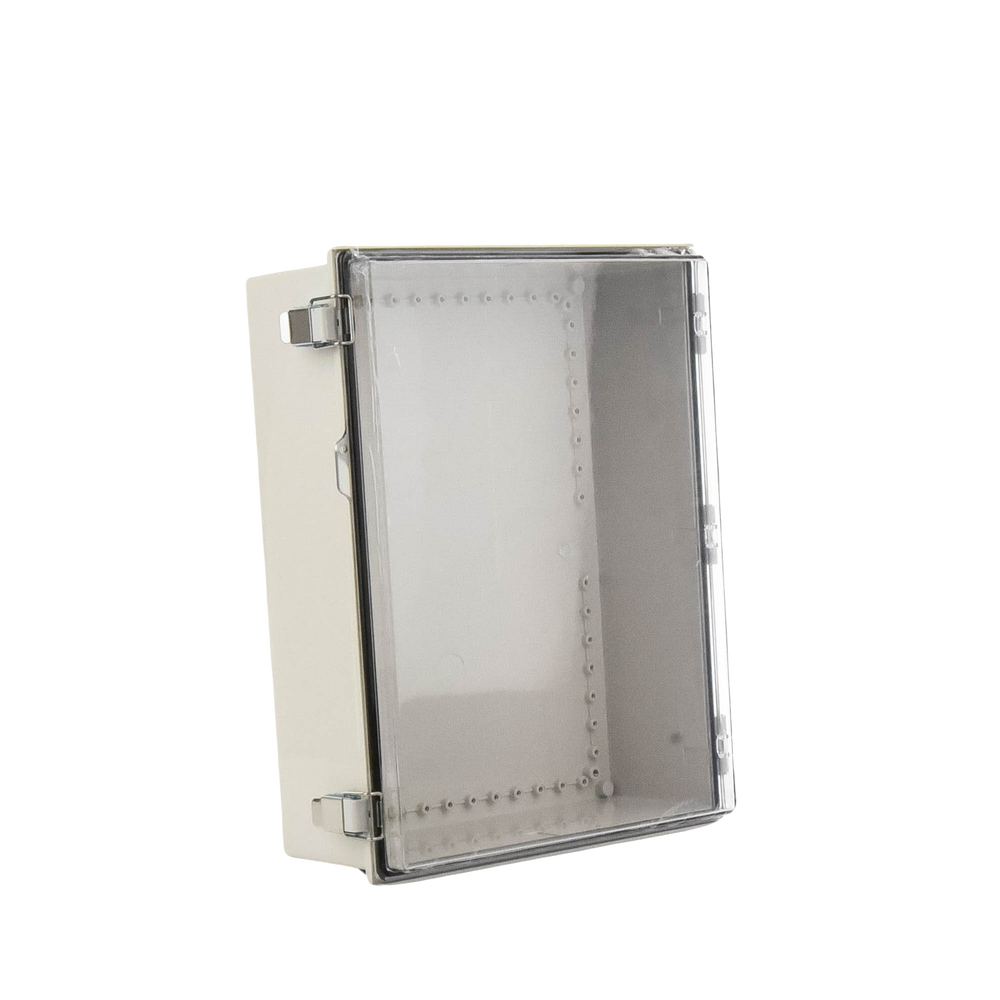

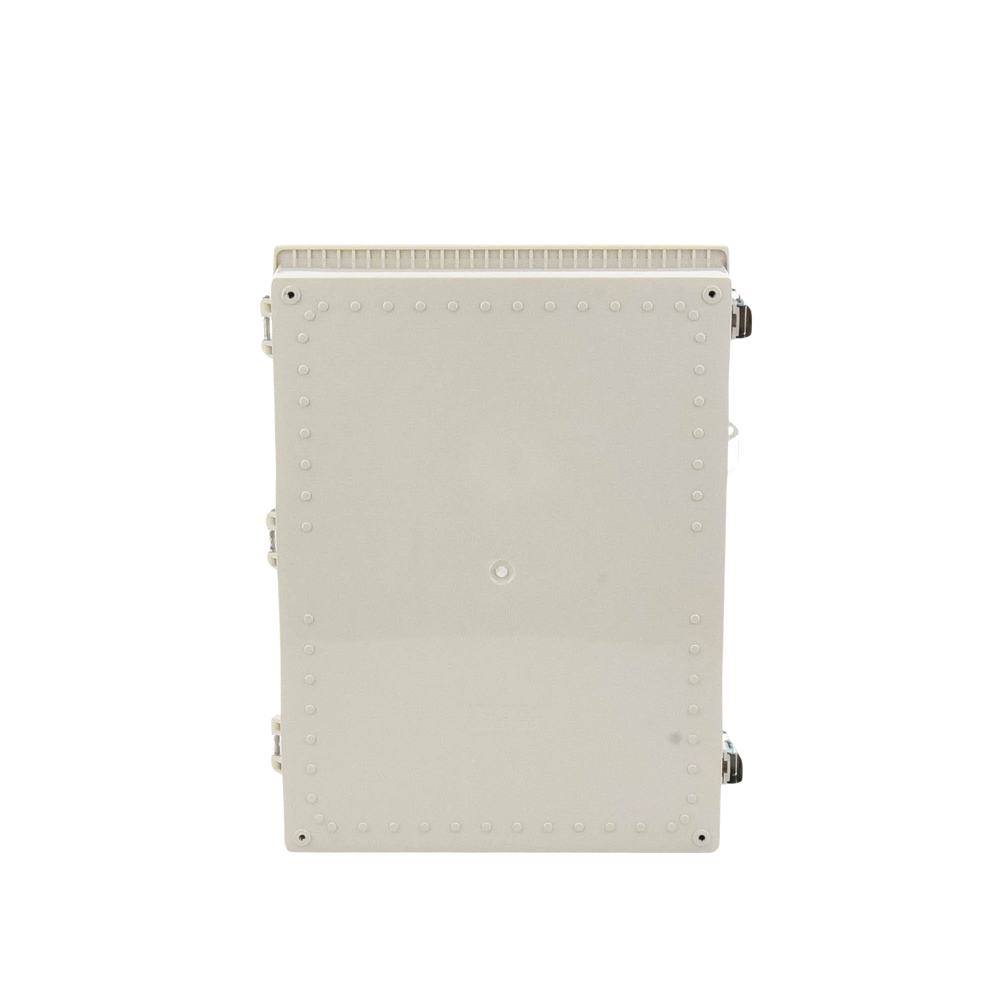

ABS Plastic Cabinet, Transparent Door, Outdoor Use (350 x 460 x 160 mm) Closing by Stainless Steel Snaps.

ABS Plastic Cabinet, Transparent Door, Outdoor Use (350 x 460 x 160 mm) Closing by Stainless Steel Snaps.

$119.022 COP
$172.240 COP $119.022 COP
Sale Sold out
Shipping calculated at checkout.

ABS Plastic Cabinet, Transparent Door, Outdoor Use (350 x 460 x 160 mm) Closing by Stainless Steel Snaps.

ABS plastic enclosure for use in outdoor applications such as poles, telecommunication towers, or walls where protection against rain or excessive dust is not available.


Physical characteristics:

  • Material: ABS Plastic.
  • Door: Transparent made of Polycarbonate.
  • Compatible internal board: PST-3546-16EPL (not included)
  • External dimensions: 350 x 460 x 160 mm (width x height x depth).
  • Closure with stainless steel clasps.
  • Plastic hinges.
  • Option to install a padlock (not included).

Includes:

  • Body and door.
  • Packing.

Application:

  • Installation of POE's on a tower, pole or wall.
  • Battery storage (recommended to add breather).
  • Protection from surge protectors, fuses or electrical panels.
  • It is recommended to use gland type connectors for wiring output ( See models ).
Technical note: Fan installation is possible, however the holes must be manually drilled into the cabinet.
It is recommended to have a fresh air inlet at the bottom and a hot air outlet at the top, for this it is advisable
the implementation of 2 PST-BC-V60 model vents (Not included) and it is necessary that at least one of them has a 60 x 60 mm fan, the recommended model is the following: FAN-602512 (Not included).
Installing the above items will reduce the protection level (IP) of the cabinet but will improve heat dissipation .

    Out of stock

    MODELO: PST-3546-16ET
