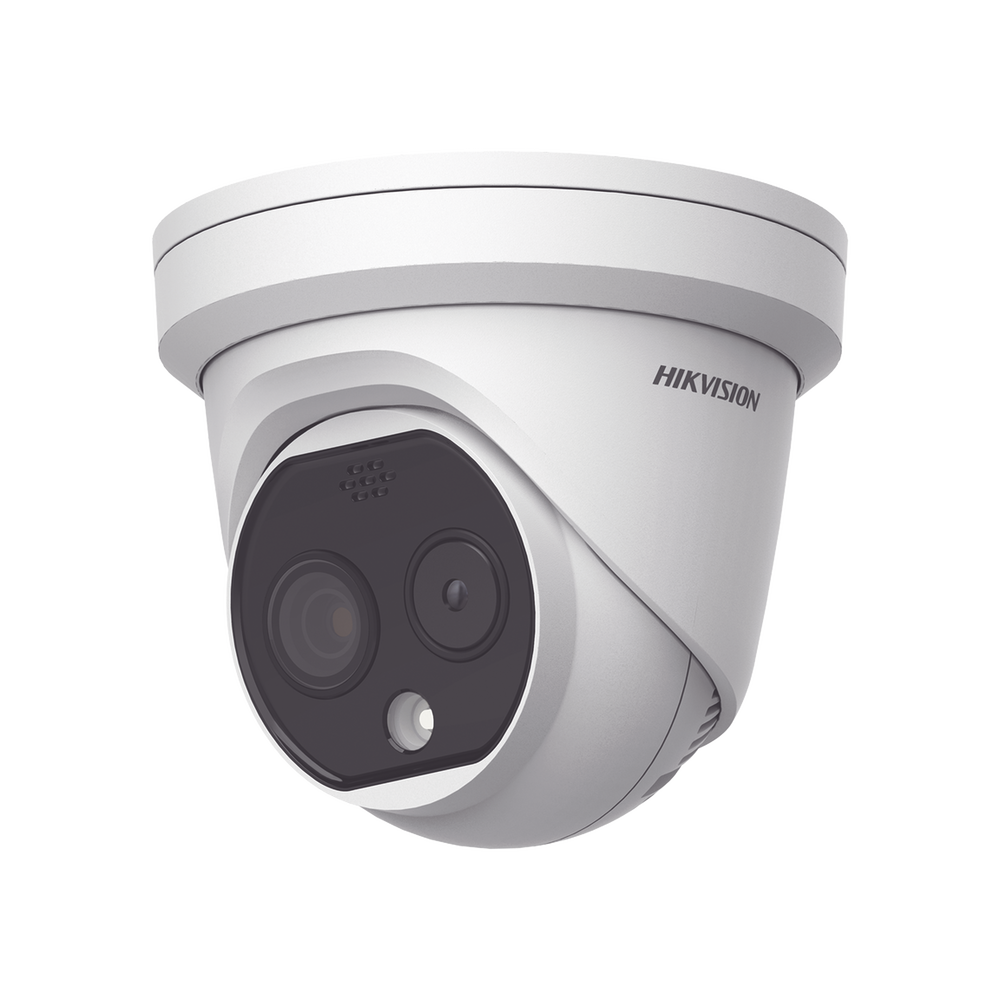

Dual IP Turret / Thermal 3.1 mm (160 x 120) / Optical 4 mm (4 Megapixel) / Thermometric / Temperature Detection / PoE / Outdoor IP66 / Integrated Siren and Flashing Light

• Fixed lens: 3.1 mm.
• Resolution: 160 x 120.
• Image sensor: vanadium oxide, uncooled focal plane detector.
• Identification of people: approximately 11 meters.
• Vehicle identification: approximately 35 meters.

Optical camera features:

• Fixed lens: 4 mm (84.0° aperture).
• Resolution: 4 Megapixel (2688 × 1520).
• Image sensor: 1/2.7 Progressive Scan CMOS.
• Minimum Illumination: Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
• 15 mts IR (night vision).
• WDR 120dB.

• Power: 12 Vdc / PoE (802.3 af) / 6.5 watts.
• Operating temperature: -40ºC to 65ºC.
• Protection: IP66.
• Dimensions: 138.3 mm × 138.3 mm × 123.1 mm
• Weight: 940 grams.
• Warranty: 3 years.

• 4 Integrated video analytos (Line crossing, Area intrusion, Entry region / Exit region).
• Temperature range: -20ºC to 150ºC (-4ºF to 302ºF).
• Range tolerance: 8ºC.
• Displays the temperature of the scene to be viewed.
• MicroSD memory slot up to 256GB
• Flashing light and pre-recorded/customizable audio alert (linked to event via built-in speaker).

Image and compression:

• Optical Image: 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Thermal Imaging: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
• Compression: H.265 / H.264 / MJPEG.
• Supports up to 20 simultaneous users.
