• Antena blindada de alto rendimiento de 3 ft, 4.9-6.4 GHz, Ganancia 34 dBi con SLANT de 45 ° y 90 °, Conectores N-hembra, montaje con alineación milimétrica.
1 3

NetPoint

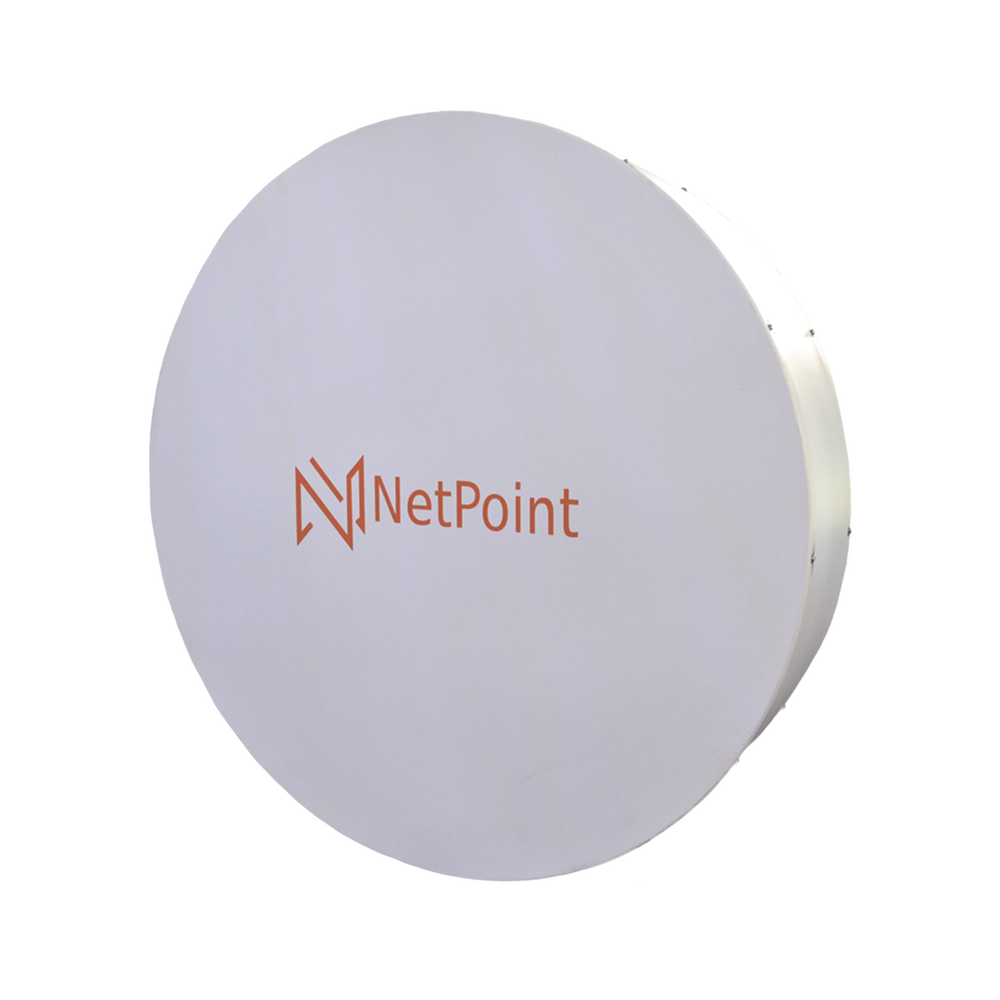

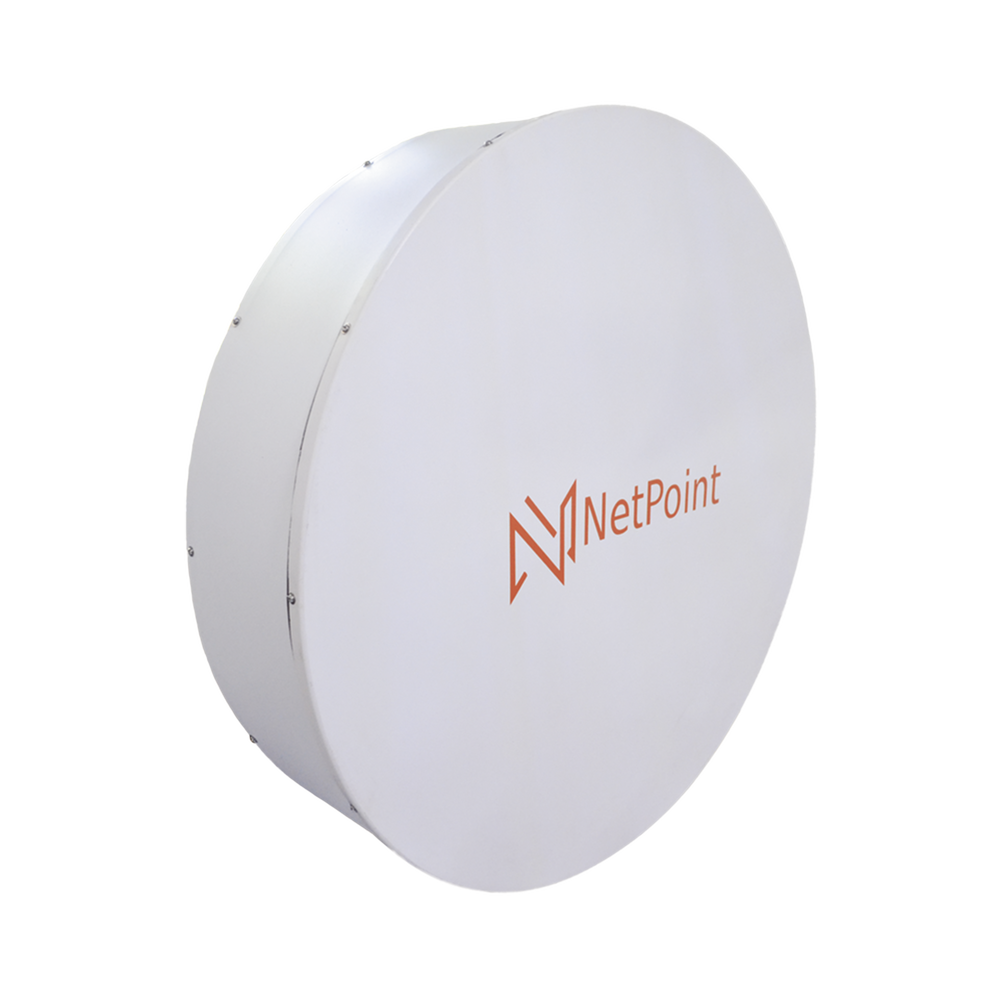

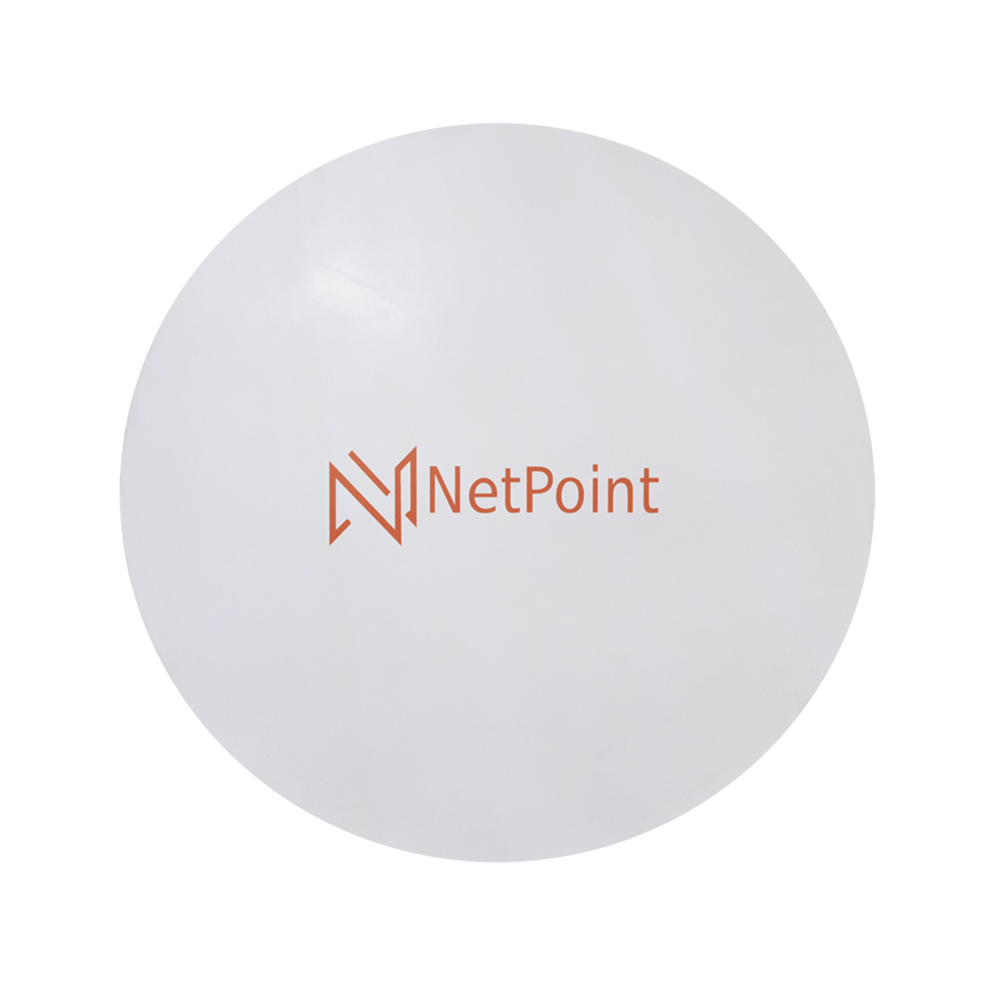

3ft High Performance Shielded Antenna, 4.9-6.4 GHz, 34 dBi Gain with 45° and 90° SLANT, N-Female Connectors, Millimeter Alignment Mount.

3ft High Performance Shielded Antenna, 4.9-6.4 GHz, 34 dBi Gain with 45° and 90° SLANT, N-Female Connectors, Millimeter Alignment Mount.

$4.929.735 COP
$5.391.897 COP $4.929.735 COP
Sale Sold out
Shipping calculated at checkout.

3ft High Performance Shielded Antenna, 4.9-6.4 GHz, 34 dBi Gain with 45° and 90° SLANT, N-Female Connectors, Millimeter Alignment Mount.

Differentiators:

  • The widest frequency range on the market.
  • Connectivity with other brands. Ubiquiti, Mimosa, Cambium, etc.
  • 45° Slant-type polarization to reduce noise levels.
  • Fine-tuned assembly, highly robust and stable.
  • Ideal antenna for ISP
  • Antenna for CCTV deployments

Electrical Specifications:

  • Frequency Range: 4.9 - 6.4 GHz
  • Antenna Type: Parabolic
  • Connector Type: N - Female
  • Gain 34 dBi
  • VSWR: < 2
  • HPOL beamwidth: 4.2°
  • VPOL beamwidth: 4.0°
  • Return loss: 9.54 dB
  • ISO: 30 dB
  • F/B Radio: 30 dB
  • XPD: 30 dB
  • Polarization: Dual

Mechanical Specifications:

  • Wind resistance speed: 120 km/hr
  • Azimuth Adjustment: 360°
  • Elevation Adjustment: ±15°
  • Suggested mast diameter: 50 - 70, 100 - 114 mm
  • Operating Temperature: -45 to +60 ℃
  • Gross Weight: 6.5 kg
  • Net Weight: 10 kg

Note: For correct installation always use vulcanized tape.

The jumpers included with the antenna are compatible with the following radios: C5c, AF5XHAD, R5ACLITE, RP5ACGEN2, LTUROCKET, RP5ACGEN2, EPMP-3K, FORCE300-CSM, C050940C121A, C050910C161A, EPMP-3KL

    High-precision mounting, Dual polarization, High noise isolation, Electrostatic painting, Includes N-Male to reverse SMA Male jumper

Out of stock

MODELO: NPX2GEN3
