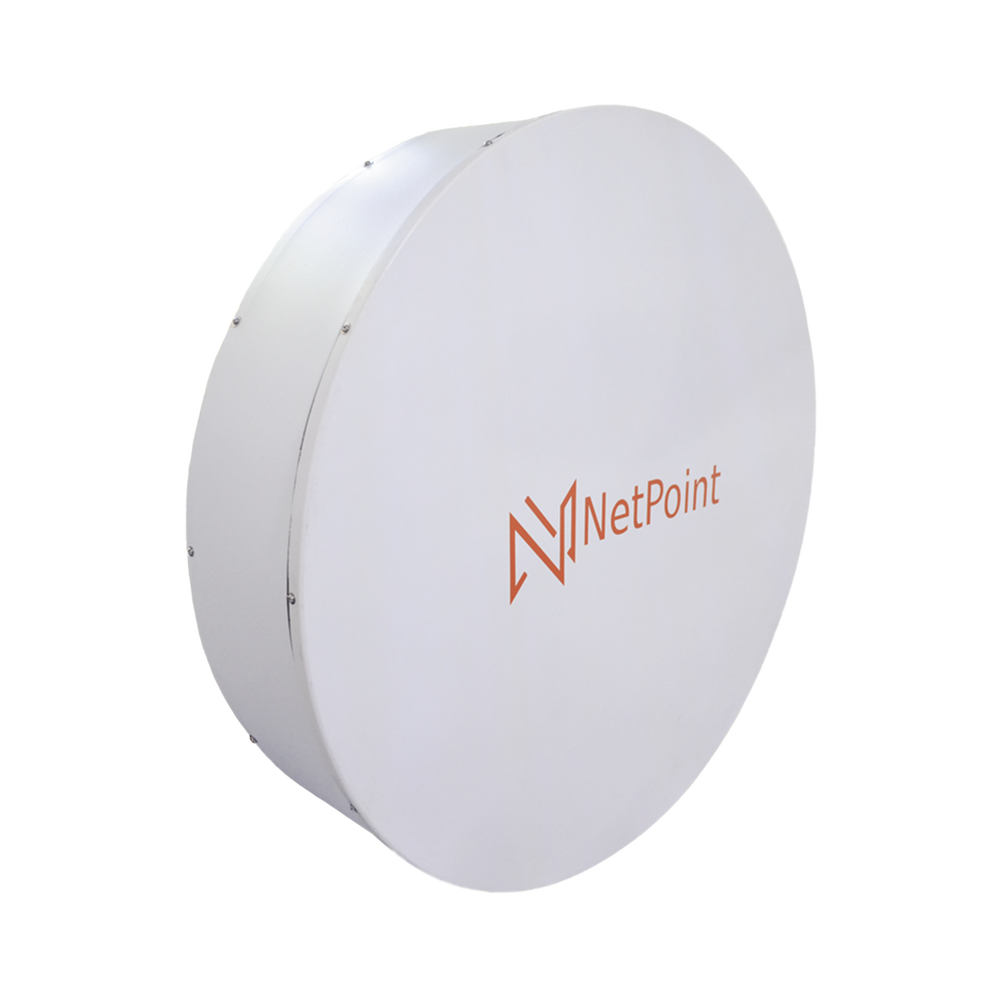

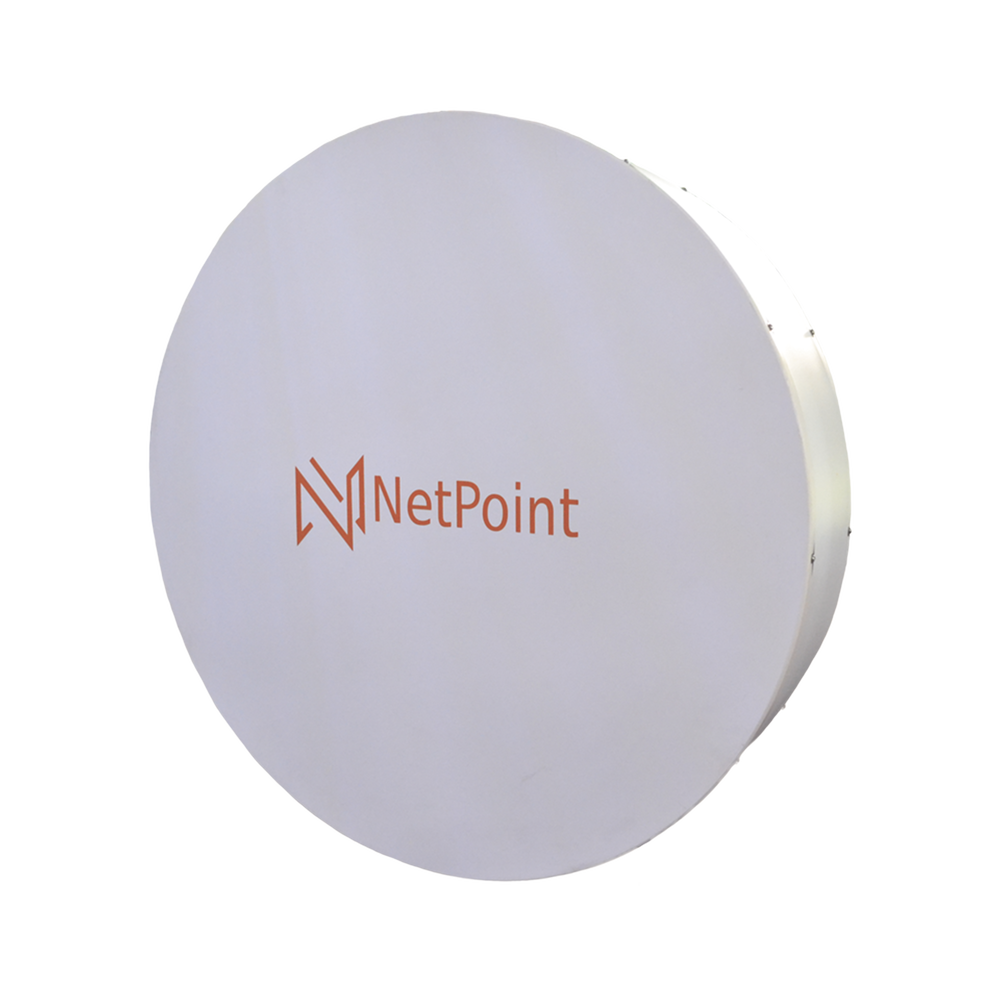

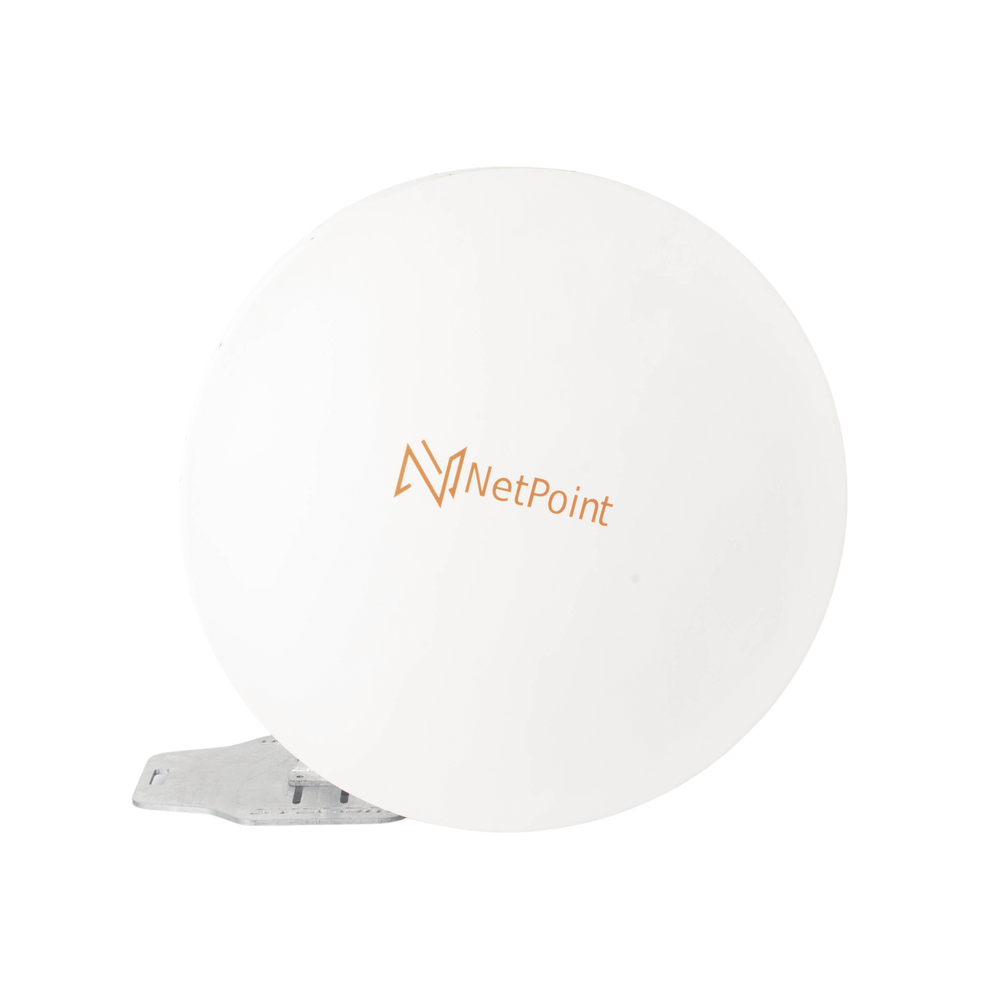

4ft High Performance Shielded Antenna, 4.9-6.4 GHz, 37 dBi Gain with 45° and 90° SLANT, N-Female Connectors, Millimeter Alignment Mount.

4ft High Performance Shielded Antenna, 4.9-6.4 GHz, 37 dBi Gain with 45° and 90° SLANT, N-Female Connectors, Millimeter Alignment Mount.

120cm Diameter Directional Antenna, 4.9-6.2 GHz 37 dBi with SLANT for Point-to-Point applications.

Differentiators:
The widest frequency range on the market.
Connectivity with other brands. Ubiquiti, Mimosa, Cambium, etc.
45° Slant polarization to reduce noise levels.
Fine-tuned assembly, highly robust and stable.
Customization: Antennas can be adapted to increase wind and corrosion resistance, and mounts suitable for all types of towers can be manufactured.

Electrical Specifications:
Frequency Range: 4.9 - 6.4 GHz
Gain (dBi):
-Low – 35.2 dBi
-Average – 35.7 dBi
-High – 37.0 dBi
Dimension: 1.20 m in diameter.
Cross-polar discrimination: 30 dB
Operating temperature: -45 +55 °C
VSWR/Return Loss: < 2.0 dB
Isolation: 35 dB
Relative humidity: 15 to 100%
Polarization: Dual

Mechanical Specifications:
Wind resistance speed 120 km/hr
Azimuth adjustment: 360°
Elevation adjustment ±15
Suggested mast diameter: 50-70 mm, 100-114 mm
Operating temperature: -45 to +60 C°

Gross weight 6.5 kg

Net weight 15 kg

Note: For correct installation always use vulcanized tape.

The jumpers included with the antenna are compatible with the following radios: C5c, AF5XHAD, R5ACLITE, RP5ACGEN2, LTUROCKET, RP5ACGEN2, EPMP-3K, FORCE300-CSM, C050940C121A, C050910C161A, EPMP-3KL

High noise isolation, Dual Polarization, High precision assembly, Electrostatic painting, Includes jumper from N-Male to reverse SMA Male
